Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the bracket on the height sensor with four nuts.
Tighten

Tighten four nuts to 3 N.m (26 lb in).
Install the height sensor with the bracket on the vehicle with two bolts.
Tighten

Tighten two bolts to 6 N.m (54 lb in).
Connect the link to the height sensor actuating arm and the suspension control arm.
Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Adjust the height sensor. Refer to Automatic Level Control Sensor Adjustment .

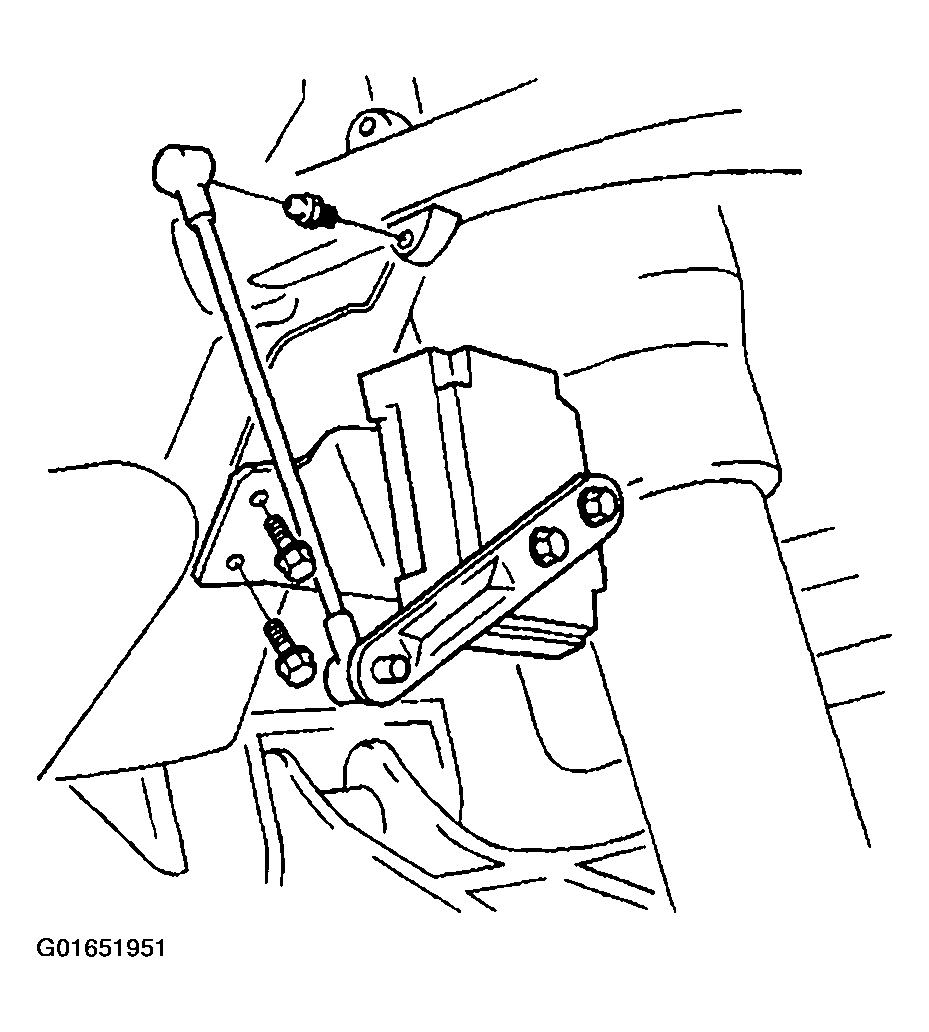

Fig 1: Installing Bracket & Nuts On Height Sensor
Courtesy of GENERAL MOTORS CORP.
