WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Outside Moisture Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

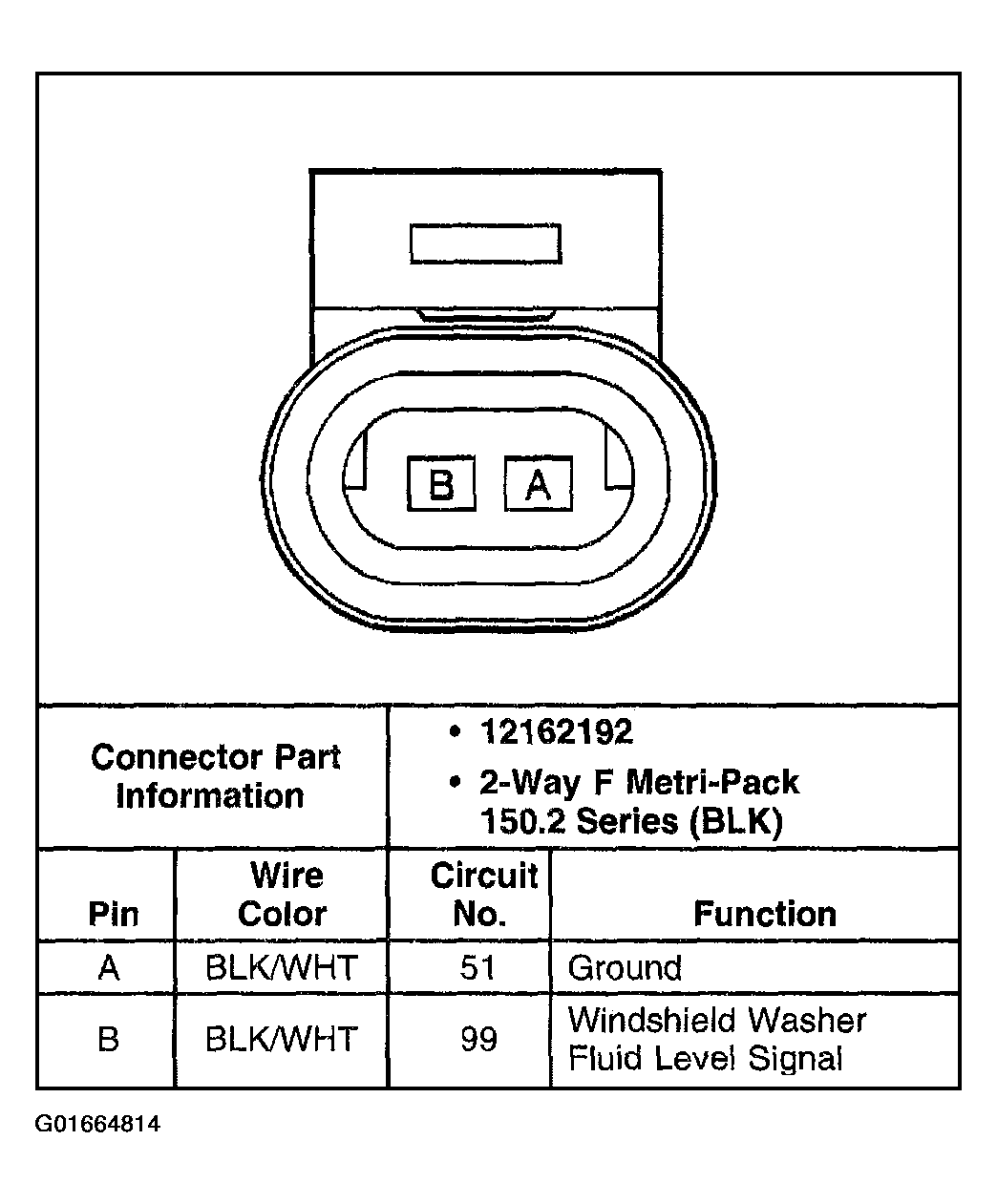

Fig 2: Windshield Washer Fluid Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

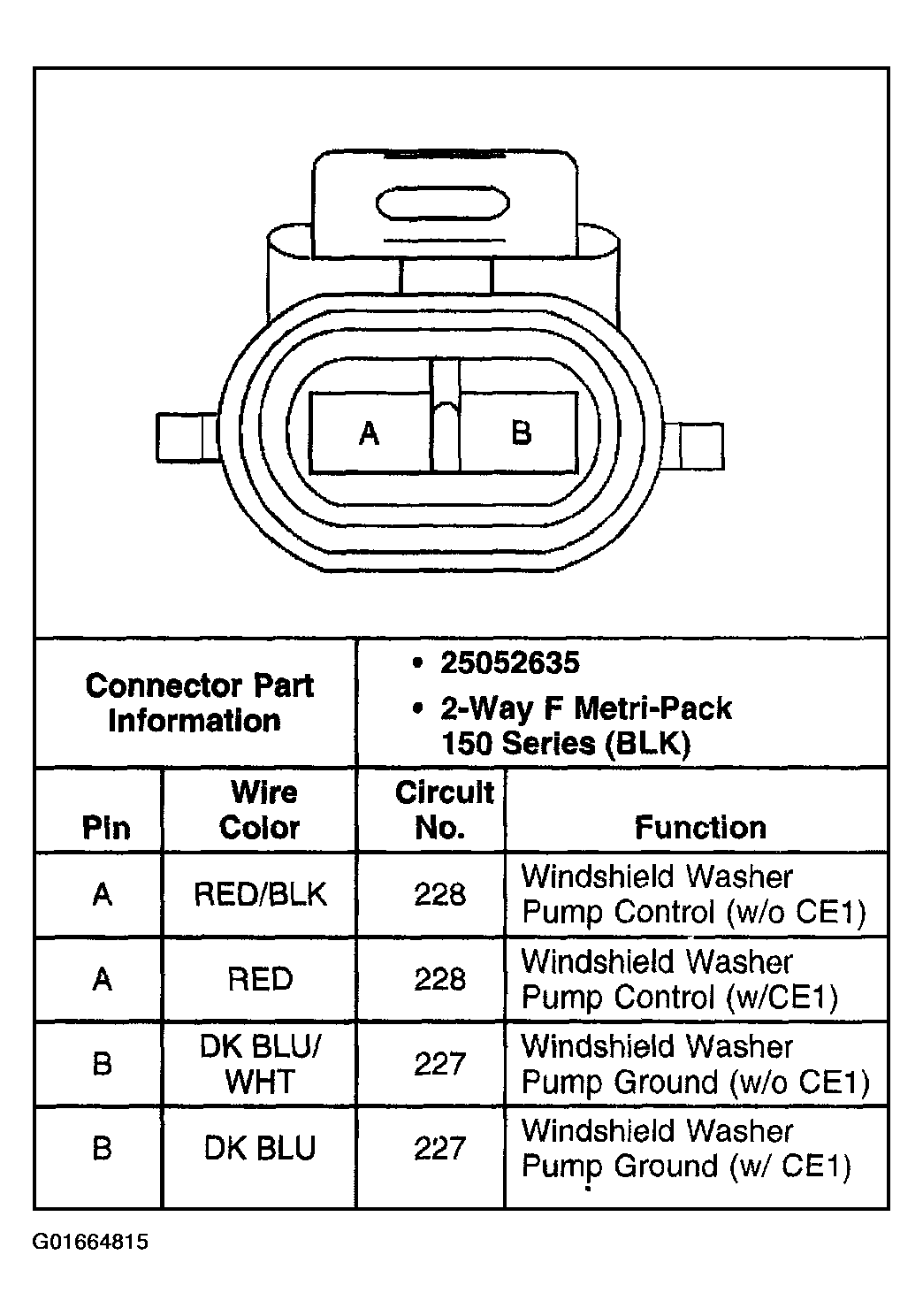

Fig 3: Windshield Washer Fluid Pump Connector End View
Courtesy of GENERAL MOTORS CORP.

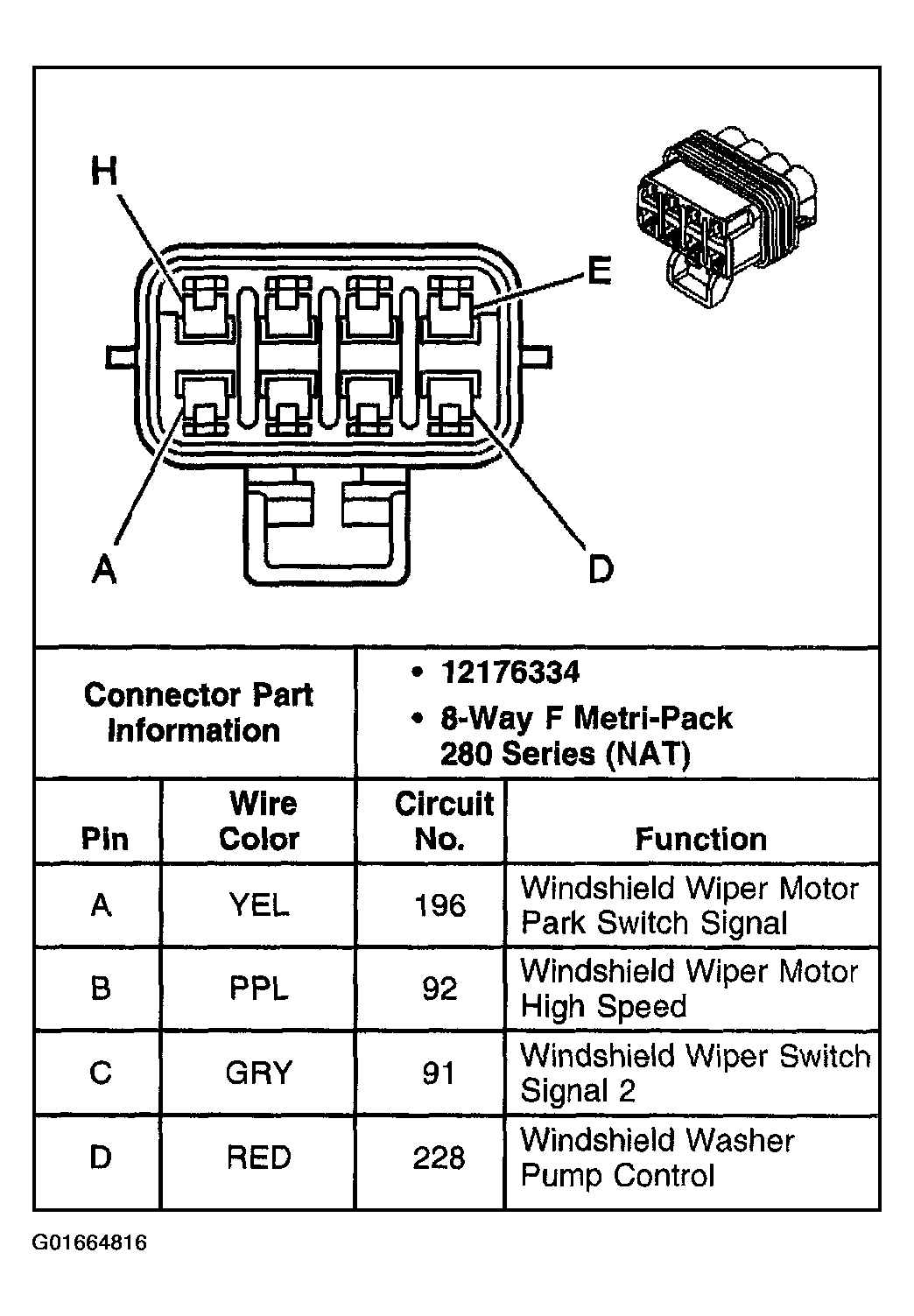

Fig 4: Windshield Wiper/Washer Module C1 (w/CE1) Connector End View (1 of 2)
Courtesy of GENERAL MOTORS CORP.

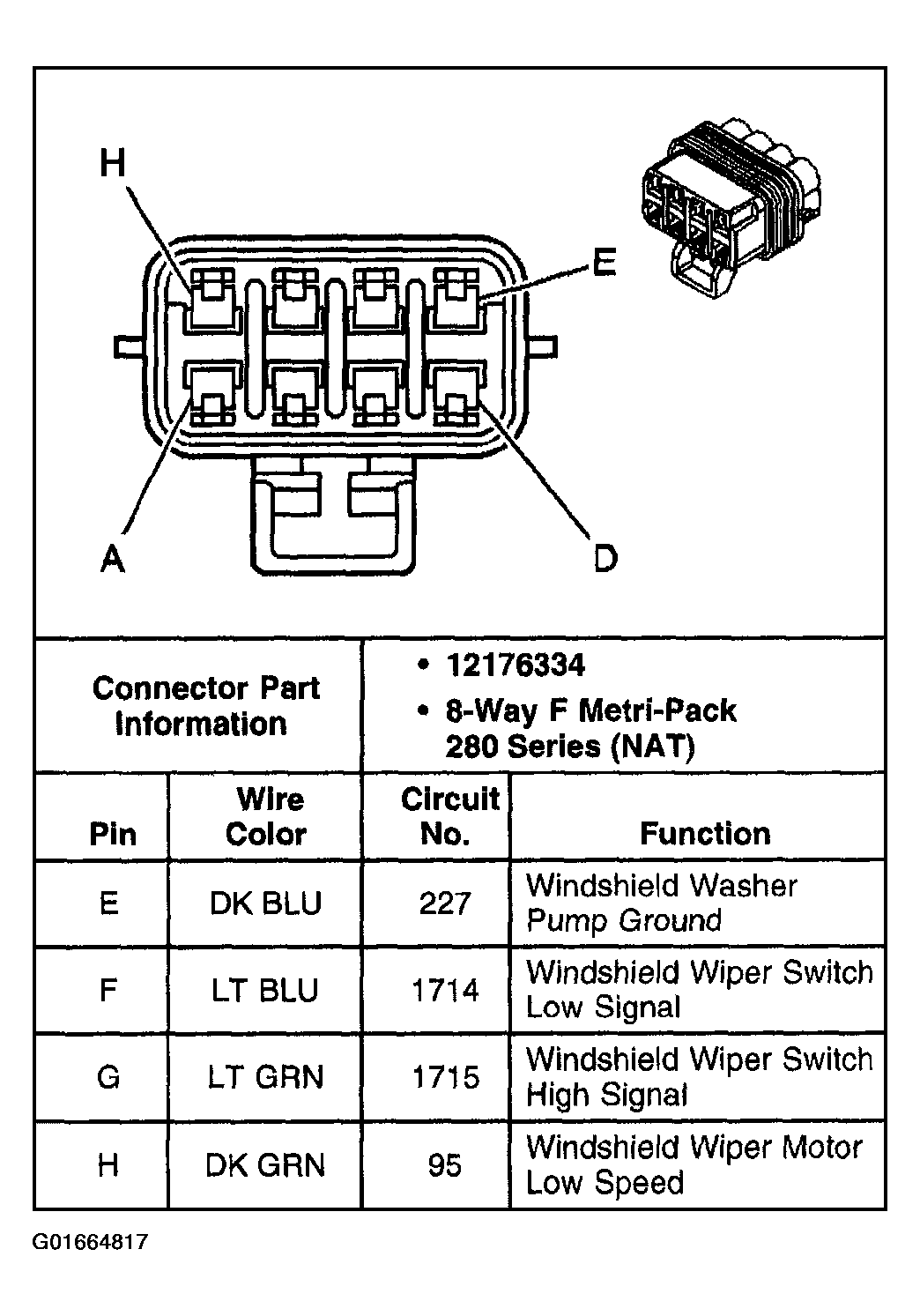

Fig 5: Windshield Wiper/Washer Module C1 (w/CE1) Connector End View (2 of 2)
Courtesy of GENERAL MOTORS CORP.

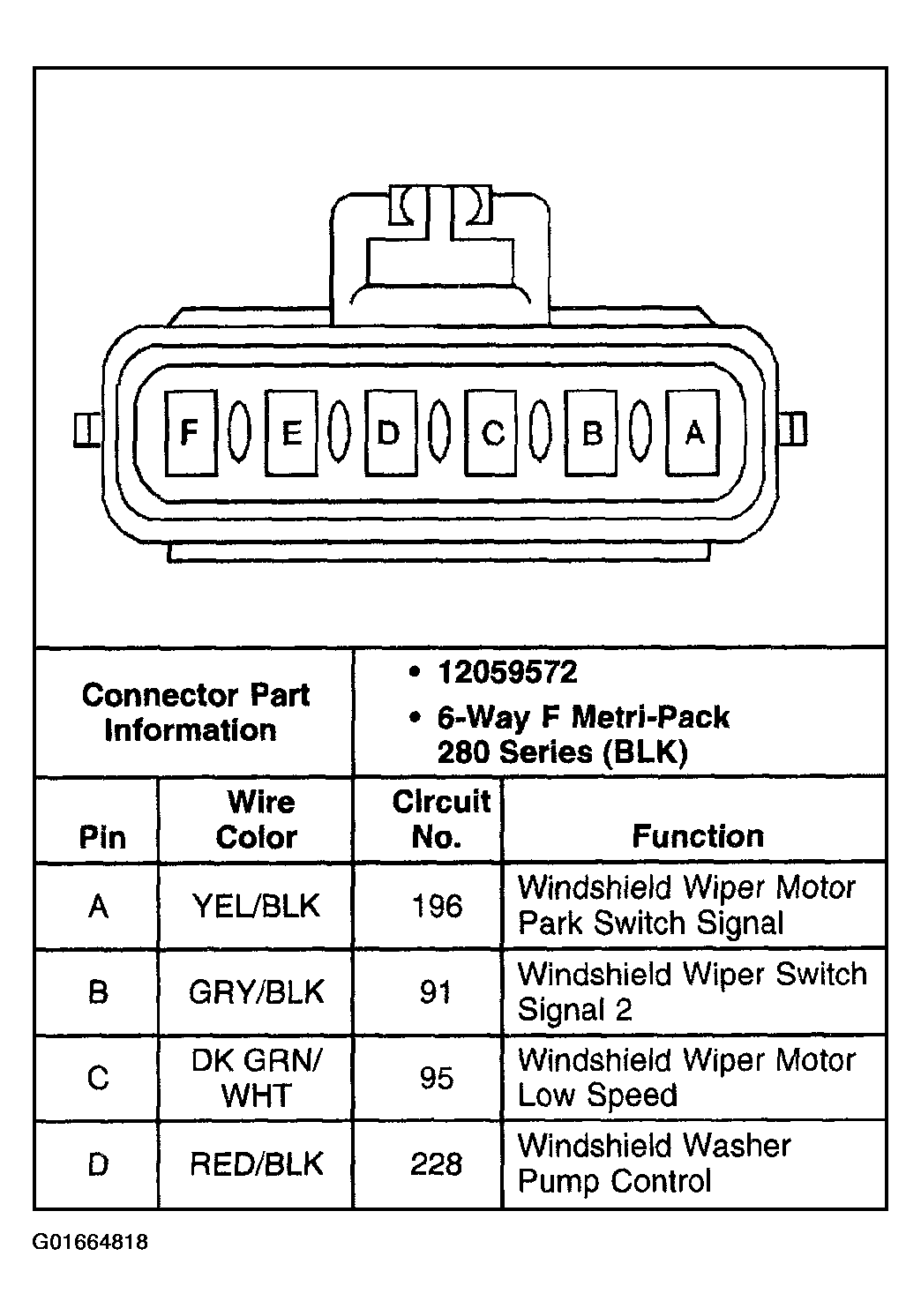

Fig 6: Windshield Wiper/Washer Module C1 (w/o CE1) Connector End View (1 of 2)
Courtesy of GENERAL MOTORS CORP.

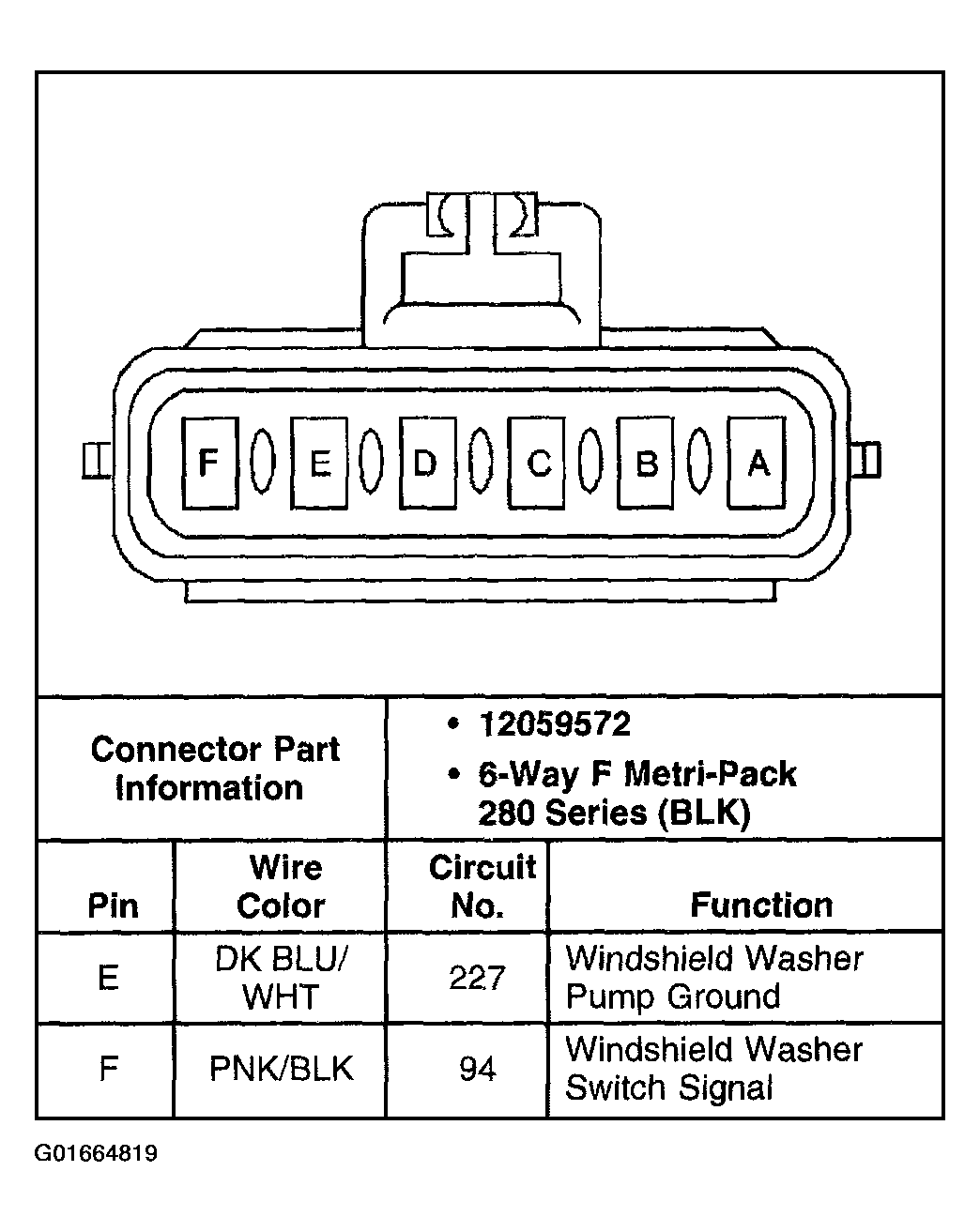

Fig 7: Windshield Wiper/Washer Module C1 (w/o CE1) Connector End View (2 of 2)
Courtesy of GENERAL MOTORS CORP.

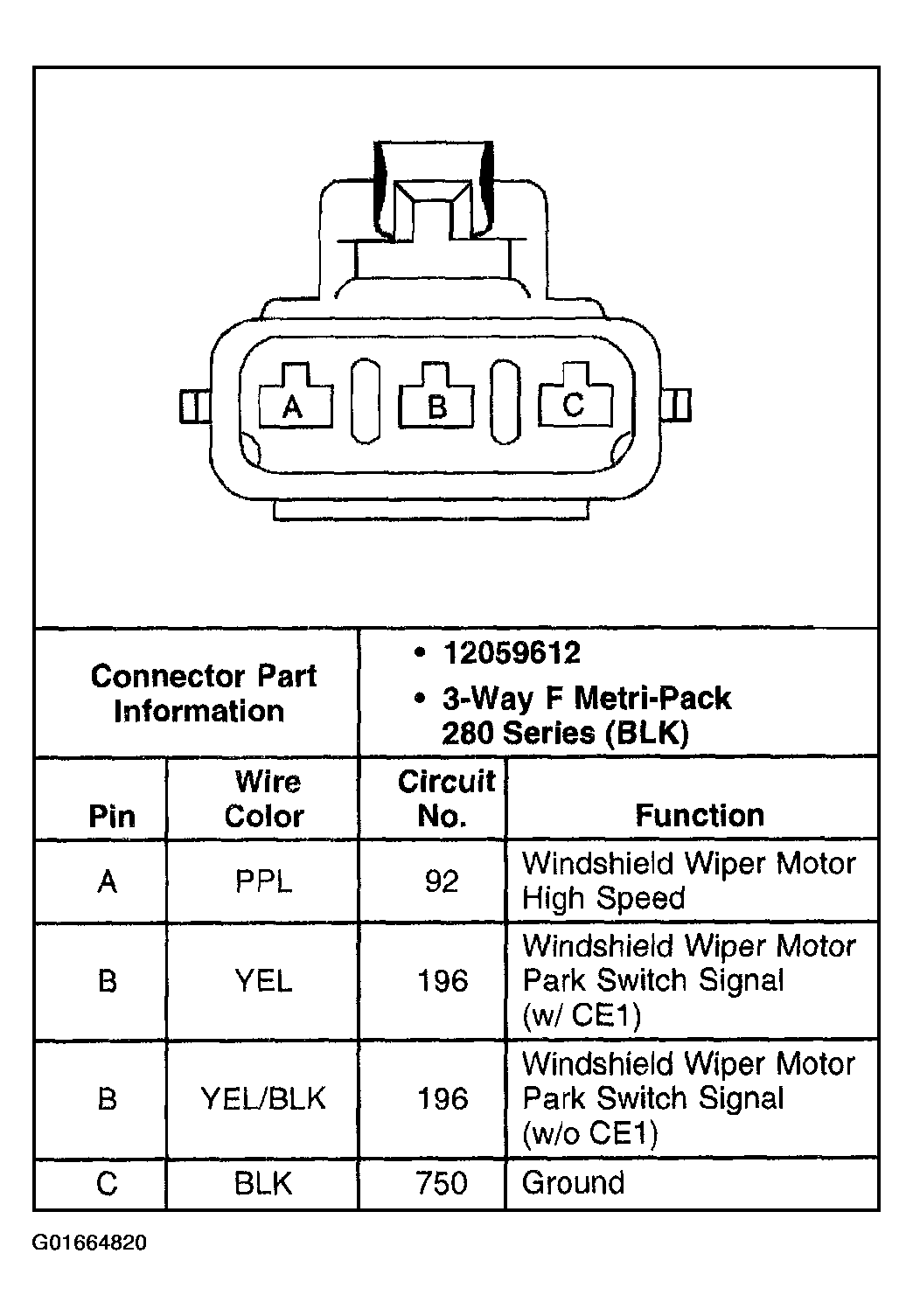

Fig 8: Windshield Wiper/Washer Module C2 Connector End View
