Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer solvent level sensor grommet into the container.
  2. Install the washer solvent level sensor (9) into the washer solvent container.
  3. Apply downward pressure in order to seat the level sensor to the level sensor the grommet.
  4. The level sensor will snap into the washer solvent container.
  5. Connect the electrical connector (8) to the washer solvent level sensor (9).
  6. Install the lower air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT .
  7. Fill the washer solvent container

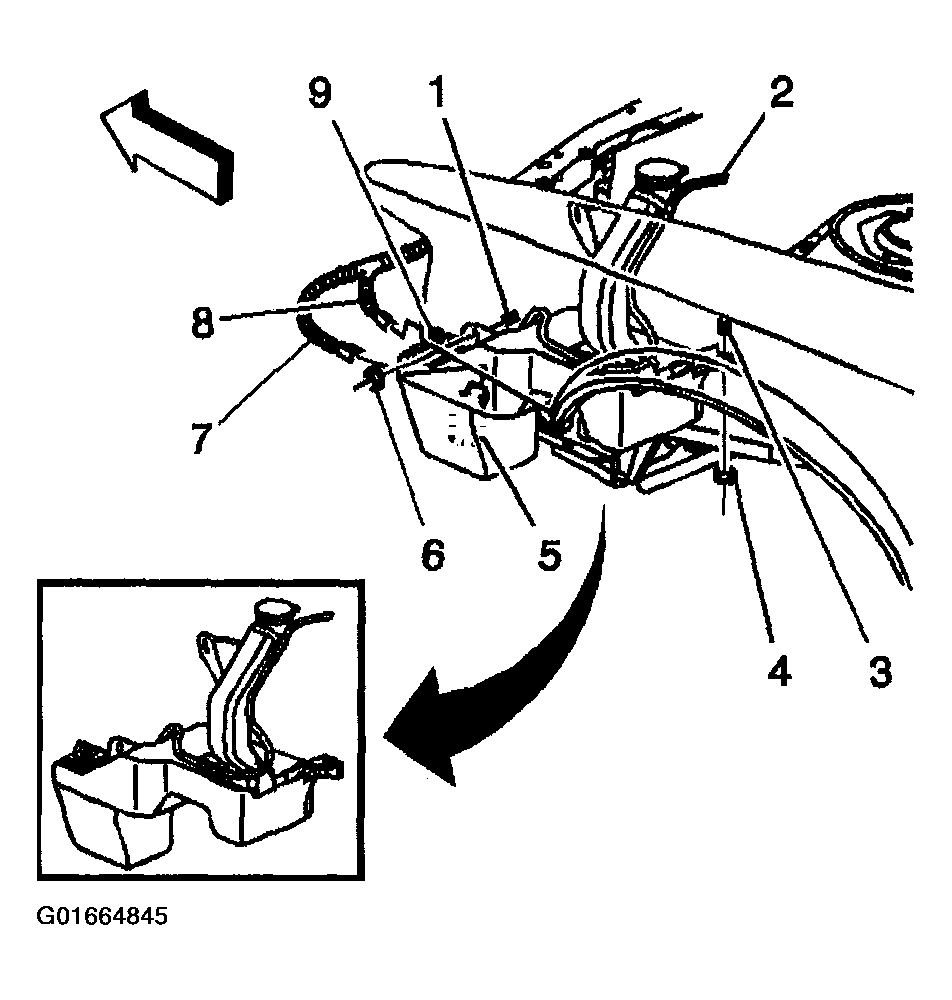

    Fig 1: Identifying Washer Solvent Level Sensor & Electrical Connector
    G01664845Courtesy of GENERAL MOTORS CORP.
