Automatic Level Control Suspension Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

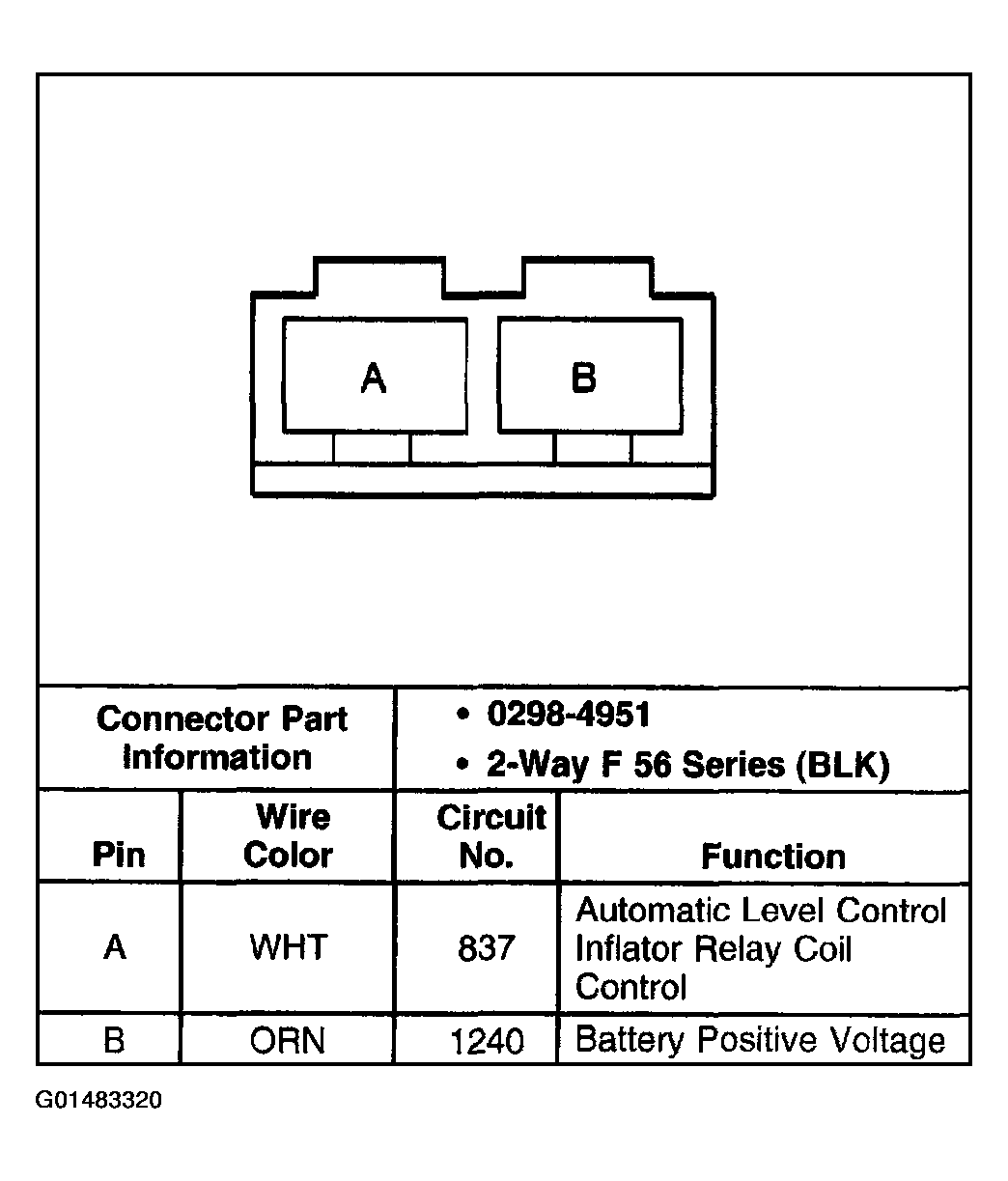

Fig 1: Air Inflator Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Auto Level Control (ALC) Air Compressor-With Inflator Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 3: Auto Level Control (ALC) Air Compressor-Without Inflator Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Auto Level Control (ALC) Air Inflator Solenoid Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 5: Auto Level Control (ALC) Sensor-With Inflator Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Auto Level Control (ALC) Sensor-Without Inflator Connector End View

Courtesy of GENERAL MOTORS CORP.
