Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the wires through the tie strap and the conduit.
  2. Install the O-ring (3) to the automatic level control air compressor.

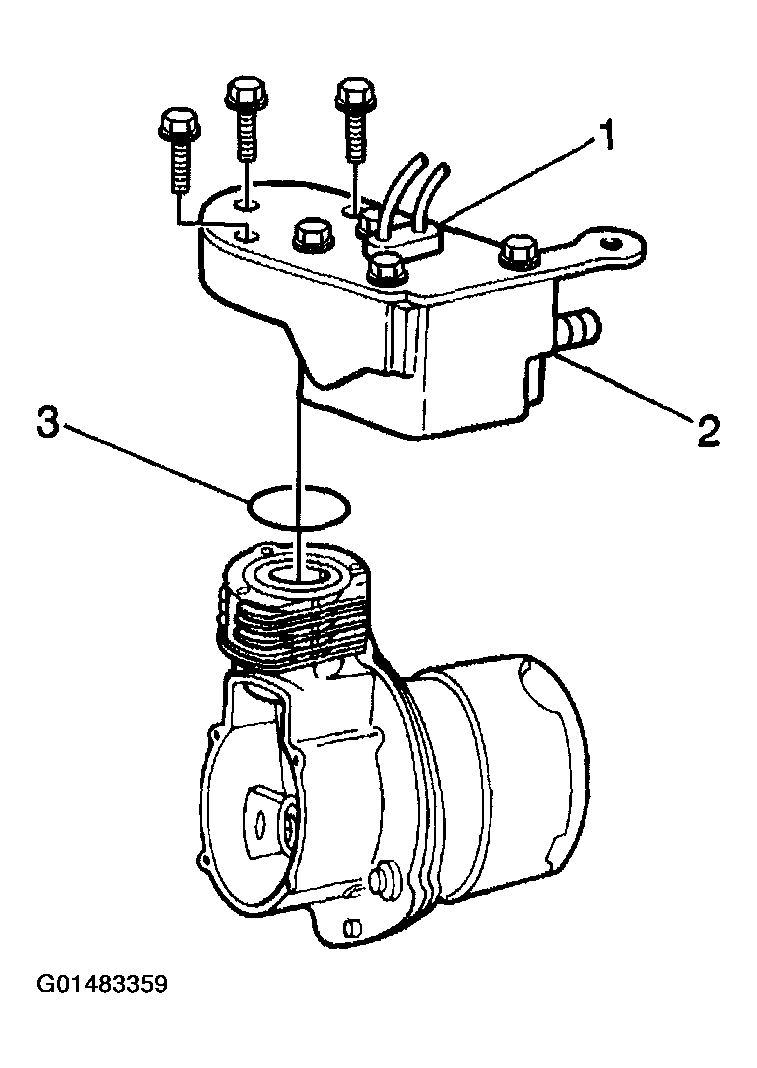

    Fig 1: Installing O-Ring To Automatic Level Control Air Compressor
    G01483359Courtesy of GENERAL MOTORS CORP.
  3. Install the air compressor head.
    NOTE: Refer to FASTENER NOTICE in Cautions an on paged Notices.
  4. Install the air compressor head bolts.

    Tighten

    Tighten the air compressor head bolts in the order shown to 6 N.m (53 lb in).

  5. Install the wiring to terminals B and C on the automatic level control air compressor electrical connector.
  6. Install the air dryer to the automatic level control air compressor. Refer to AUTOMATIC LEVEL CONTROL AIR DRYER REPLACEMENT   .
  7. Install the automatic level control air compressor to the vehicle. Refer to AIR COMPRESSOR REPLACEMENT   .
    Fig 2: Installing Air Compressor Head
    G01483360Courtesy of GENERAL MOTORS CORP.
