Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic level control air compressor from the vehicle. Refer to AIR COMPRESSOR REPLACEMENT   .
  2. Remove the air dryer from the automatic level control air compressor. Refer to AUTOMATIC LEVEL CONTROL AIR DRYER REPLACEMENT   .
  3. Remove the wiring terminals B and C from the automatic level control air compressor electrical connector.
  4. Remove the bolts/screws from the automatic level control air compressor head (2).

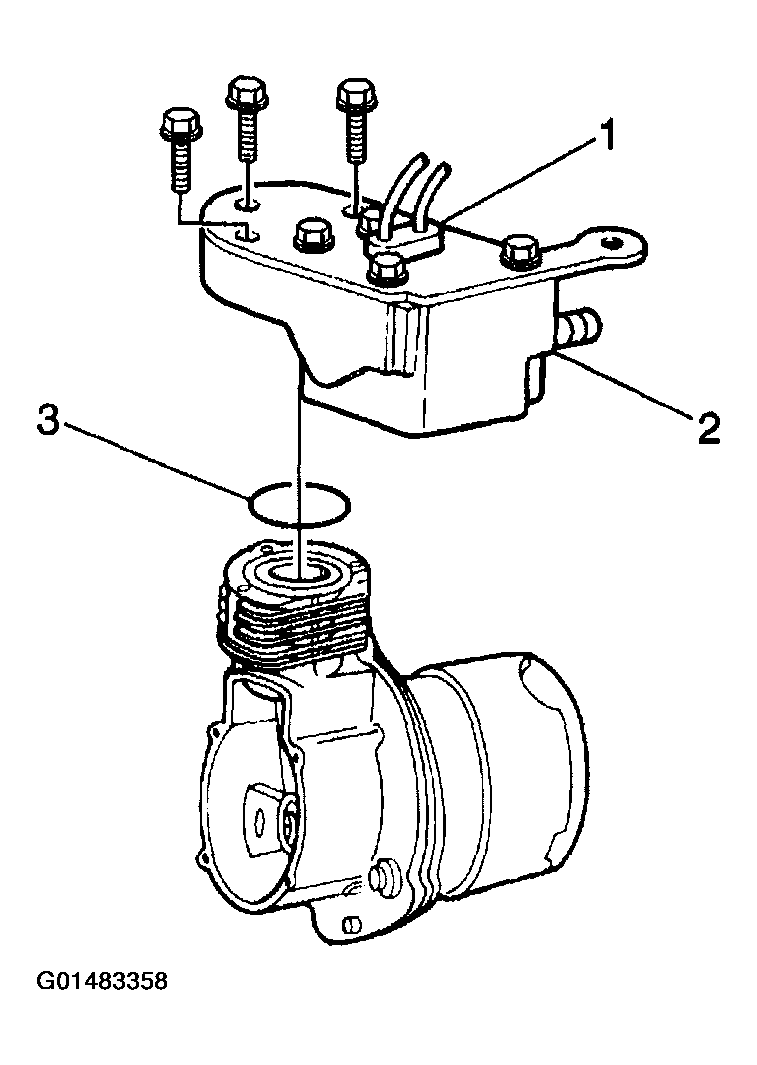

    Fig 1: Removing O-Ring From Automatic Level Control Air Compressor
    G01483358Courtesy of GENERAL MOTORS CORP.
  5. Remove the automatic level control air compressor head.
  6. Remove the O-ring (3) from the automatic level control air compressor.
