Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install electrical connector (1) into the automatic level control relay (2).

Fig 1: Installing Electrical Connector Into Automatic Level Control Relay
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install mounting screw (1) into the automatic level control relay.
Tighten

Tighten screw to 6 N.m (53 lb in).
Lower the vehicle.

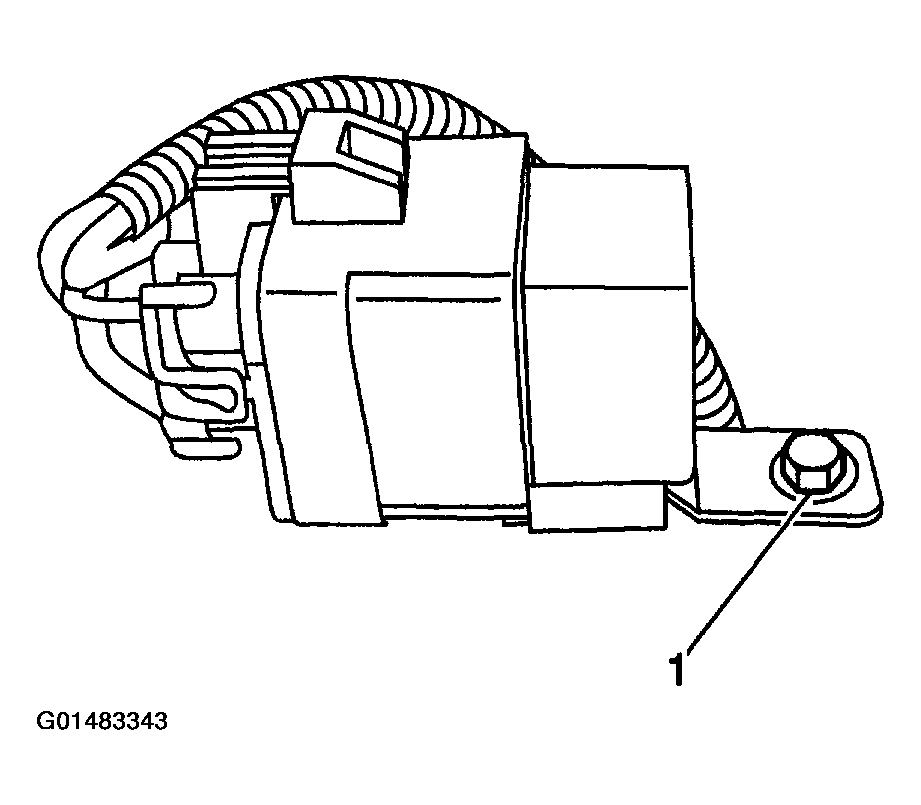

Fig 2: Installing Mounting Screw Into Automatic Level Control Relay
Courtesy of GENERAL MOTORS CORP.
