Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

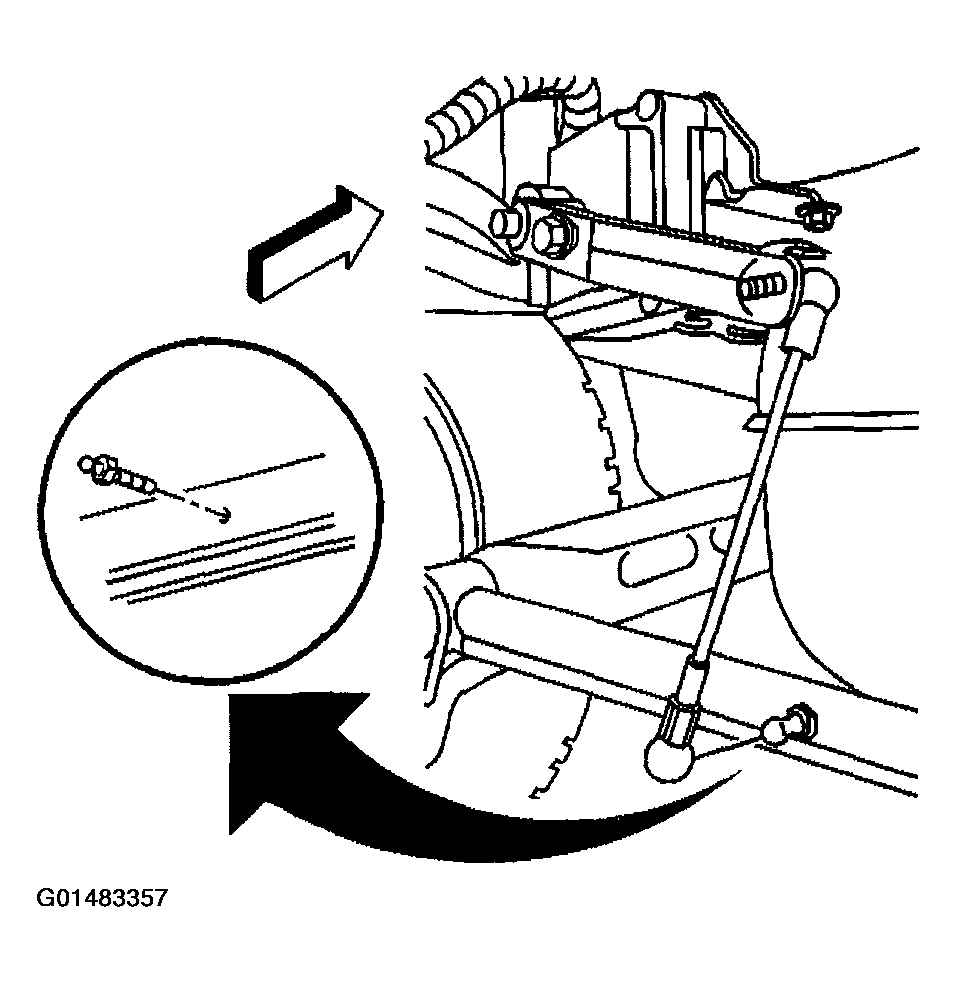

- Install the ball stud to the rear axle tie rod.
Tighten
Tighten the height sensor ball stud to 4 N.m (35 lb in).
- Install the automatic level control sensor link to the tie rod ball stud.
- Lower the vehicle.
- Install the ELC/TRAILER fuse.
