Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the link to the tie rod and the sensor arm.
  2. Lower the vehicle.

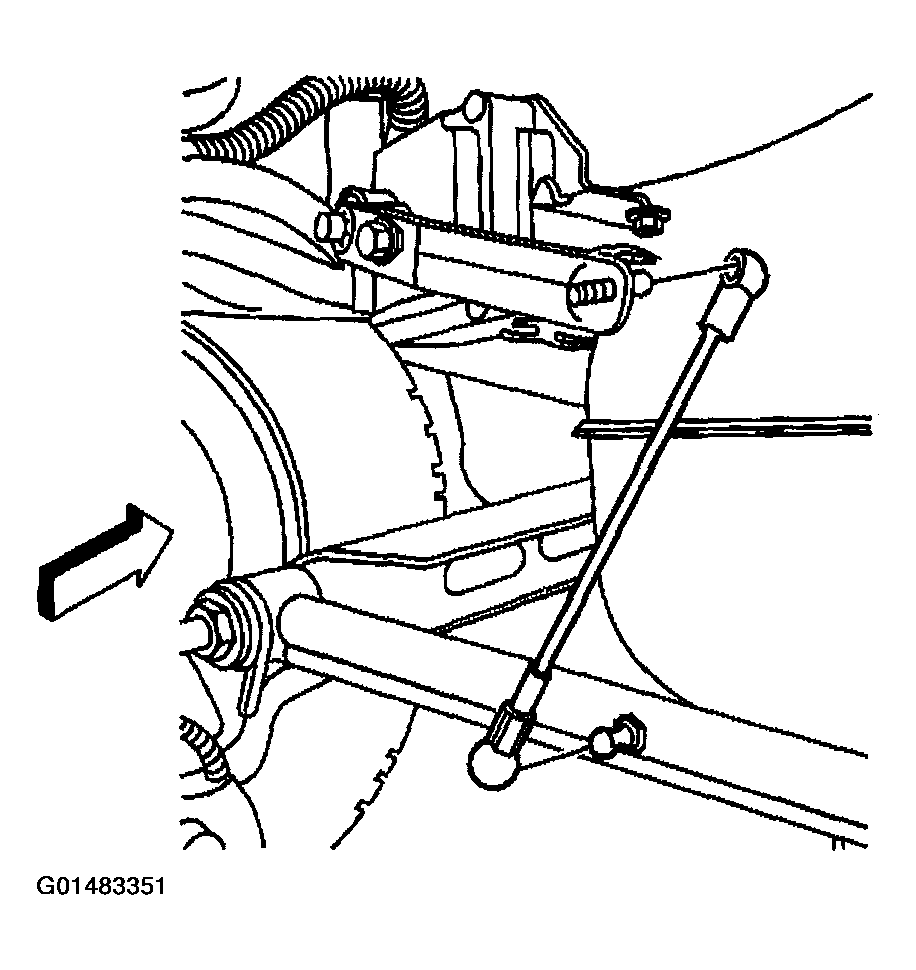

    Fig 1: Installing Link To Tie Rod And Sensor Arm
    G01483351Courtesy of GENERAL MOTORS CORP.
