Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the automatic level control height sensor link onto the sensor arm.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the automatic level control height sensor to the vehicle.
  3. Install the height sensor bracket bolts (1)

    Tighten

    Tighten the height sensor bracket bolts to 85 N.m (63lb ft)

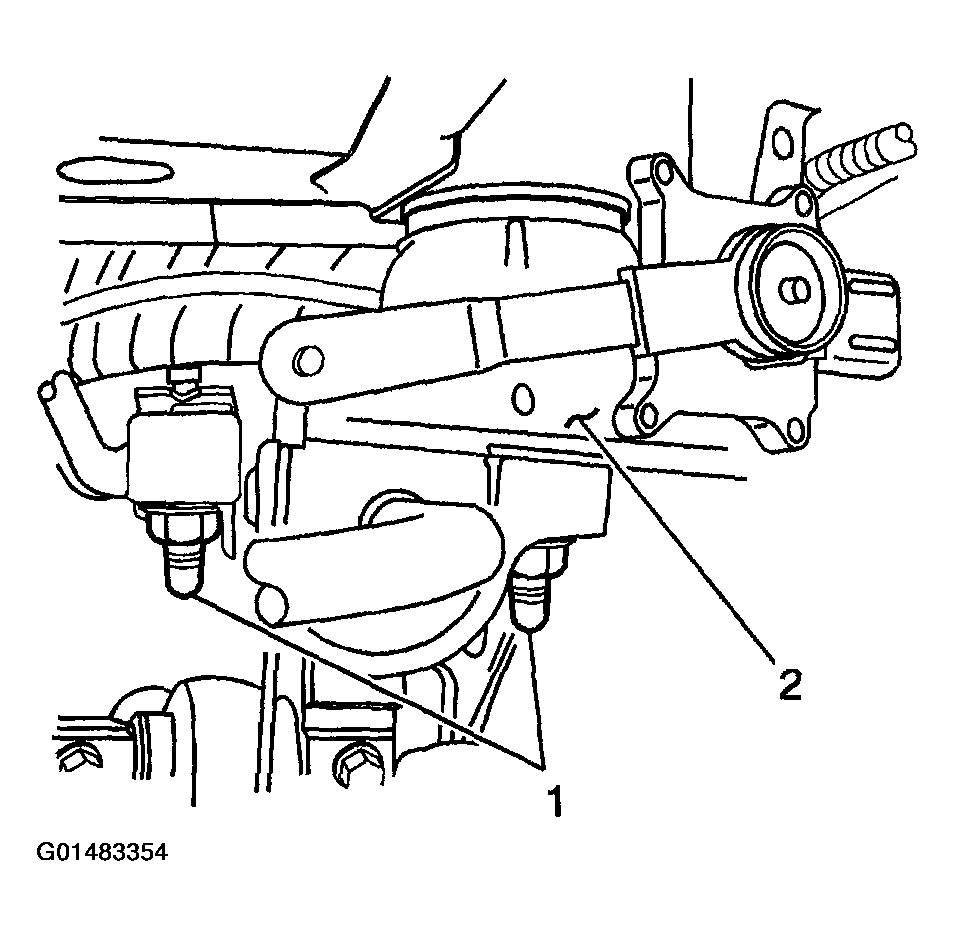

    Fig 1: Installing Automatic Level Control Height Sensor Link Onto Sensor Arm
    G01483354Courtesy of GENERAL MOTORS CORP.
  4. Install the automatic level control height link to the tie rod ball stud. Refer to AUTOMATIC LEVEL CONTROL SENSOR LINK REPLACEMENT   .
  5. Install the automatic level control height sensor electrical connector (1).
  6. Lower the vehicle.
  7. Perform a diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - AUTOMATIC LEVEL CONTROL (WITH INFLATOR)   or DIAGNOSTIC SYSTEM CHECK - AUTOMATIC LEVEL CONTROL (WITHOUT INFLATOR)   .

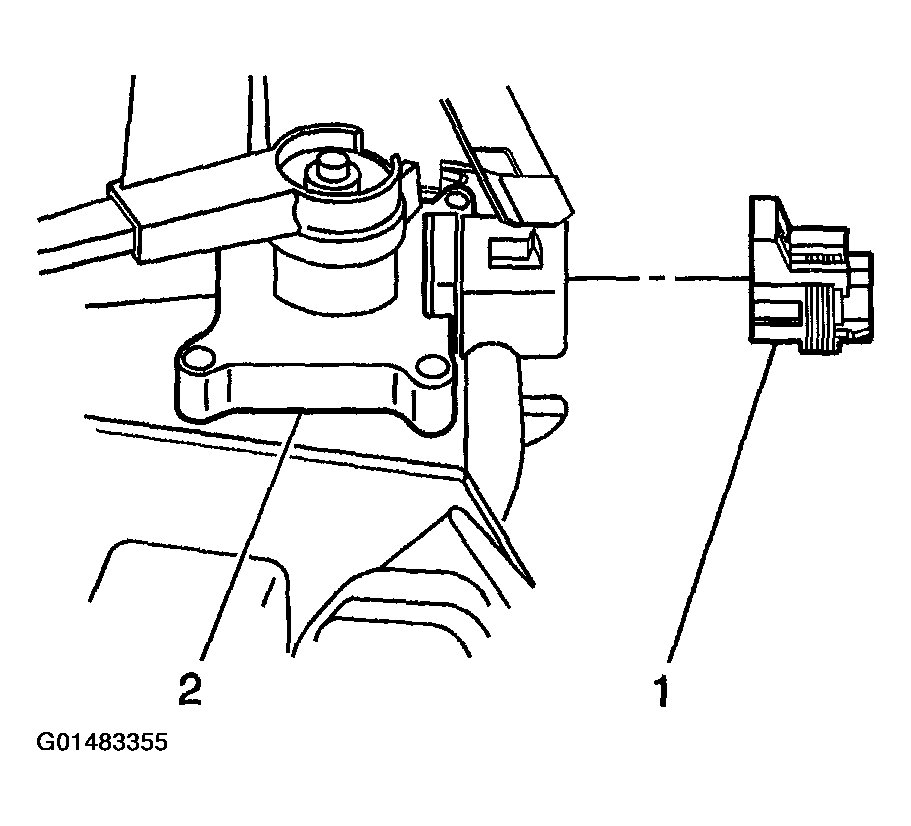

    Fig 2: Installing Automatic Level Control Height Sensor Electrical Connector
    G01483355Courtesy of GENERAL MOTORS CORP.
