Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Place the data link connector into position.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Instal the bolts/screws to the data link connector.
Tighten

Tighten the bolts/screws to 2 N-m (18 lb in.).

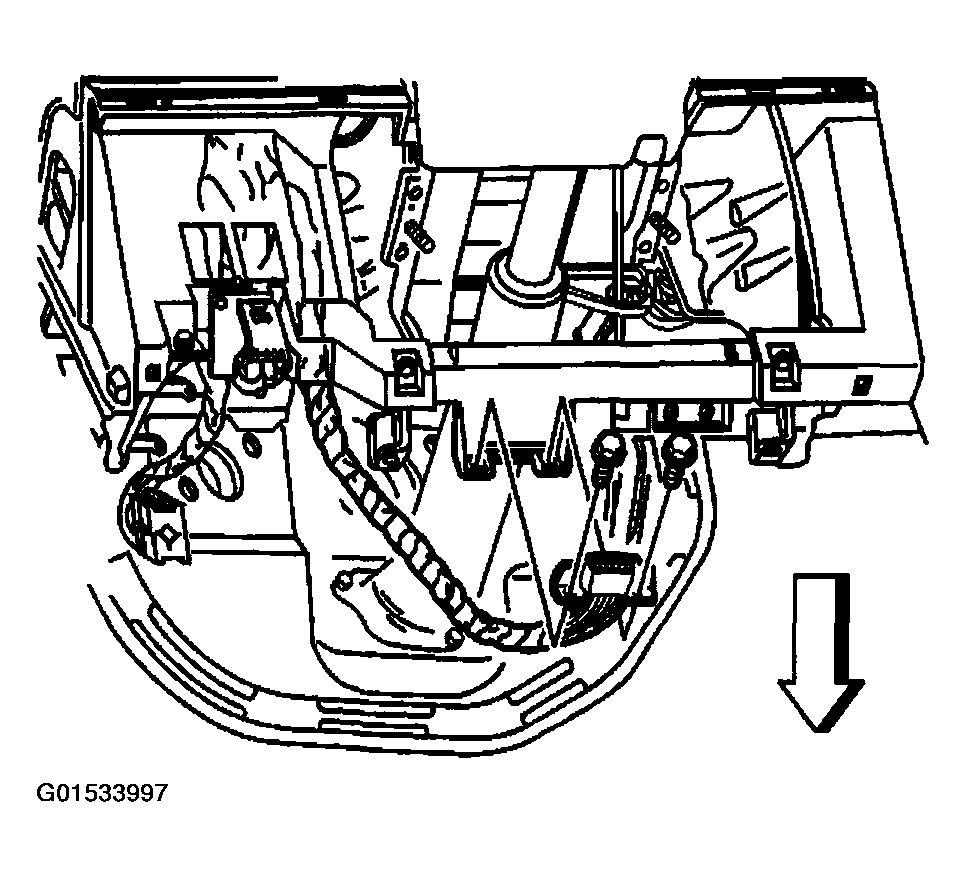

Fig 1: Installing Lower Data Link Connector
Courtesy of GENERAL MOTORS CORP.
