Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts/screws from the data link connector.
  2. Remove the lower data link connector.

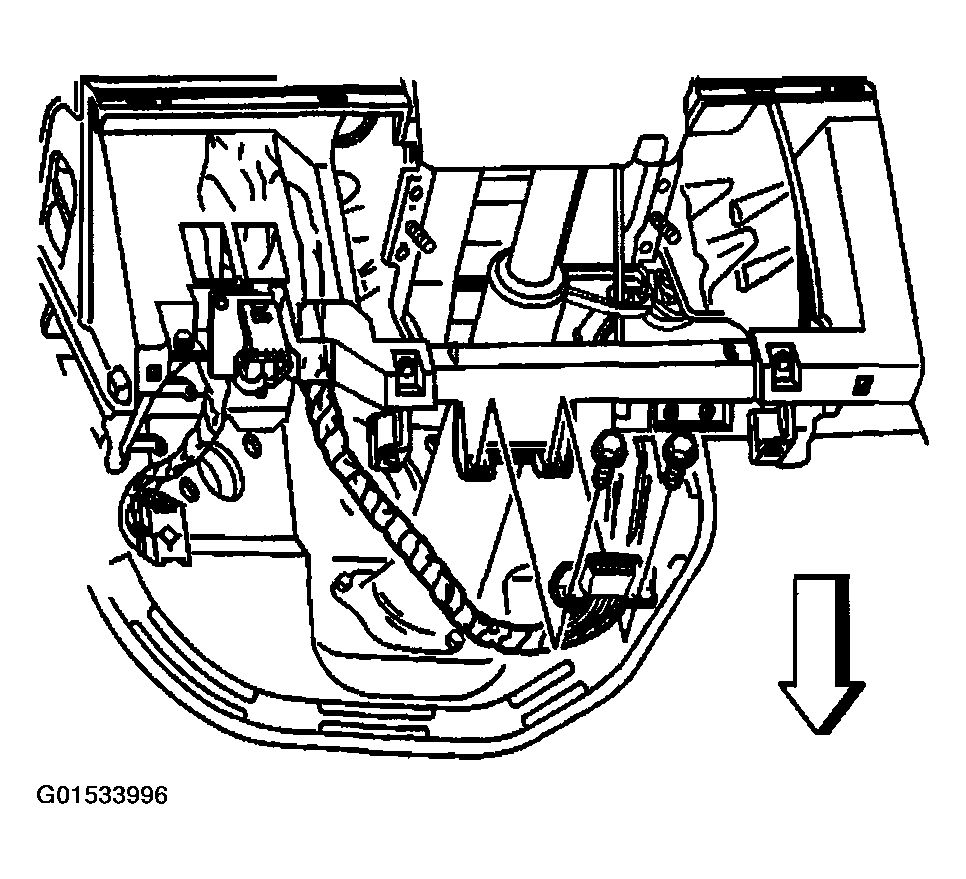

    Fig 1: Removing Lower Data Link Connector
    G01533996Courtesy of GENERAL MOTORS CORP.
