Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT   .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILL PANEL REPLACEMENT  in Body Front End.
  3. Remove the cruise control and bracket. Refer to CRUISE CONTROL MODULE REPLACEMENT  in Cruise Control.
  4. Remove the wiper motor. Refer to WIPER MOTOR REPLACEMENT   .
  5. Remove the wiper drive system module screws.
  6. Remove the wiper drive system module from the vehicle.

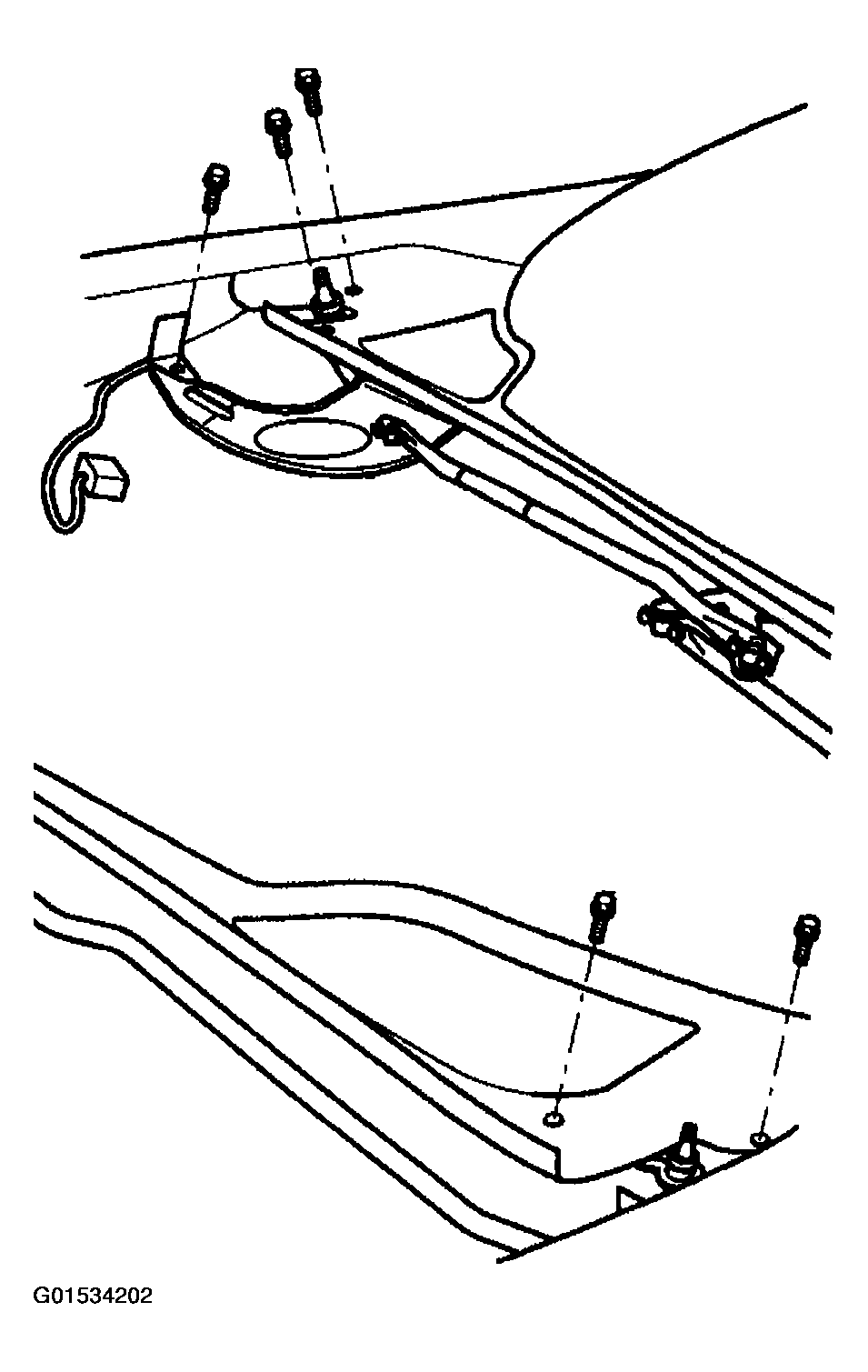

    Fig 1: Removing Wiper Drive System Module From Vehicle
    G01534202Courtesy of GENERAL MOTORS CORP.
