Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Window Wiper/Washer and Multi-Function Switch C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Window Wiper Motor-Rear Connector End View

Courtesy of GENERAL MOTORS CORP.

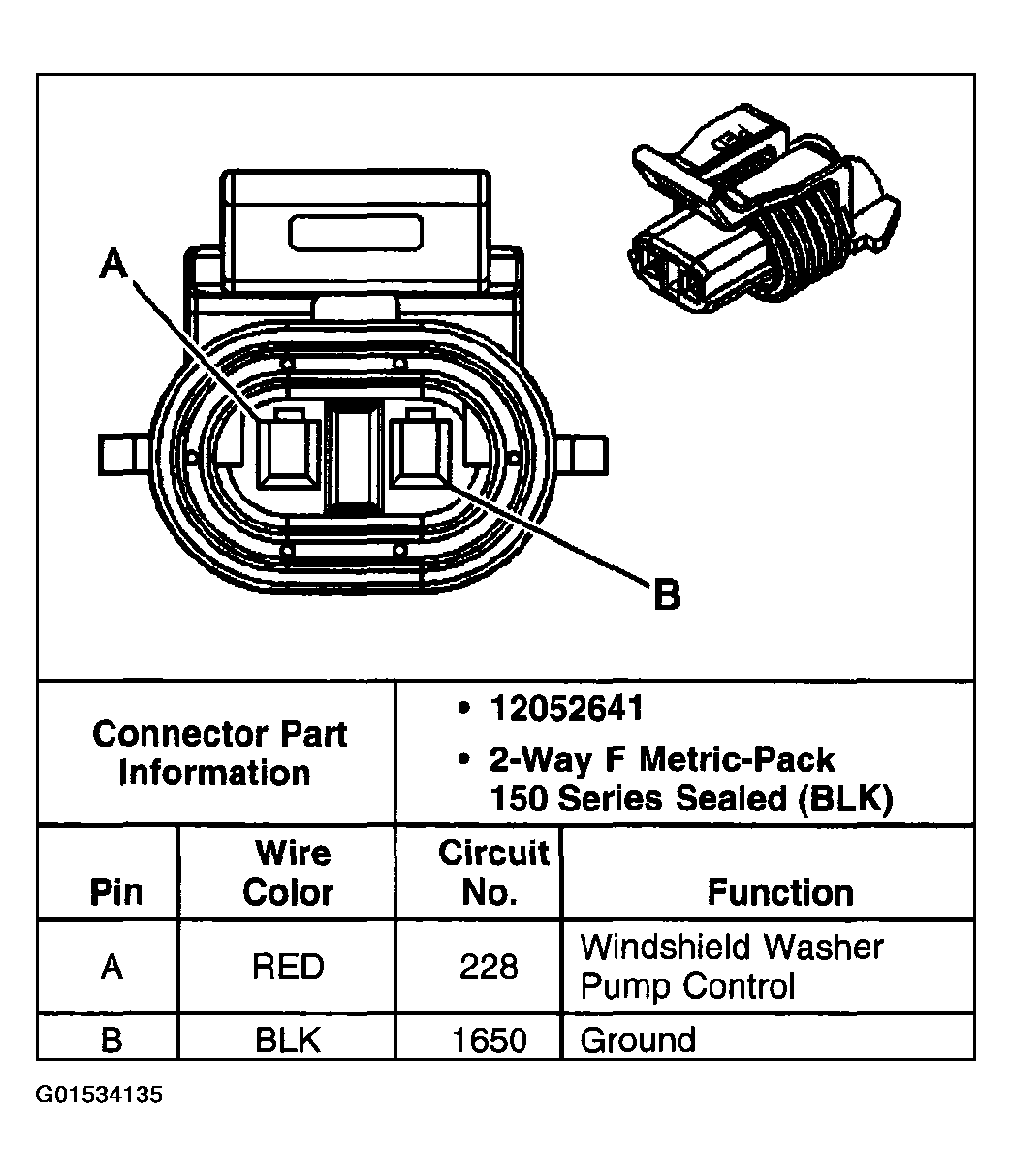

Fig 3: Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Window Washer Fluid Pump-Rear Connector End View

Courtesy of GENERAL MOTORS CORP.

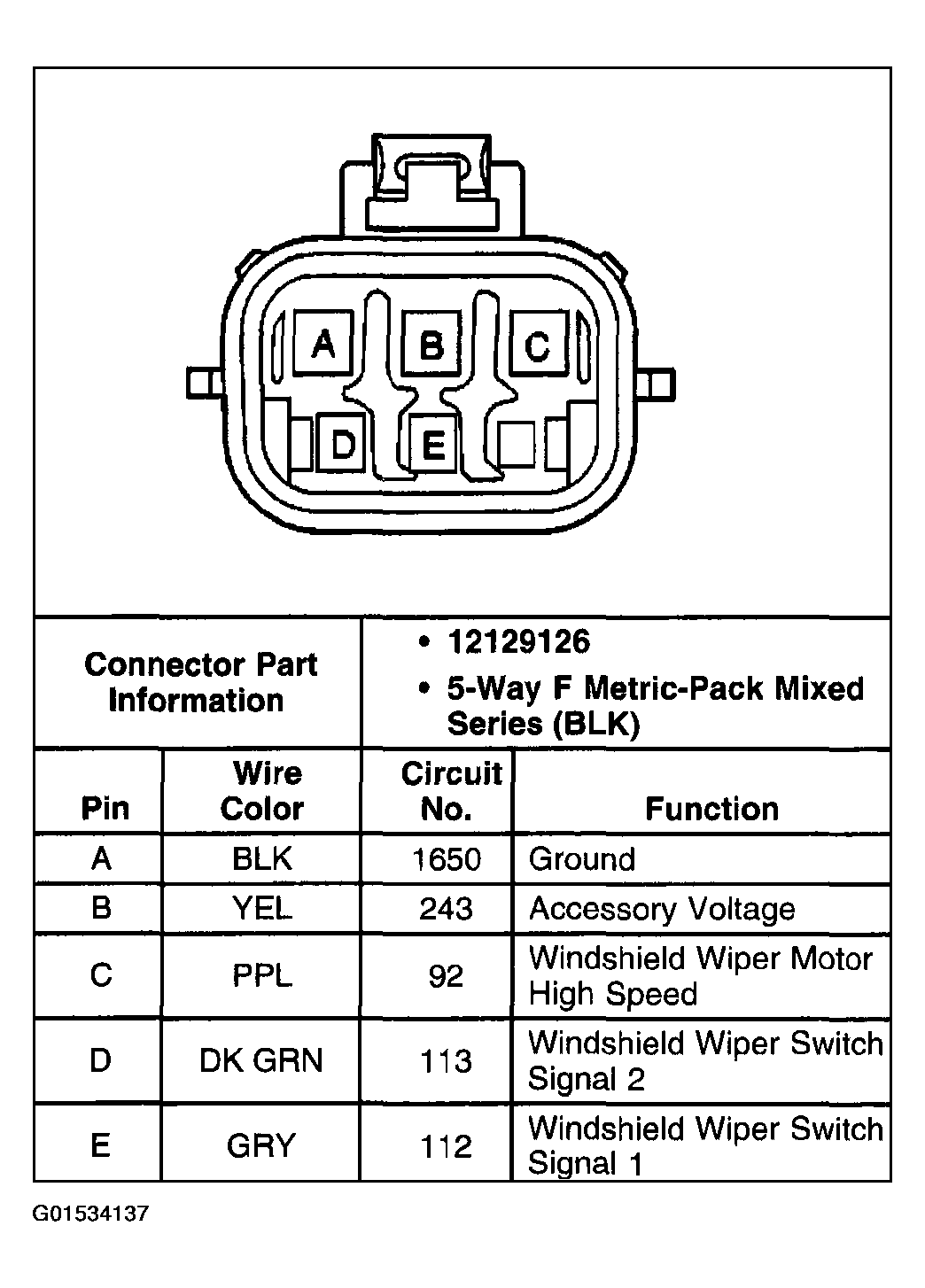

Fig 5: Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
