Body Control System Component Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

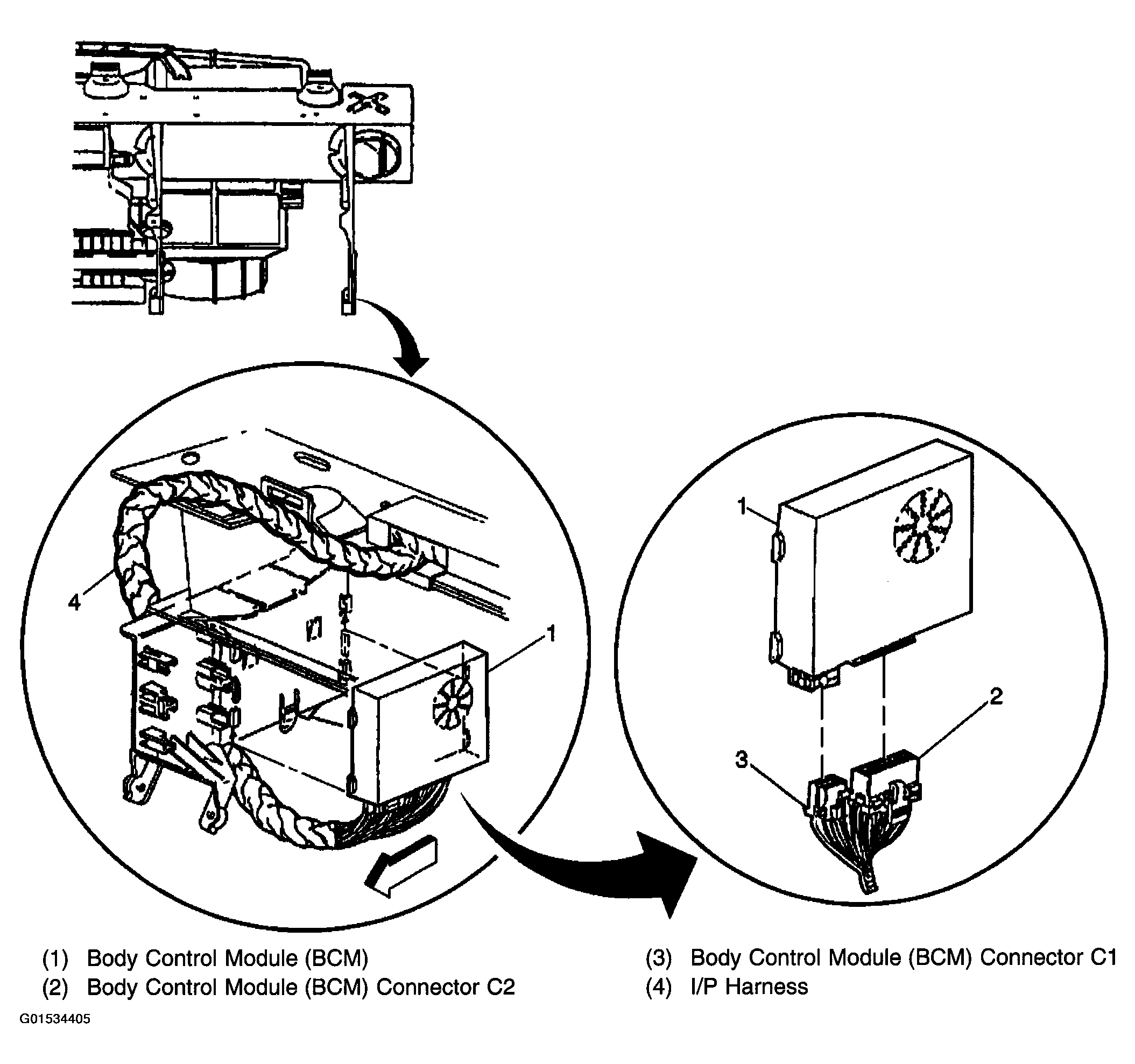

Fig 1: RH Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

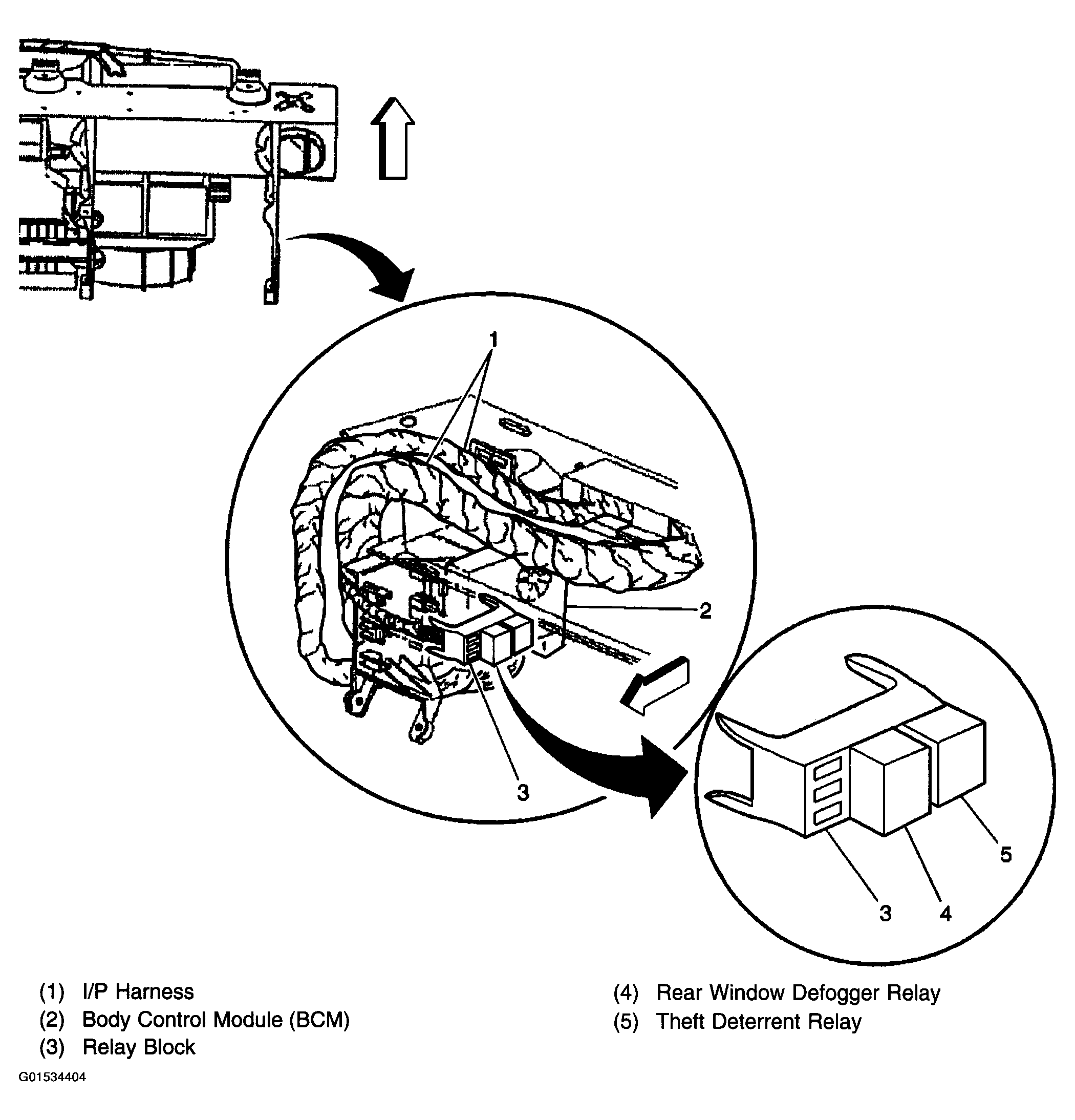

Fig 2: Below RH Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.
