Body Control System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Body Control Module (BCM) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

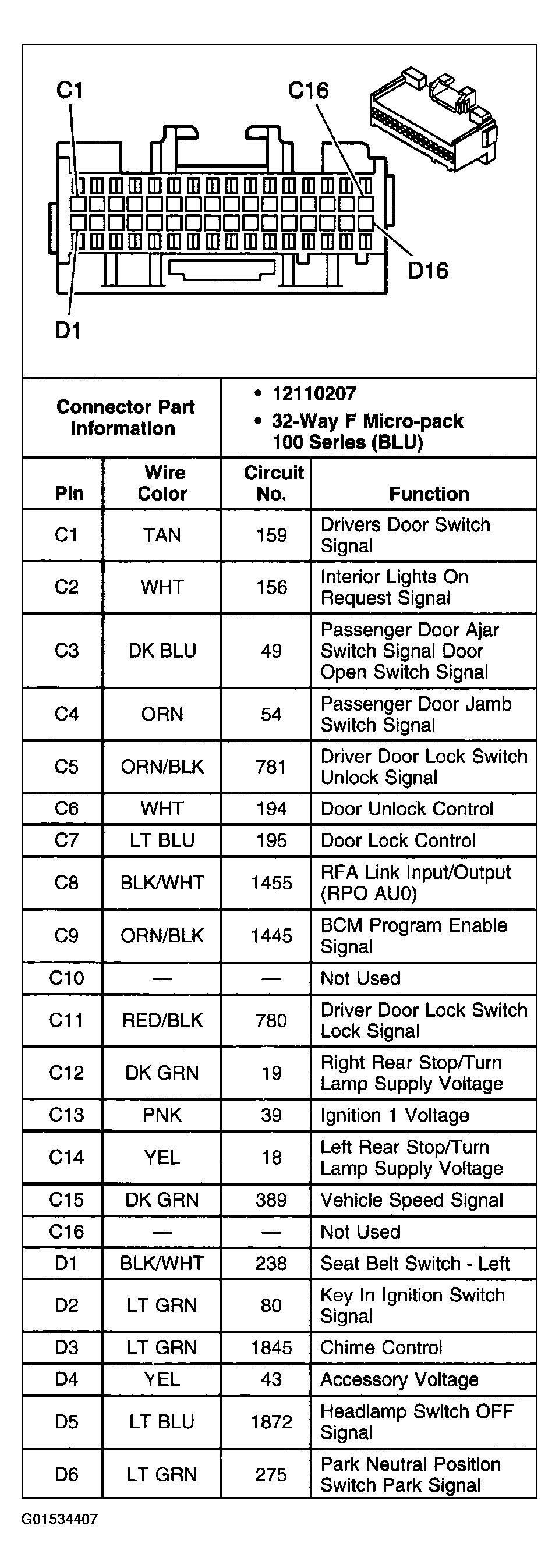

Fig 2: Body Control Module (BCM) C2 Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

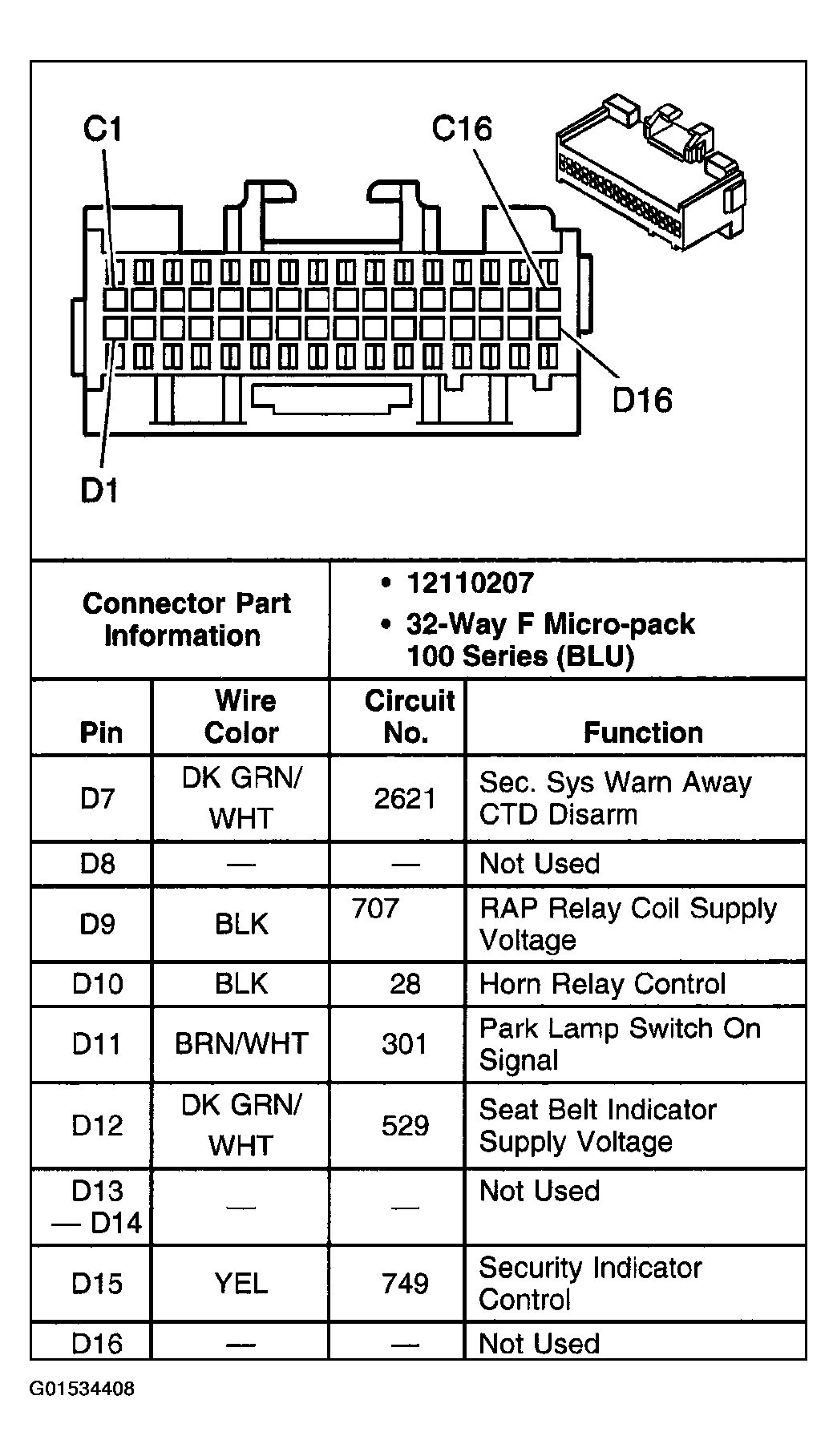

Fig 3: Body Control Module (BCM) C2 Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
