Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the (GPS) antenna tab into the slot in the rear shelf.
  2. Secure the (GPS) antenna to the rear shelf with the retainer.
  3. Secure the cable (2) to the rear shelf.
  4. Connect the Global Positioning System (GPS) antenna coaxial cable connector.
  5. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  6. Install the module bracket assembly to the seat back panel.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (89 lb in).

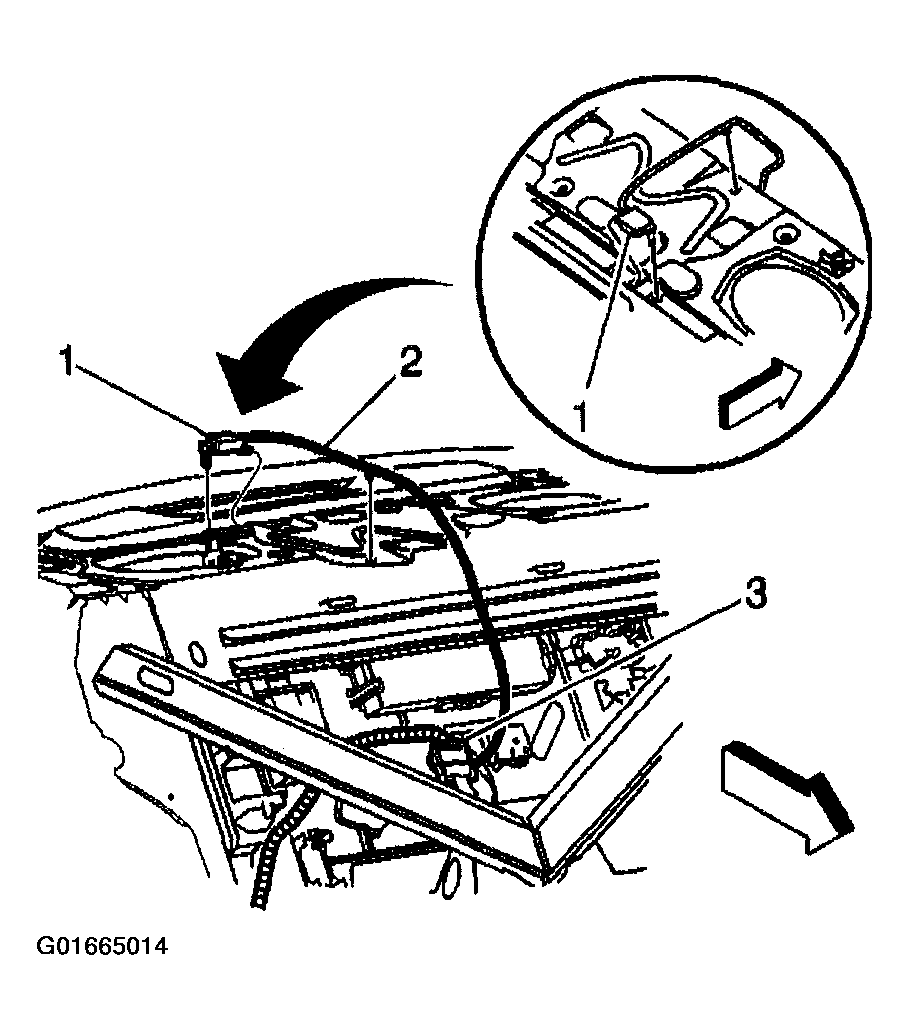

    Fig 1: Identifying GPS Antenna Cable
    G01665014Courtesy of GENERAL MOTORS CORP.
  8. Install the seat back trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR .
  9. Close the rear compartment lid.
