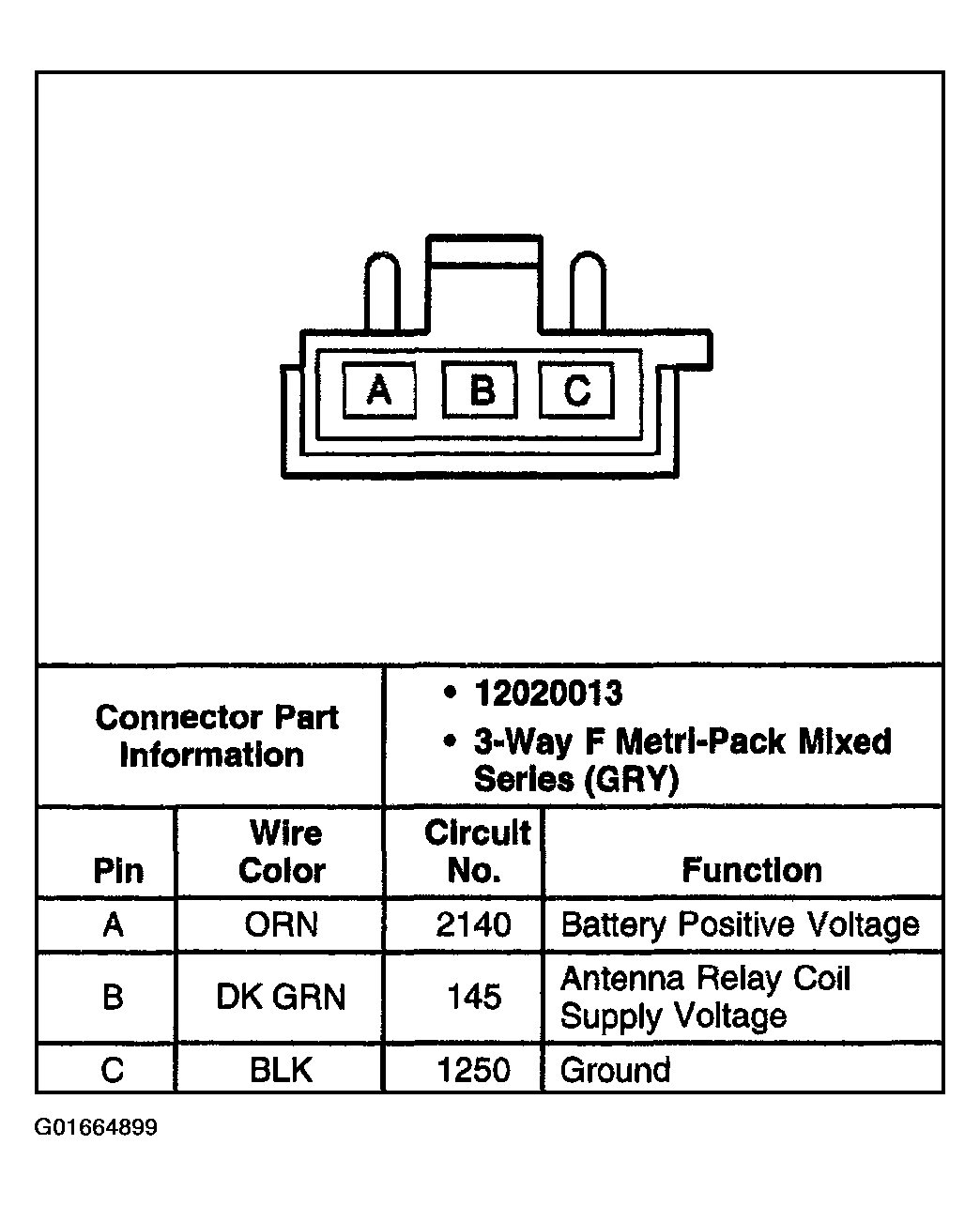

Fig 1: Power Antenna Relay C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

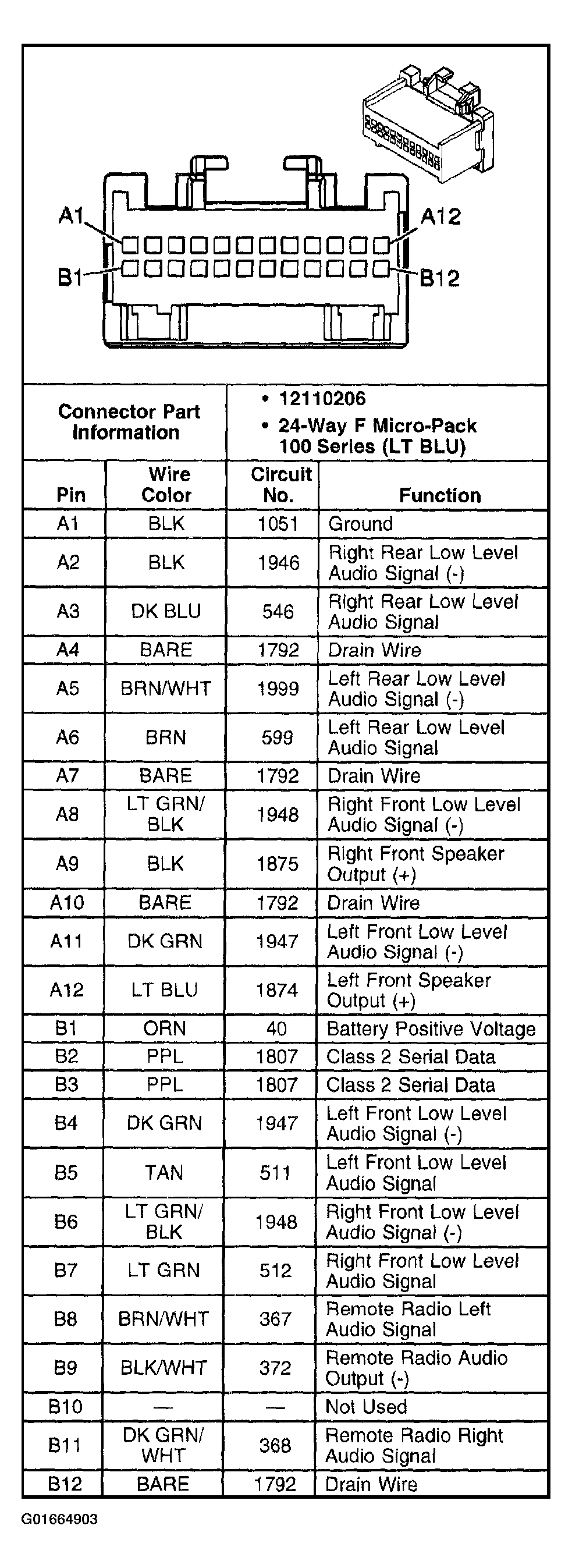

Fig 2: Radio Connector End View (1 of 3)
Courtesy of GENERAL MOTORS CORP.

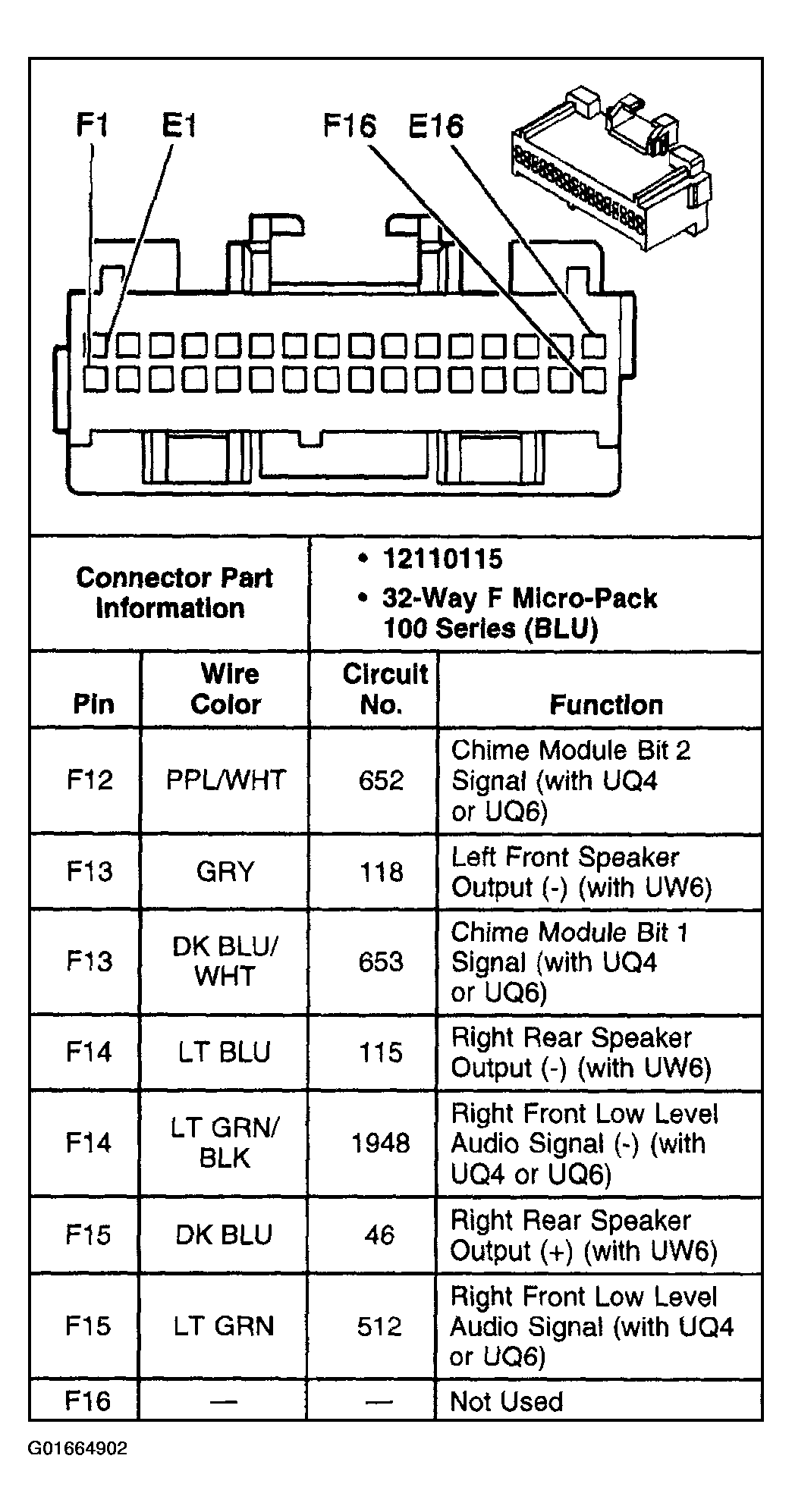

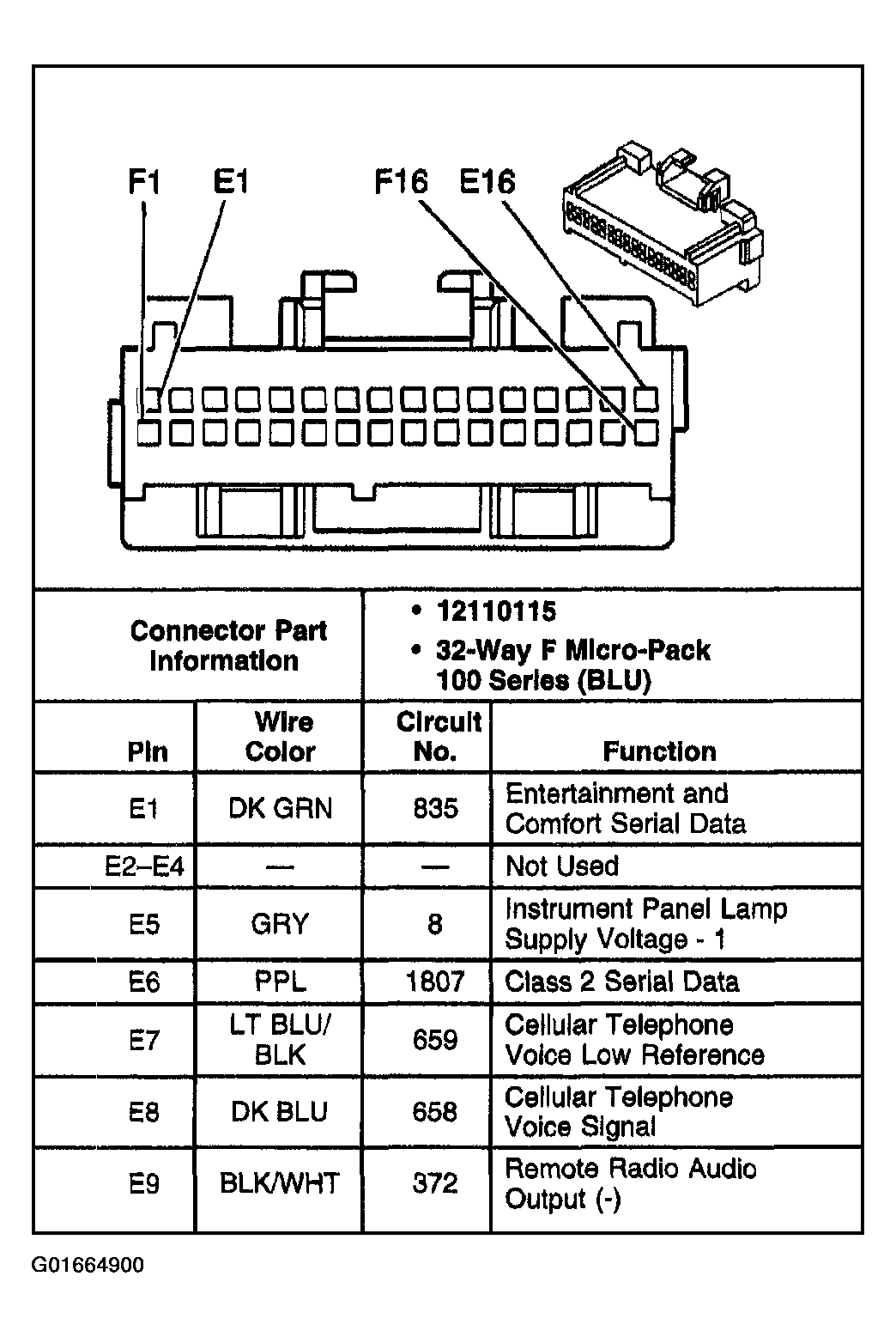

Fig 3: Radio Connector End View (2 of 3)
Courtesy of GENERAL MOTORS CORP.

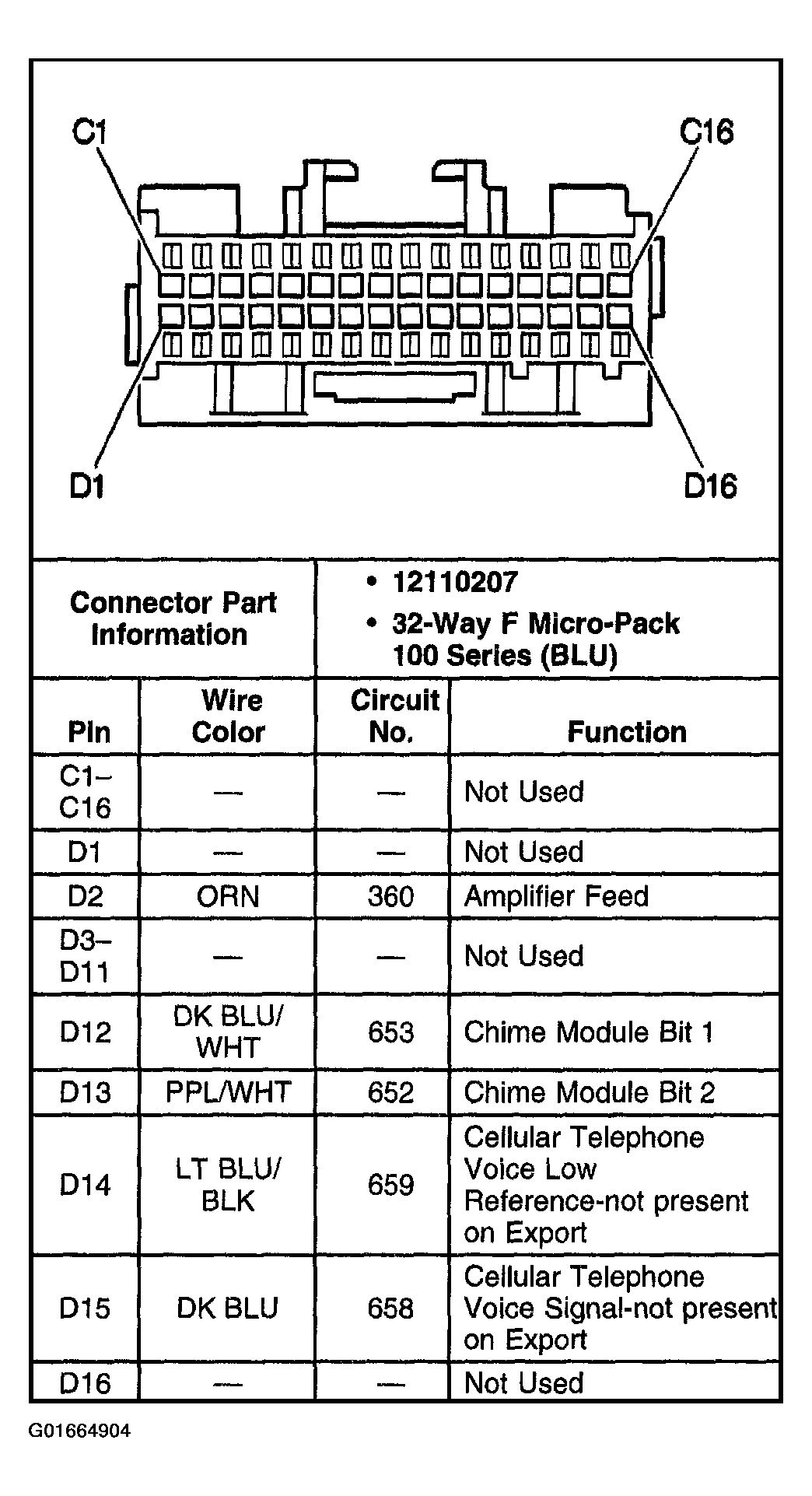

Fig 4: Radio Connector End View (3 of 3)
Courtesy of GENERAL MOTORS CORP.

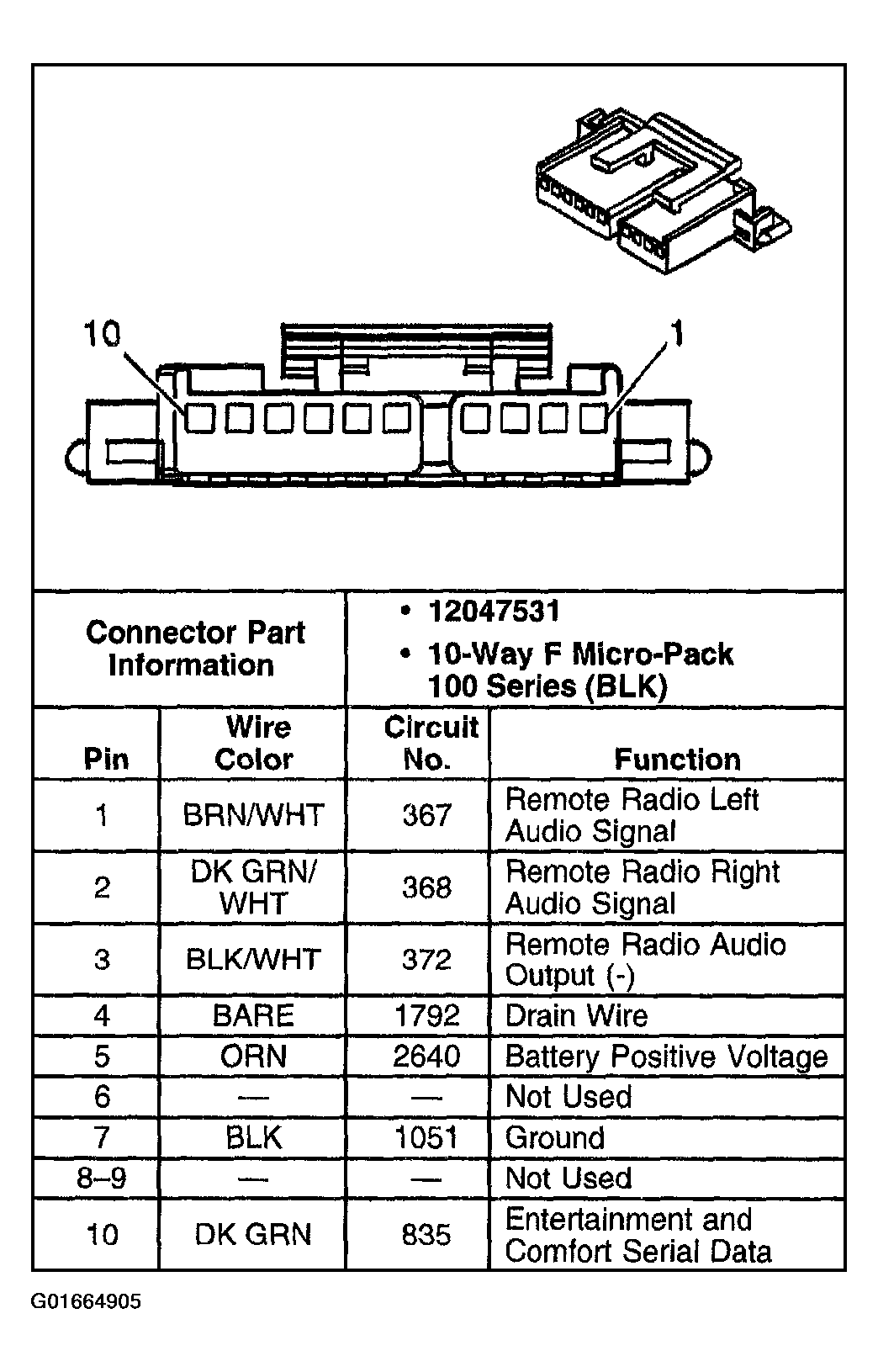

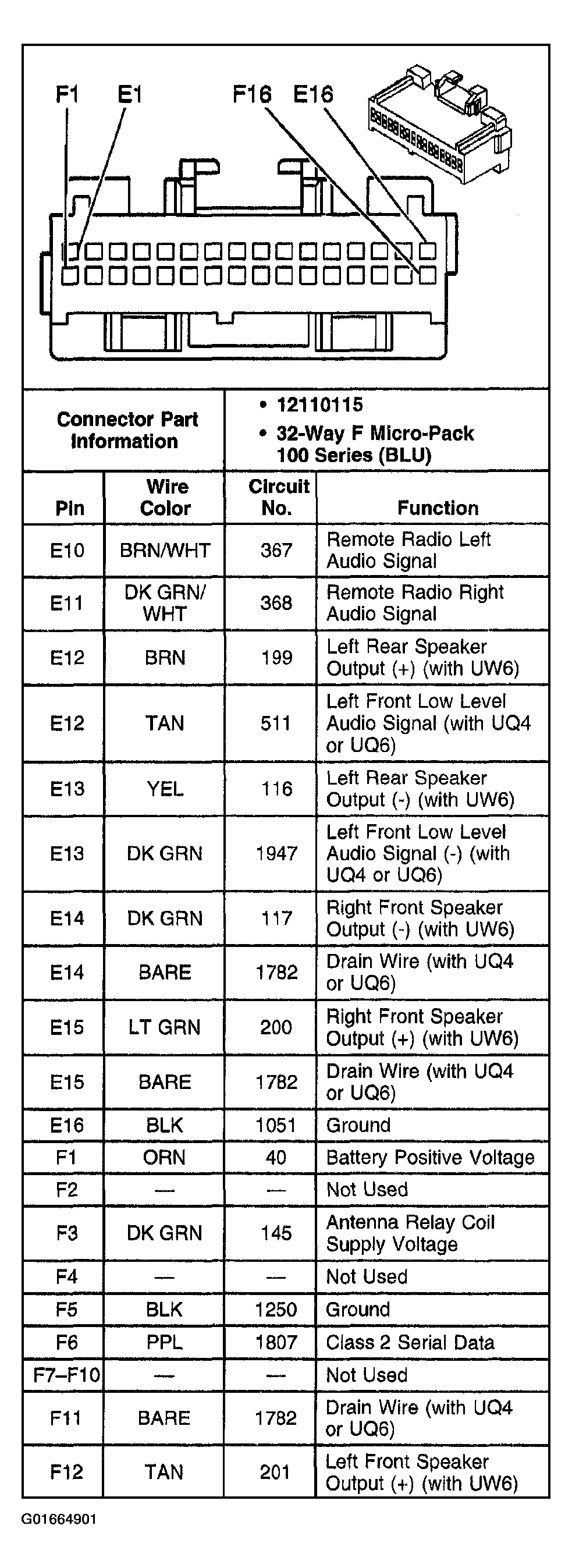

Fig 5: Radio Interface Module (RIM) C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Radio Interface Module (RIM) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Remote Playback Device-CD Changer Connector End View
Courtesy of GENERAL MOTORS CORP.

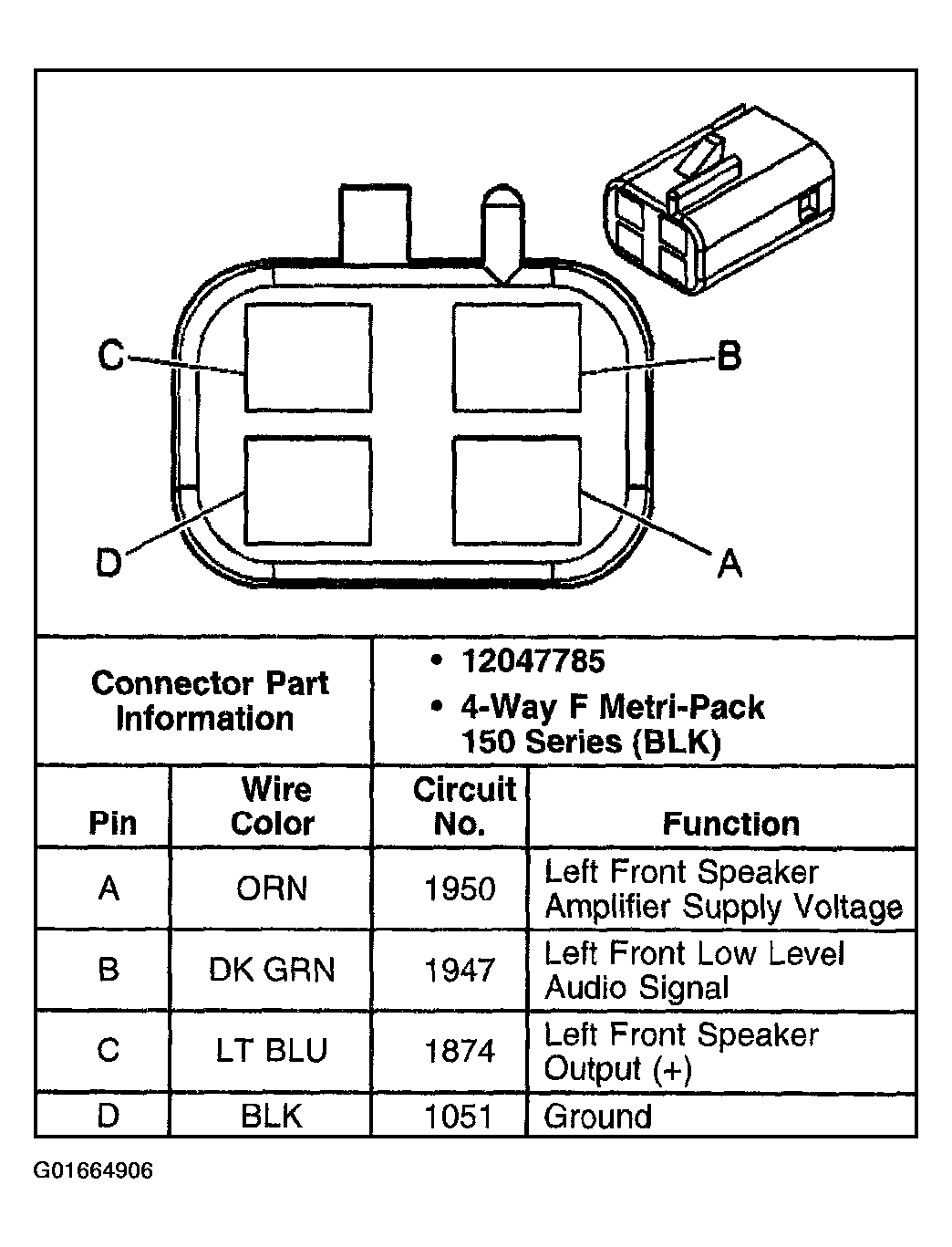

Fig 8: Speaker-LF Door (w/UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 9: Speaker-LF Door (w/o UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 10: Speaker-LR (w/UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 11: Speaker-LR (w/o UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.

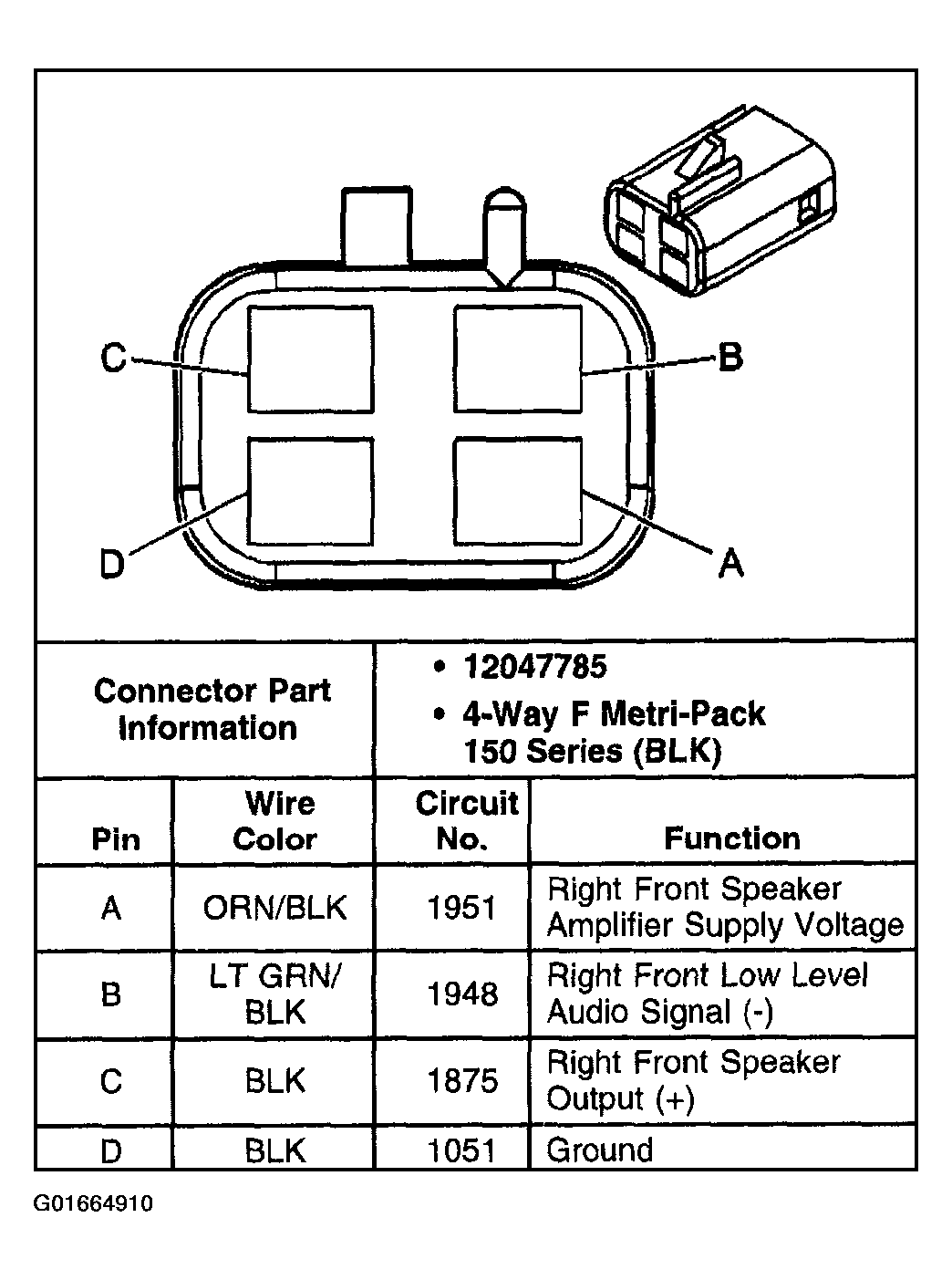

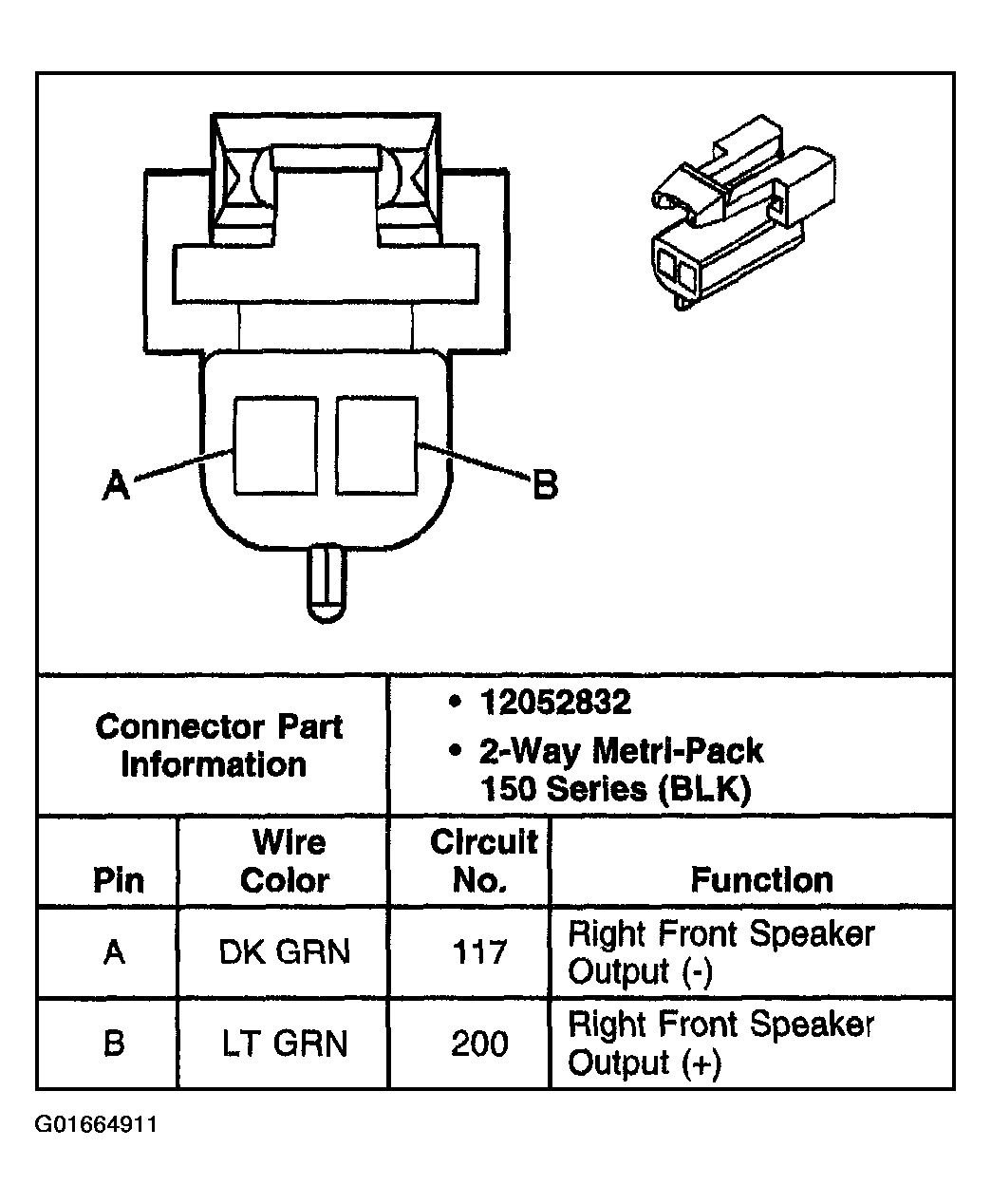

Fig 12: Speaker-RF Door (w/UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 13: Speaker-RF Door (w/o UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.

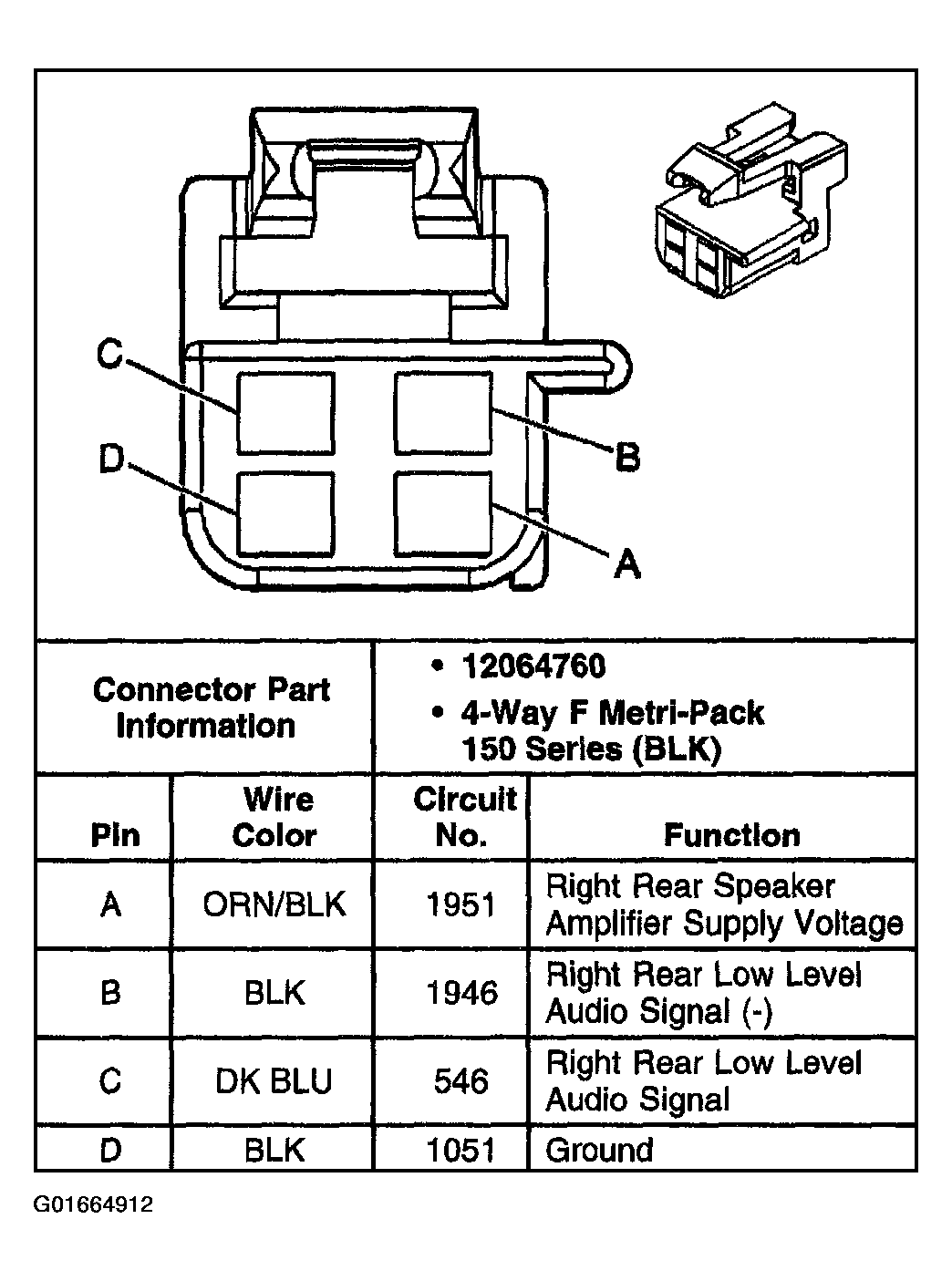

Fig 14: Speaker-RR (w/UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 15: Speaker (w/o UQ4) Connector End View
Courtesy of GENERAL MOTORS CORP.

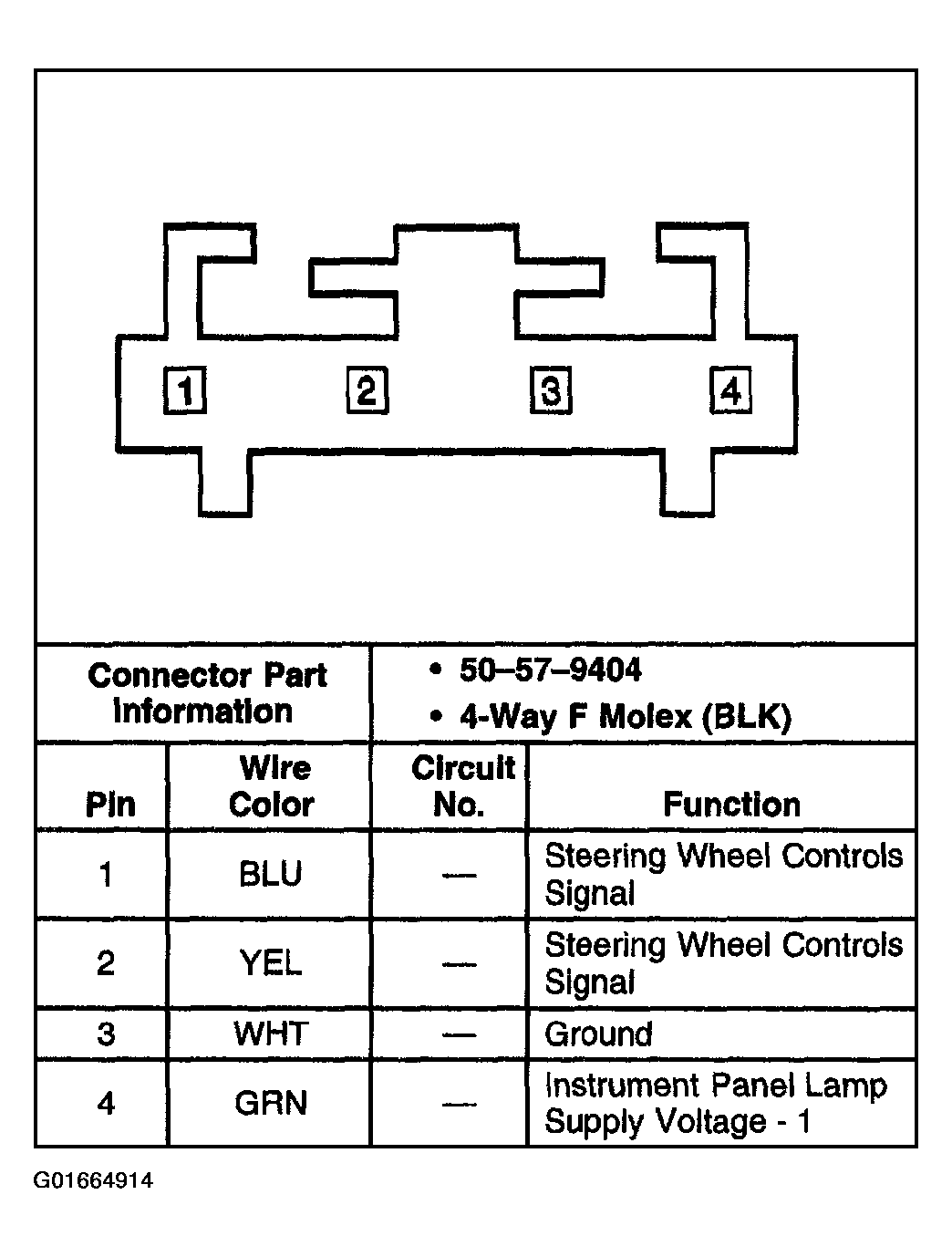

Fig 16: Steering Wheel Controls-Left-Steering Wheels Controls Harness Side Connector End View
