Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors (5) to the amplifier (2).
Install the amplifier (2) onto the electrical component mounting bracket (4).
Ensure the retainer clips engage the amplifier in order to secure.
Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

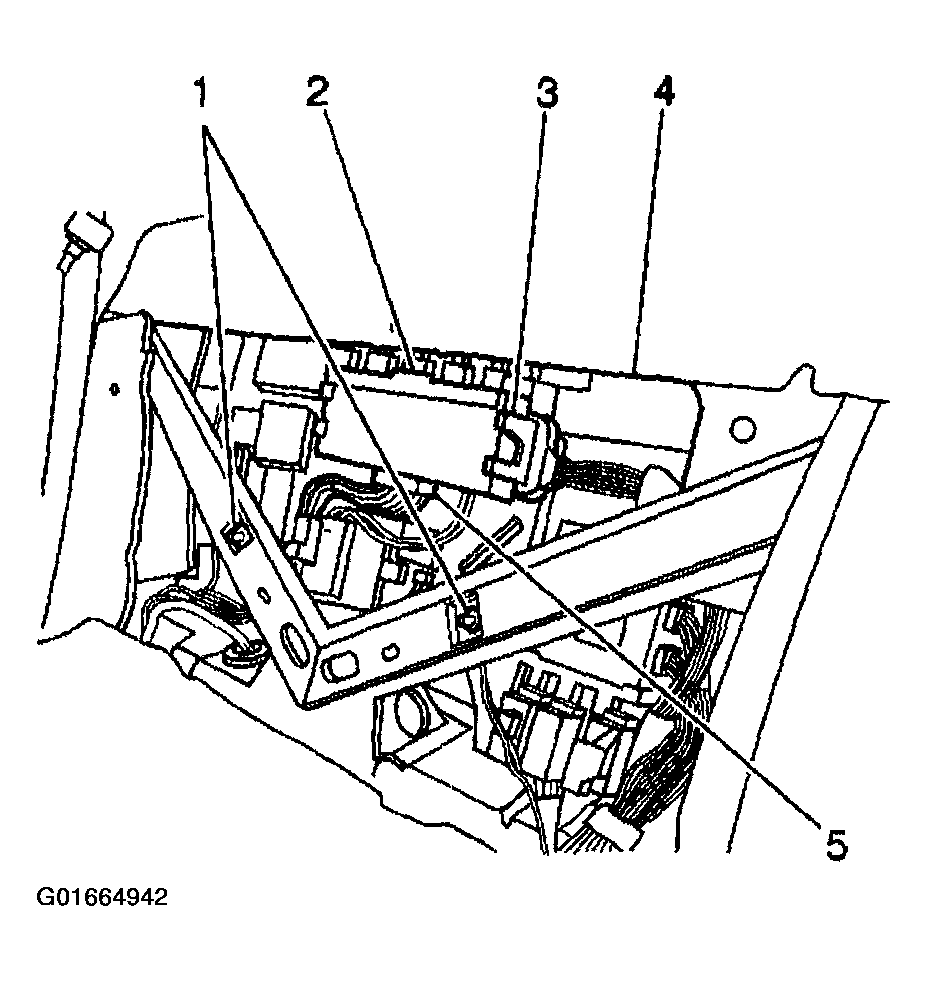

Fig 1: Identifying Amplifier, Retainers, Electrical Component Mounting Bracket, & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
