Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector to the remove control door lock receiver.

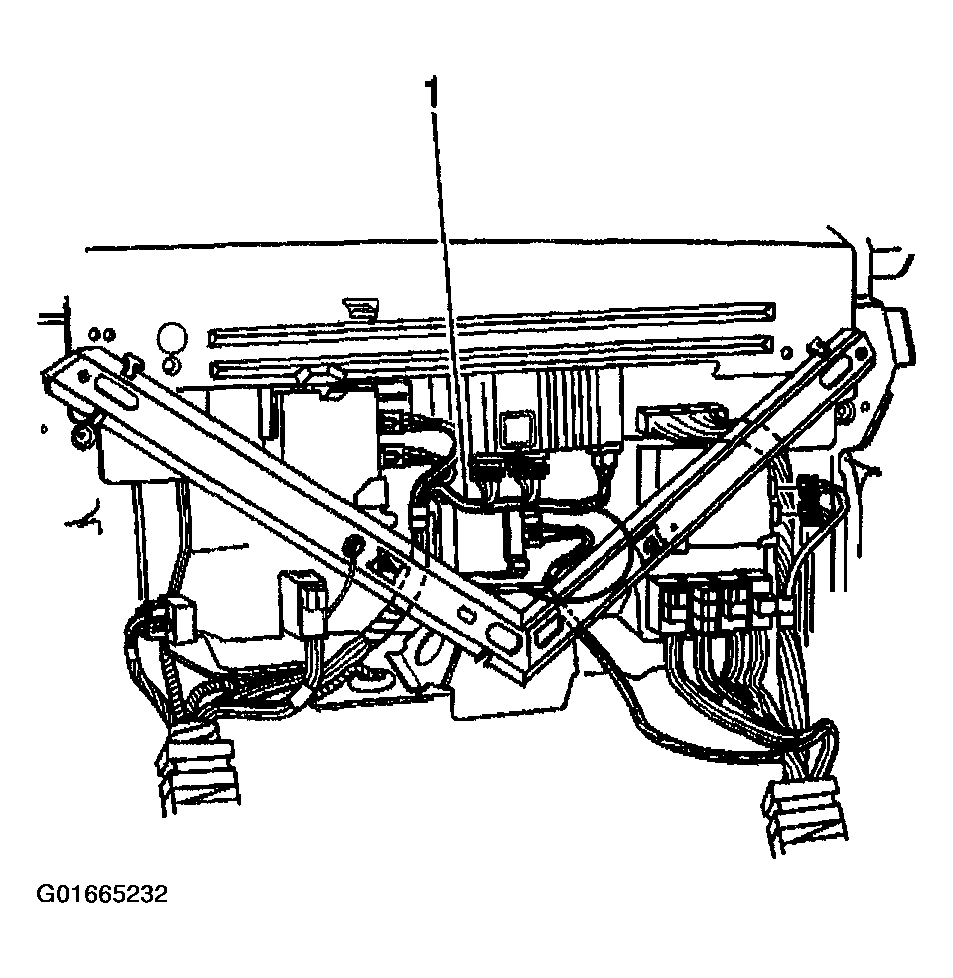

- Snap the remote control door lock receiver (1) onto the electronics bay board.
- Ensure the locking tabs are secure.
- Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
- Reprogram the transmitters. Refer to Transmitter Programming .
