Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
Disconnect the electrical connector.
Depress the locking tabs in order to remove the remote control door lock receiver (1) from the electronics bay board.
Remove the remote control door lock receiver.

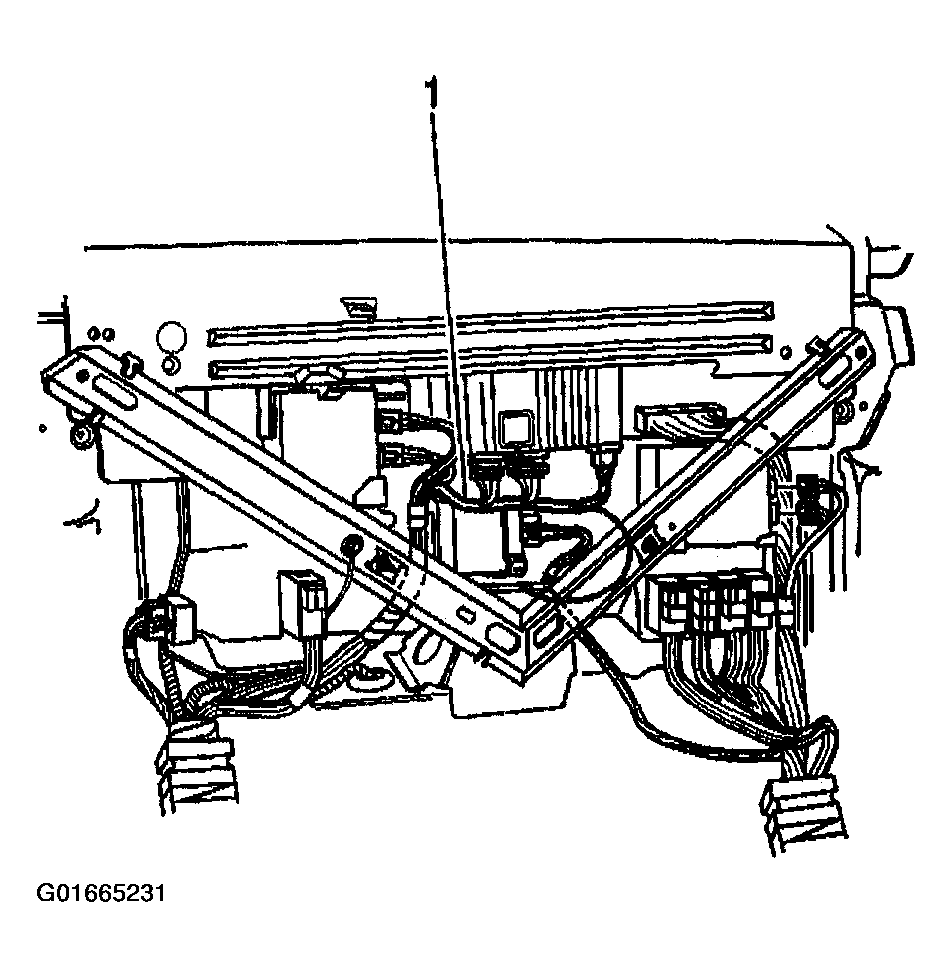

Fig 1: Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
