Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery (2) within the positive (+) side down. Use one 3 V CR2302 battery or the equivalent.
  2. Align both halves (6,4) of the transmitter.

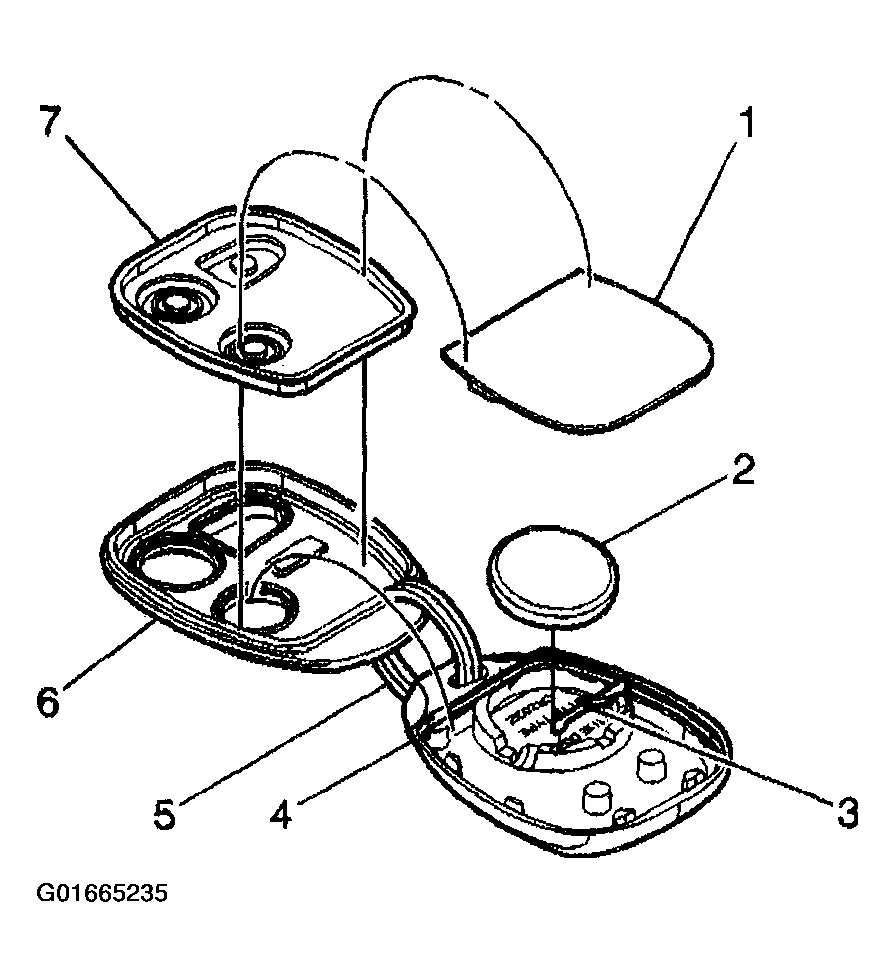

    Fig 1: Transmitter Battery
    G01665235Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal if positioned correctly.
  4. Close the transmitter case.
  5. Resynchronize the transmitter. Refer to Transmitter Programming .
  6. Replace the battery when the range of the transmitter decreases to less than 7 mm (23 ft).

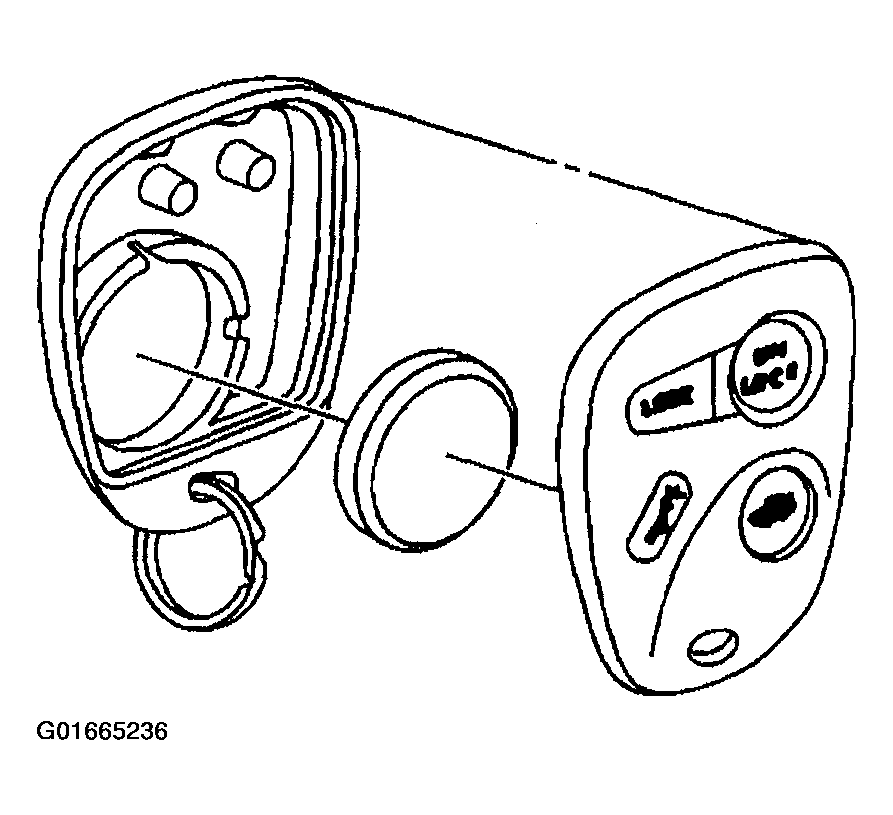

    Fig 2: Transmitter Case
    G01665236Courtesy of GENERAL MOTORS CORP.
