Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Install the strut in the J 34013-B with the J 34013-20 clamped on the strut shaft (1) in the strut compressor.

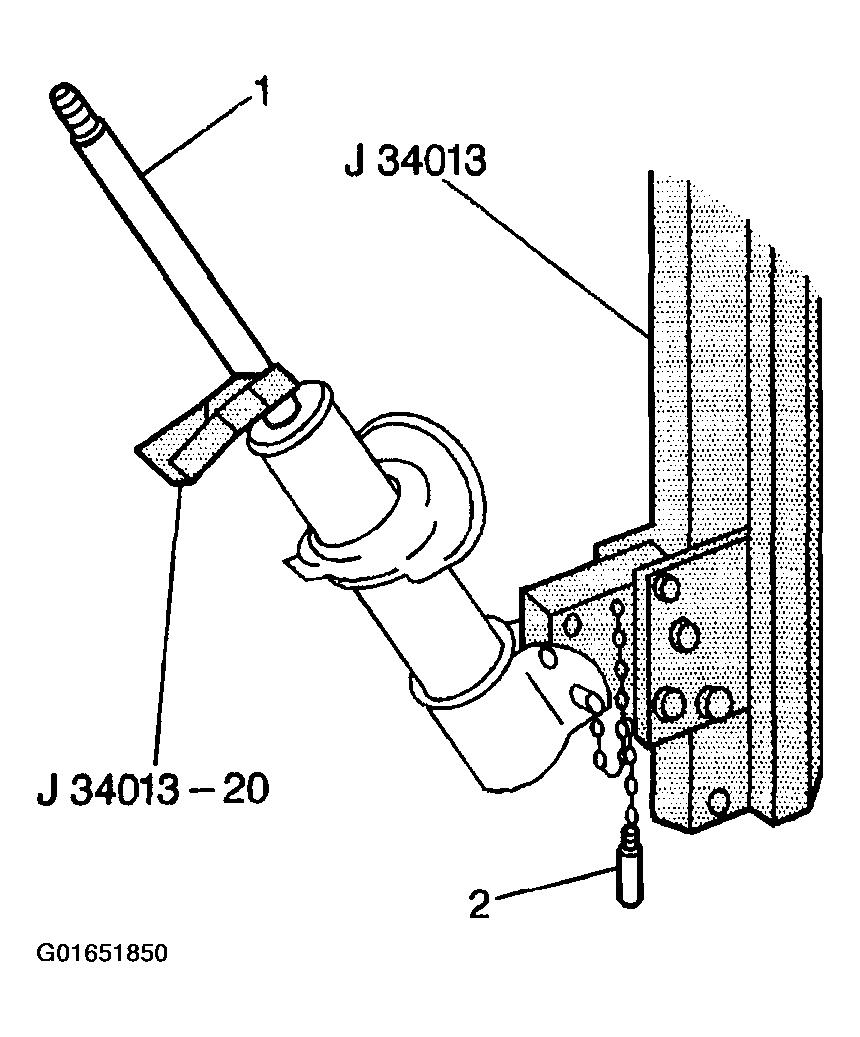

Fig 1: Identifying Strut Shaft & Upper Locking Pin
Courtesy of GENERAL MOTORS CORP.

Important:
- Ensure that the flat on the upper spring seat faces out from the centerline of the vehicle. When you mount the spring seat in the strut compressor, ensure that the spring seat faces in the same direction as the steering knuckle mounting flange.
- If the bearing had been removed from the upper spring seat, install the bearing into the upper spring seat in the same orientation as it had been. Also, install the bearing in the spring seat before attaching to the strut mount.
Install the spring over the strut in the correct position.
Move the assembly upright in the strut compressor.
Install the upper locking pin (2).
Install the rod J 34013-38 into the strut guide strut shaft.
Start turning the compressor screw clockwise on the J 34013-B , while guiding the J 34013-38 to the center strut shaft in the assembly.

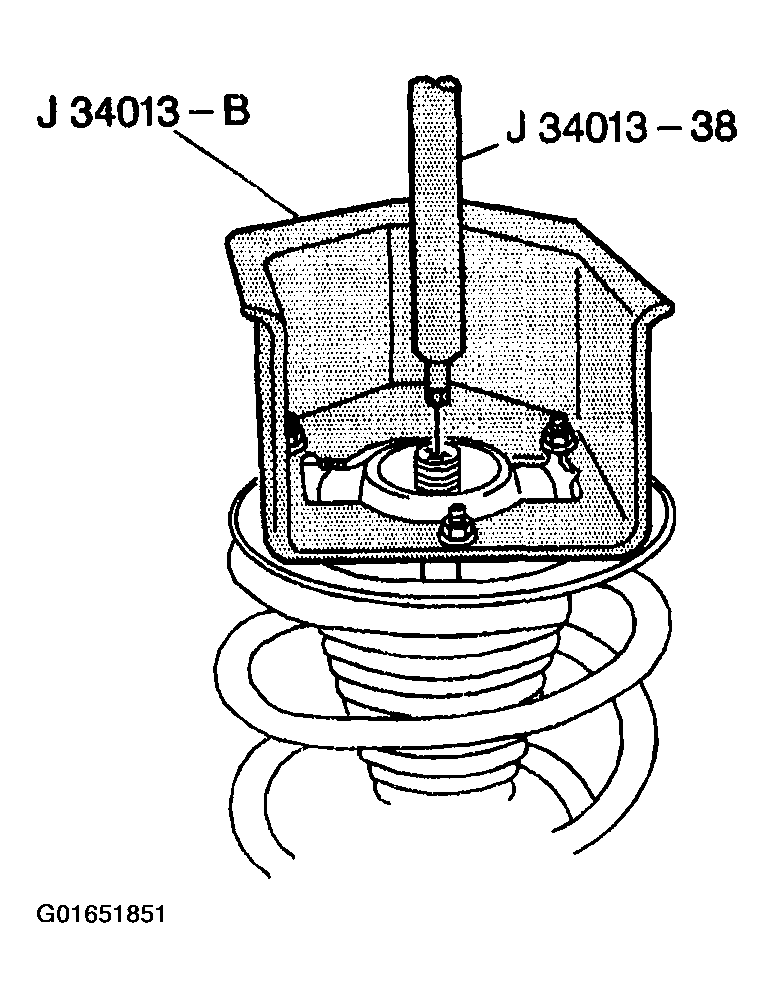

Fig 2: View of J 34012-B & J 34013-38
Courtesy of GENERAL MOTORS CORP.
Continue to turn the compressor forcing screw (3) on the strut compressor until the strut shaft threads are visible through the top of the strut assembly.
Install the washer and the nut.
NOTE: Refer to FASTENER NOTICE .
Remove the clamp J 34013-20 from the strut shaft.
Tighten

Tighten the strut mount nut to 75 N.m (55 lb ft) while holding the strut shaft with the socket.

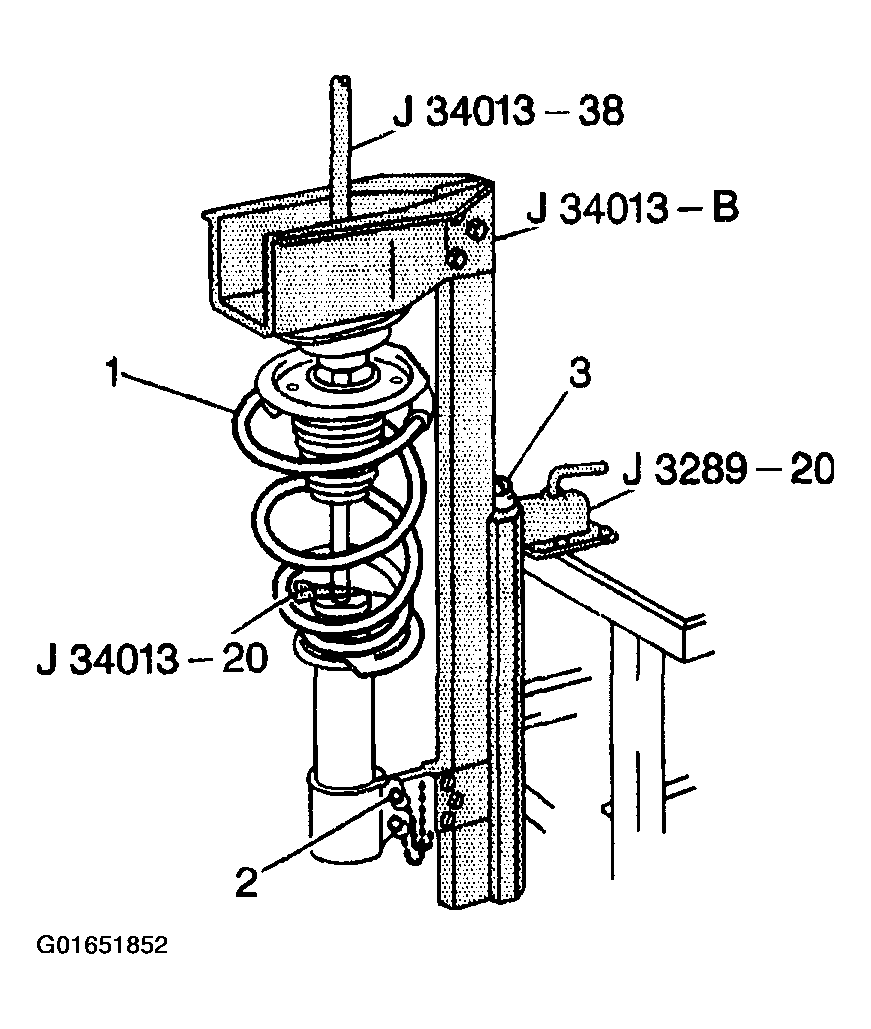

Fig 3: Strut Mounted in J 34013
Courtesy of GENERAL MOTORS CORP.
Remove the strut from the strut compressor.
