Control Units
WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Under right side of rear package shelf. |

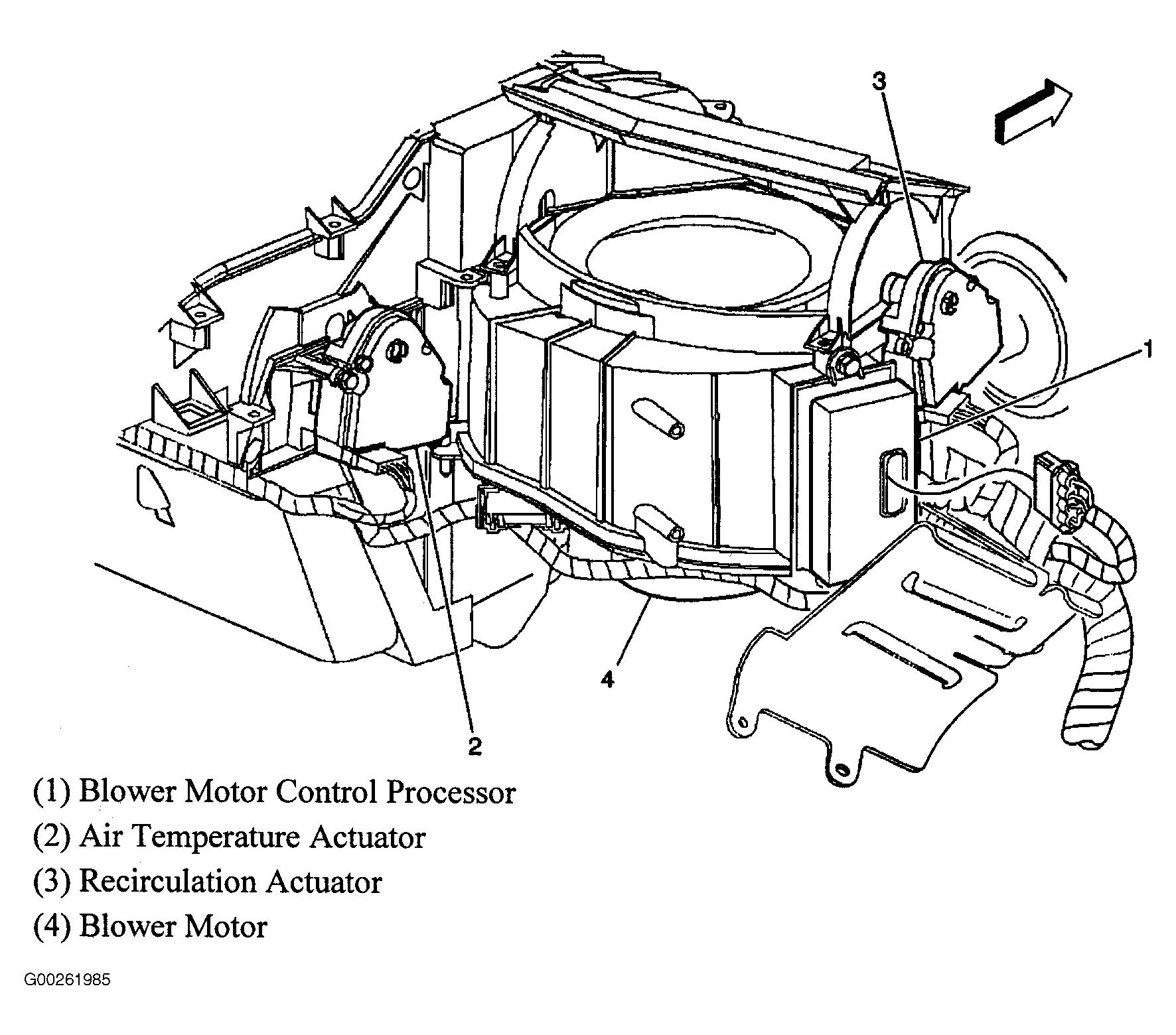

| Blower Control Processor | Behind dash, at right front side of blower motor. See Figure. |

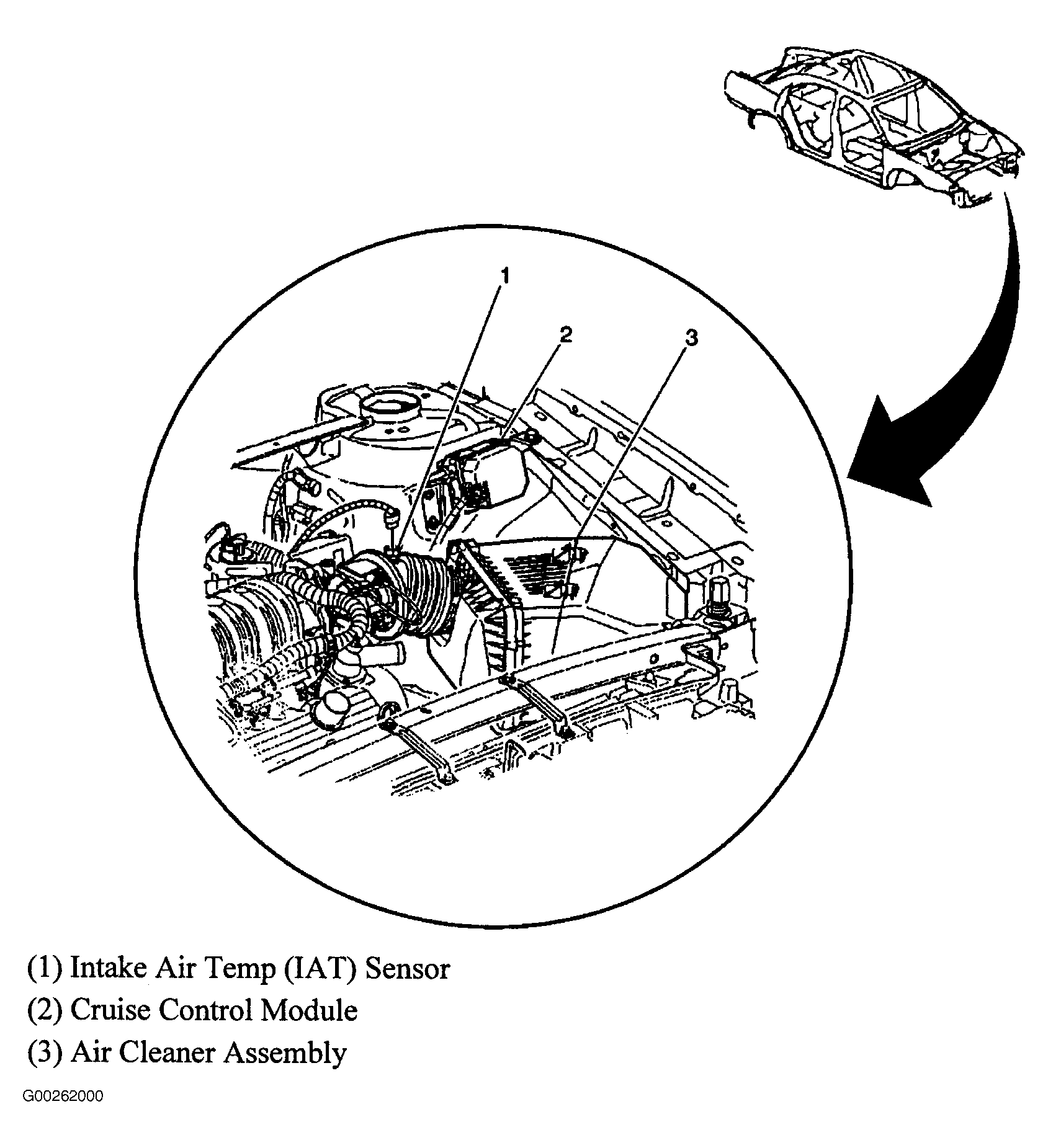

| Cruise Control Module | On left side of engine compartment, on strut tower. See Figure. |

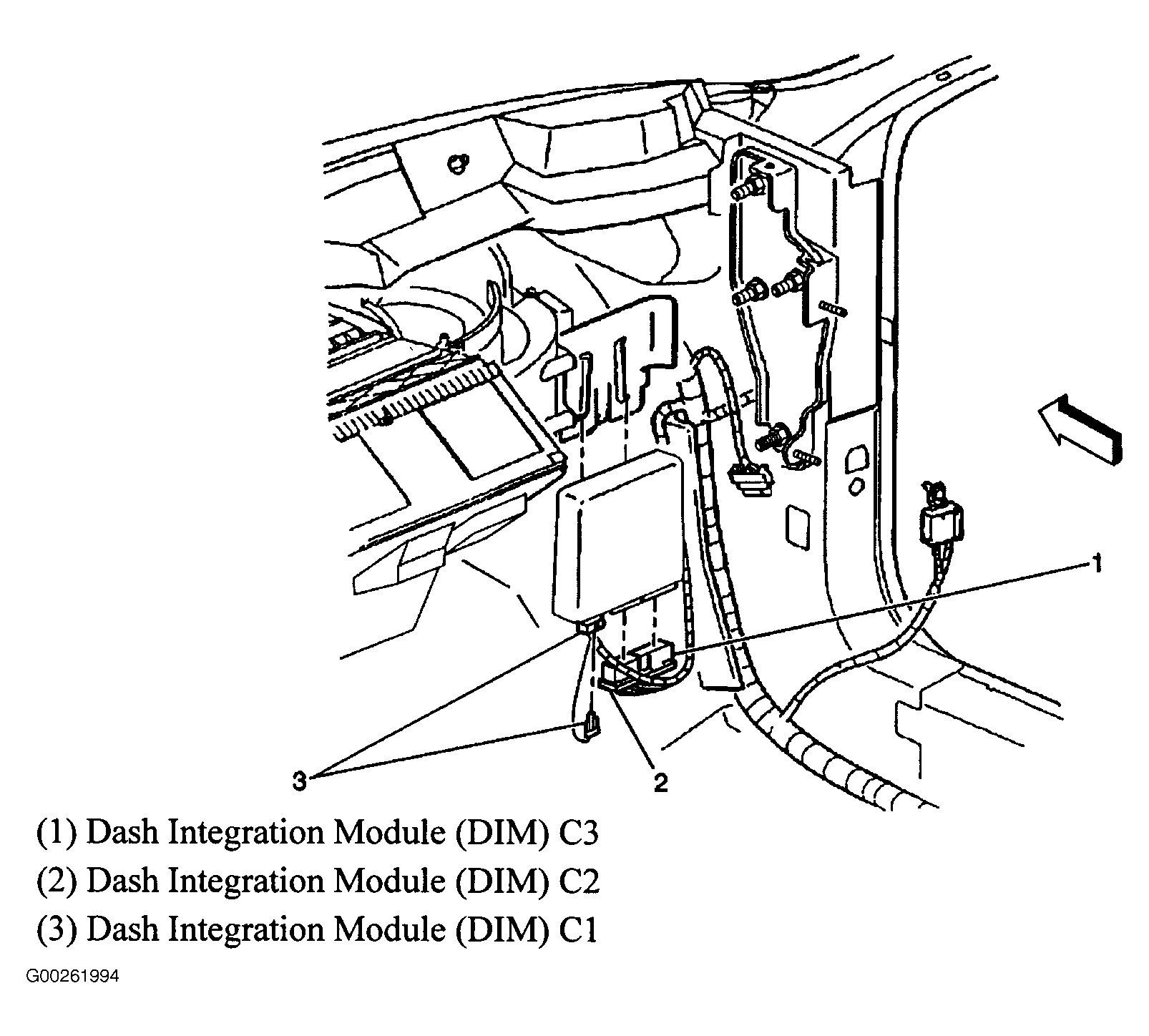

| Dash Integration Module | Behind right side of dash, under sound insulator. See Figure. |

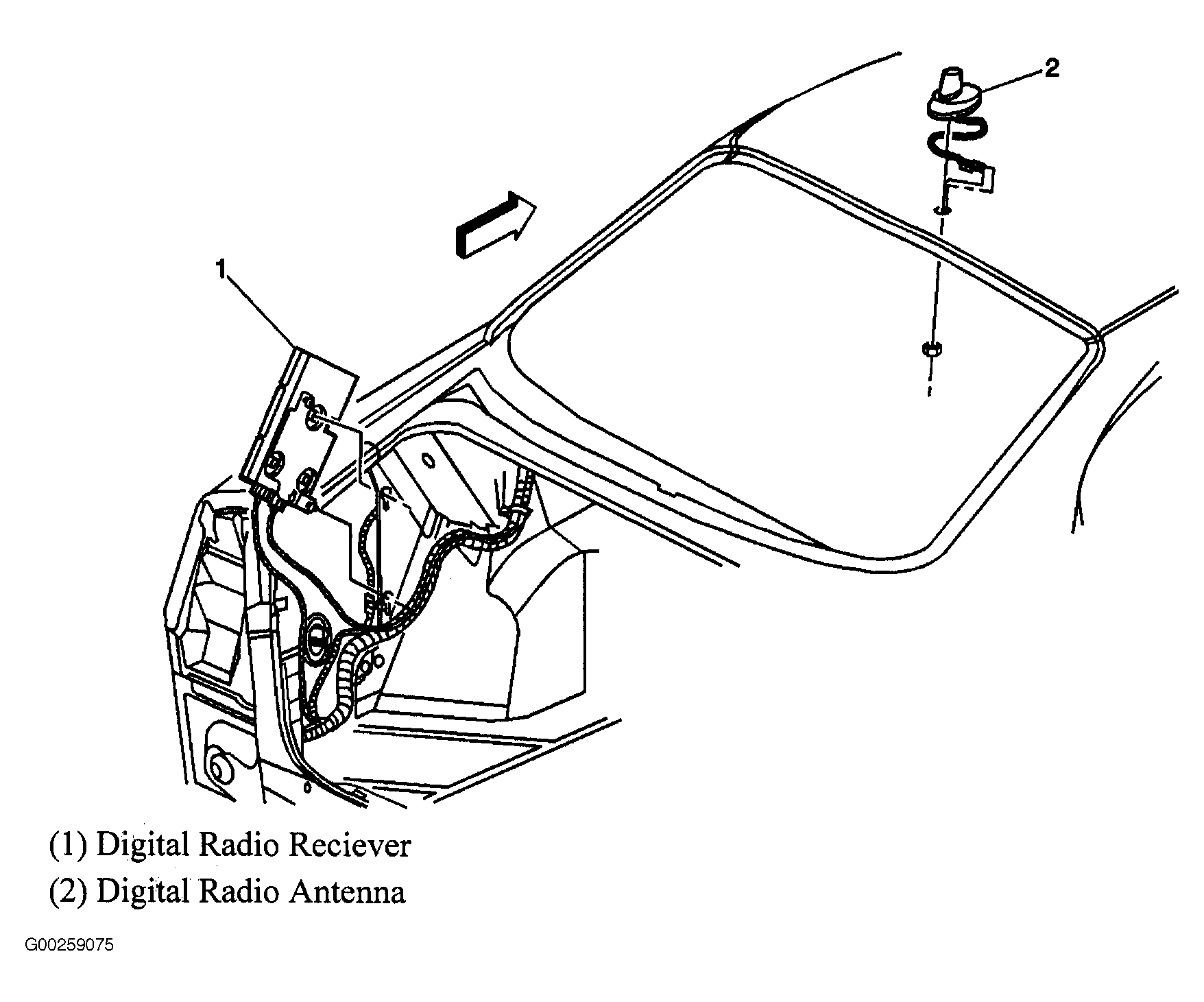

| Digital Radio Receiver | Left side of rear compartment. See Figure. |

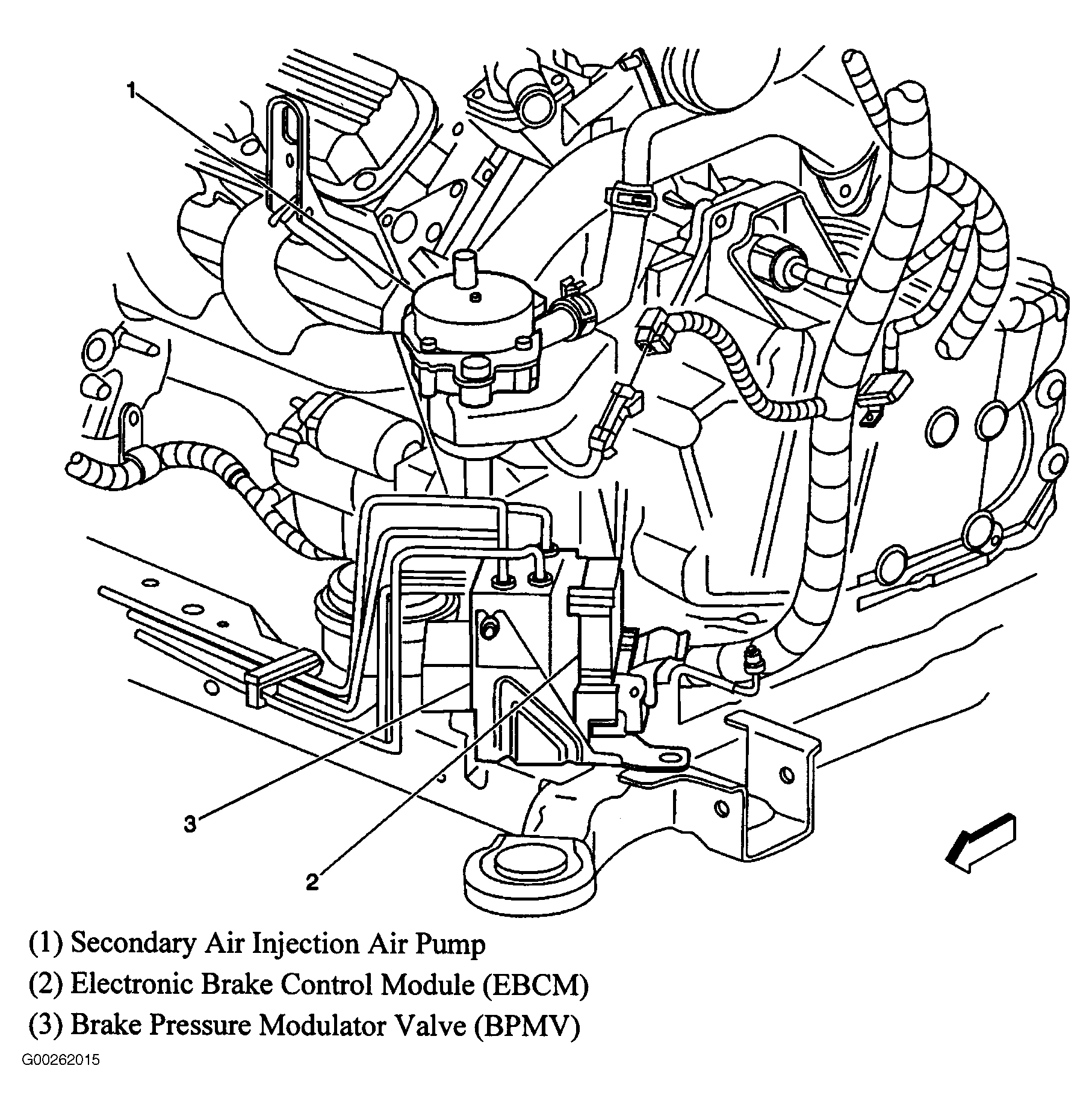

| Electronic Brake Control Module | On left front of engine compartment. See Figure. |

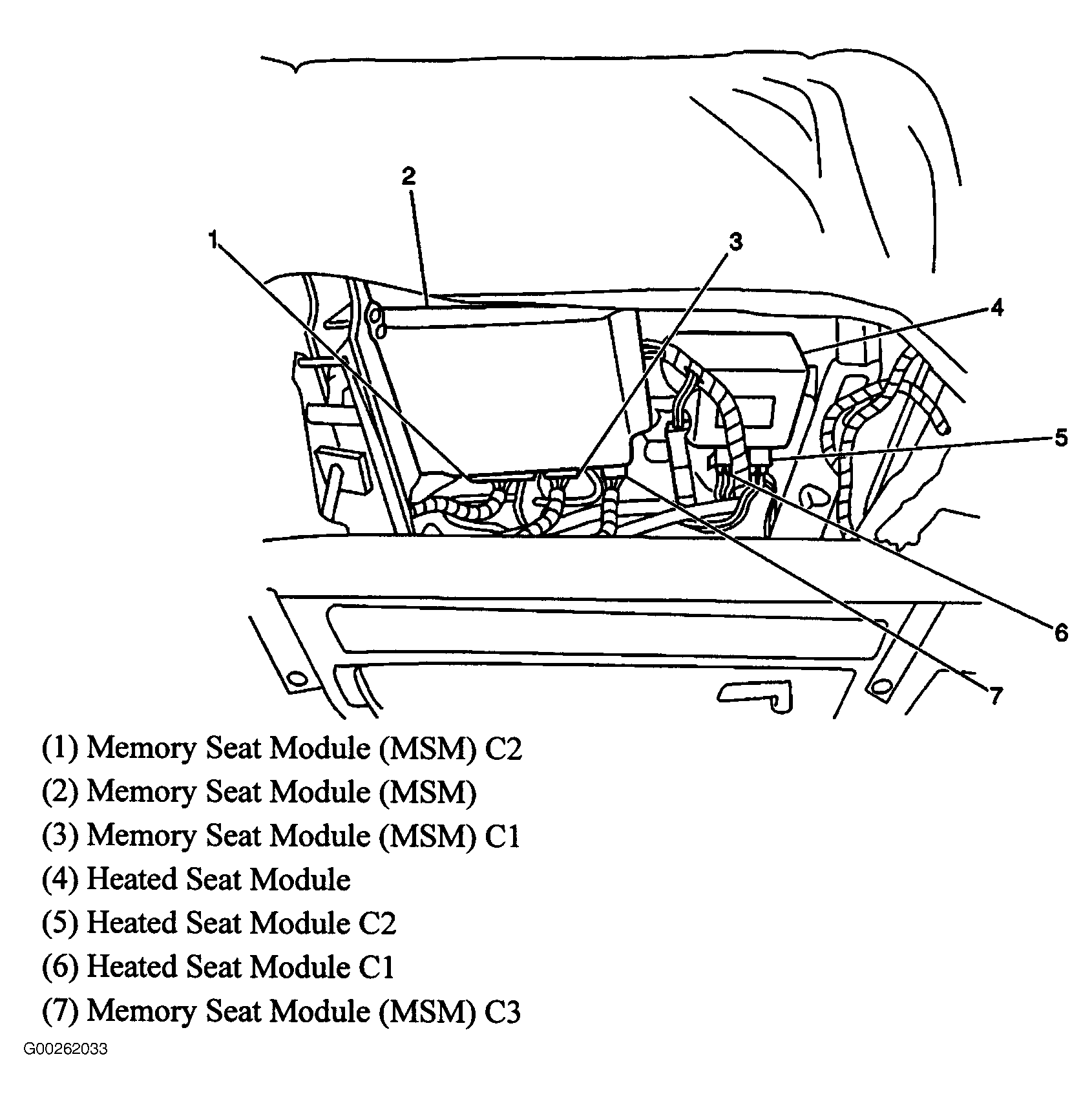

| Heated Seat Module | Under driver seat. See Figure. |

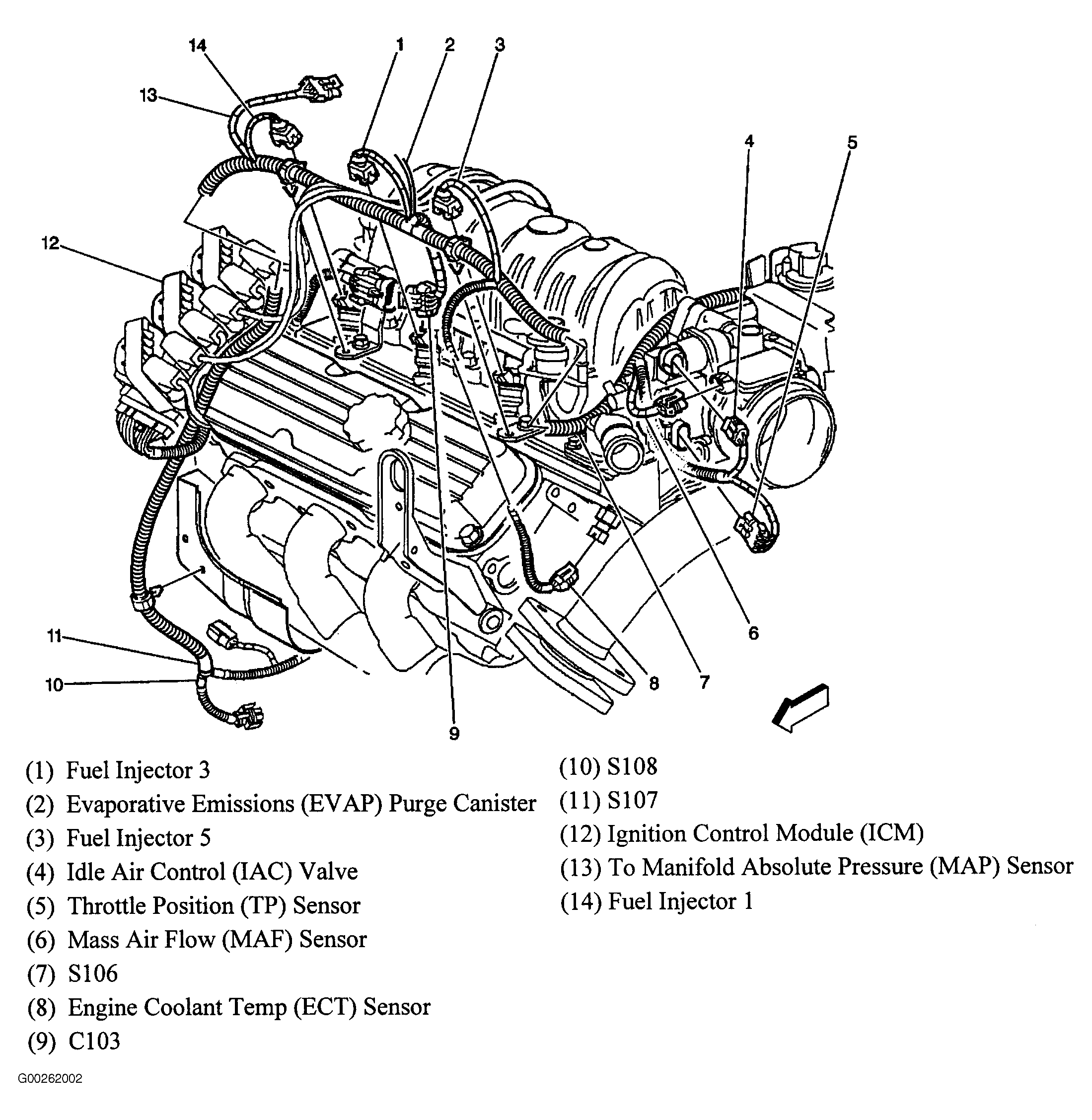

| Ignition Control Module (ICM) | On top left front of engine. See Figure. |

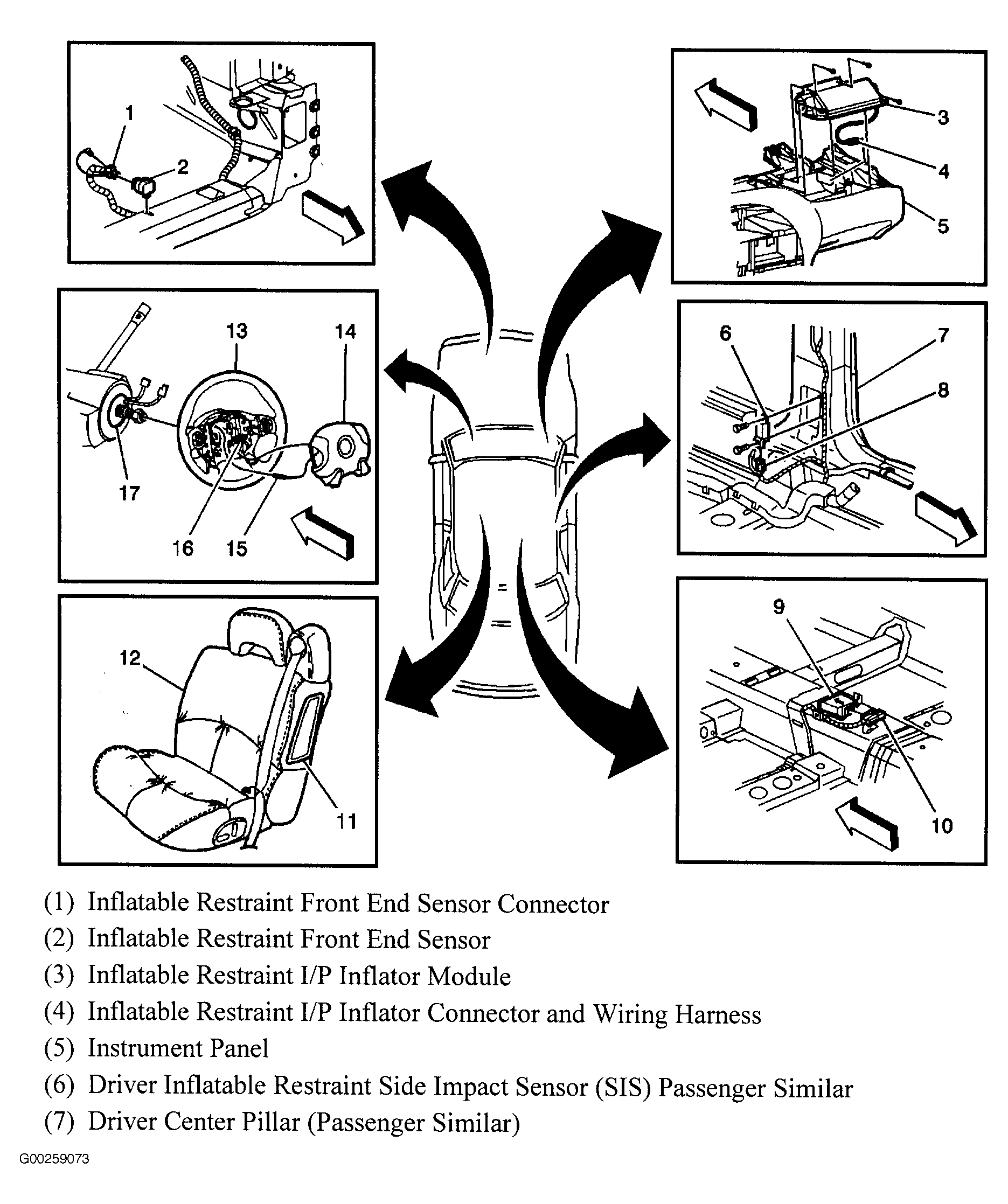

| Inflatable Restraint IP Inflator Module | Right side of dash. See Figure. |
| Inflatable Restraint I/P Inflator Module Connector | Right side of dash. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console, mounted to floorpan. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) Connector | Under rear of center console. See Figure. |
| Inflatable Restraint Side Impact Module (Driver) | Left side of driver seat back. See Figure. |
| Inflatable Restraint Side Impact Module (Passenger) | Right side of front passenger seat back. See Figure. |

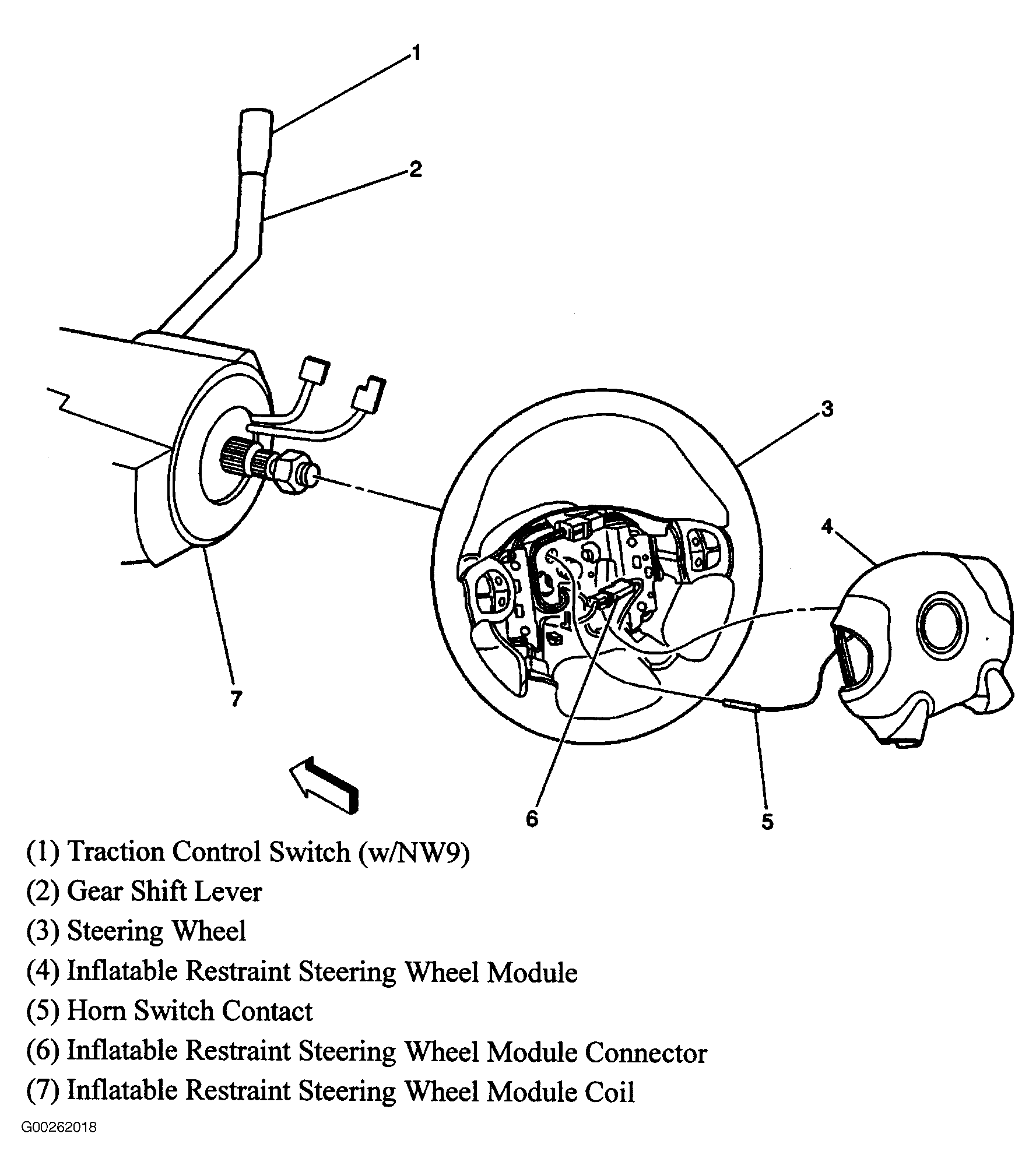

| Inflatable Restraint Steering Wheel Module | Top of steering wheel. See Figure. |
| Inflatable Restraint Steering Wheel Module Coil | Steering wheel. See Figure. |
| Inflatable Restraint Steering Wheel Module Connector | Steering wheel. See Figure. |

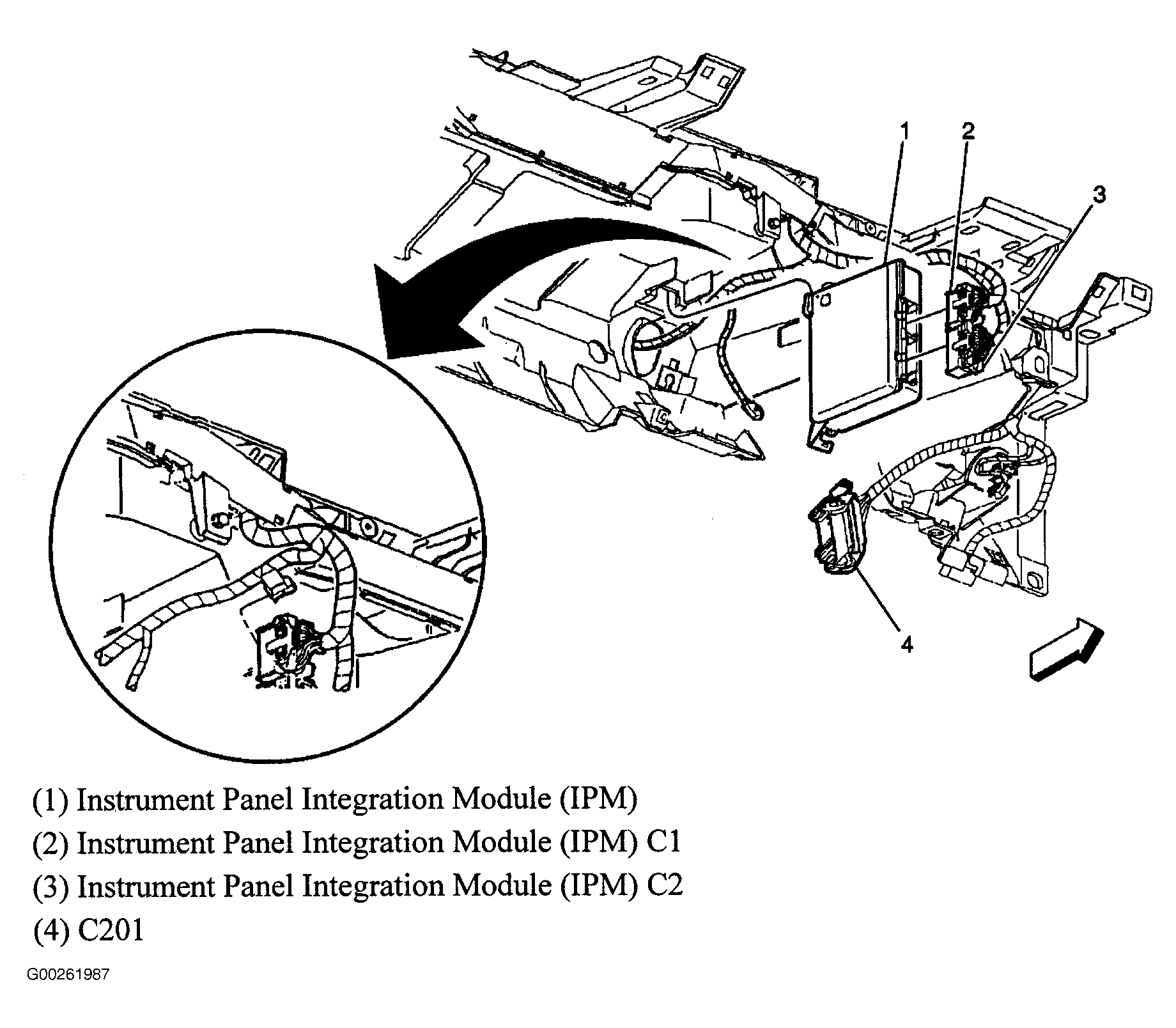

| Instrument Panel Integration Module | Behind left side of dash. See Figure. |
| Left Front Door Module | Front of left front door. See Figure. |
| Left Rear Door Module | Front of left rear door. See Figure. |
| Memory Seat Module | Under driver seat. See Figure. |

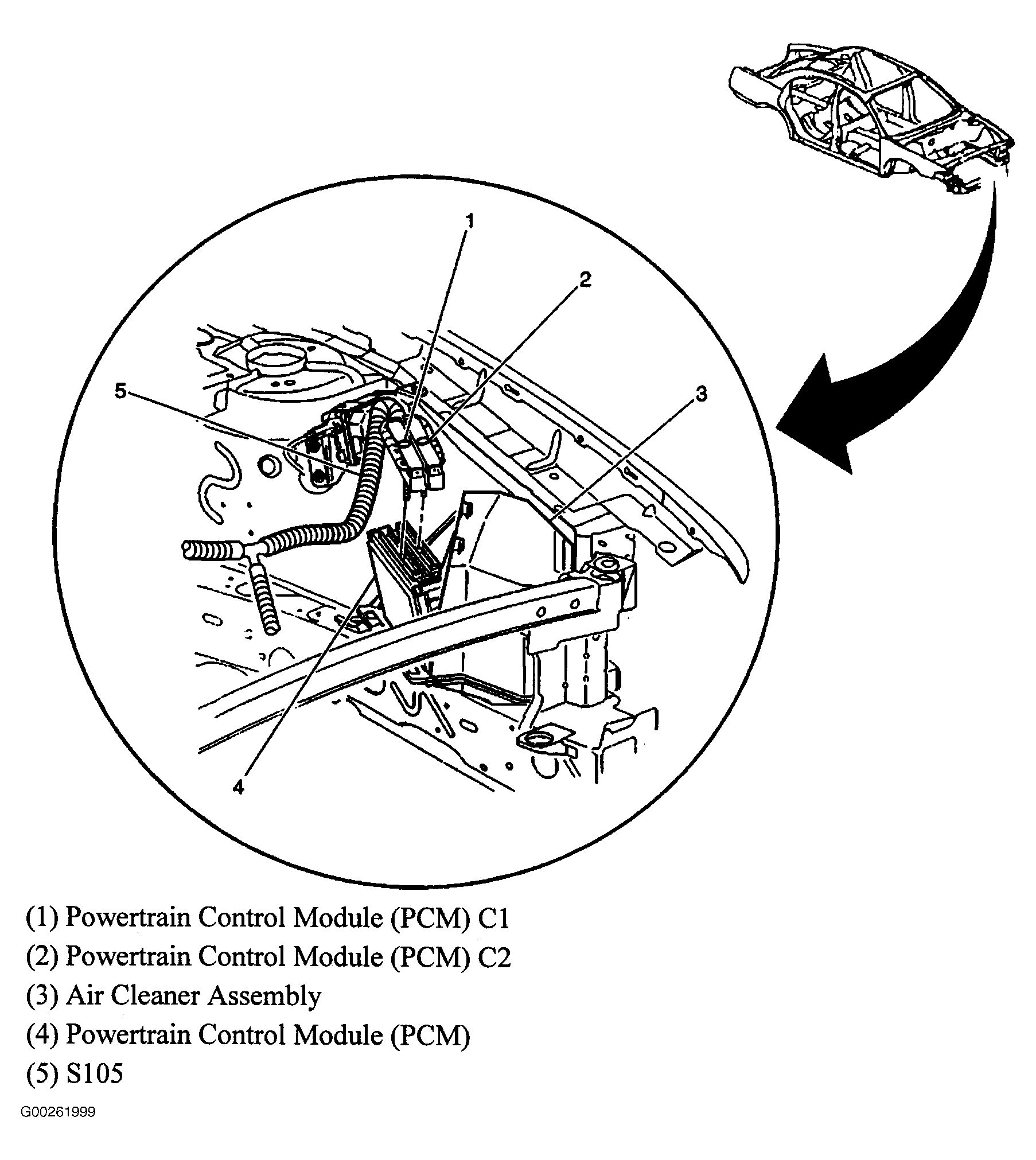

| Powertrain Control Module | In air cleaner housing. See Figure. |

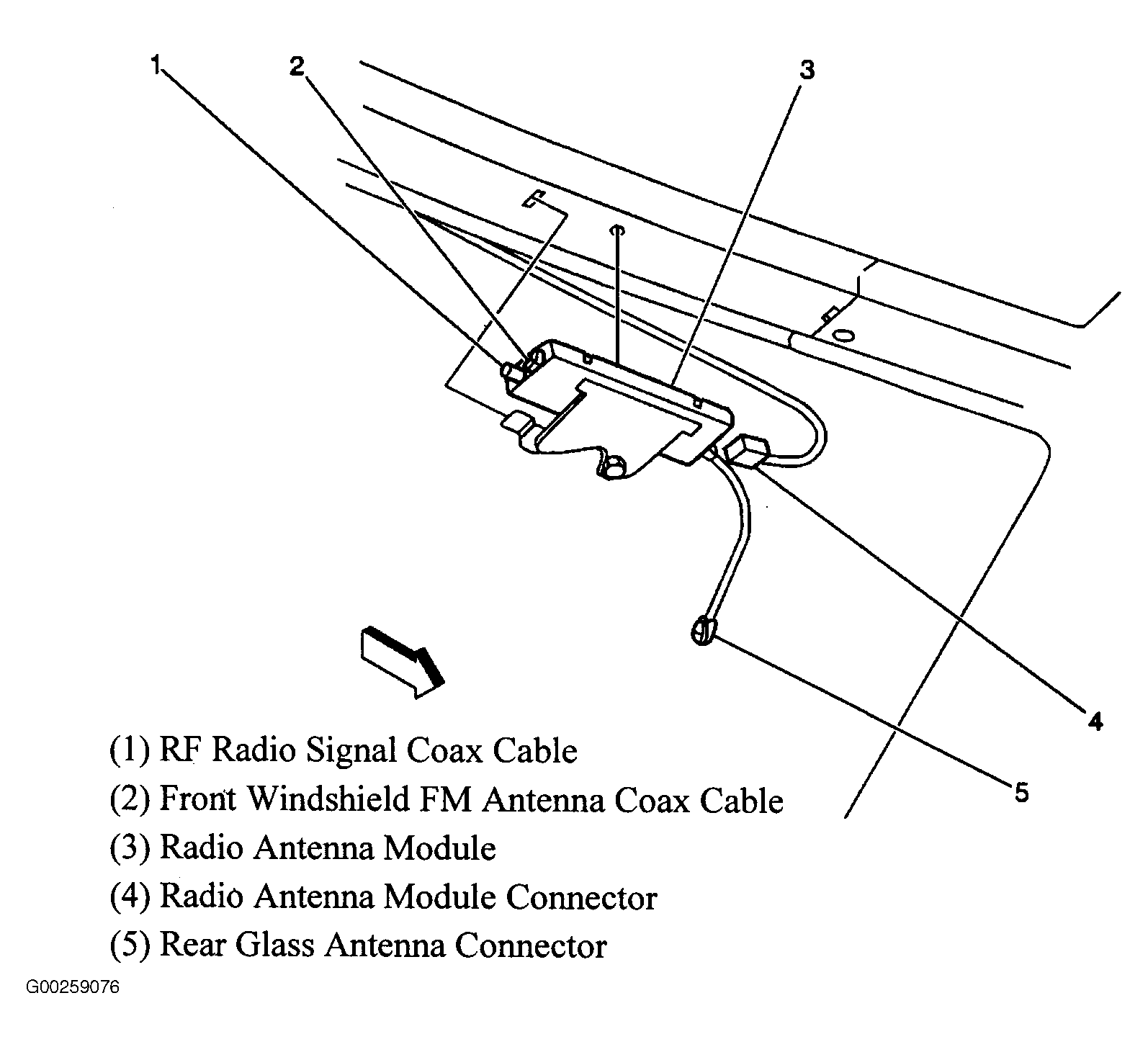

| Radio Antenna Module | On center rear of headliner. See Figure. |
| Radio Antenna Module Connector | Center of rear headliner. See Figure. |

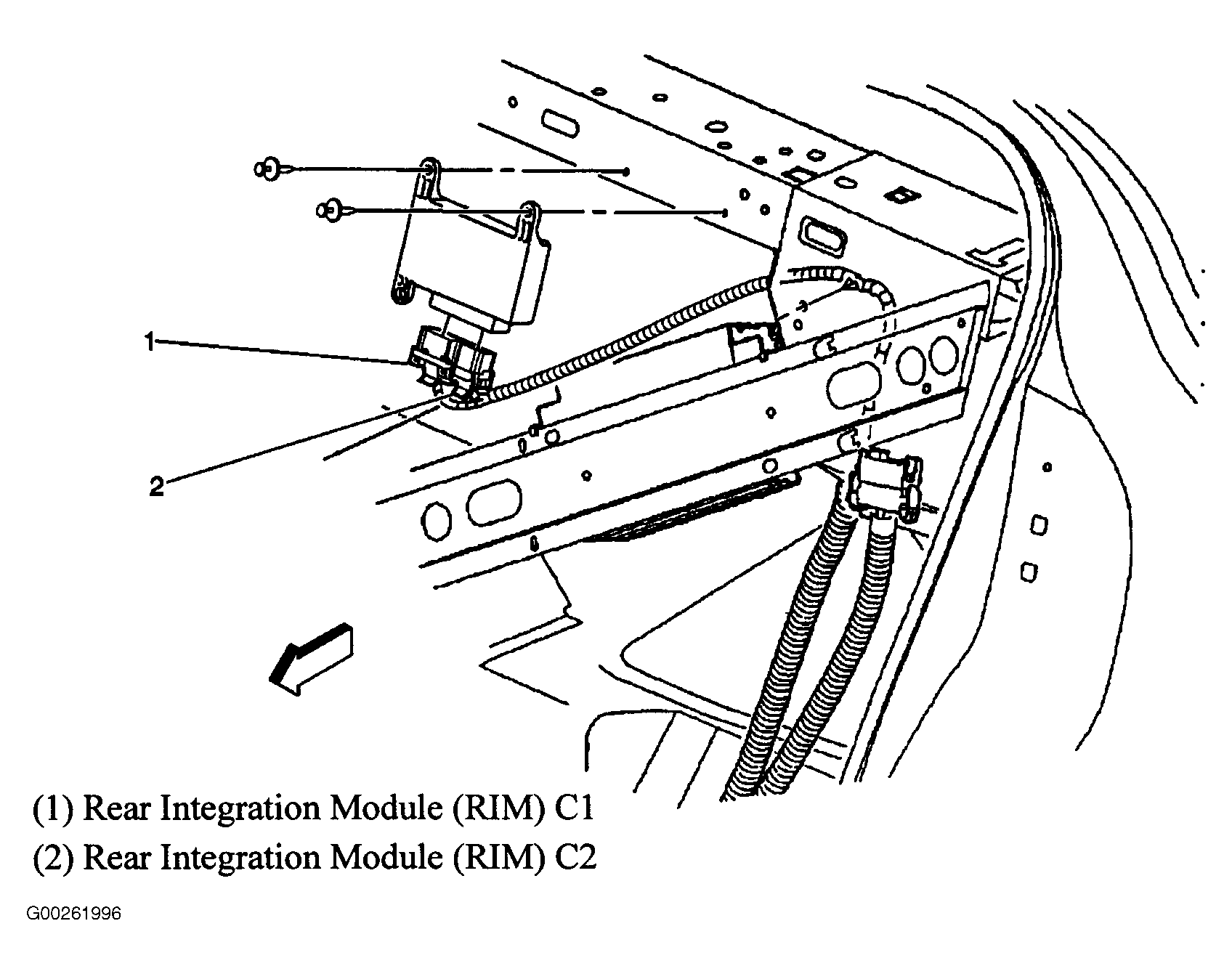

| Rear Integration Module | Behind upper left rear seat cushion. See Figure. |

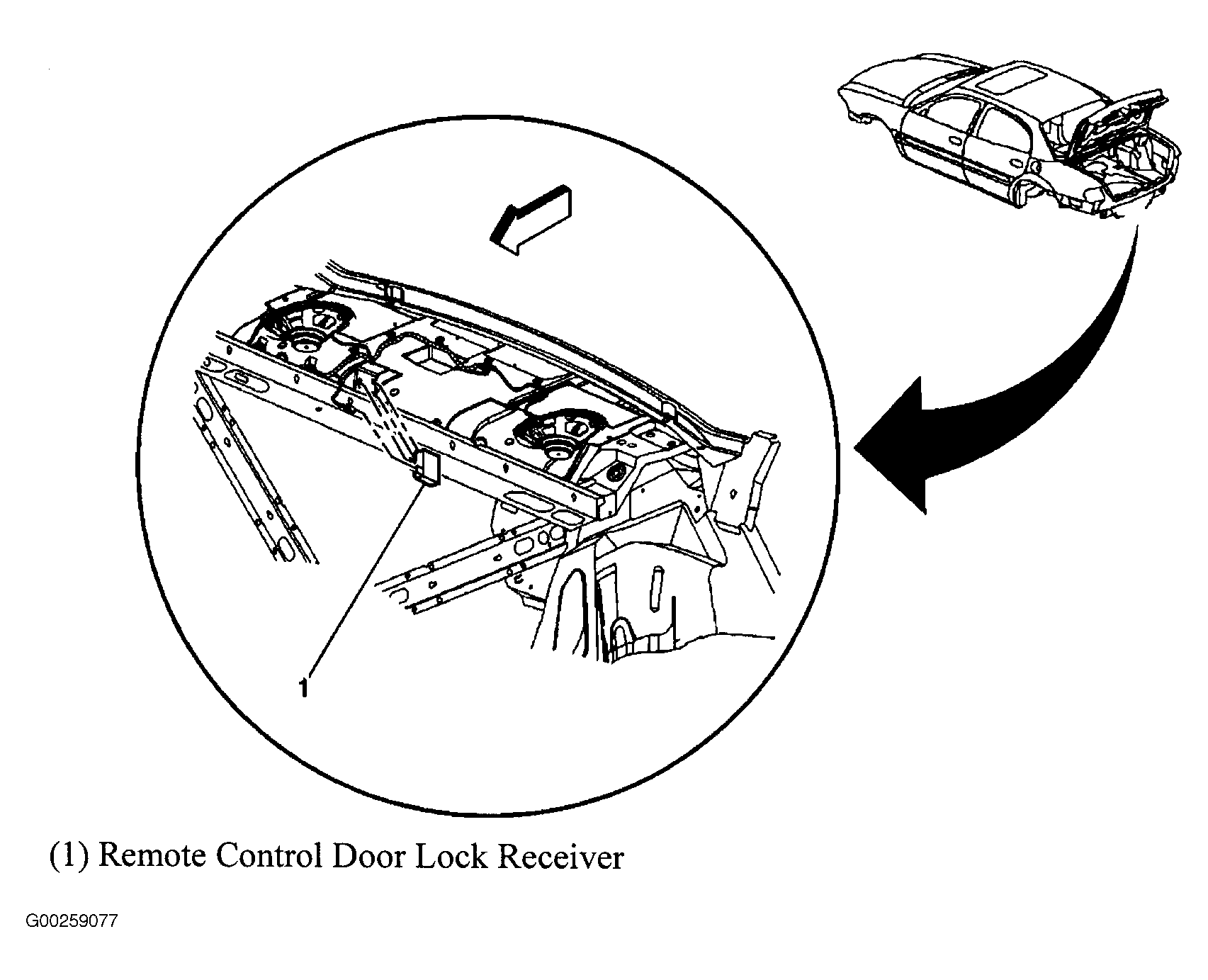

| Remote Control Door Lock Receiver | Under rear package shelf. See Figure. |

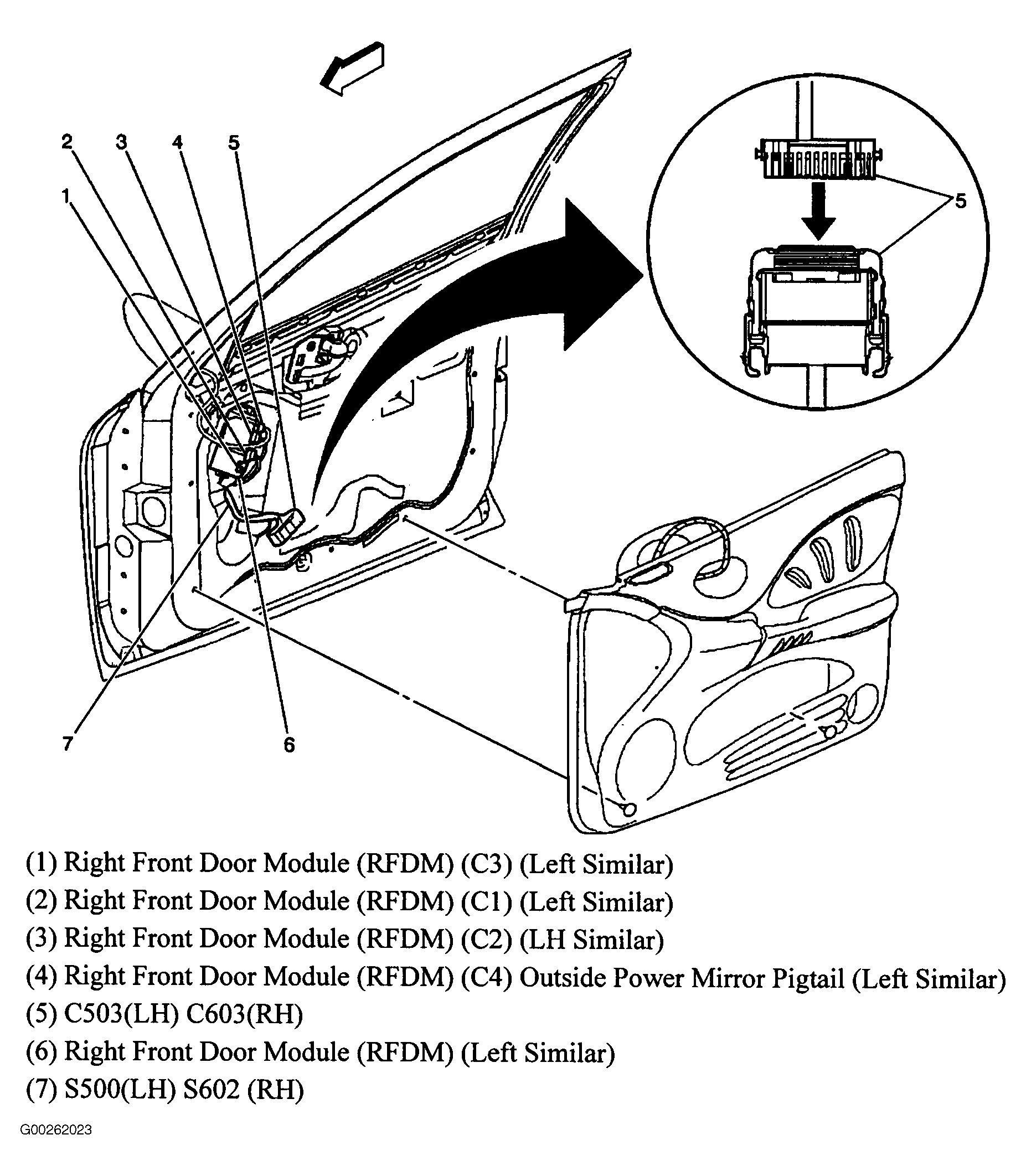

| Right Front Door Module | Front of right front door. See Figure. |

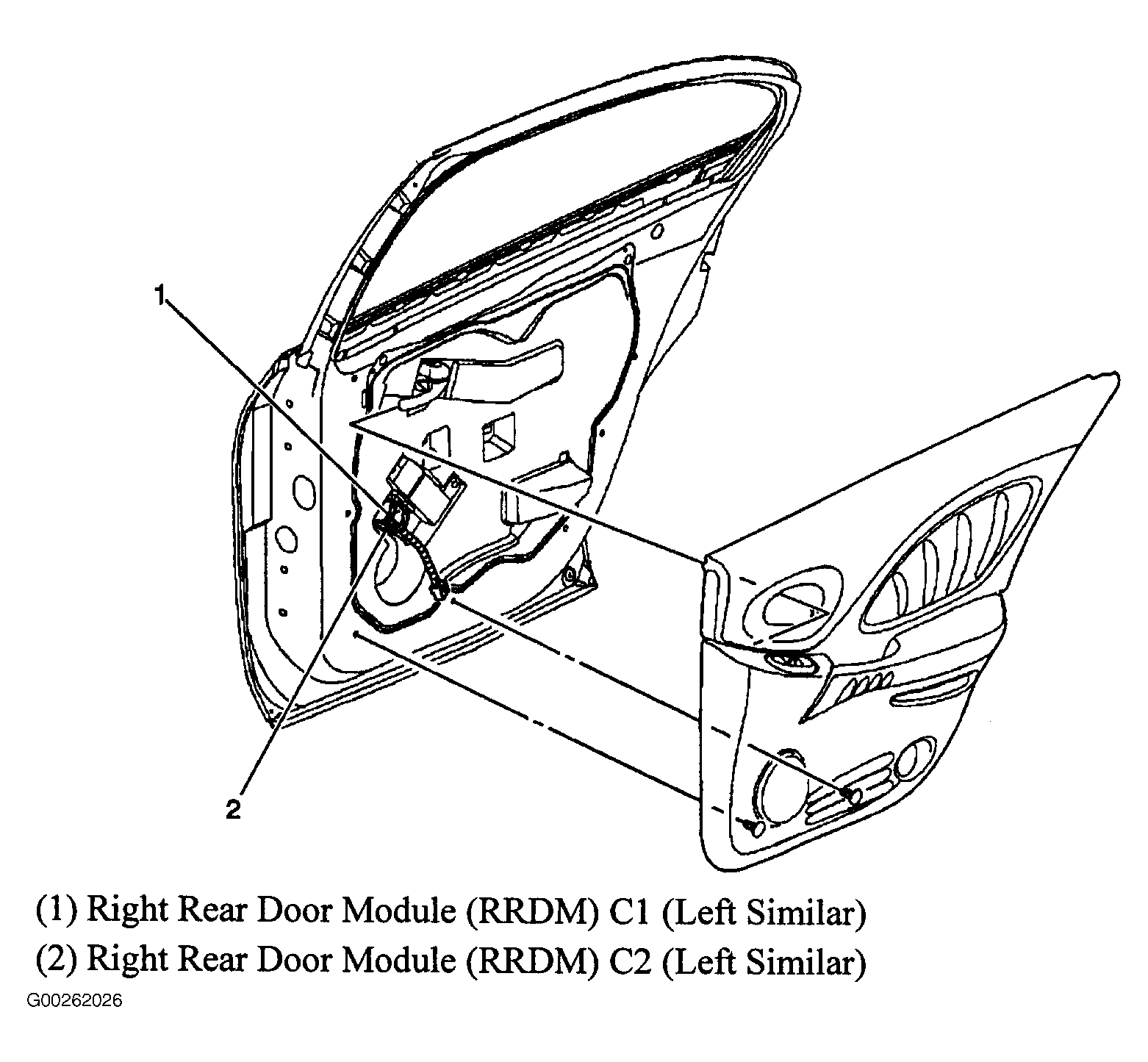

| Right Rear Door Module | Front of right rear door. See Figure. |

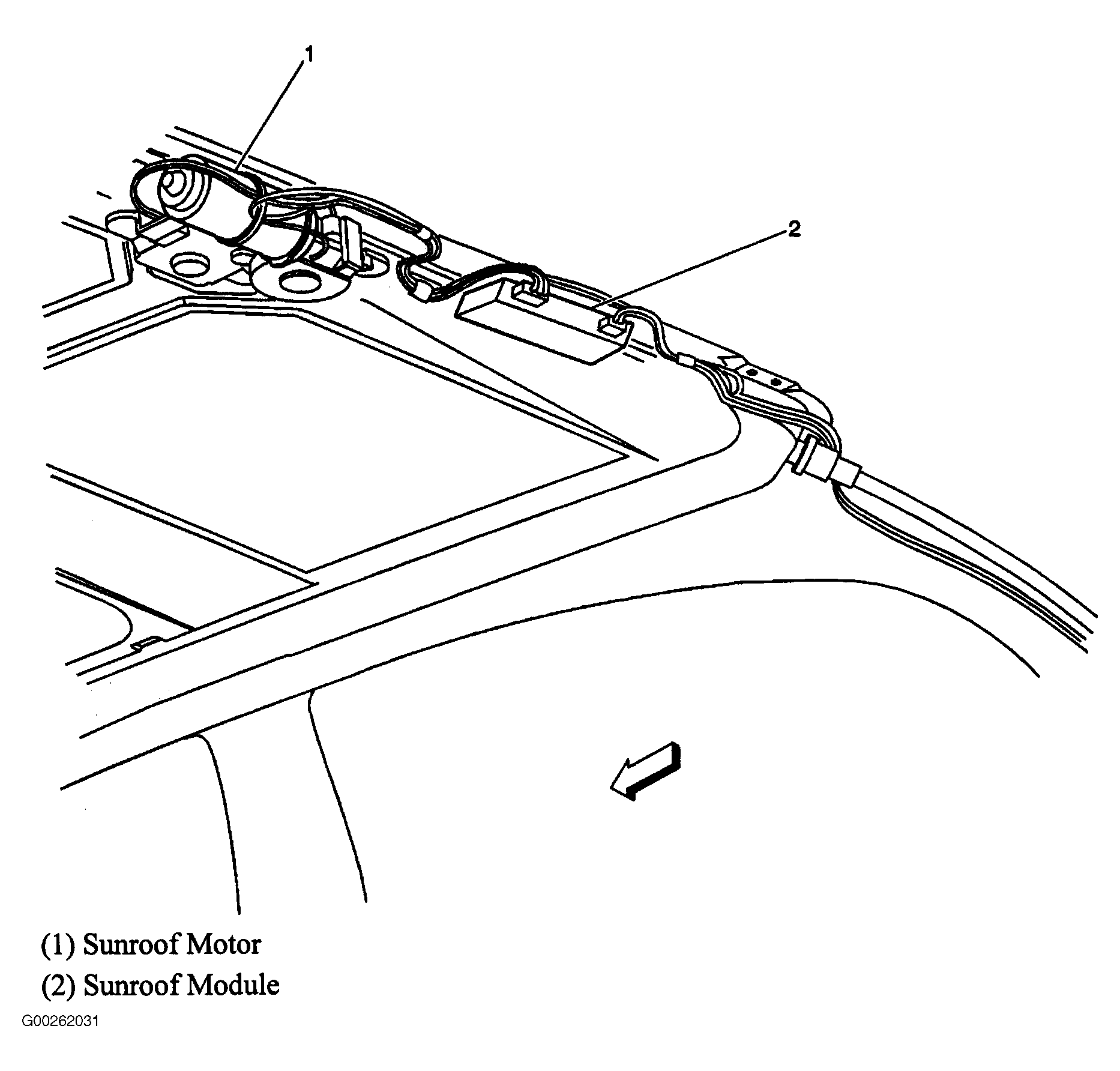

| Sun Roof Module | Rear of glass assembly, above headliner. See Figure. |
| Vehicle Communication Unit | Behind right rear seat back. |
| Vehicle Interface Unit | Behind right rear seat back. |
