Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

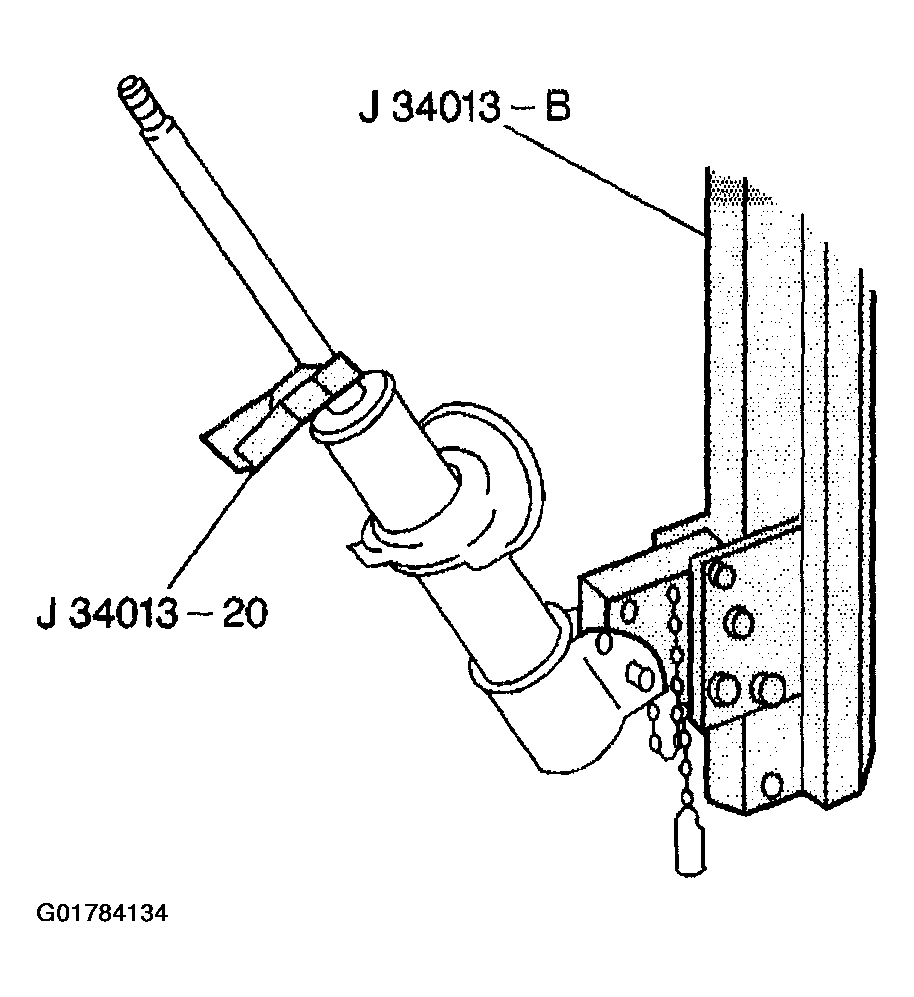

- Install the J 34013-B and J 34013-20 clamp on the strut shaft in the strut compressor.
- Install the spring over the strut in the correct position, and move the assembly upright in the strut compressor.
- Install the locking pin.
Important:
- The tab on the upper spring seat must face in from the centerline of the vehicle, or when mounted in the strut compressor, the spring seat must face the same direction as the steering knuckle mounting flange.
- If the bearing had been removed from the upper spring seat, the bearing must be installed into the upper spring seat in the same orientation as it had been. The bearing must be installed firmly in the spring seat before attaching the strut mount.

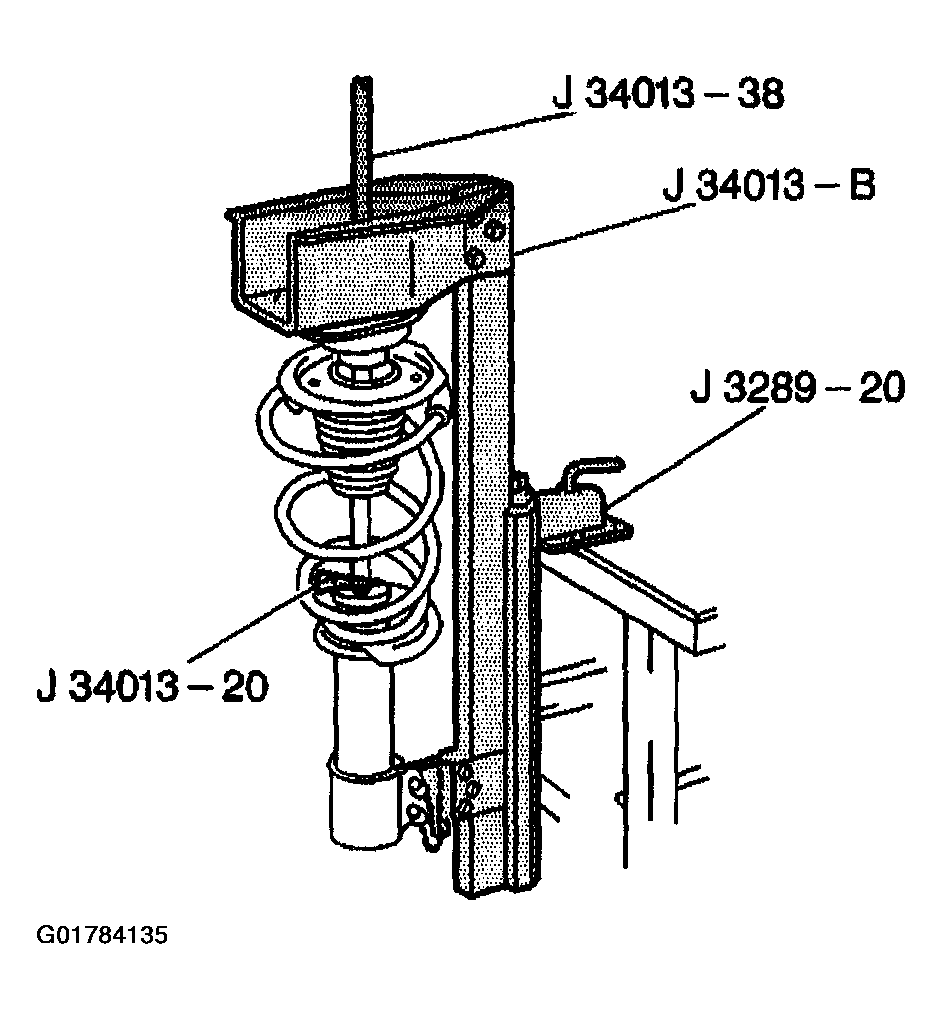

- Install J 34013-38 into the strut to guide the strut shaft.
- Turn the compressor screw clockwise while guiding the strut shaft to center in the assembly.
- Continue turning the compressor forcing screw on the strut compressor until the strut shaft threads are visible through the top of the strut assembly.NOTE: Refer to FASTENER NOTICE .
- Install the washer and remove the clamp J 34013-20
from the strut shaft.
Tighten
Tighten the strut mount nut to 75 N.m (55 lb ft).
- Remove the strut from the strut compressor.
- Install strut to vehicle. Refer to Strut Assembly Replacement .
