Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat module to the seat back.
    NOTE: Refer to FASTENER NOTICE .

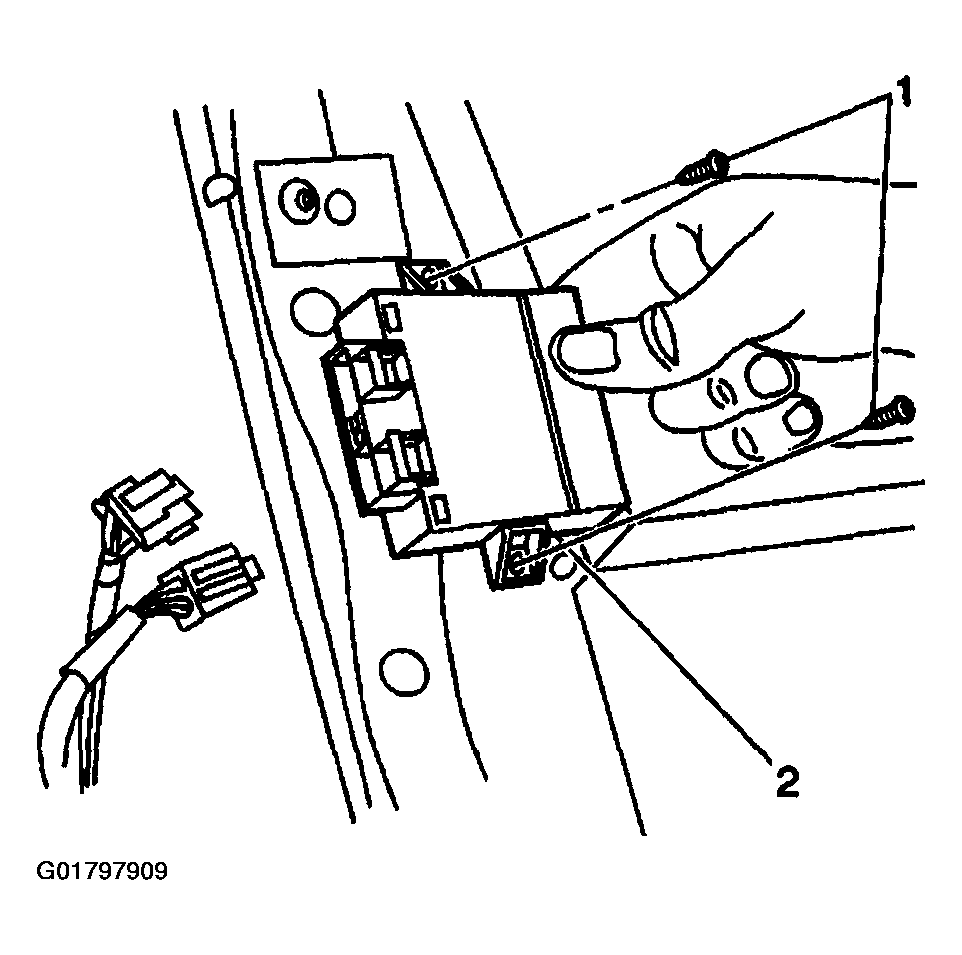

    2. Fig 1: Installing Rear Heated Seat Control Module
    G01797909Courtesy of GENERAL MOTORS CORP.
  2. Install the heated seat module fasteners (1).
  3. Connect the heated seat module electrical connections.
  4. Install the rear seat back. Refer to Seat Back Replacement - Rear .
