Daytime Running Lamps (DRL) Control Module Connector End View C2

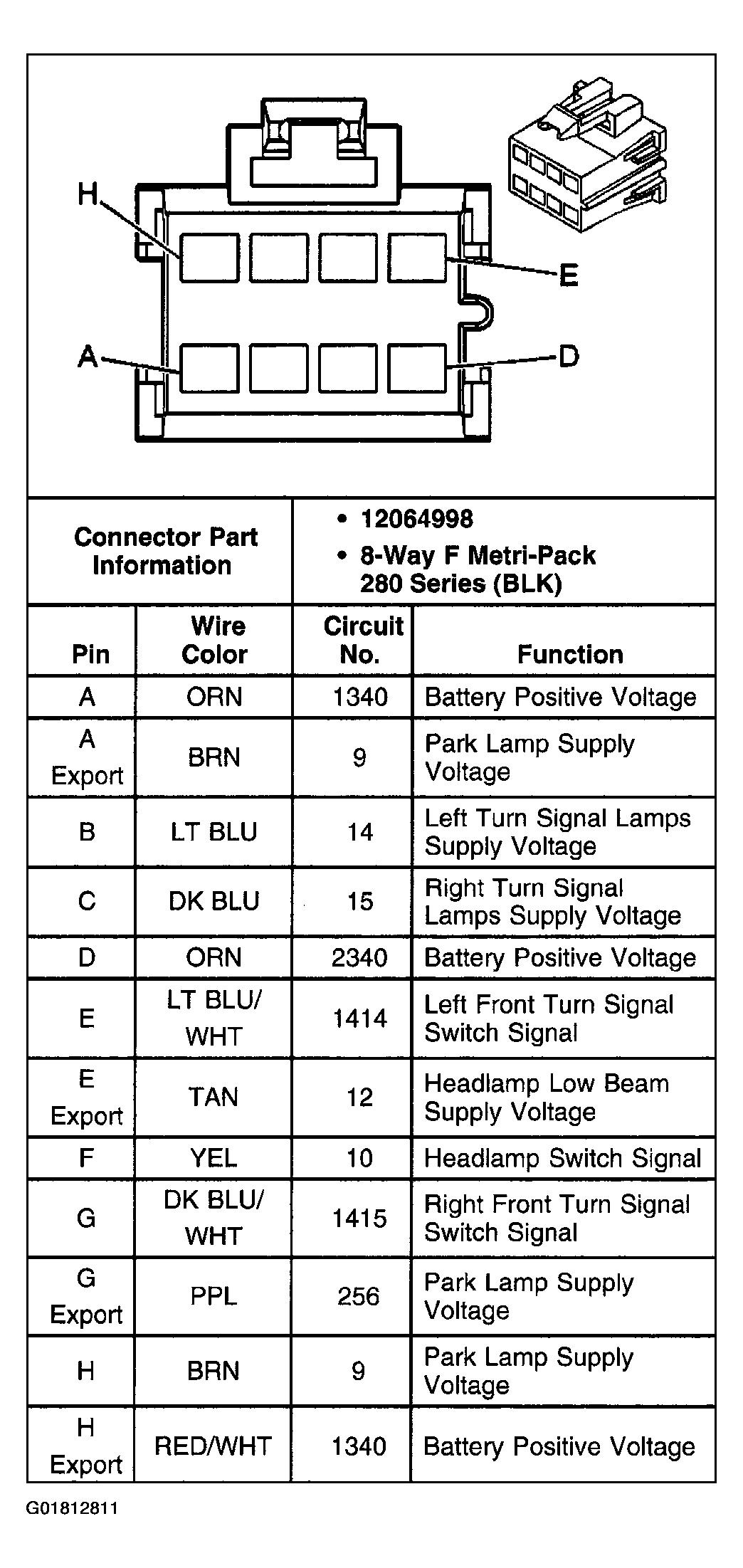

Fig 1: Daytime Running Lamps (DRL) Control Module C2
G01812811Courtesy of GENERAL MOTORS CORP.
