Inflatable Restraint Steering Wheel Module Connector End View

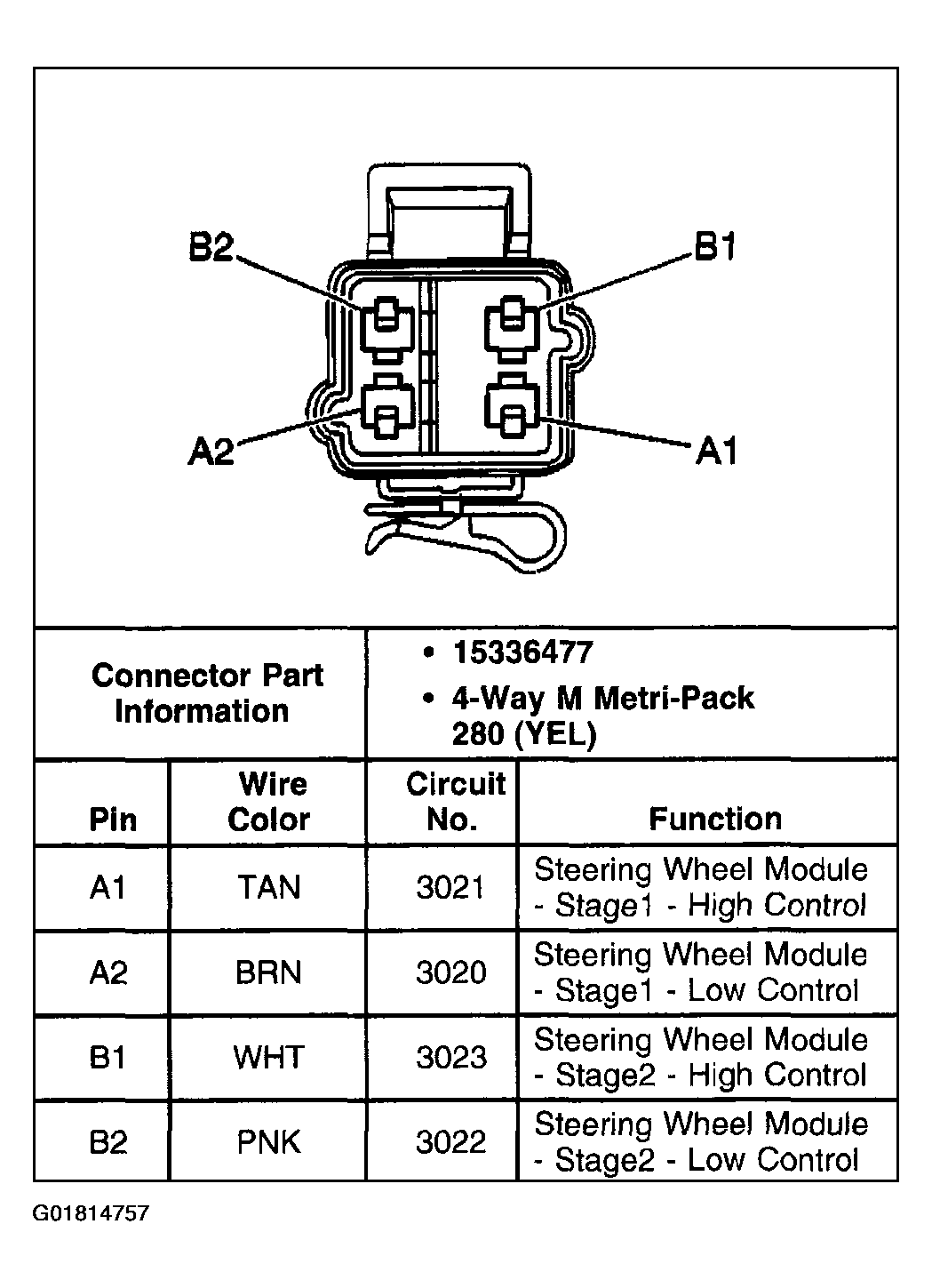

Fig 1: Inflatable Restraint Steering Wheel Module
G01814757Courtesy of GENERAL MOTORS CORP.
