Object Sensor Connector End View - LR Middle

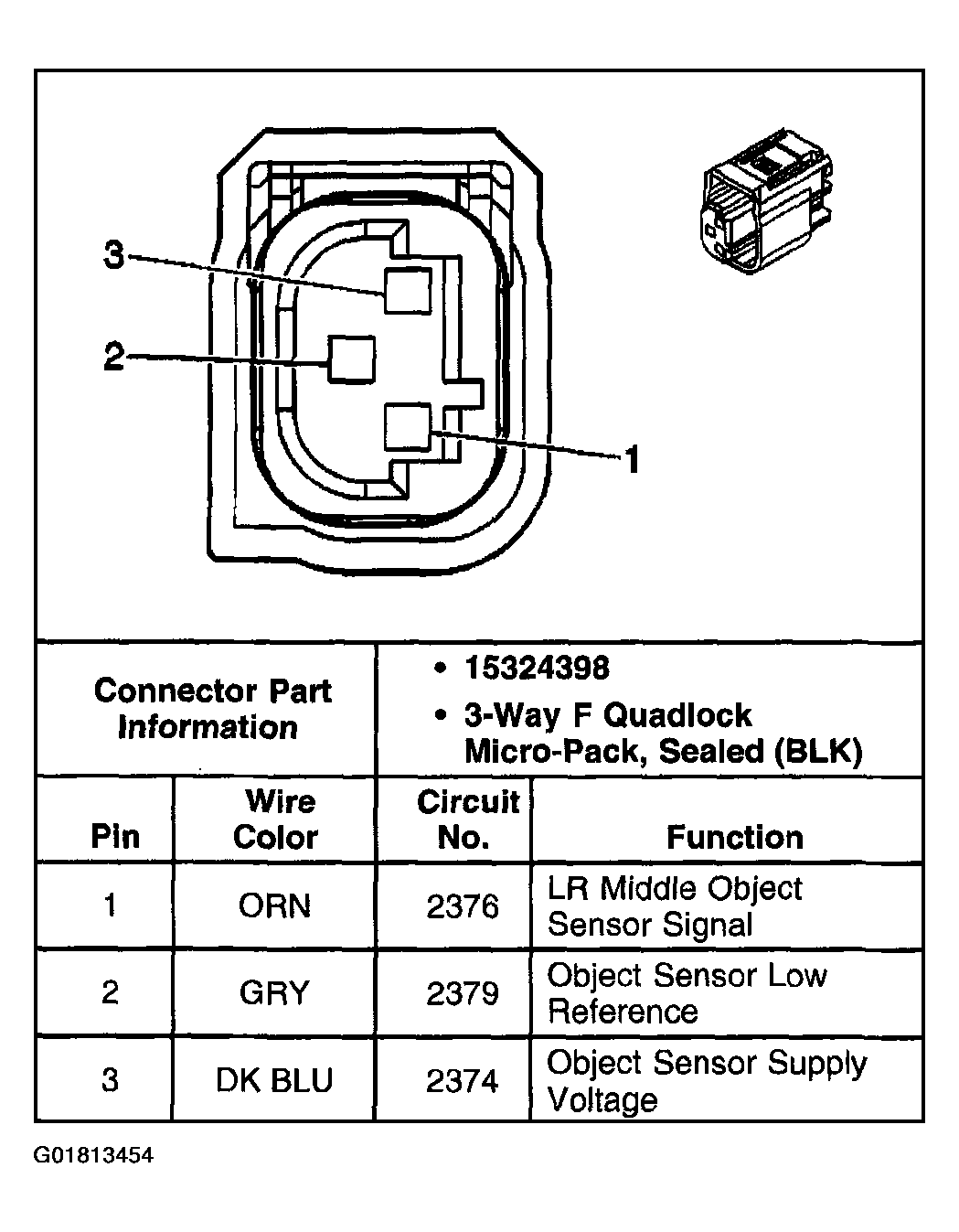

Fig 1: Object Sensor - LR Middle
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
