Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the right side engine splash shield in order to gain access. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  3. Place the drain pan under the vehicle in order to catch any draining power steering fluid.

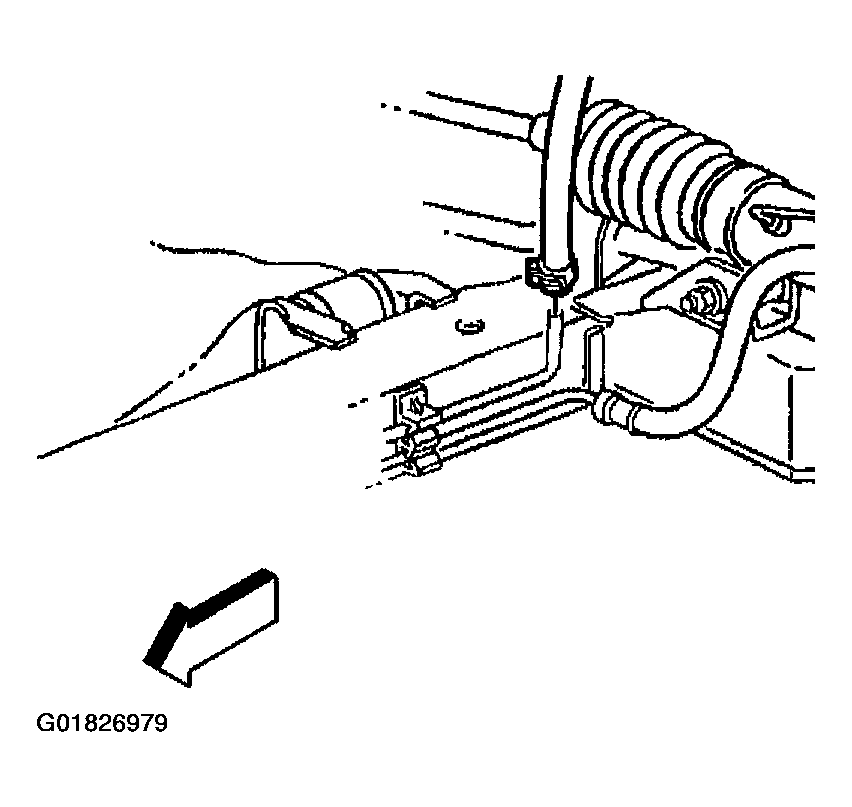

    4. Fig 1: Return Hose From Cooler Pipe
    G01826979Courtesy of GENERAL MOTORS CORP.
  4. Remove the return hose from the power steering gear cooler pipe.
  5. Lower the vehicle.
  6. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .

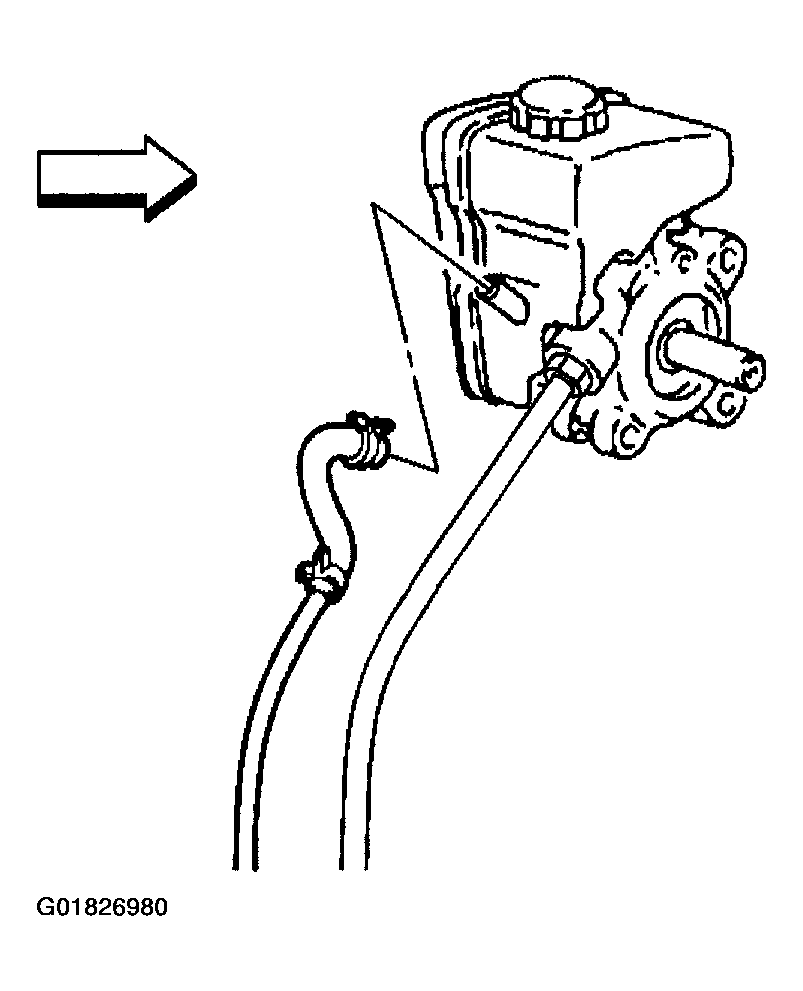

    7. Fig 2: Inlet Hose
    G01826980Courtesy of GENERAL MOTORS CORP.
  7. Remove the inlet hose from the power steering pump.
  8. Remove the inlet hose from the hose retainer.
  9. Remove the inlet hose.
