Automatic Level Control Suspension Connector End Views

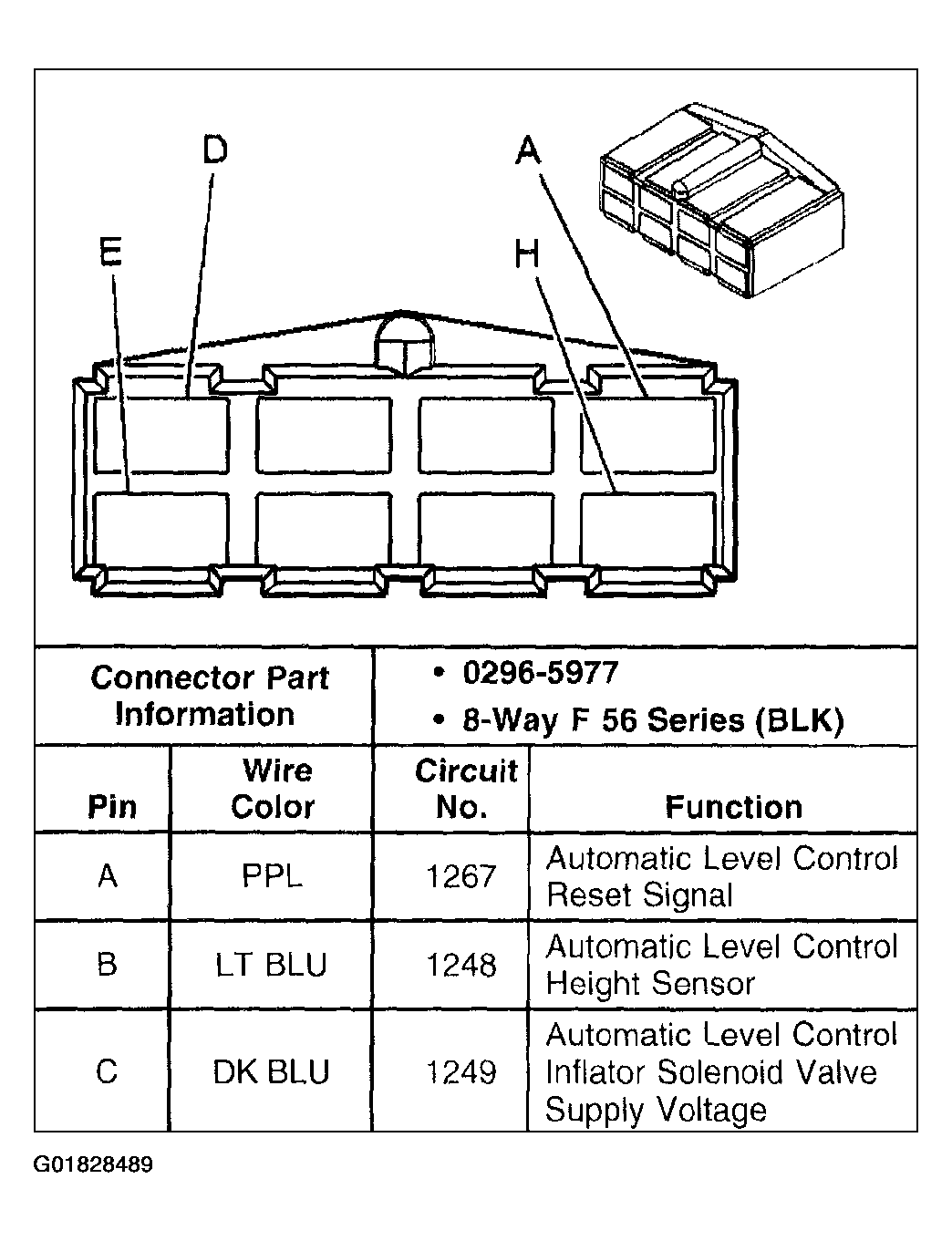

Fig 1: Air Inflator Switch

Courtesy of GENERAL MOTORS CORP.

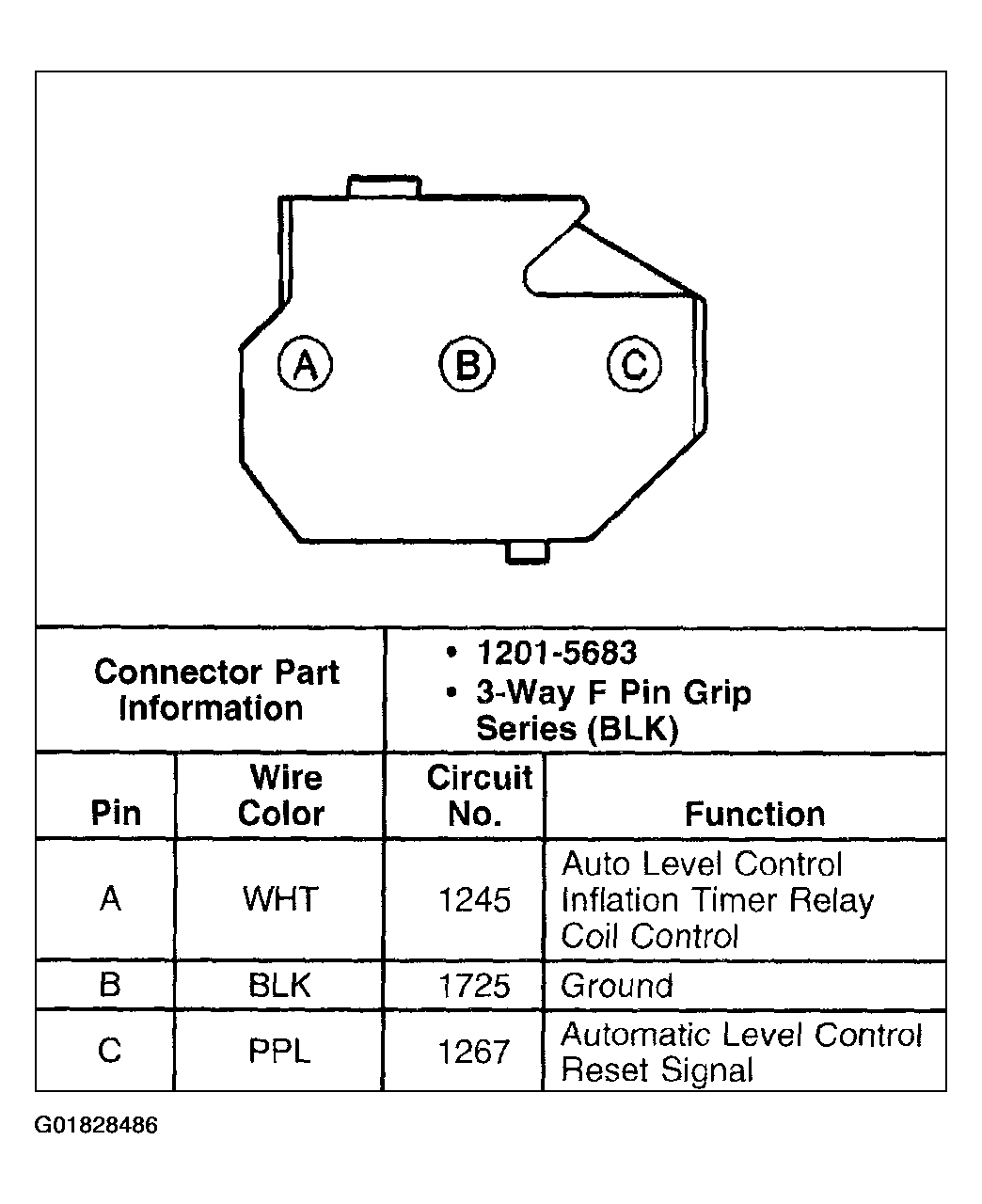

Fig 2: Auto Level Control (ALC) Air Compressor-With Inflator

Courtesy of GENERAL MOTORS CORP.

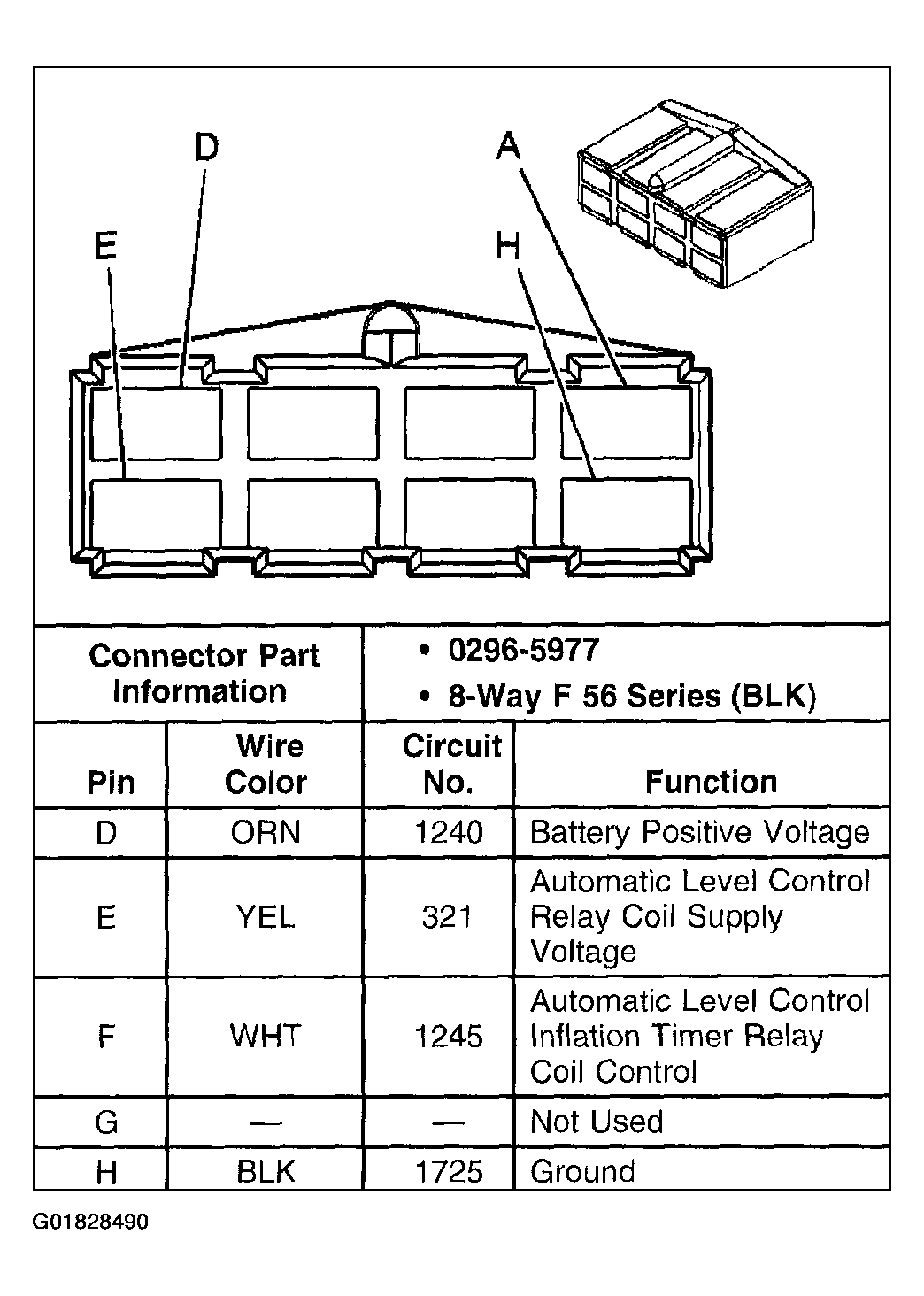

Fig 3: Auto Level Control (ALC) Air Compressor-Without Inflator

Courtesy of GENERAL MOTORS CORP.

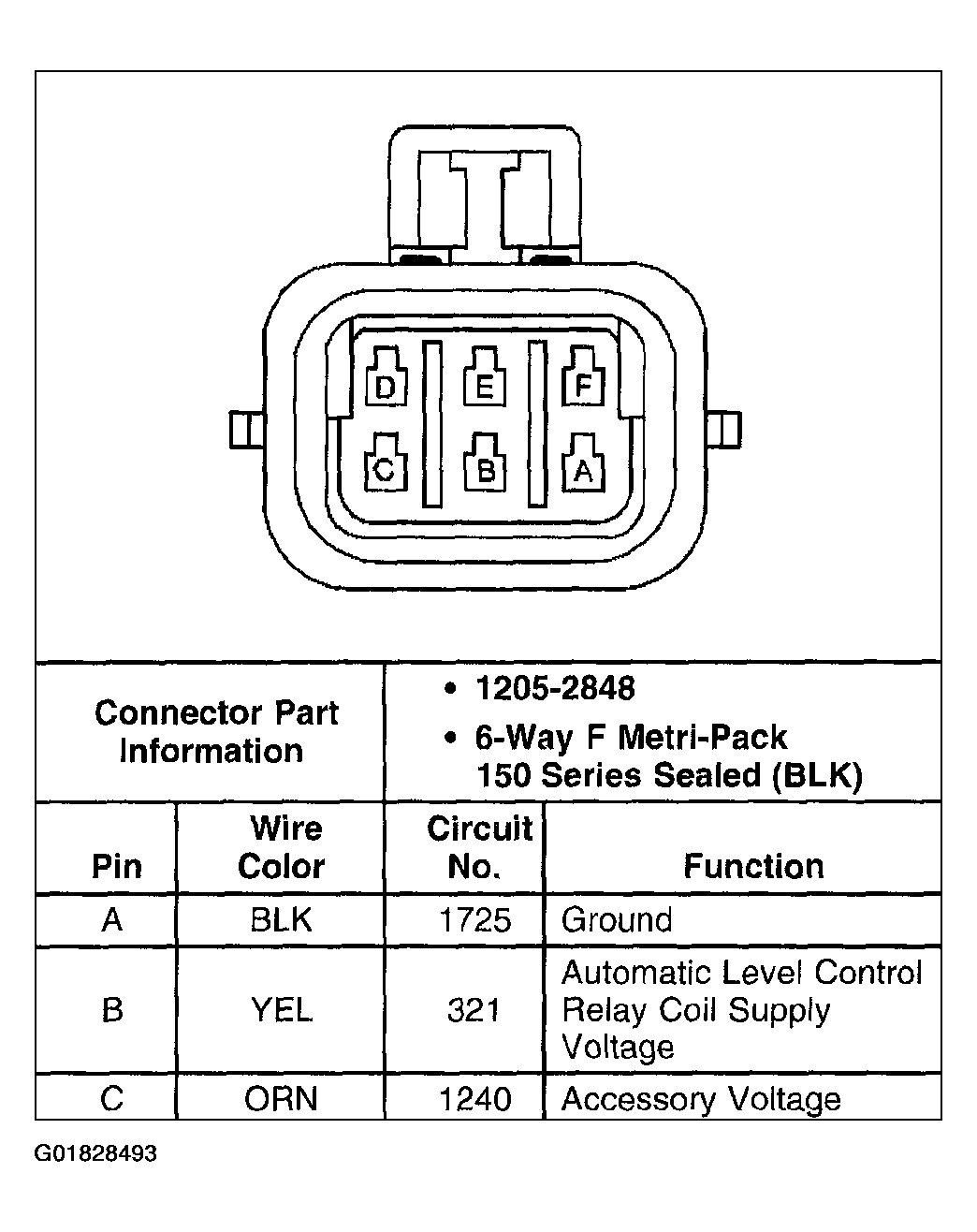

Fig 4: Auto Level Control (ALC) Air Inflator Relay (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

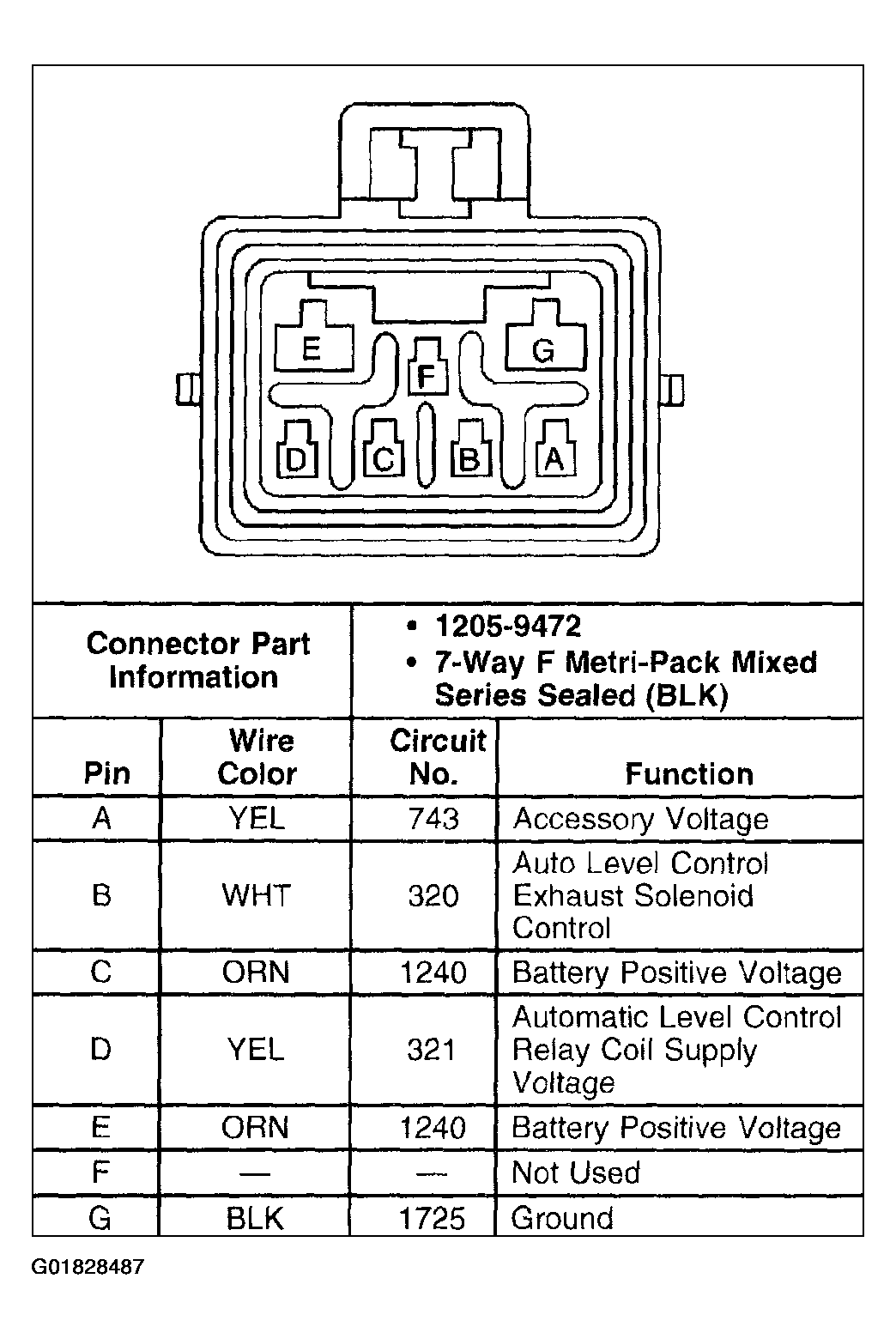

Fig 5: Auto Level Control (ALC) Air Inflator Relay (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

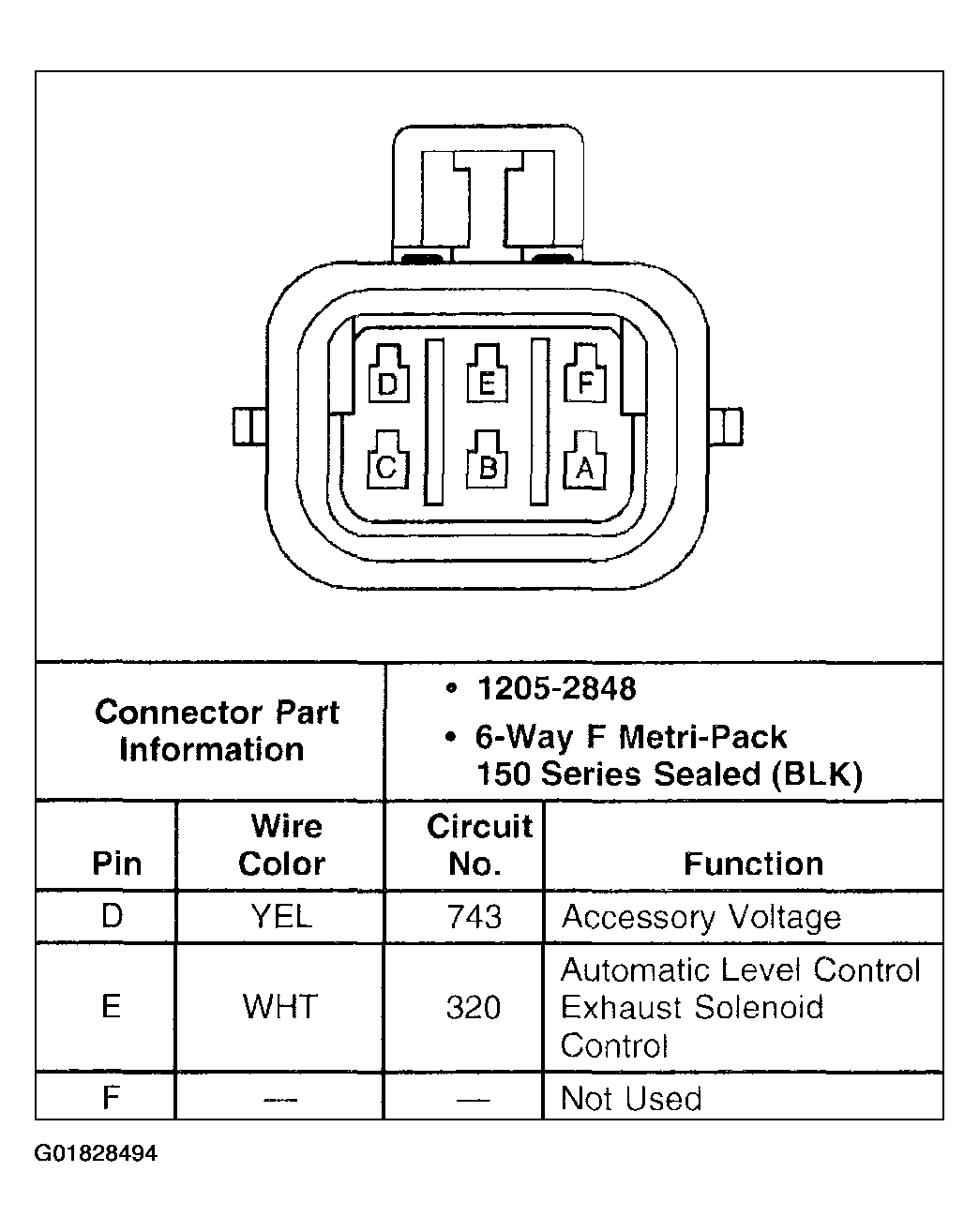

Fig 6: Auto Level Control (ALC) Air Inflator Solenoid

Courtesy of GENERAL MOTORS CORP.

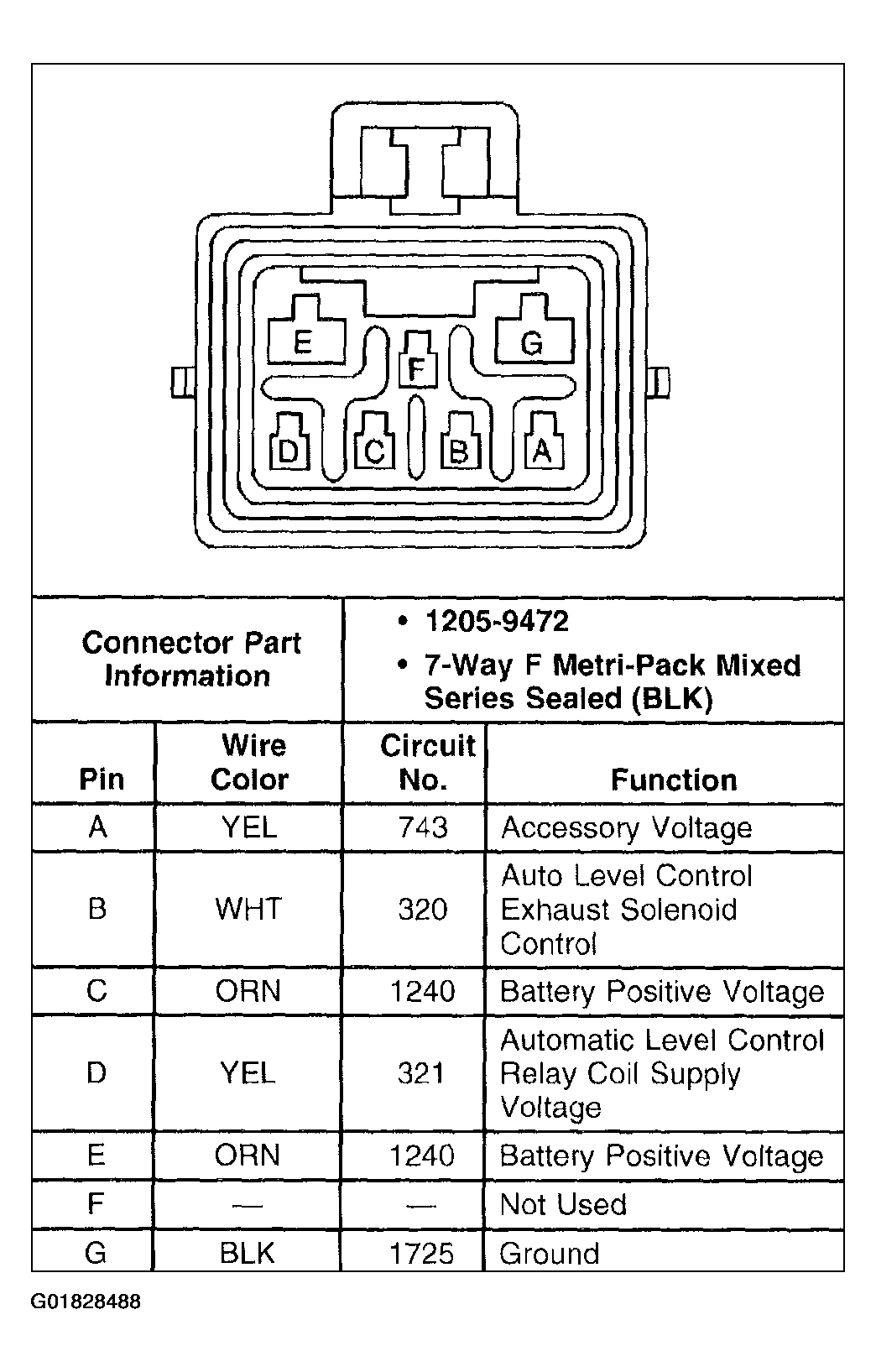

Fig 7: Auto Level Control (ALC) Sensor - With Inflator

Courtesy of GENERAL MOTORS CORP.

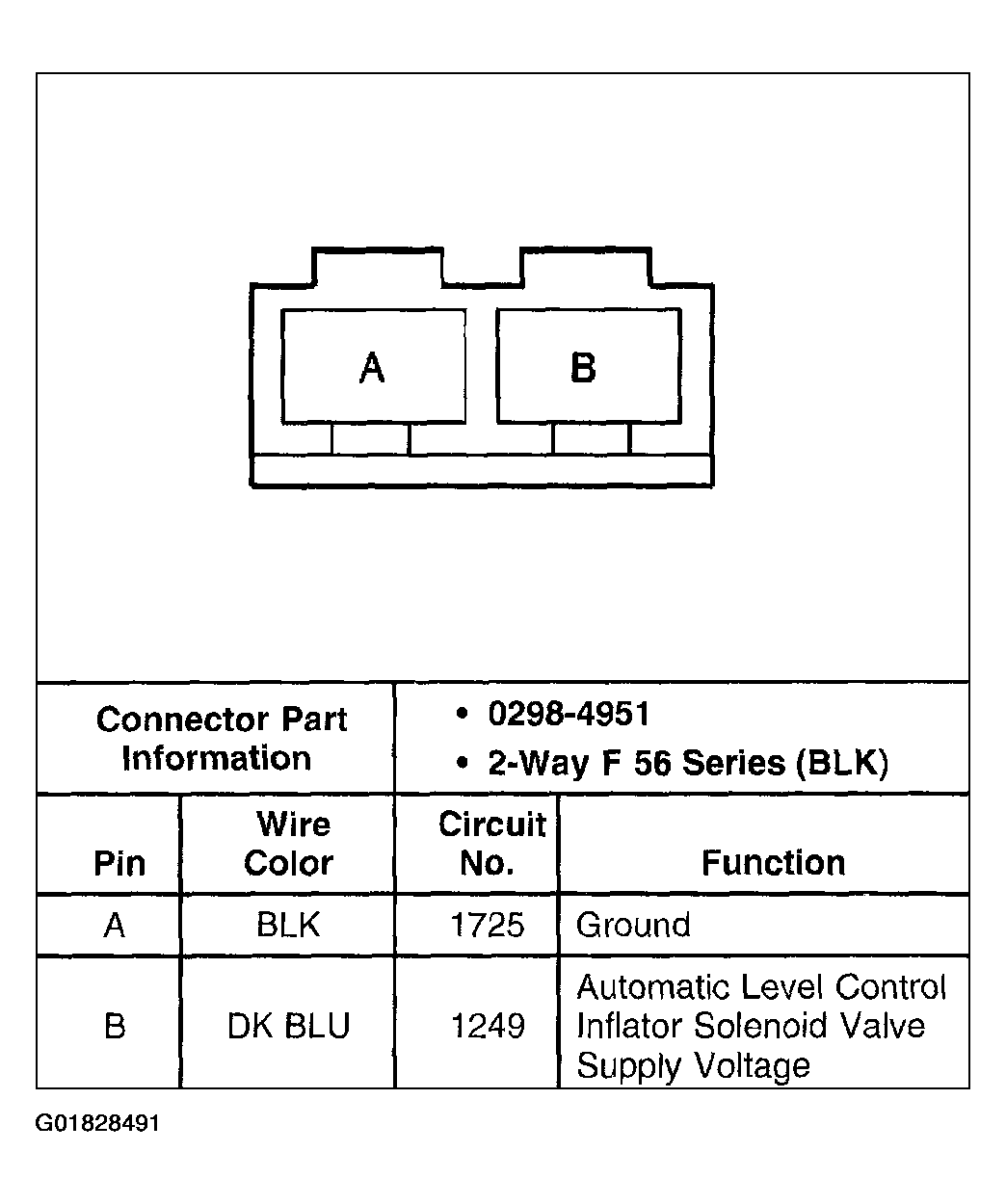

Fig 8: Auto Level Control (ALC) Sensor - Without Inflator (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Auto Level Control (ALC) Sensor - Without Inflator (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
