Automatic Level Control Compressor Motor Does Not Activate

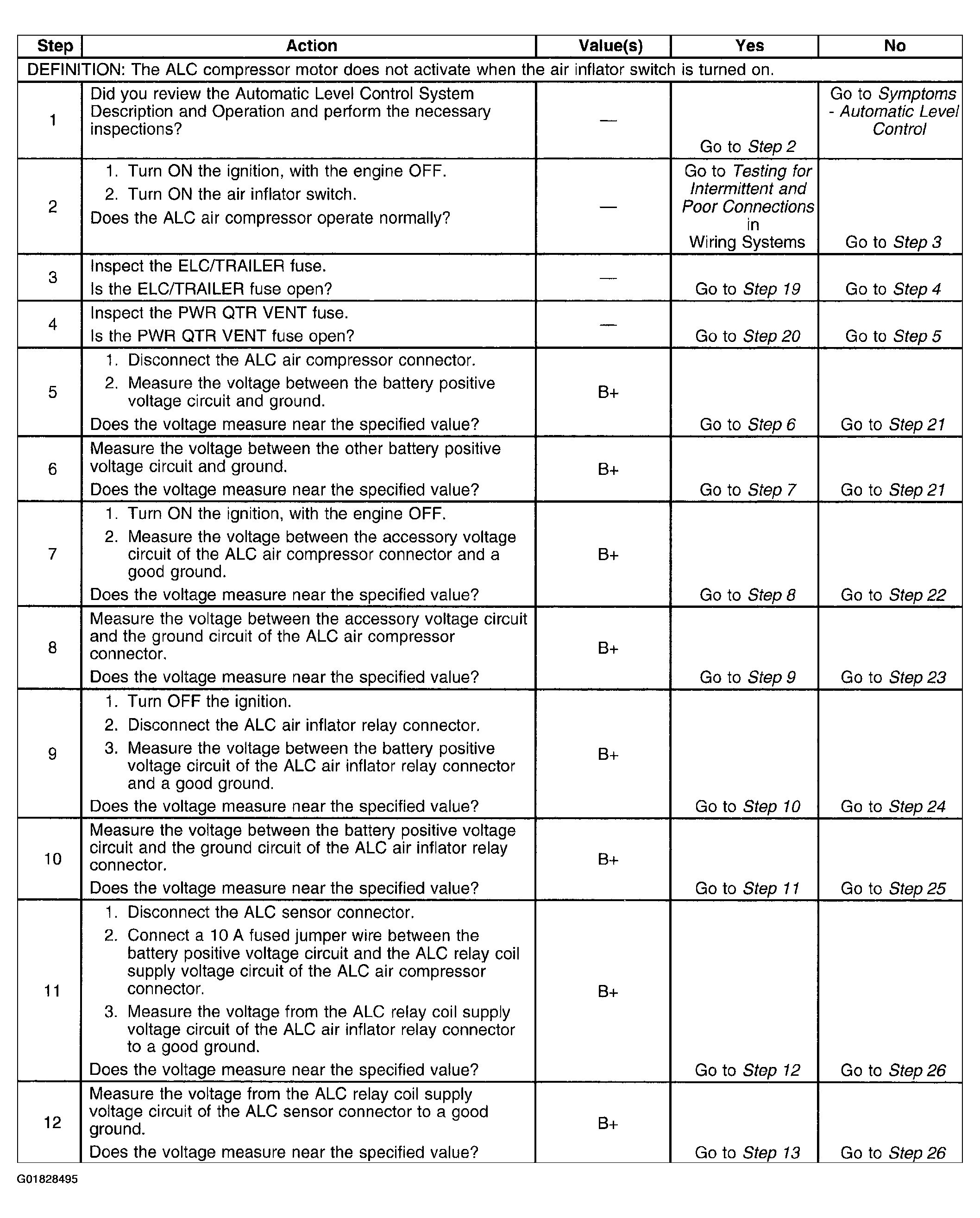

Fig 1: Automatic Level Control Compressor Motor Does Not Activate (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

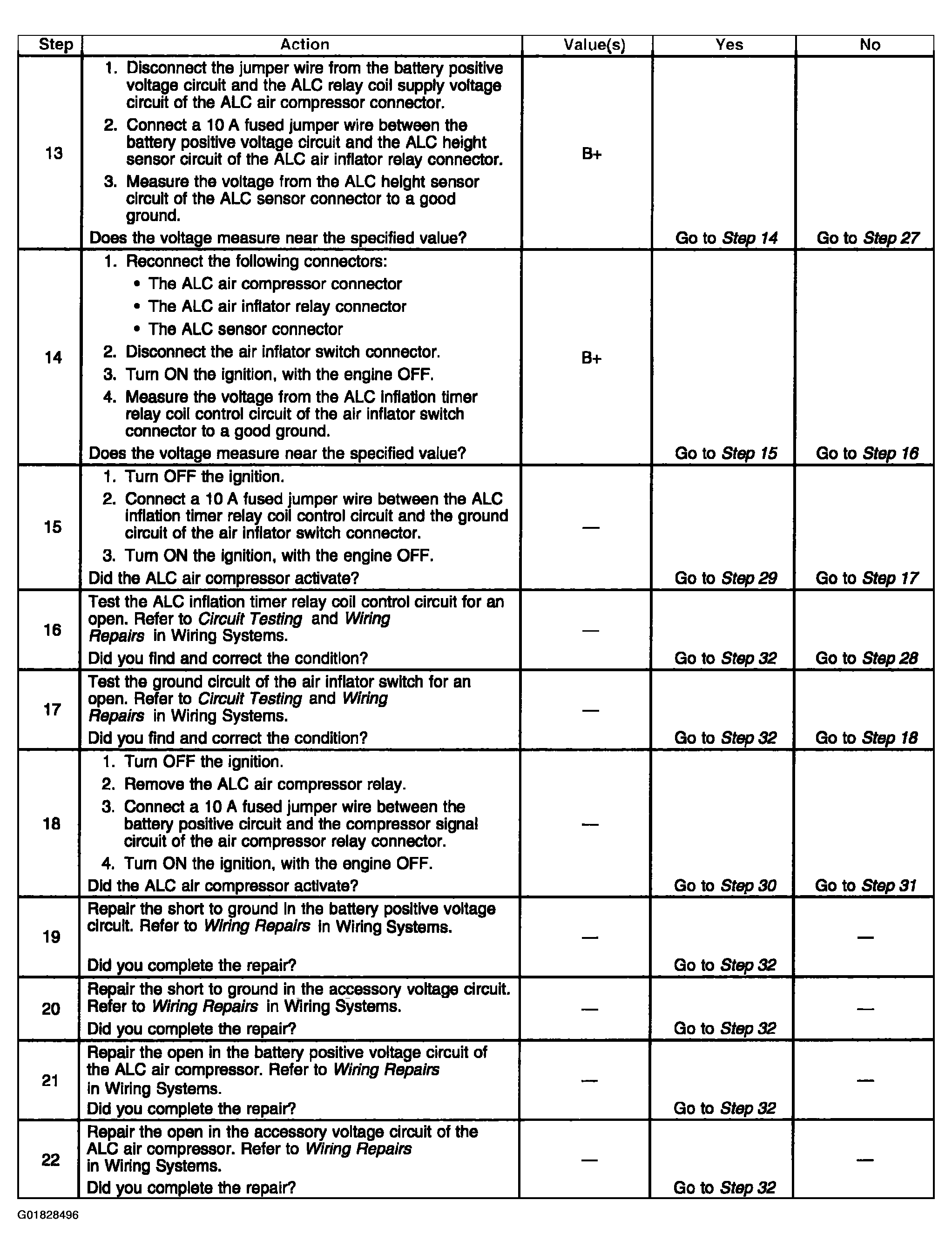

Fig 2: Automatic Level Control Compressor Motor Does Not Activate (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

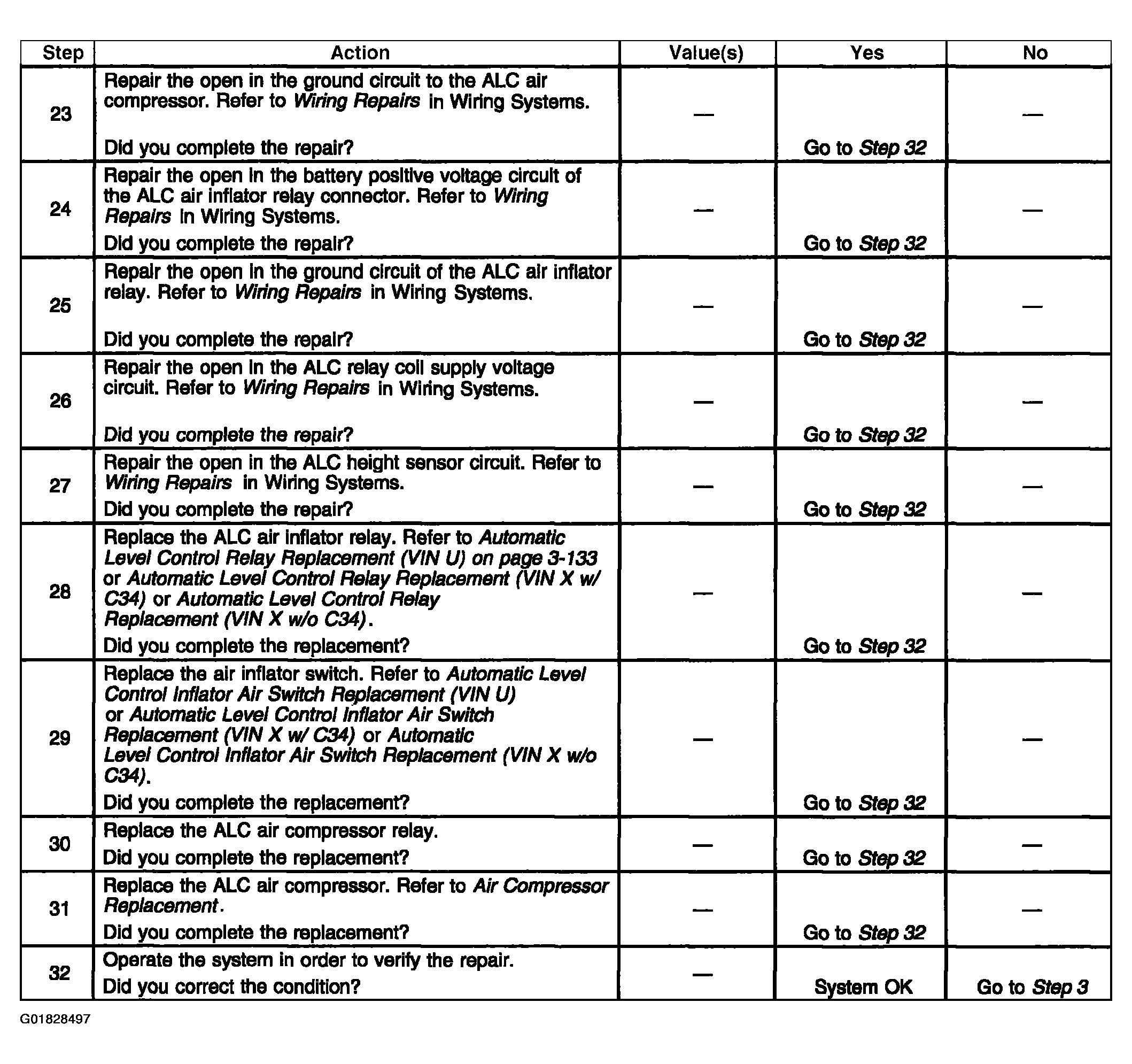

Fig 3: Automatic Level Control Compressor Motor Does Not Activate (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
