Automatic Level Control System Leak Test

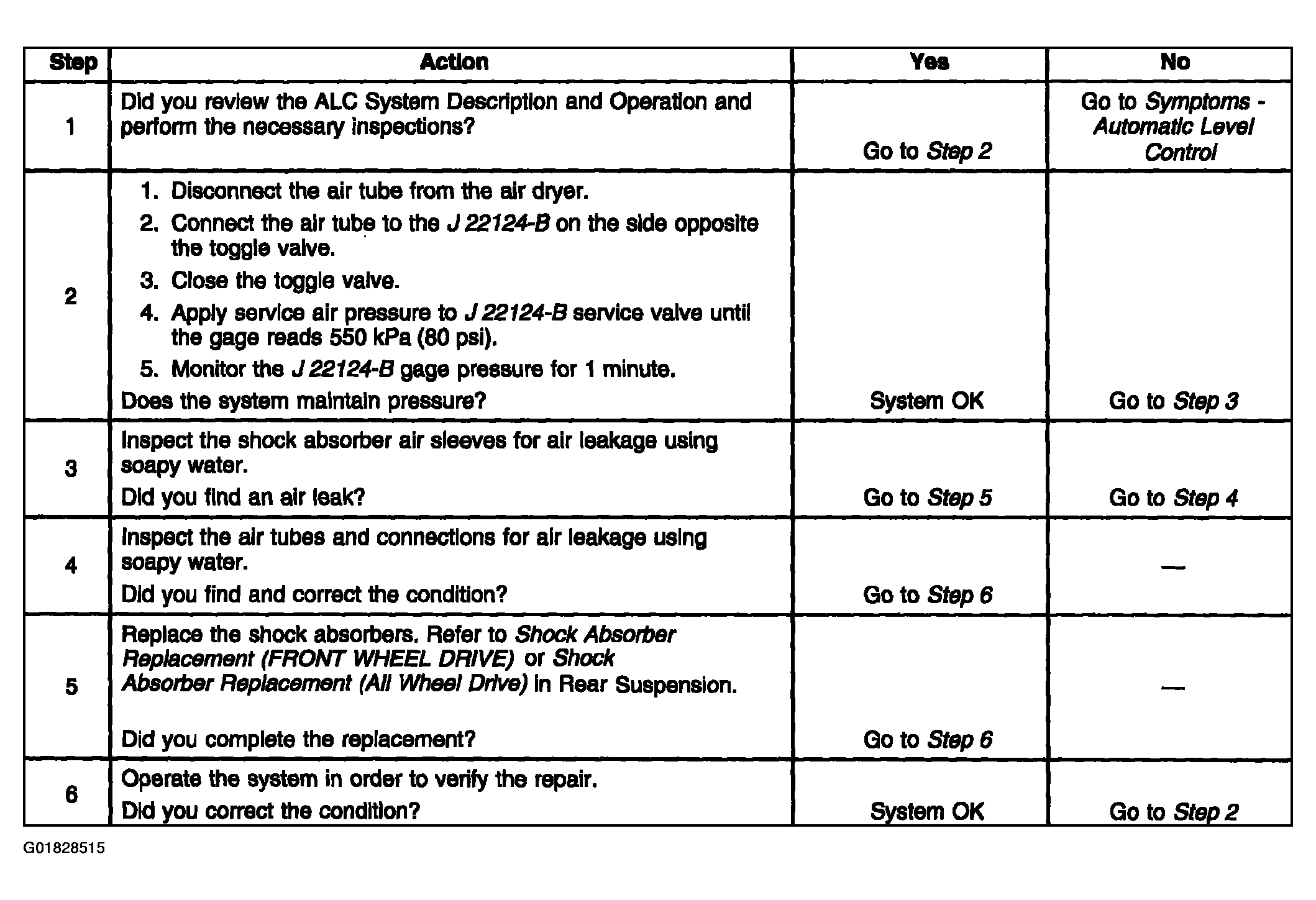

Fig 1: Automatic Level Control System Leak Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
