Installation Procedure

  1. Install the air compressor filter hose to the air compressor at 2 places.

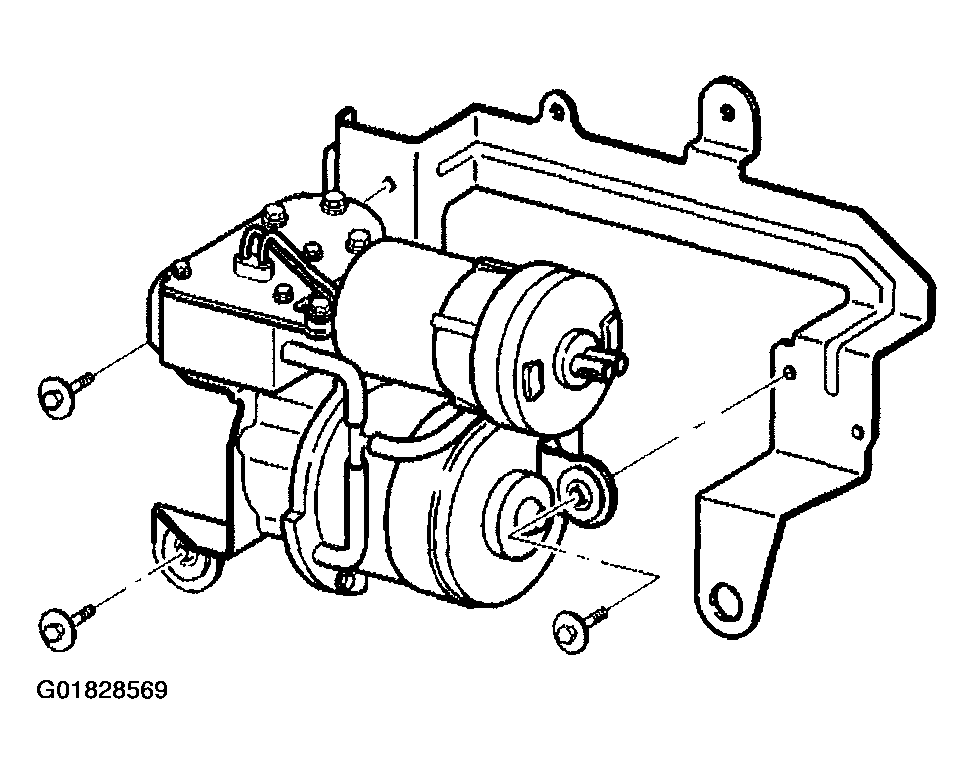

    2. Fig 1: Air Compressor Bracket
    G01828569Courtesy of GENERAL MOTORS CORP.
  2. Install the air compressor to the air compressor bracket.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the air compressor bolts/screws.

    Tighten

    Tighten the air compressor bolts/screws to 4 N.m (35 lb in).

  4. Install the air compressor shield.
  5. Install the air compressor relay to the air compressor bracket.
  6. Install the air compressor dryer. Refer to Automatic Level Control Air Dryer Replacement .

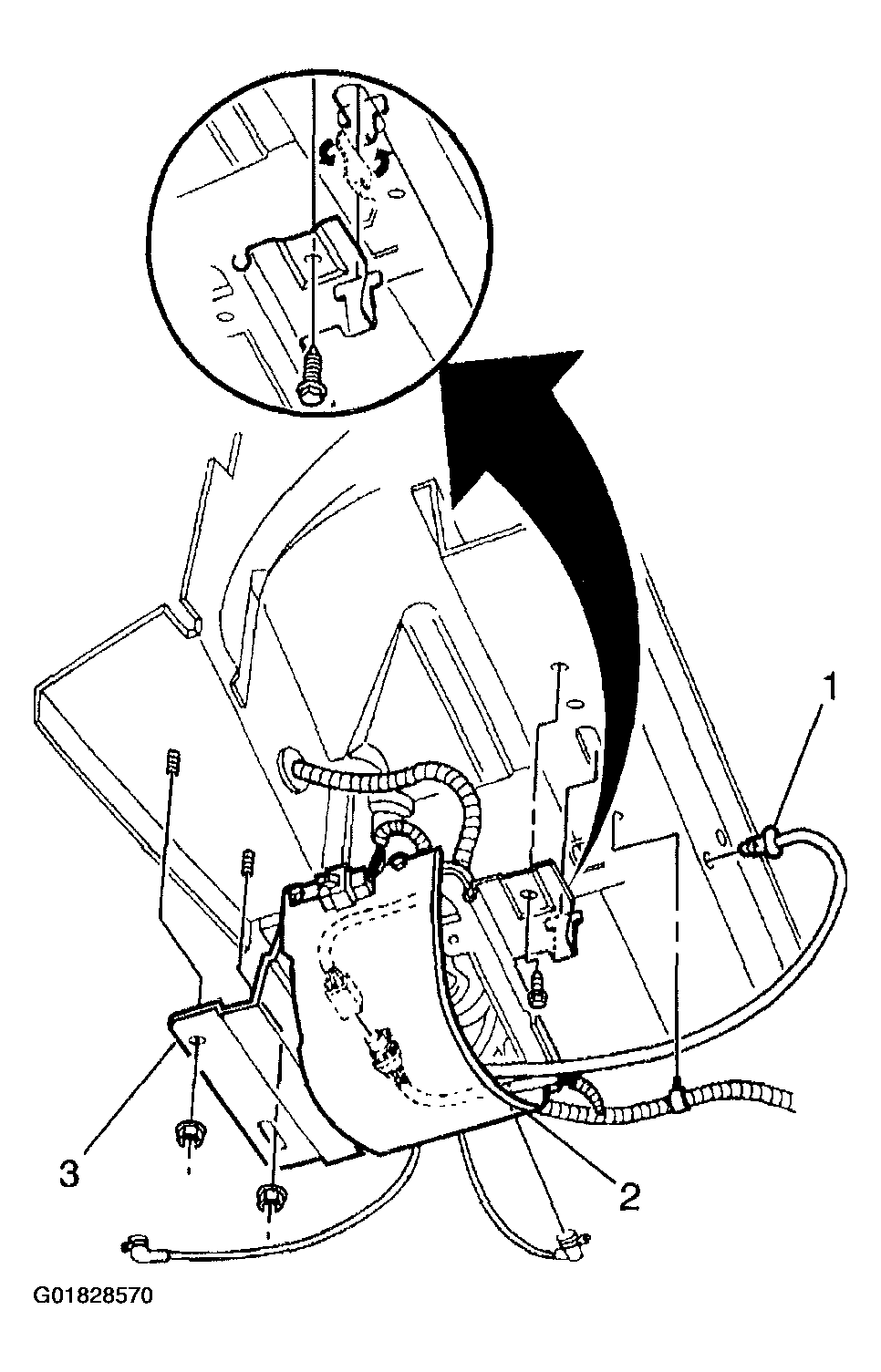

    7. Fig 2: Air Compressor
    G01828570Courtesy of GENERAL MOTORS CORP.
  7. Install the air compressor bracket to the underbody rail and rotate the air compressor bracket 90 degrees in order to allow the air compressor to hang from the air compressor bracket hook.
  8. Connect the air compressor electrical connector.
  9. Install the air line to the air dryer.
  10. Install the air compressor bracket nuts.

    Tighten

    Tighten the air compressor bracket nuts to 10 N.m (89 lb in).

  11. Install the air compressor bracket bolt.

    Tighten

    Tighten the air compressor bracket bolt/screw to 50 N.m (37 lb ft).

  12. Install the air compressor filter (1) to the underbody rail.
  13. Lower the vehicle.
