Installation Procedure

  1. Route the wires through the tie strap and the conduit.

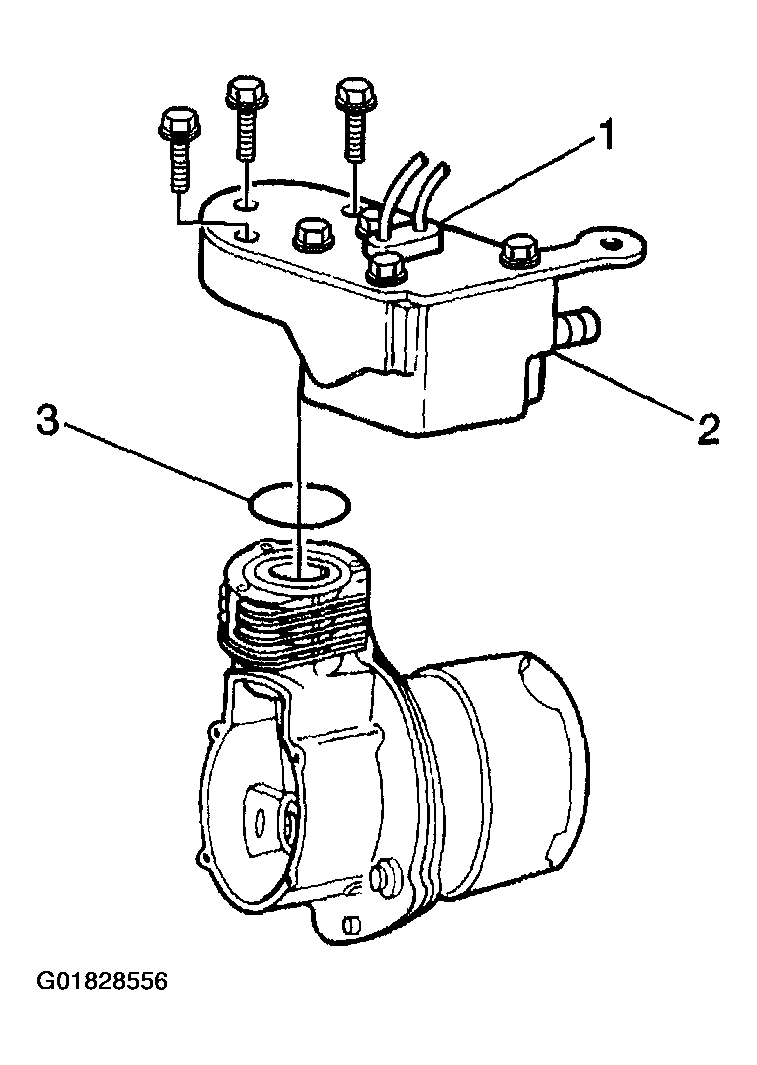

    2. Fig 1: Automatic Level Control Air Compressor Head
    G01828556Courtesy of GENERAL MOTORS CORP.
  2. Install the O-ring (3) to the automatic level control air compressor.
  3. Install the air compressor head.
    NOTE: Refer to FASTENER NOTICE .
    4. Fig 2: Air Compressor Head Bolts Tightening Sequence
    G01828557Courtesy of GENERAL MOTORS CORP.
  4. Install the air compressor head bolts.

    Tighten

    Tighten the air compressor head bolts in the order shown to 6 N.m (53 lb in).

  5. Install the wiring to terminals B and C on the automatic level control air compressor electrical connector.
  6. Install the air dryer to the automatic level control air compressor. Refer to Automatic Level Control Air Dryer Replacement .
  7. Install the automatic level control air compressor to the vehicle. Refer to Air Compressor Replacement .
