Installation Procedure

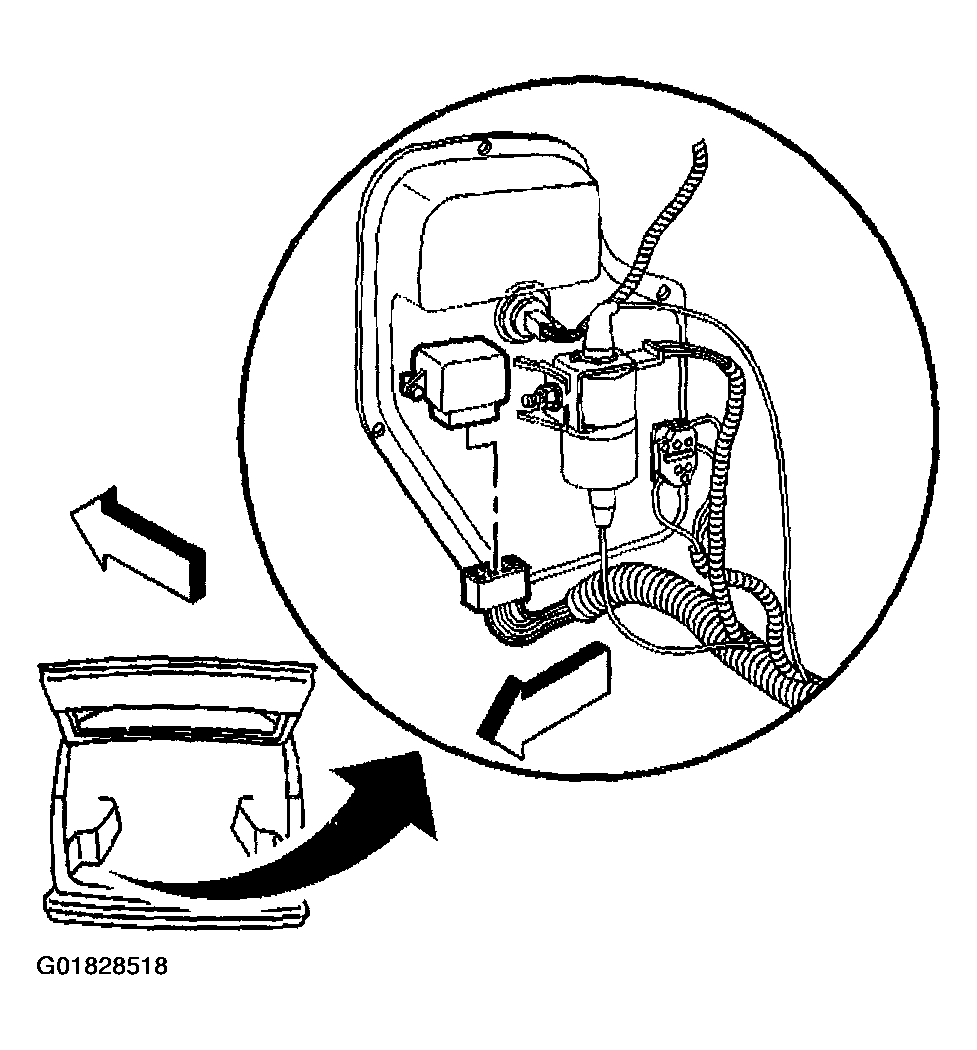

    Fig 1: Electrical Connector For Inflation Timer Relay
    G01828518Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the inflation timer relay.
    NOTE: Refer to FASTENER NOTICE .

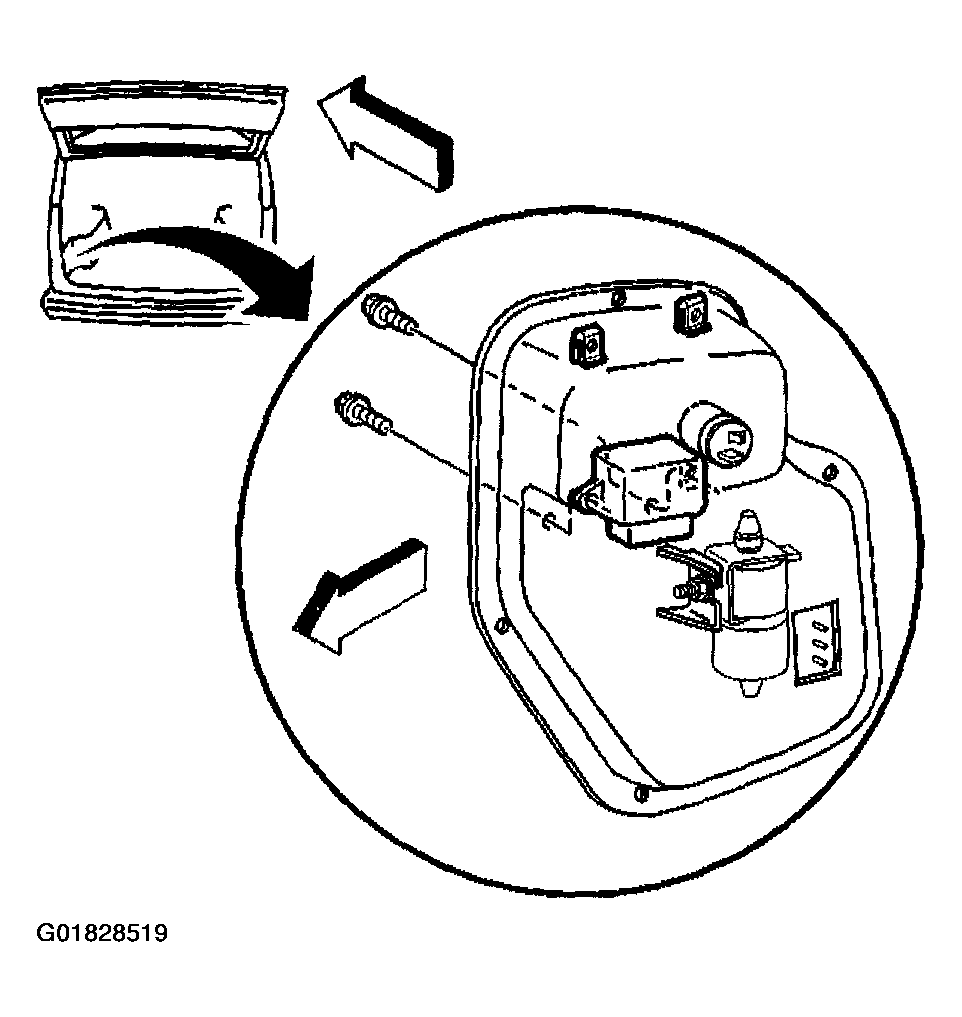

    2. Fig 2: Inflator Control Panel
    G01828519Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts/screws to the inflator relay.

    Tighten

    Tighten the inflator relay bolts/screws to 2 N.m (18 lb in).

  3. Install the inflator control panel retainers.
  4. Install the inflator air valve opening cover by pushing the lever outboard.
  5. Install the ELC/TRAILER fuse.
