Entertainment Component Views

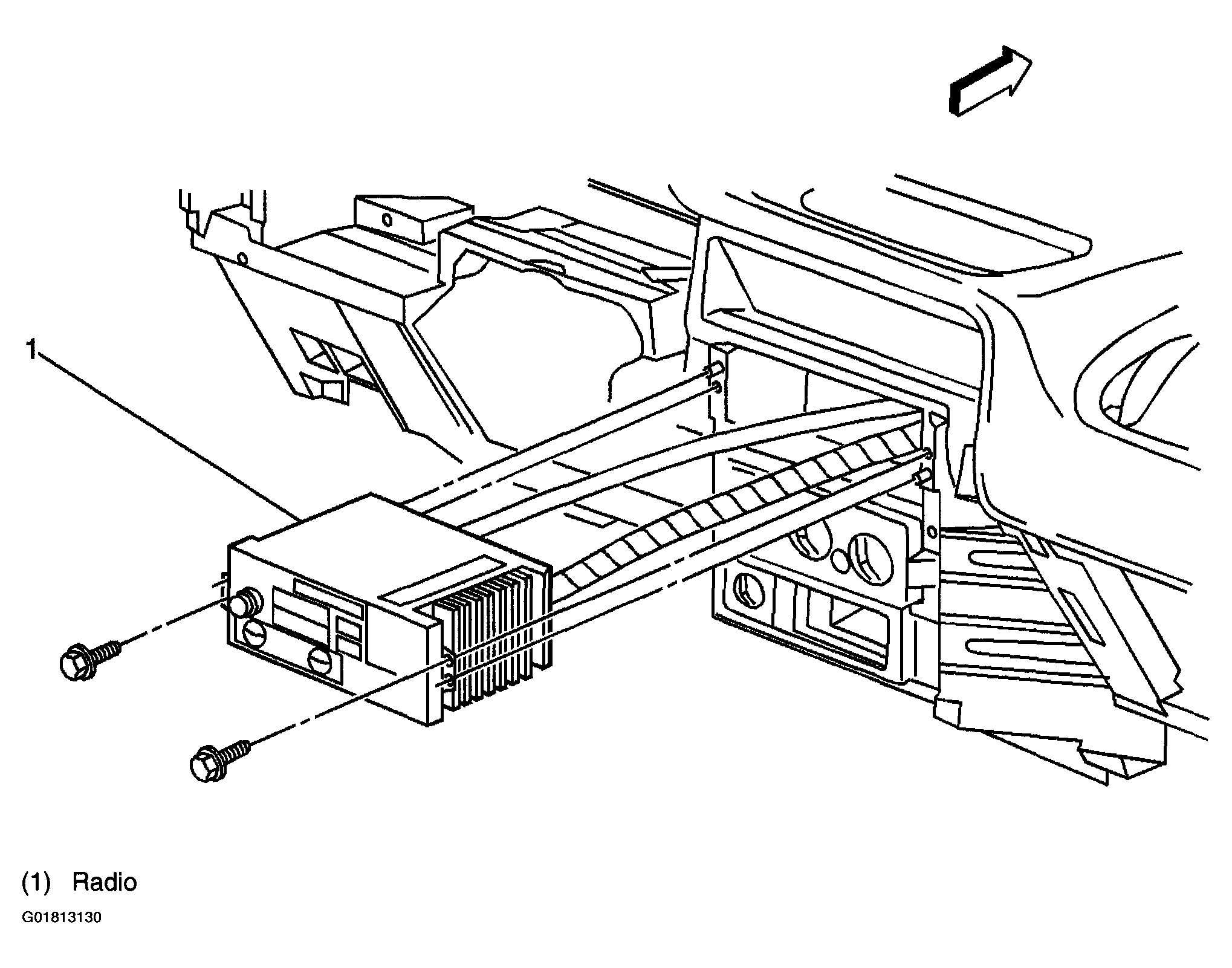

Fig 1: Radio
G01813130Courtesy of GENERAL MOTORS CORP.

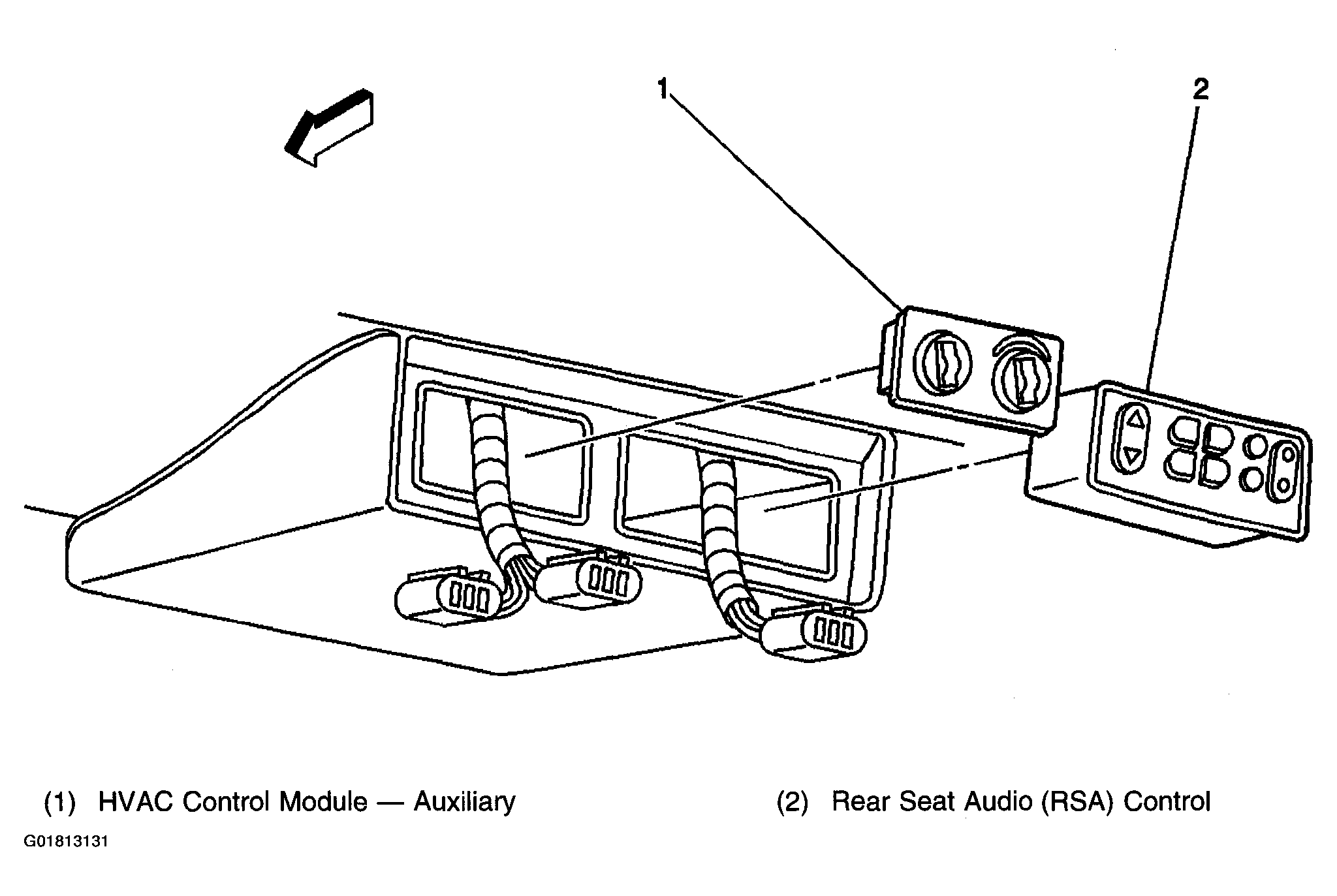

Fig 2: Rear Seat Controls
G01813131Courtesy of GENERAL MOTORS CORP.

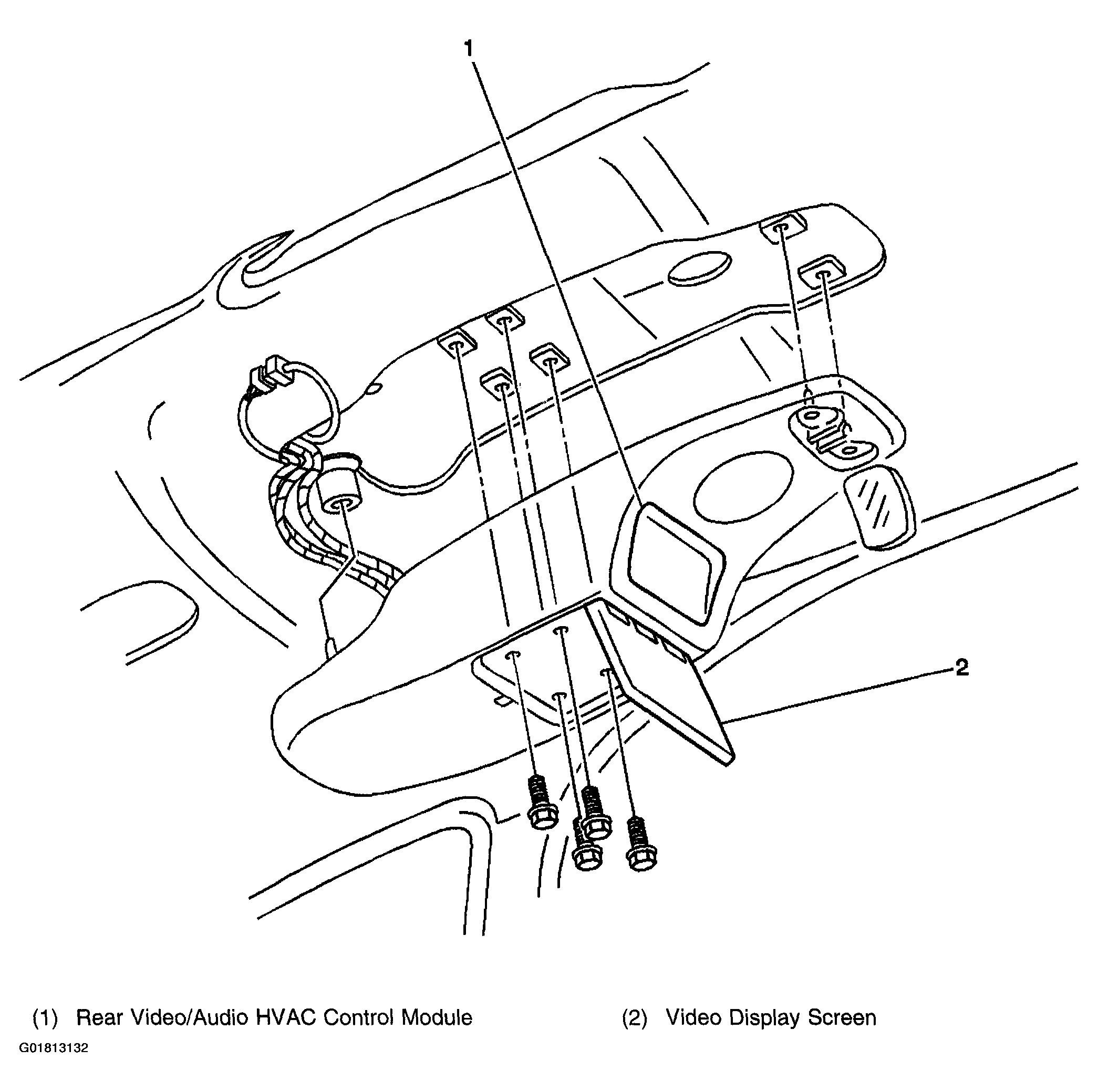

Fig 3: Video Disc Player And Rear Video/Audio HVAC Control Module
G01813132Courtesy of GENERAL MOTORS CORP.
