Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Care should be taken to avoid chipping or cracking the spring coating when handling the front suspension coil spring. Failure to observe this notice may result in spring breakage.

IMPORTANT: Remove the strut from the vehicle in order to perform this procedure. Refer to Strut Assembly Replacement .

Install J 34013-B to J 34013-20 if a wall mounted version is not available.
Install the strut (1) into the J 34013-B.
- Tighten the nuts (2) flush with the strut compressor.
- Install the locking pins (4) through the strut.
Turn the compressor forcing screw (3) until the spring compresses slightly.

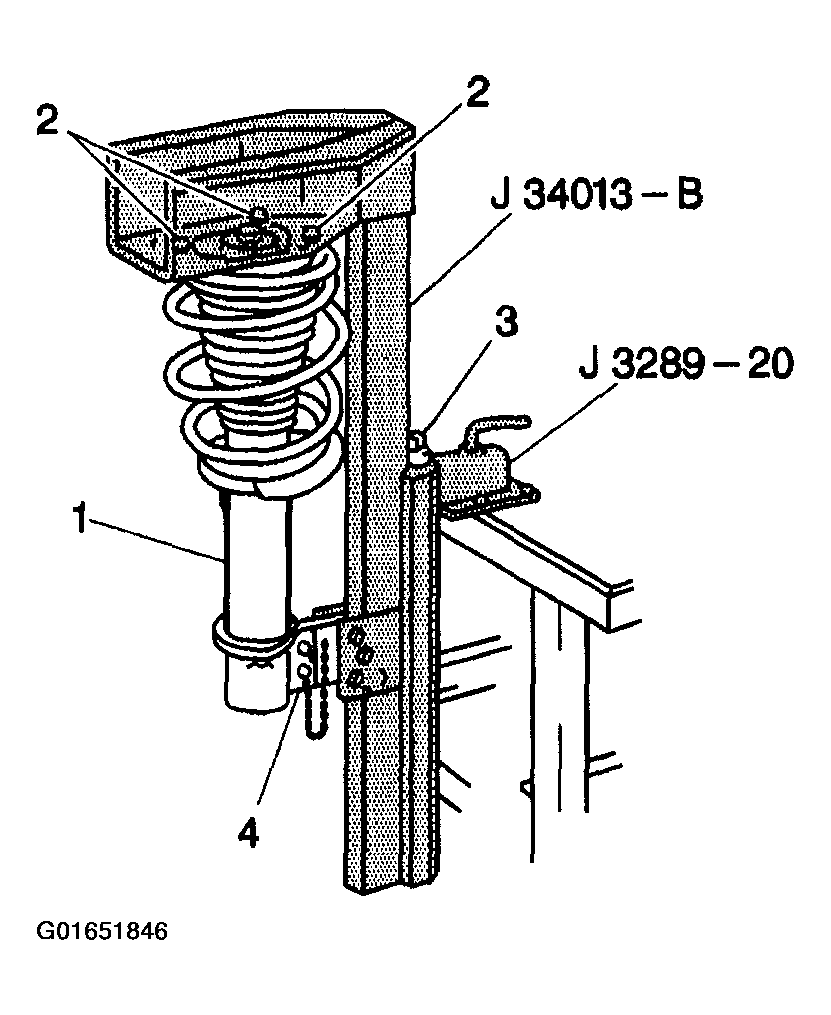

Fig 1: Identifying Strut, Nuts, Compressor Forcing Screw & Locking Pins
Courtesy of GENERAL MOTORS CORP.

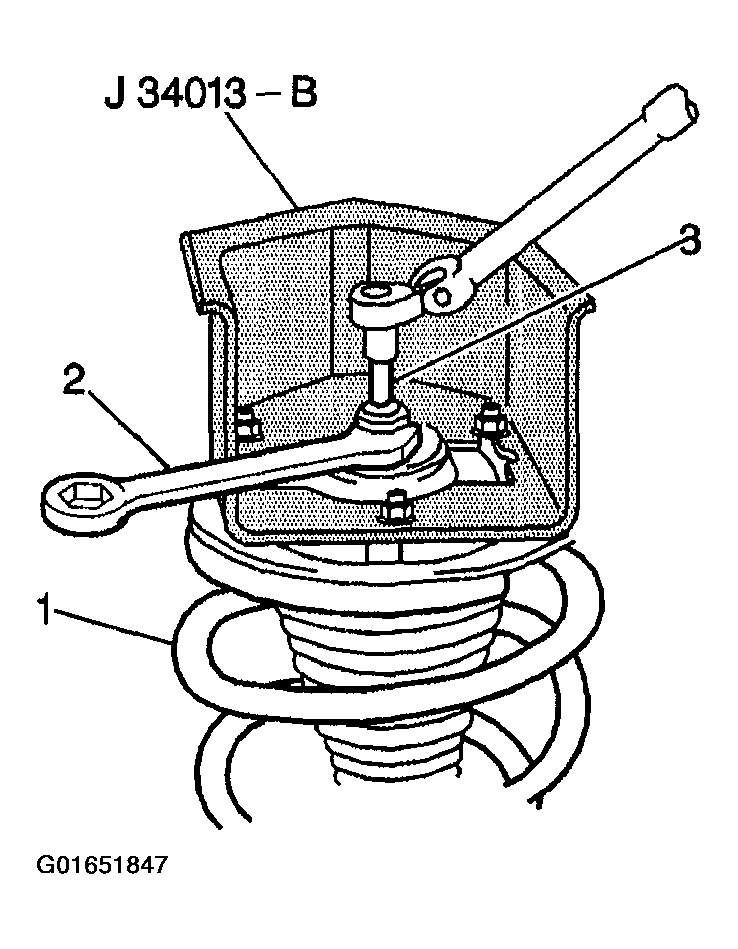

Fig 2: View of Strut Shaft Nut
Courtesy of GENERAL MOTORS CORP.
Use a socket (3) in order to hold the strut shaft from turning.
Remove the 24 mm strut shaft nut using a 24 mm wrench (2).
Install the J 34013-38 in order to help guide the strut shaft out of the assembly.

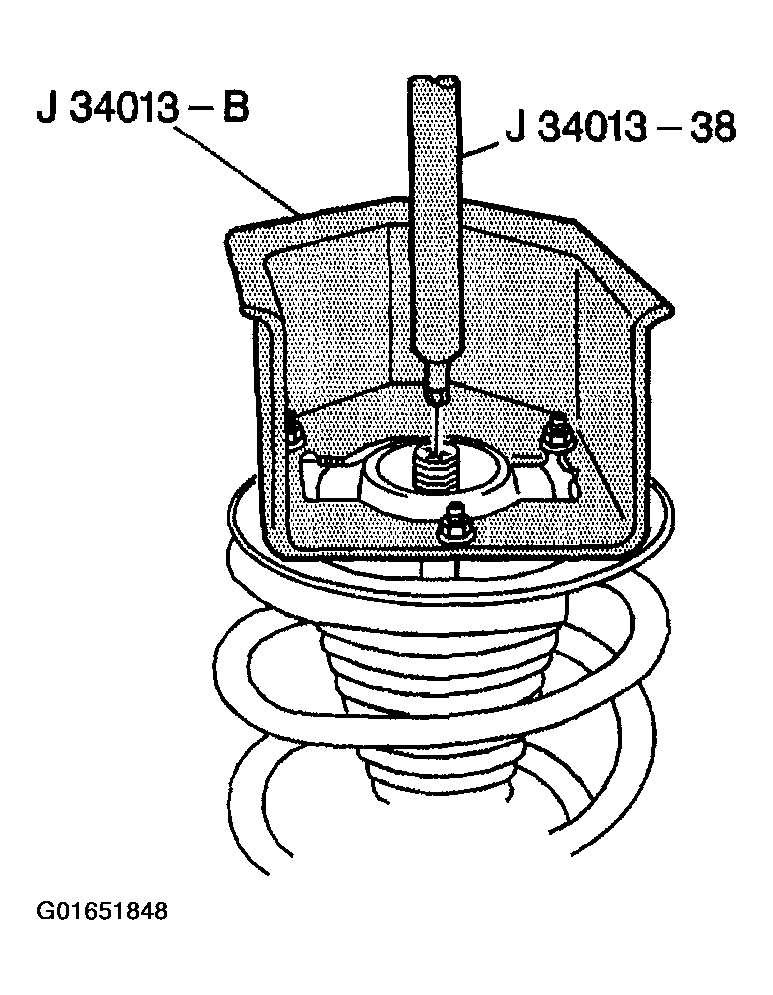

Fig 3: Installing J 34013-38
Courtesy of GENERAL MOTORS CORP.

NOTE: Care should be taken to avoid chipping or cracking the spring coating when handling the front suspension coil spring. Failure to observe this notice may result in spring breakage.

Fig 4: Identifying Strut Shaft & Compressor Screw
Courtesy of GENERAL MOTORS CORP.
Loosen the compressor screw (3) while guiding the strut shaft (1) out of the assembly. Continue loosening the compressor screw until the strut and the spring may be removed.
