Sdm, IP Module, Discriminating Sensor

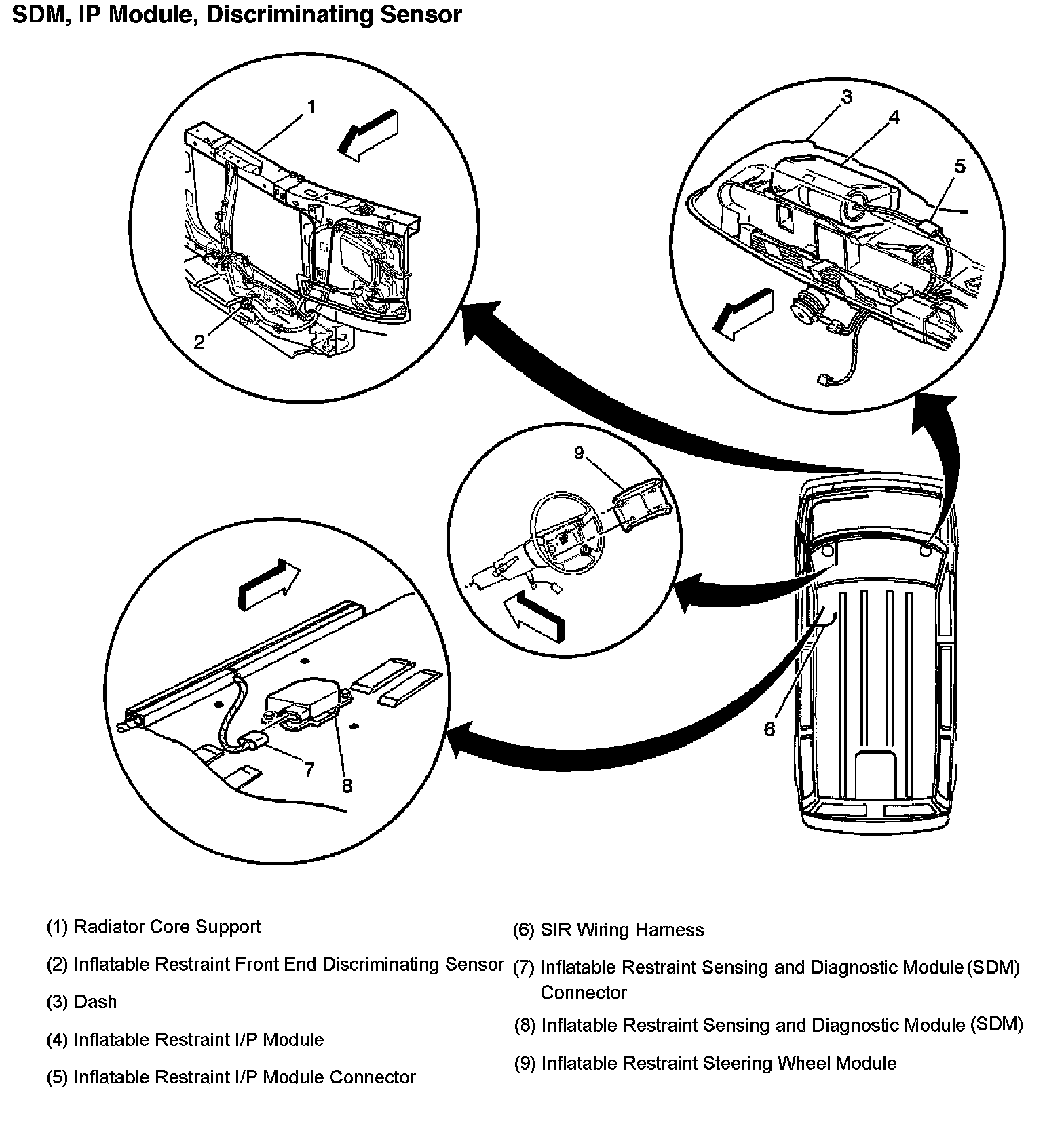

SDM, IP Module, Discriminating Sensor:

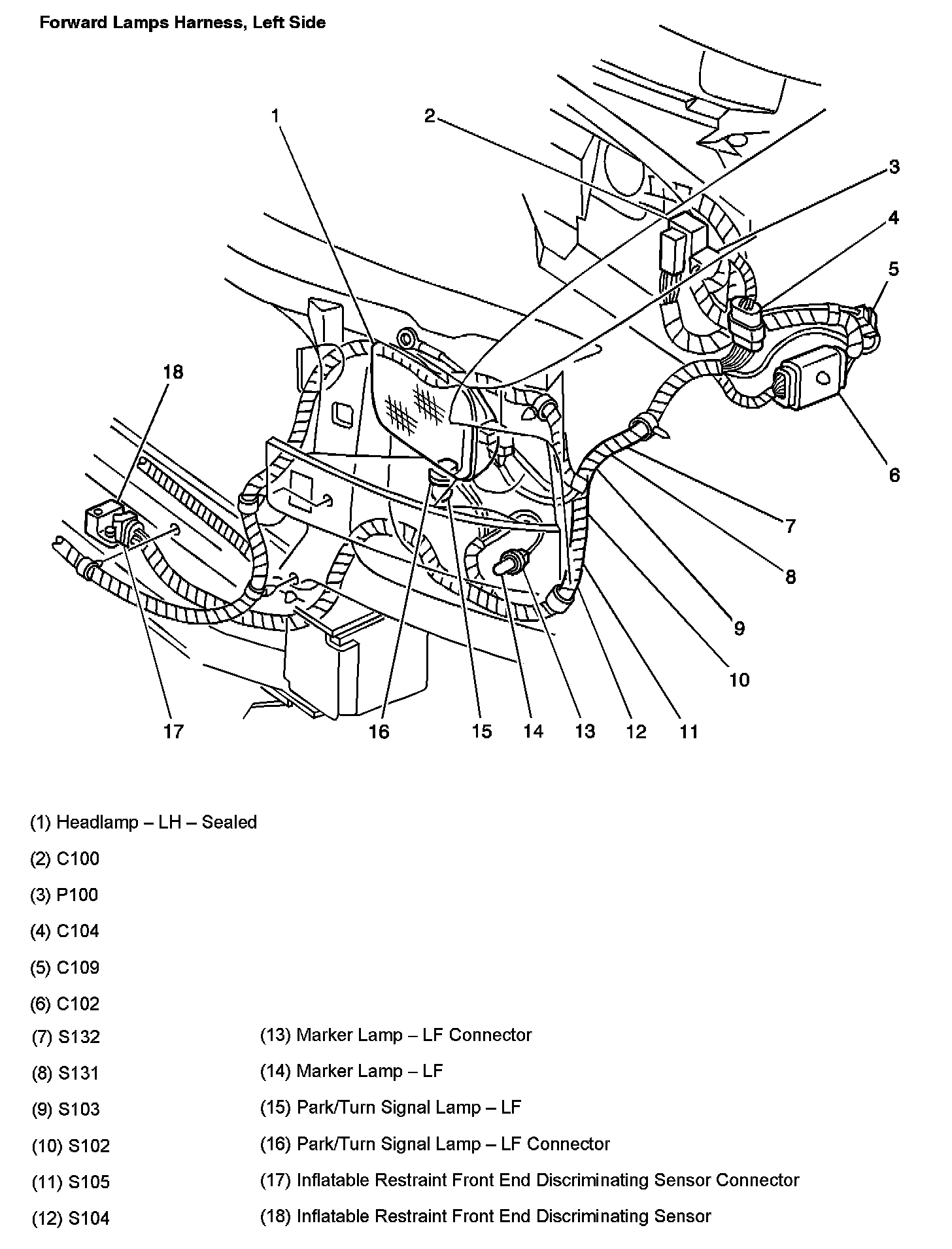

Forward Lamps Harness, Left Side:
