Rear Window Wiper/Washer Module Connector End View Terminals

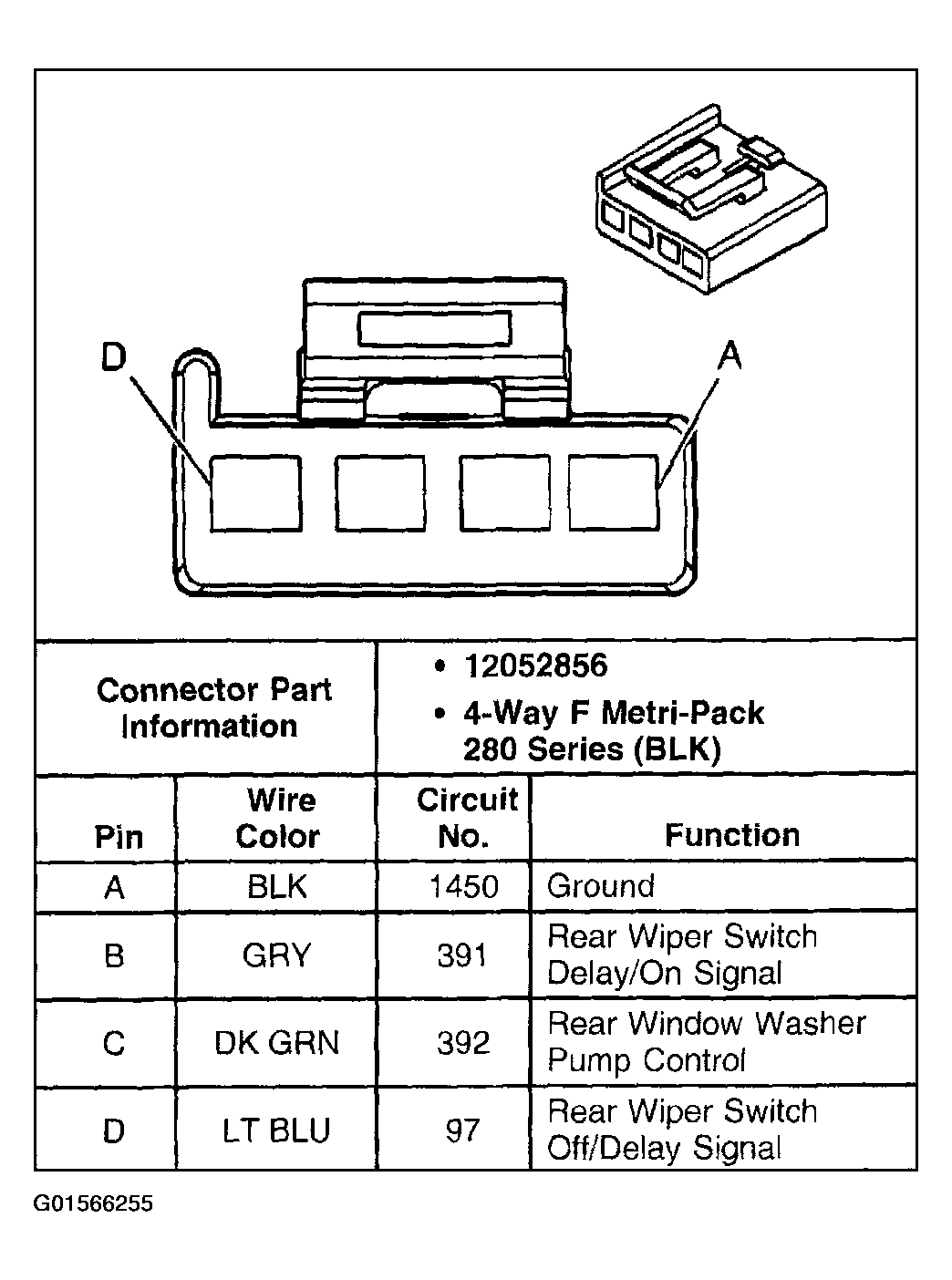

Fig 1: Rear Window Wiper/Washer Module Connector End View Terminals
G01566255Courtesy of GENERAL MOTORS CORP.
