Windshield Wiper Motor And Module Connector End View Terminals

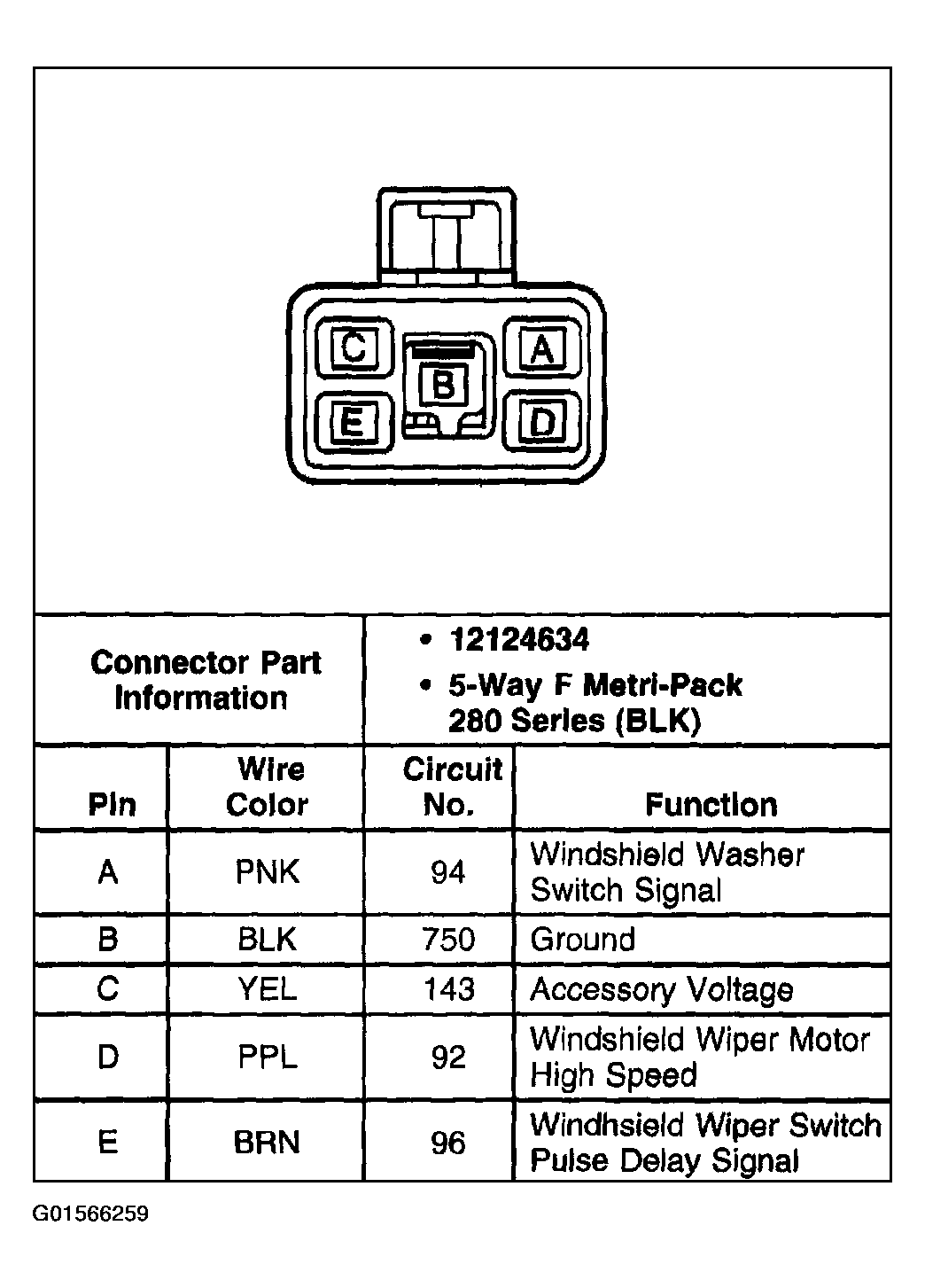

Fig 1: Windshield Wiper Motor And Module Connector End View Terminals
G01566259Courtesy of GENERAL MOTORS CORP.
