Power Door Systems Component Views

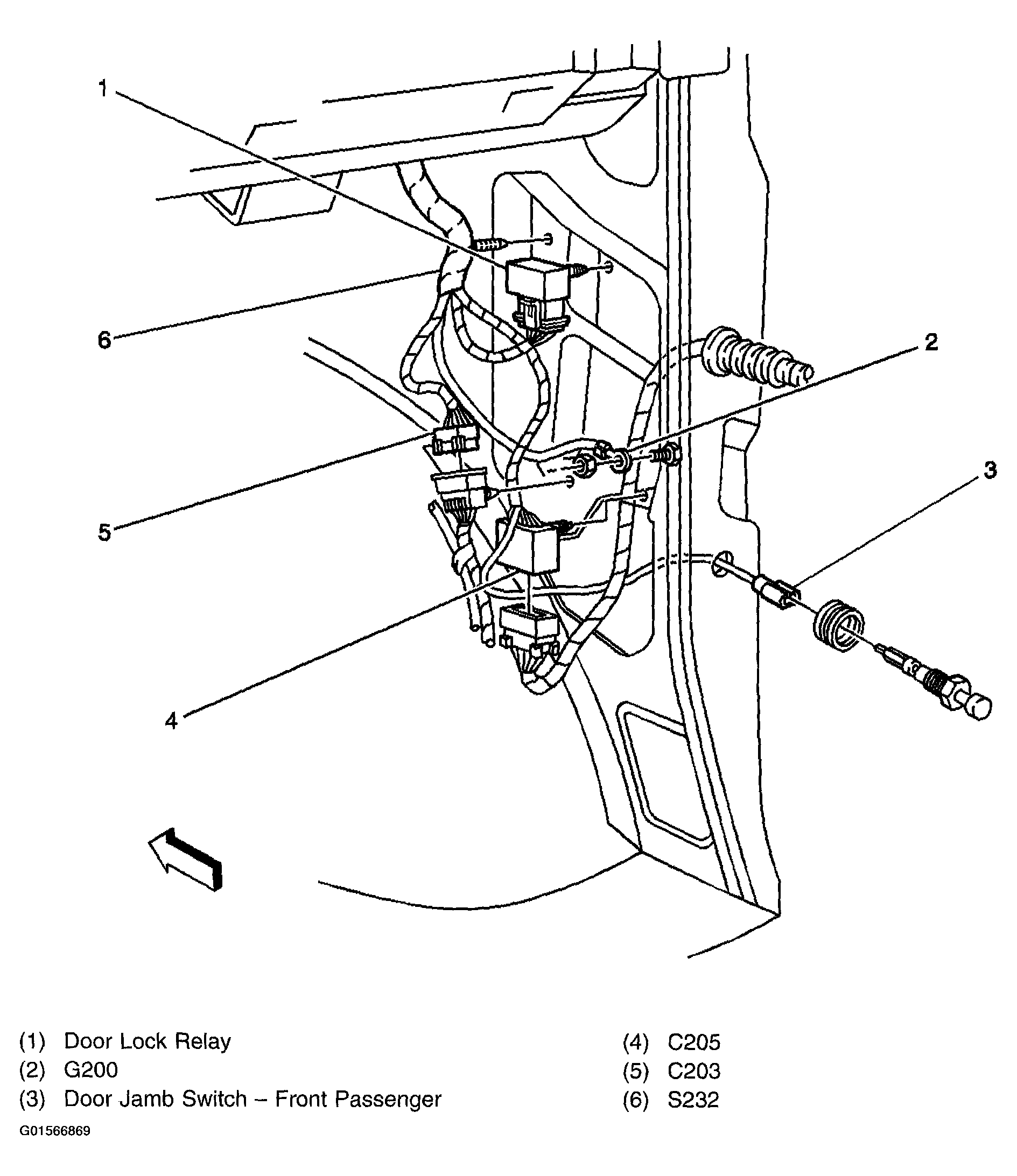

Fig 1: View Of I/P Wiring To Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Fig 2: View Of Front Door Wiring (Front Passenger Shown, Driver Opposite)

Courtesy of GENERAL MOTORS CORP.

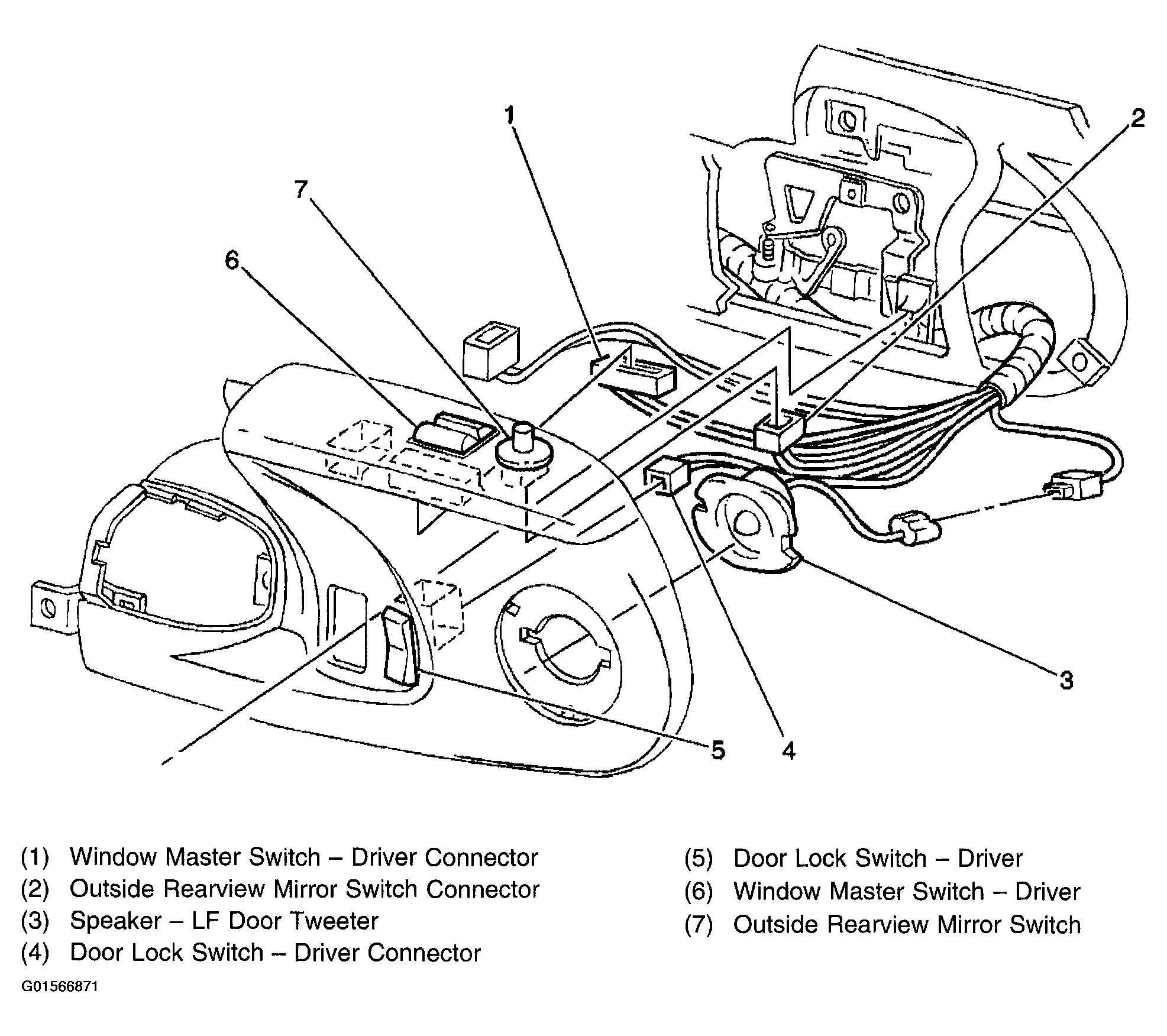

Fig 3: View Of Door Control Switches - Driver

Courtesy of GENERAL MOTORS CORP.

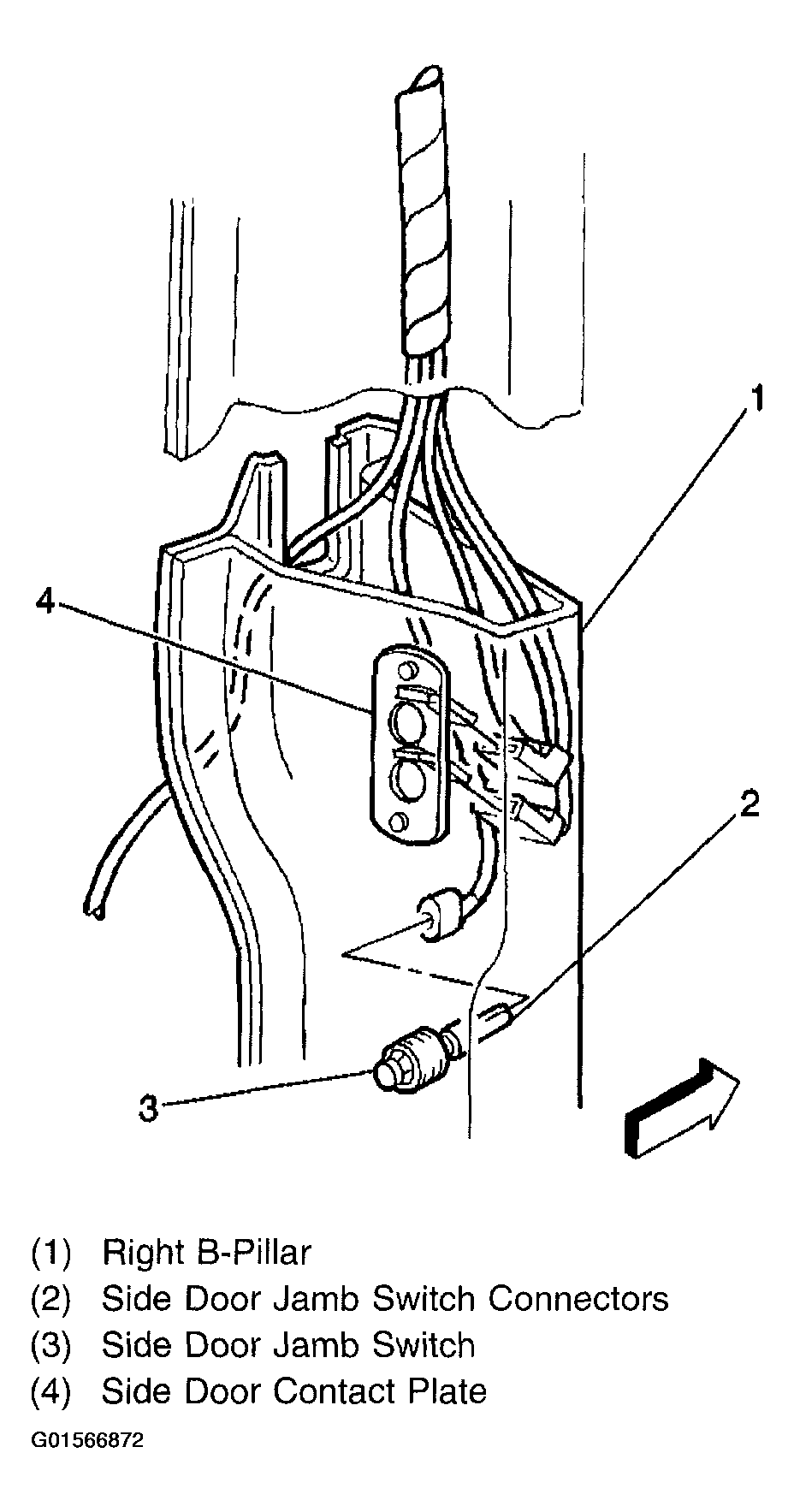

Fig 4: View Of Side Door Contact Plate And Side Door Jamb Switch Wiring

Courtesy of GENERAL MOTORS CORP.

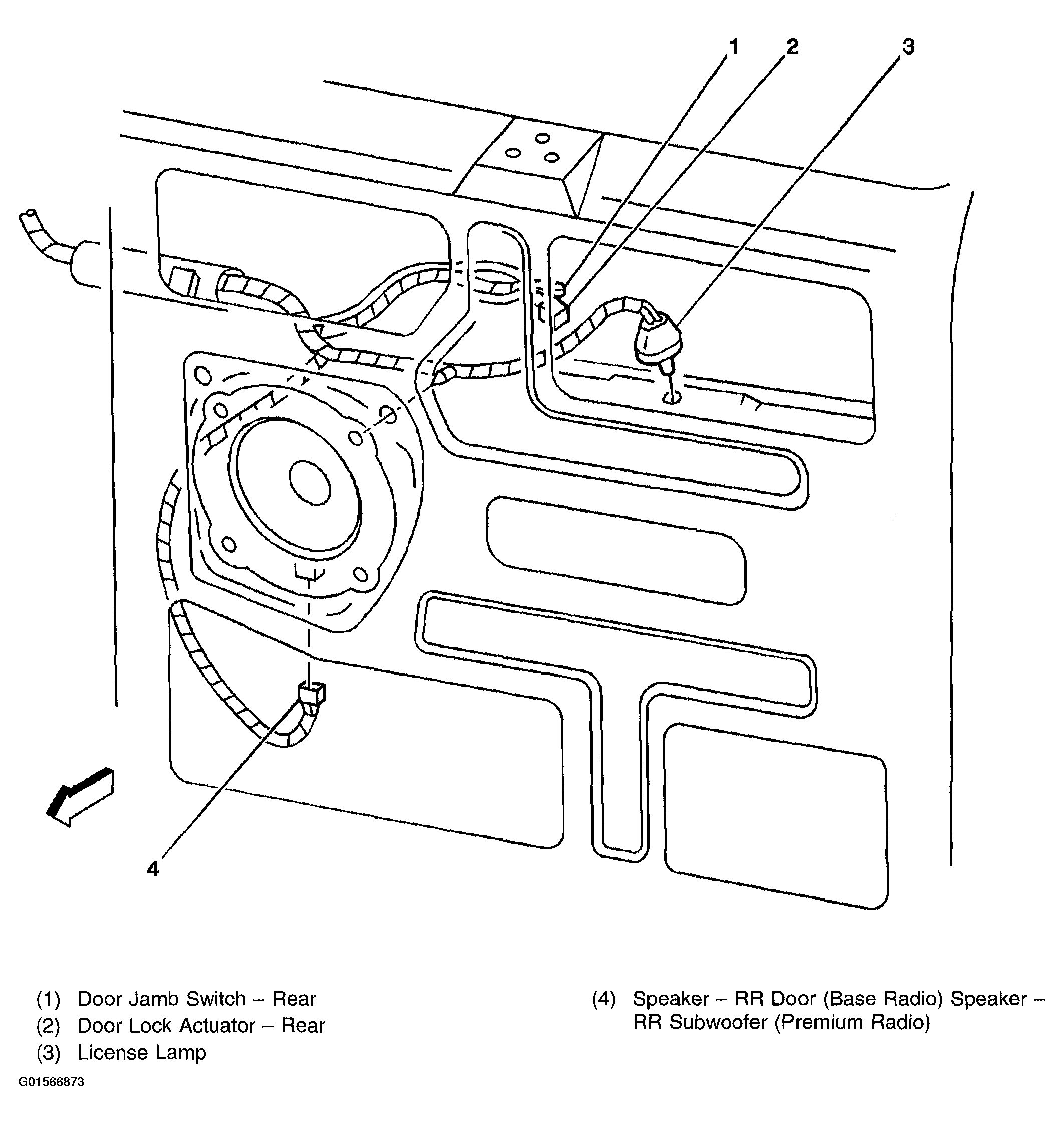

Fig 5: Identifying RR Door Components

Courtesy of GENERAL MOTORS CORP.
