Power Door Systems Connector End Views

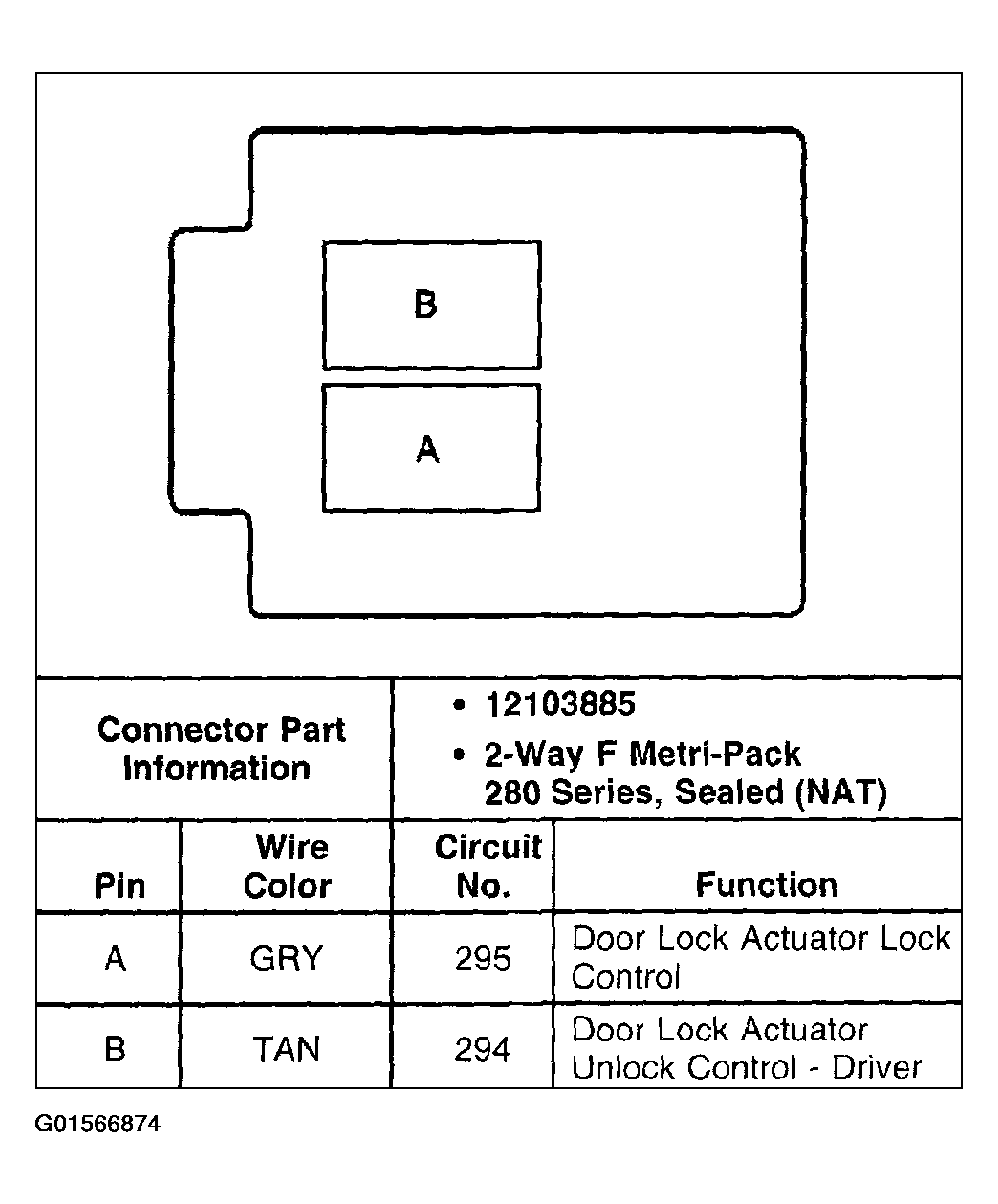

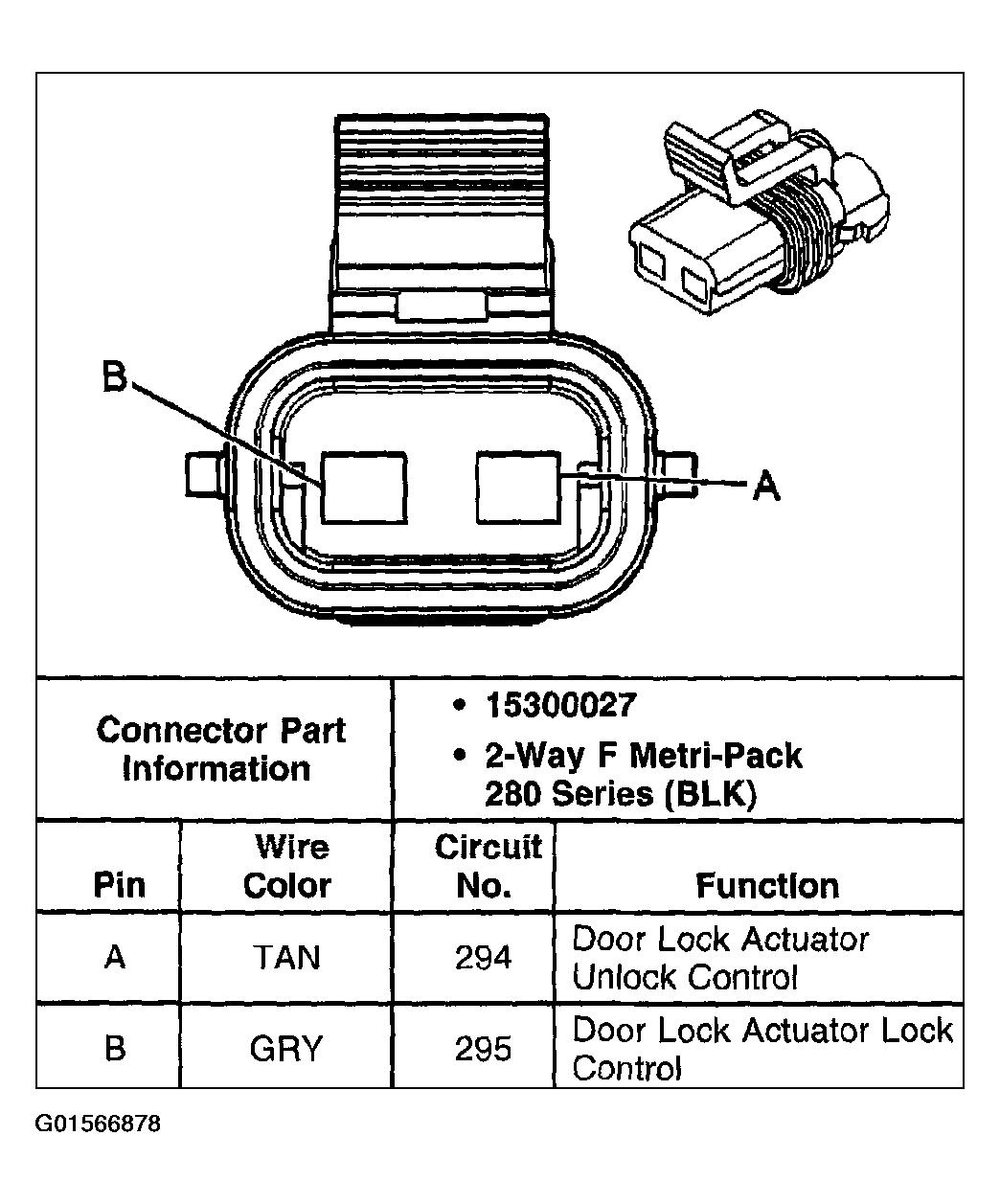

Fig 1: Door Lock Actuator Connector Terminals (Driver)

Courtesy of GENERAL MOTORS CORP.

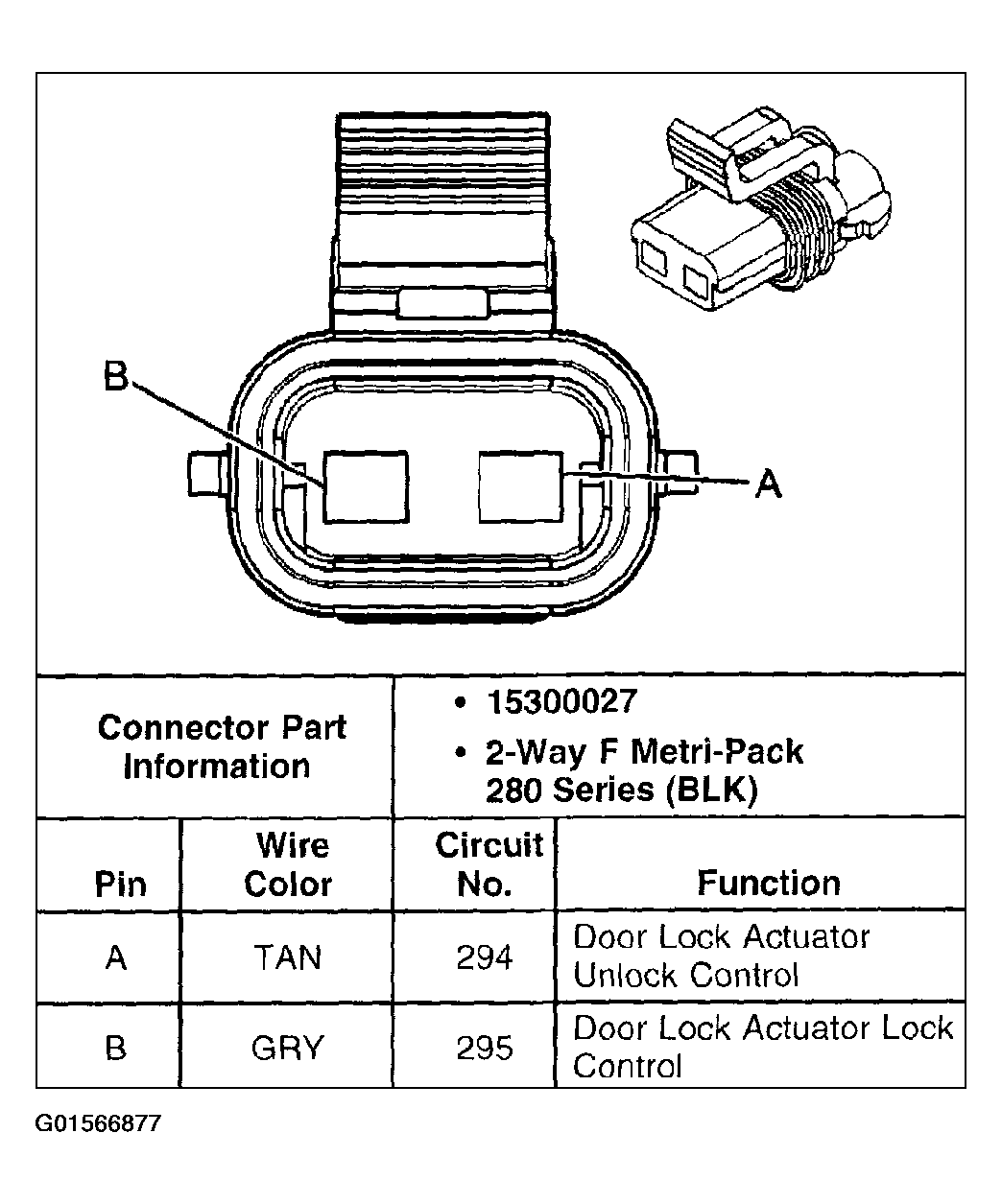

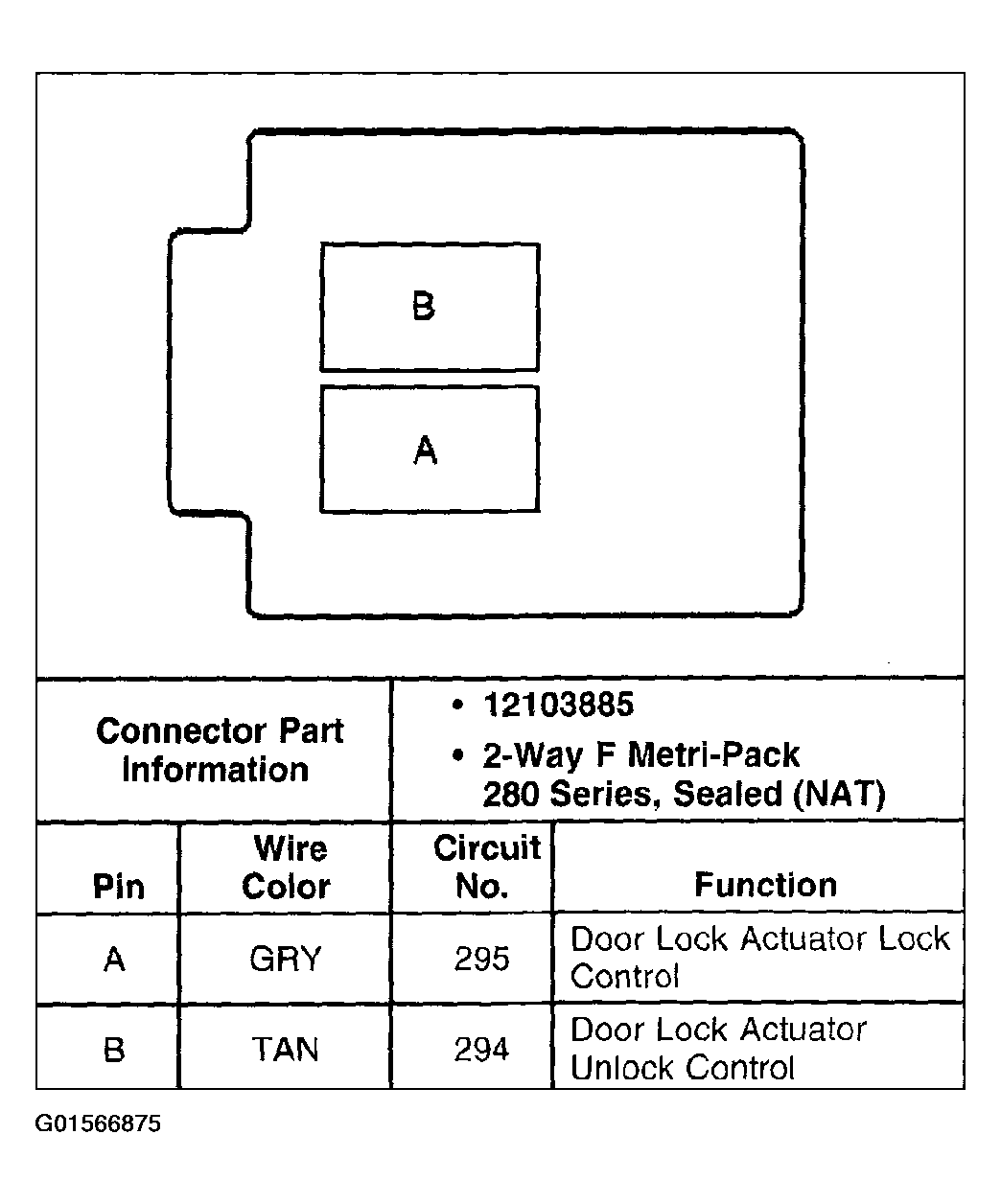

Fig 2: Door Lock Actuator Connector Terminals (Front Passenger)

Courtesy of GENERAL MOTORS CORP.

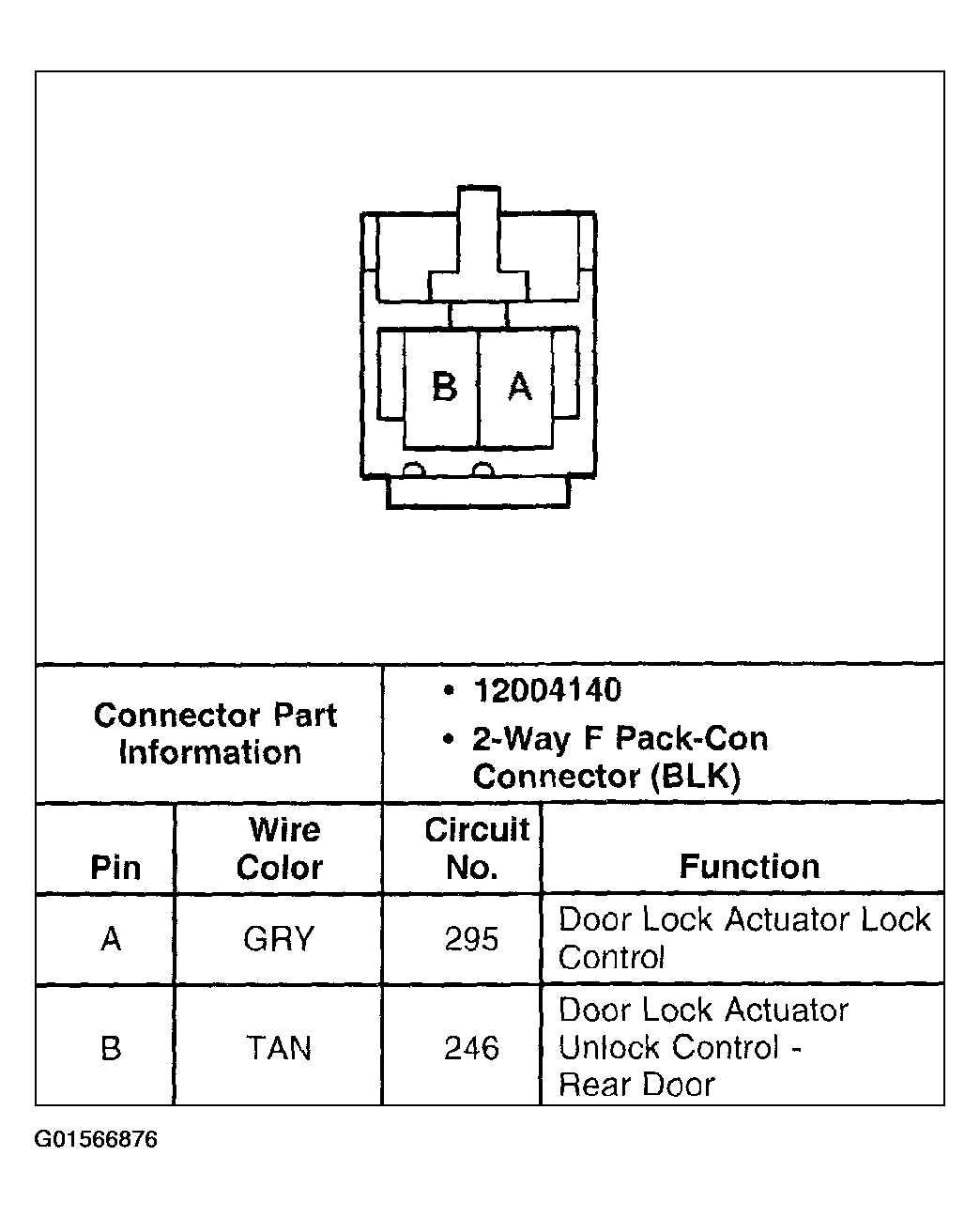

Fig 3: Door Lock Actuator Connector Terminals (Rear (W/O E54))

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Lock Actuator Connector Terminals (Rear (W/E54))

Courtesy of GENERAL MOTORS CORP.

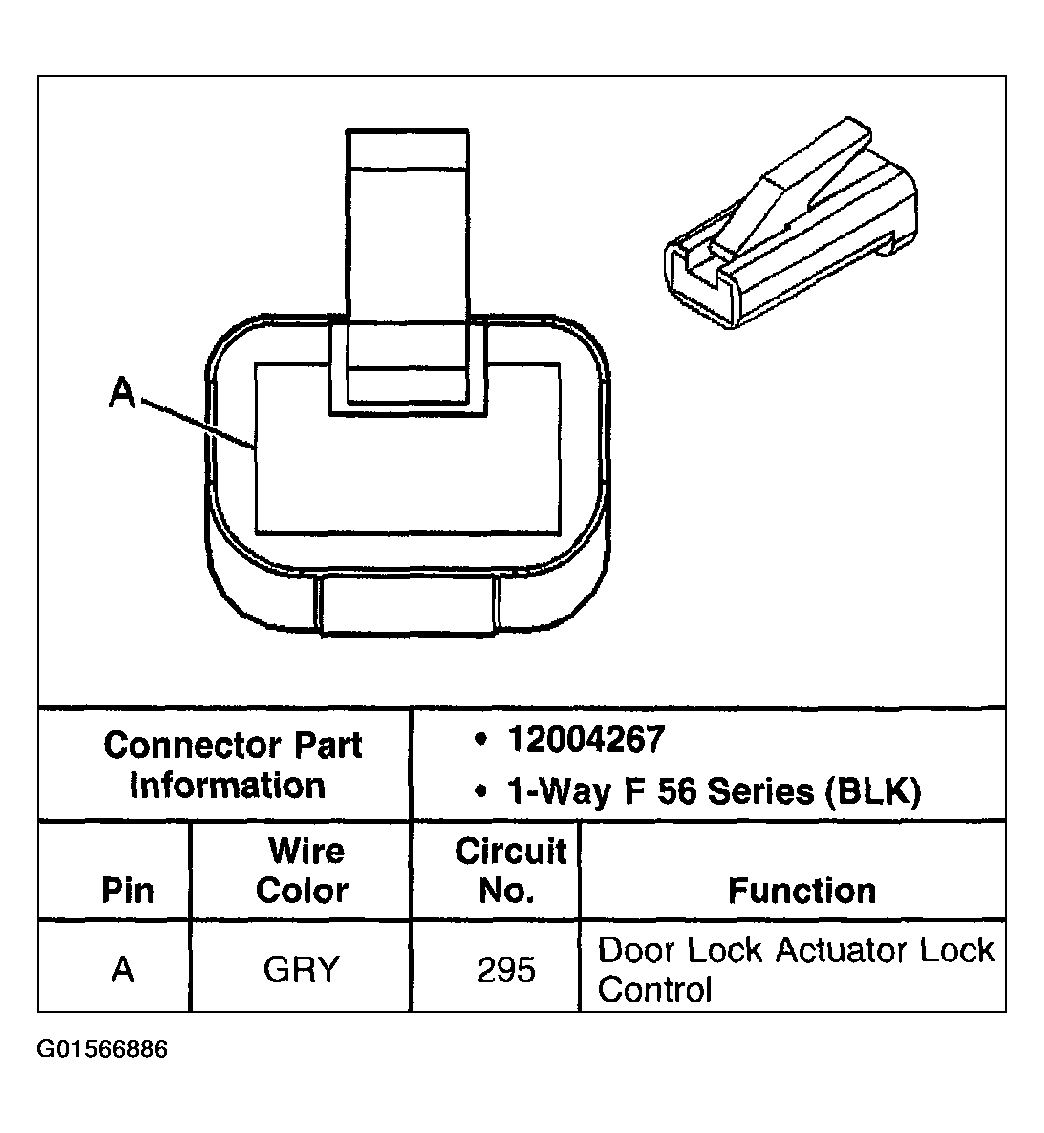

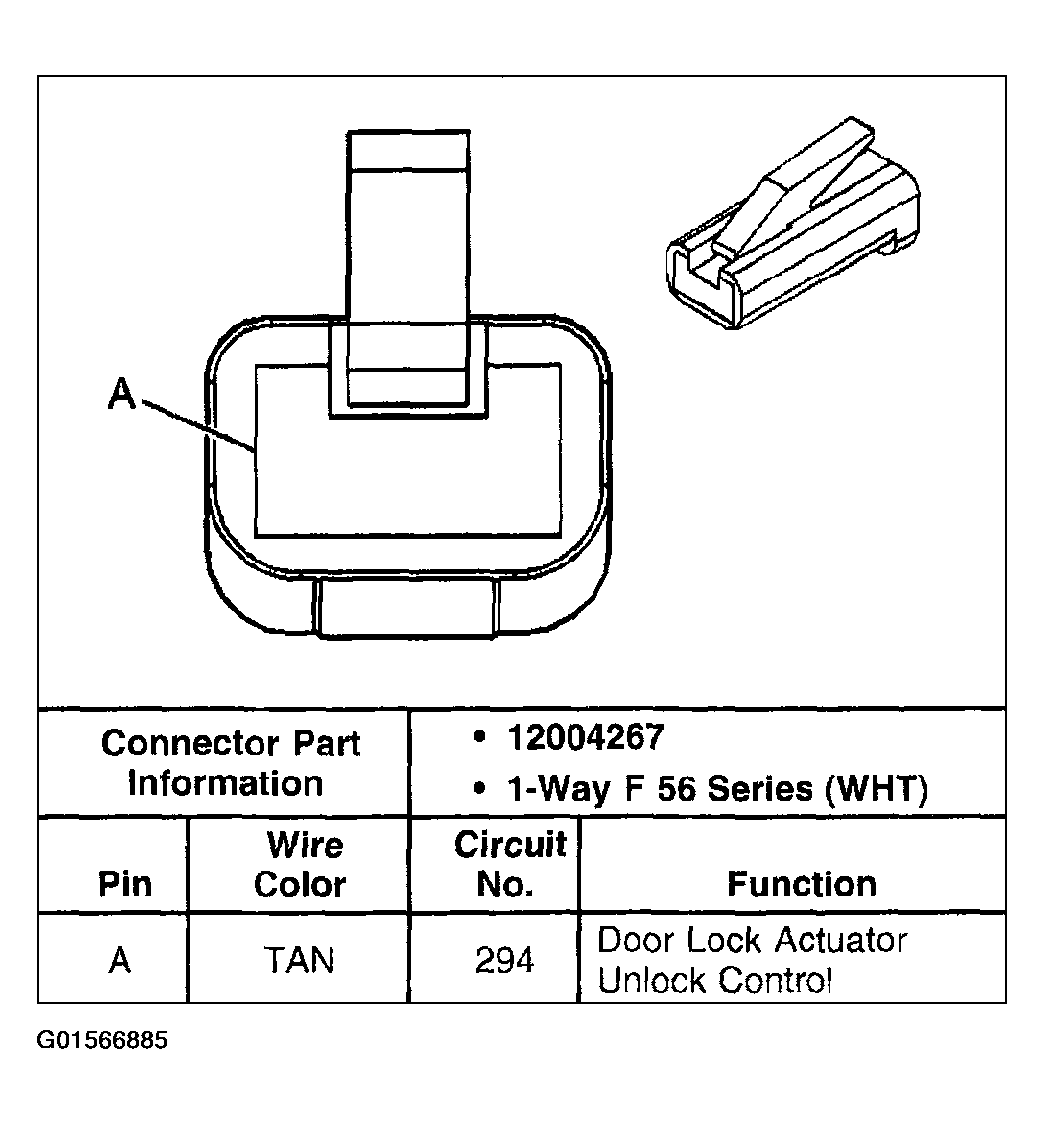

Fig 5: Door Lock Actuator Connector Terminals (Side)

Courtesy of GENERAL MOTORS CORP.

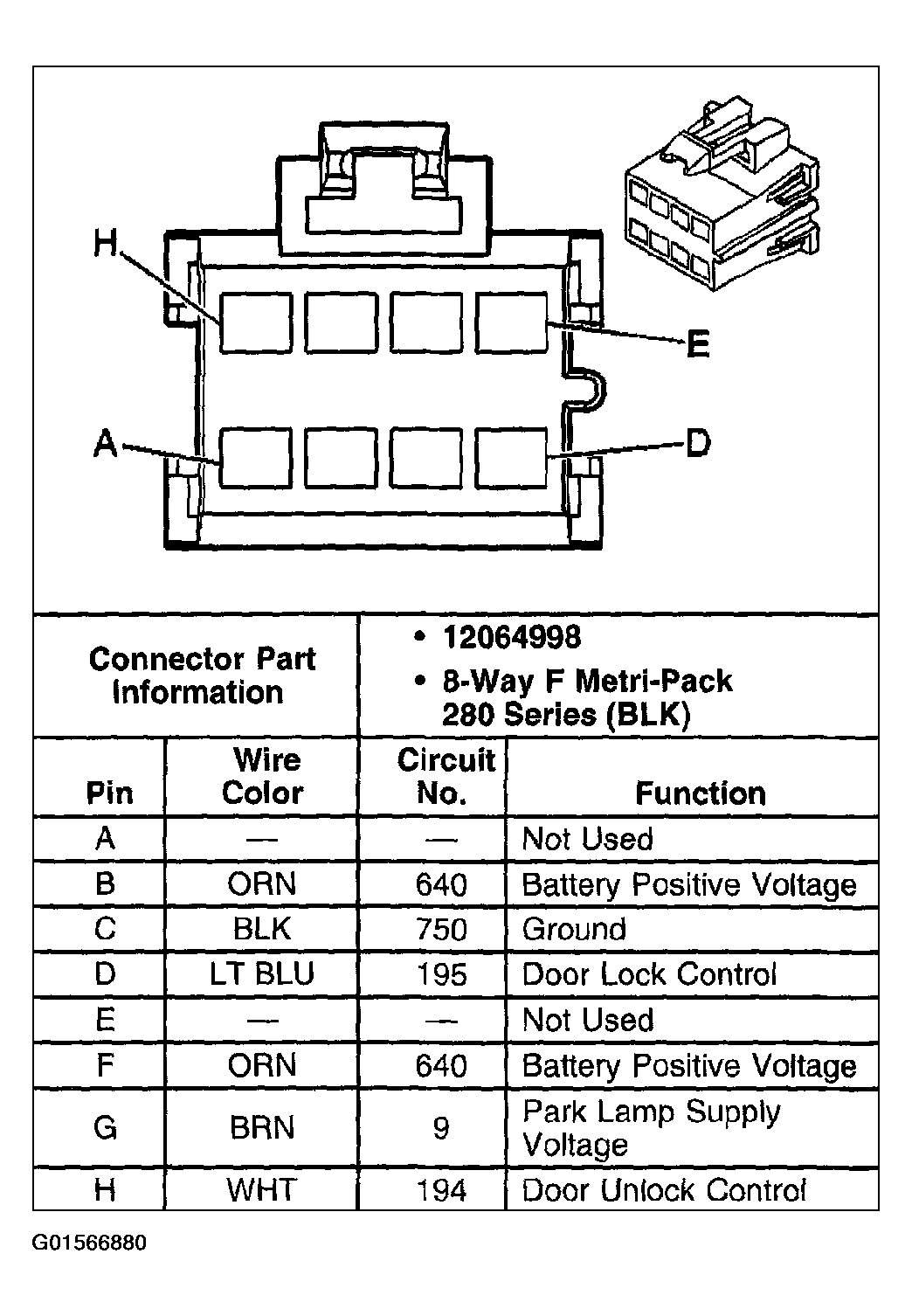

Fig 6: Door Lock Relay Connector Terminals

Courtesy of GENERAL MOTORS CORP.

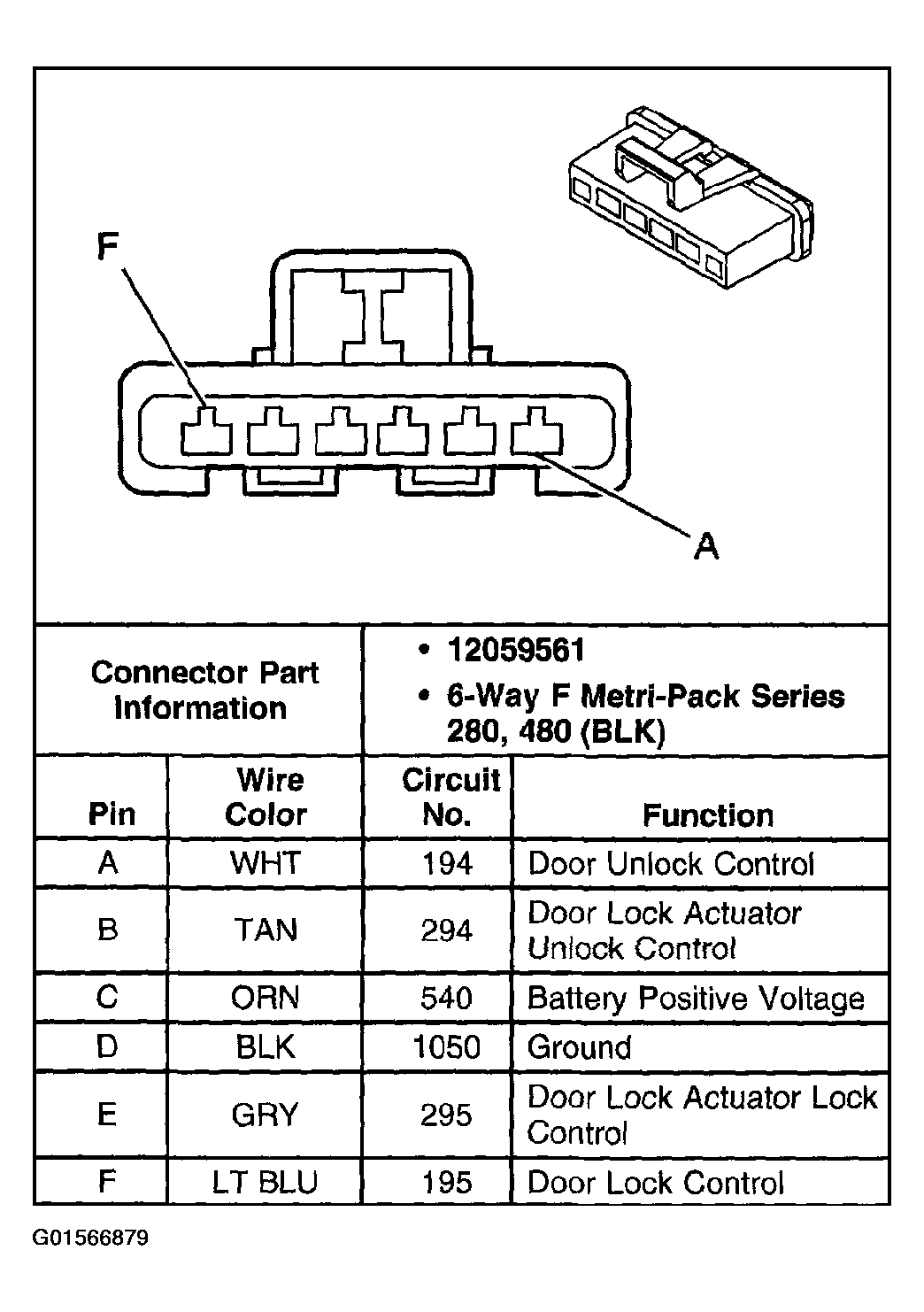

Fig 7: Door Lock Switch Connector Terminals - Driver

Courtesy of GENERAL MOTORS CORP.

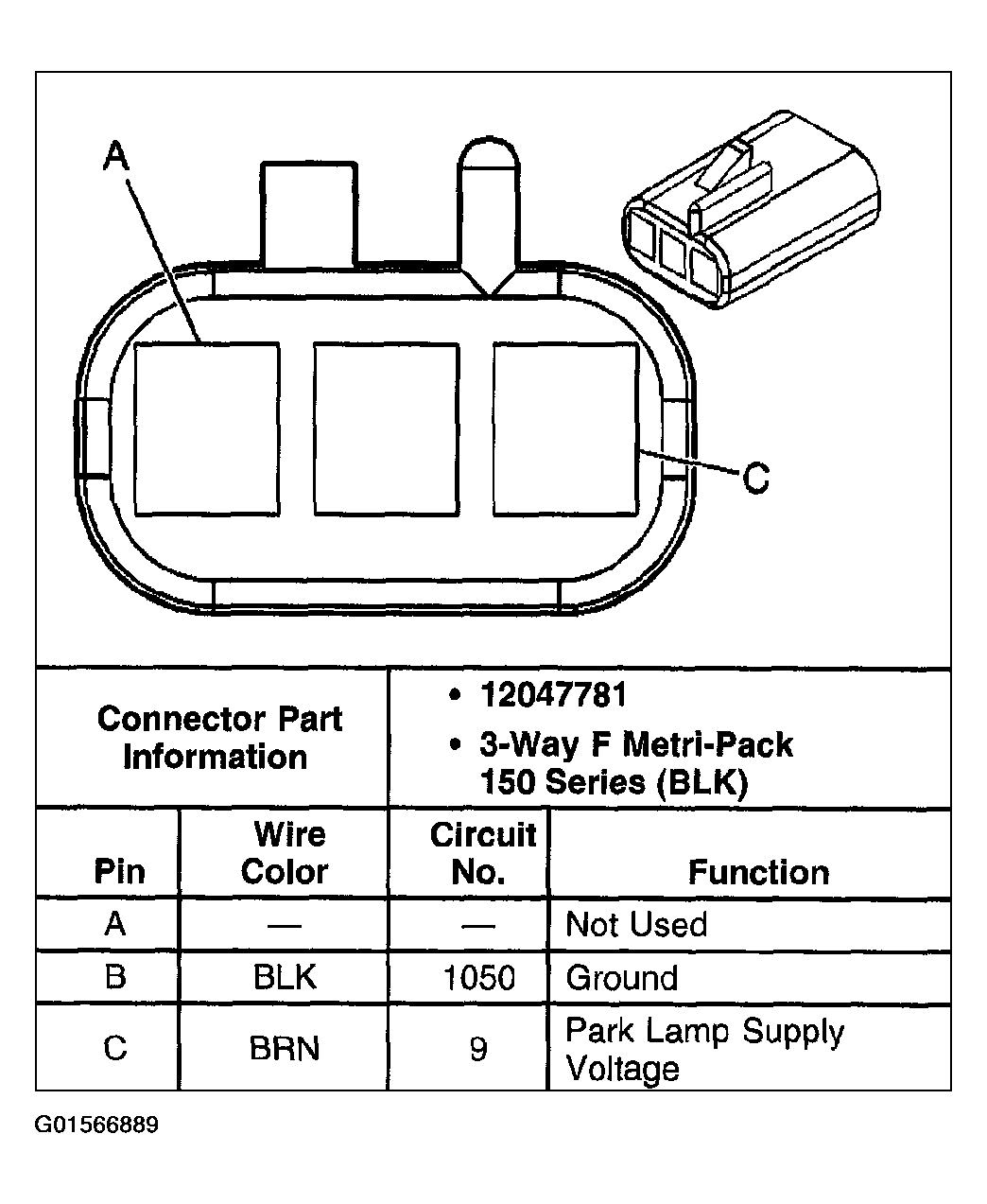

Fig 8: Door Lock Switch Connector Terminals - Front Passenger

Courtesy of GENERAL MOTORS CORP.

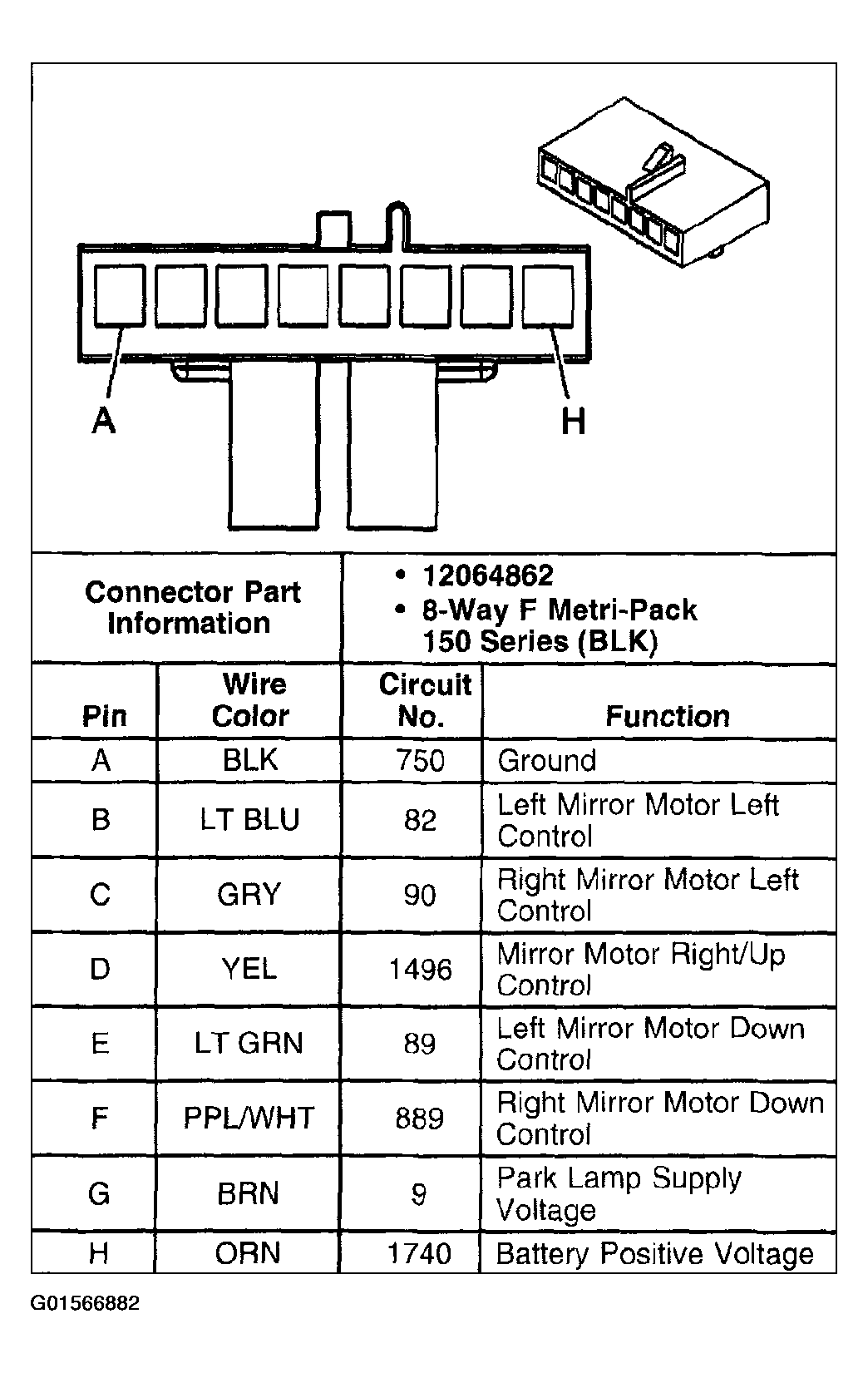

Fig 9: Outside Rearview Mirror Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 10: Outside Rearview Mirror Connector Terminals (Driver)

Courtesy of GENERAL MOTORS CORP.

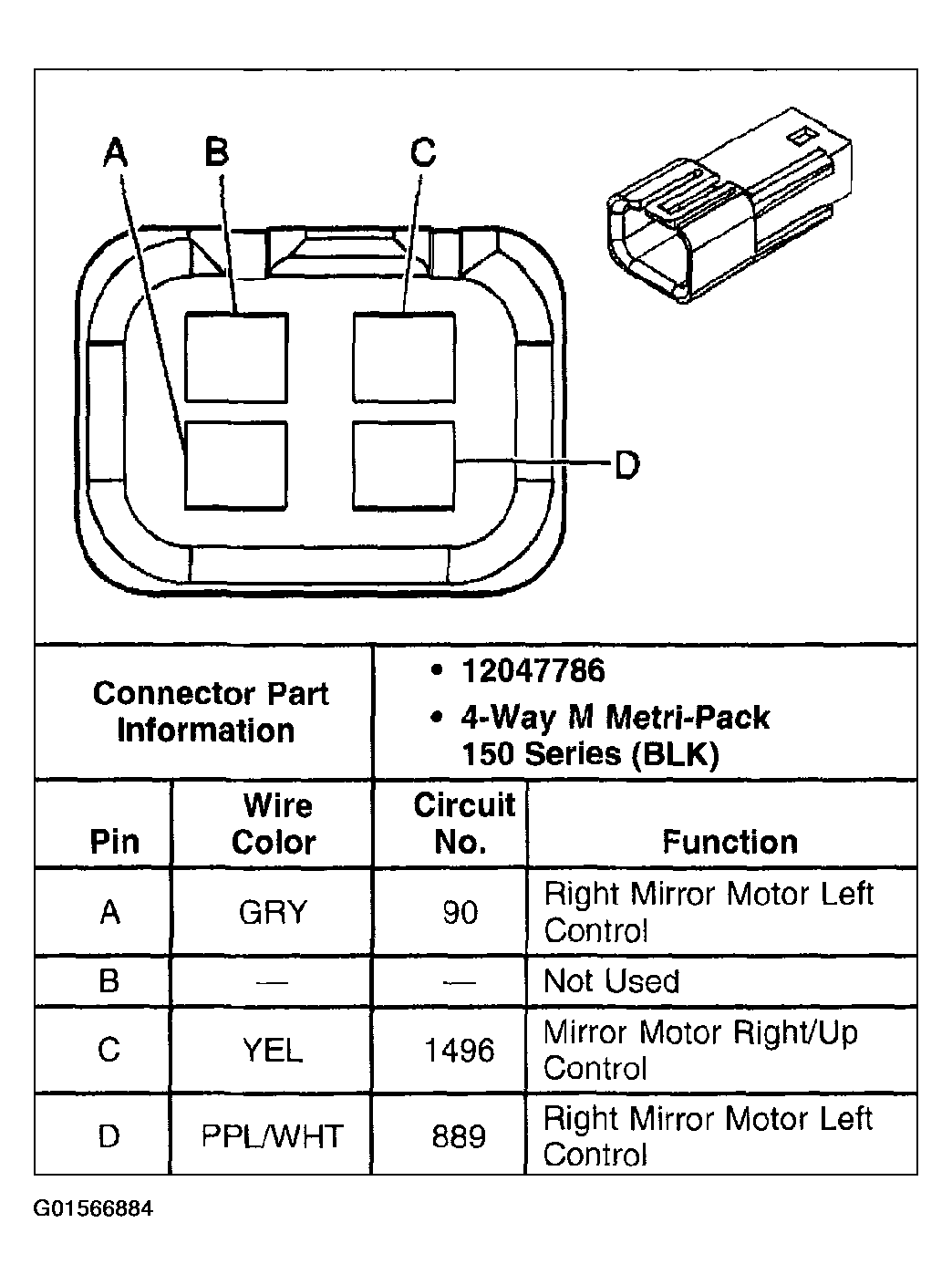

Fig 11: Outside Rearview Mirror Connector Terminals (Passenger)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Side Door Contact Plate Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 13: Side Door Contact Plate Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

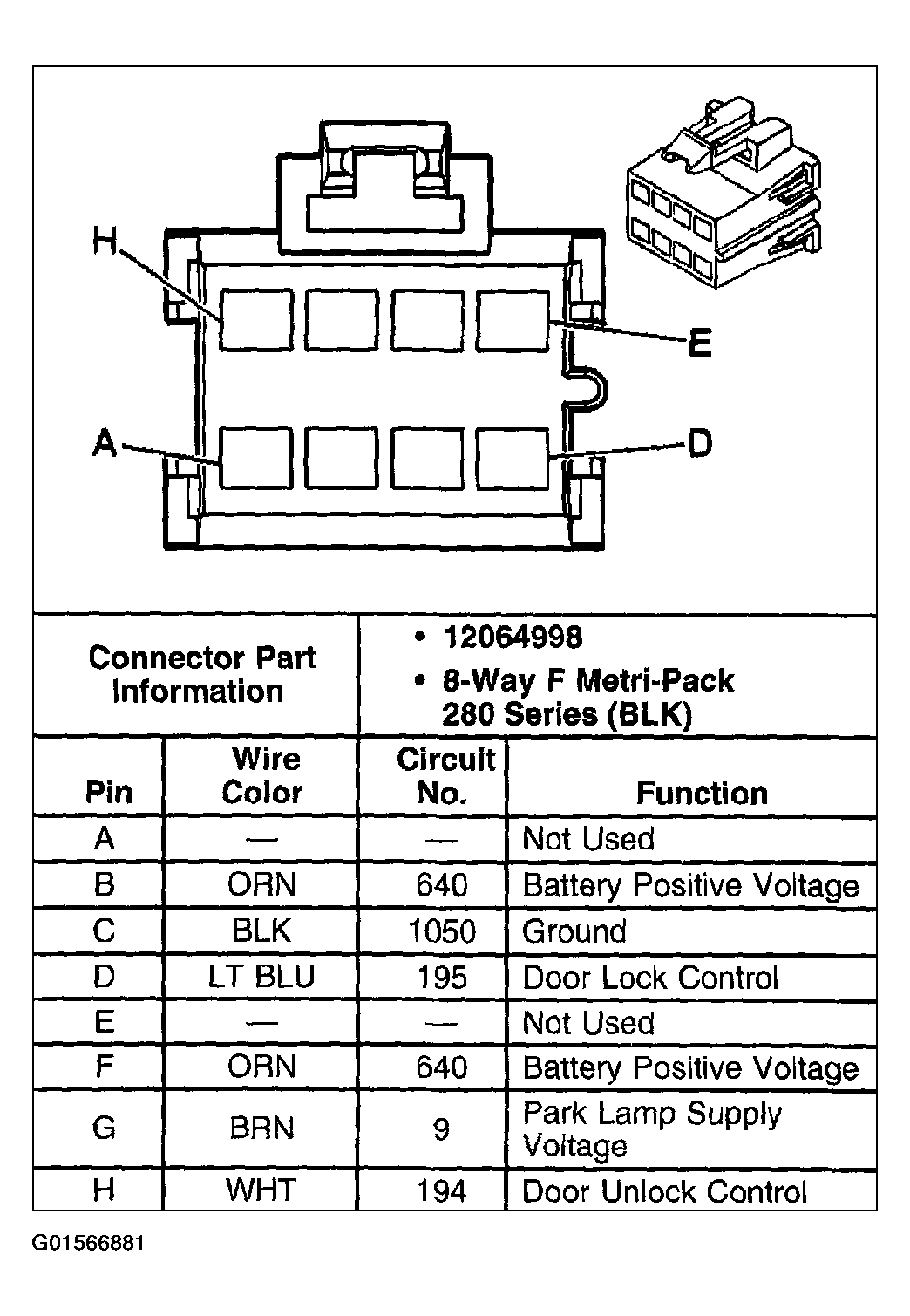

Fig 14: Window Master Switch Connector Terminals (Driver C1)

Courtesy of GENERAL MOTORS CORP.

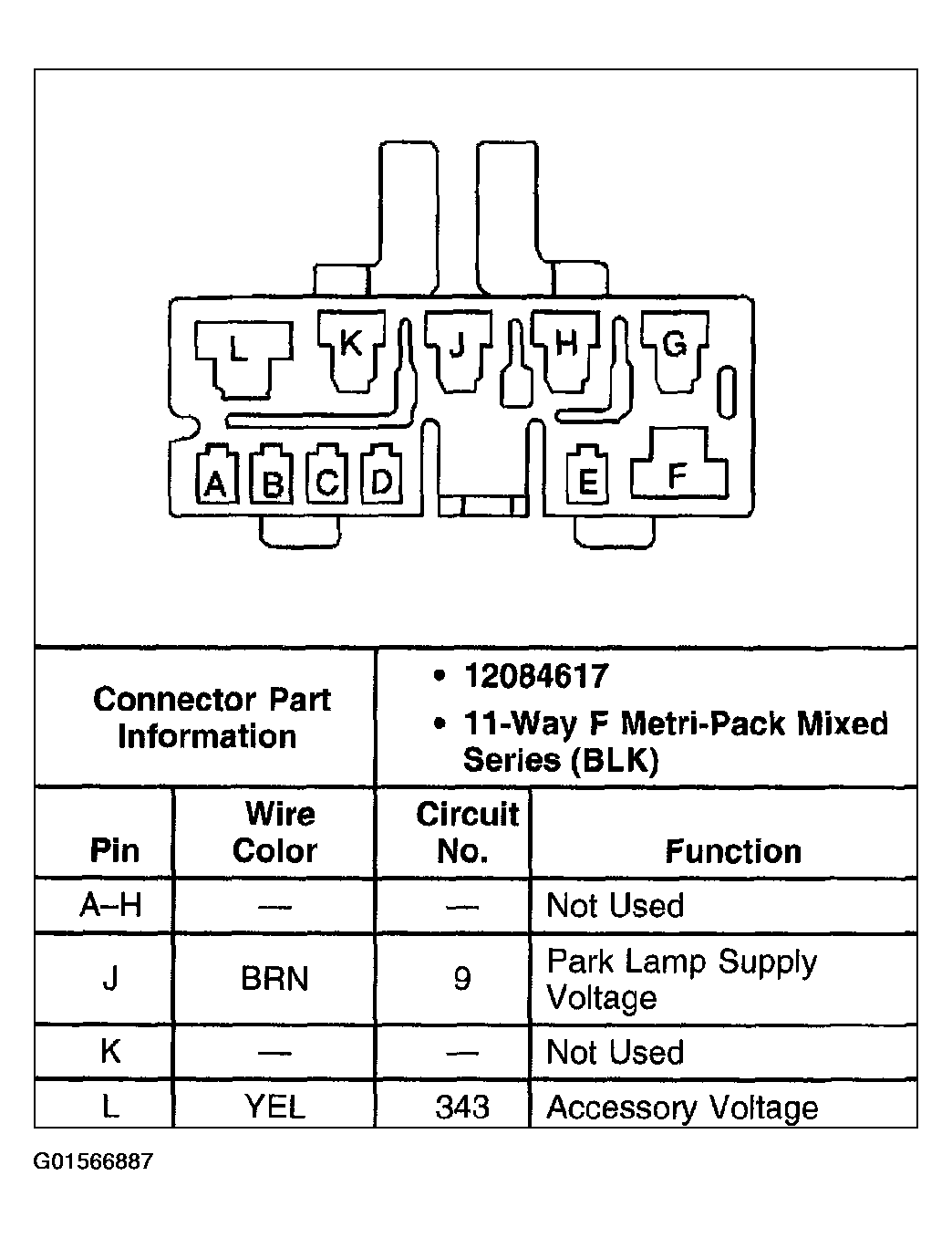

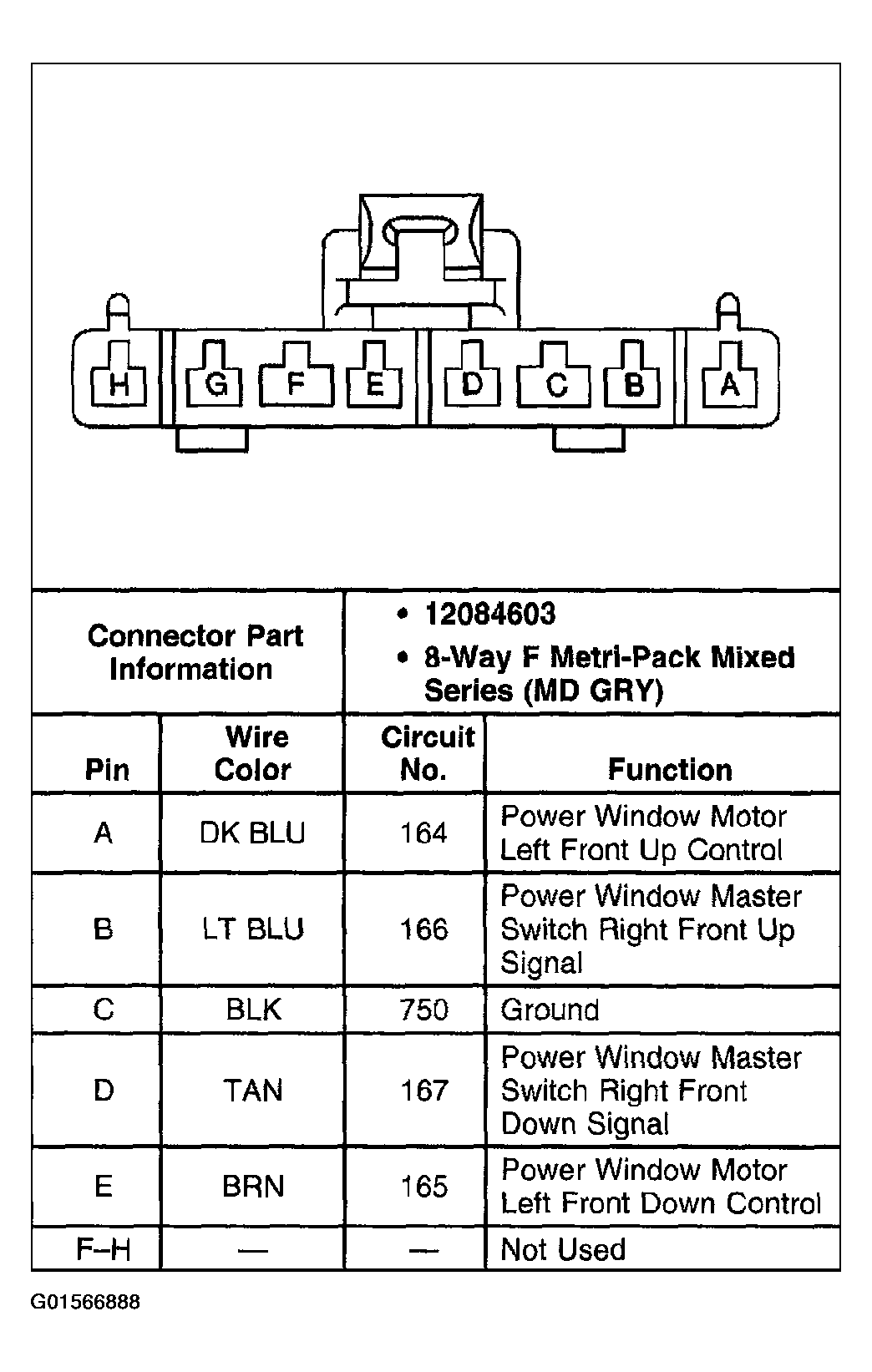

Fig 15: Window Master Switch Connector Terminals (Driver C2)

Courtesy of GENERAL MOTORS CORP.

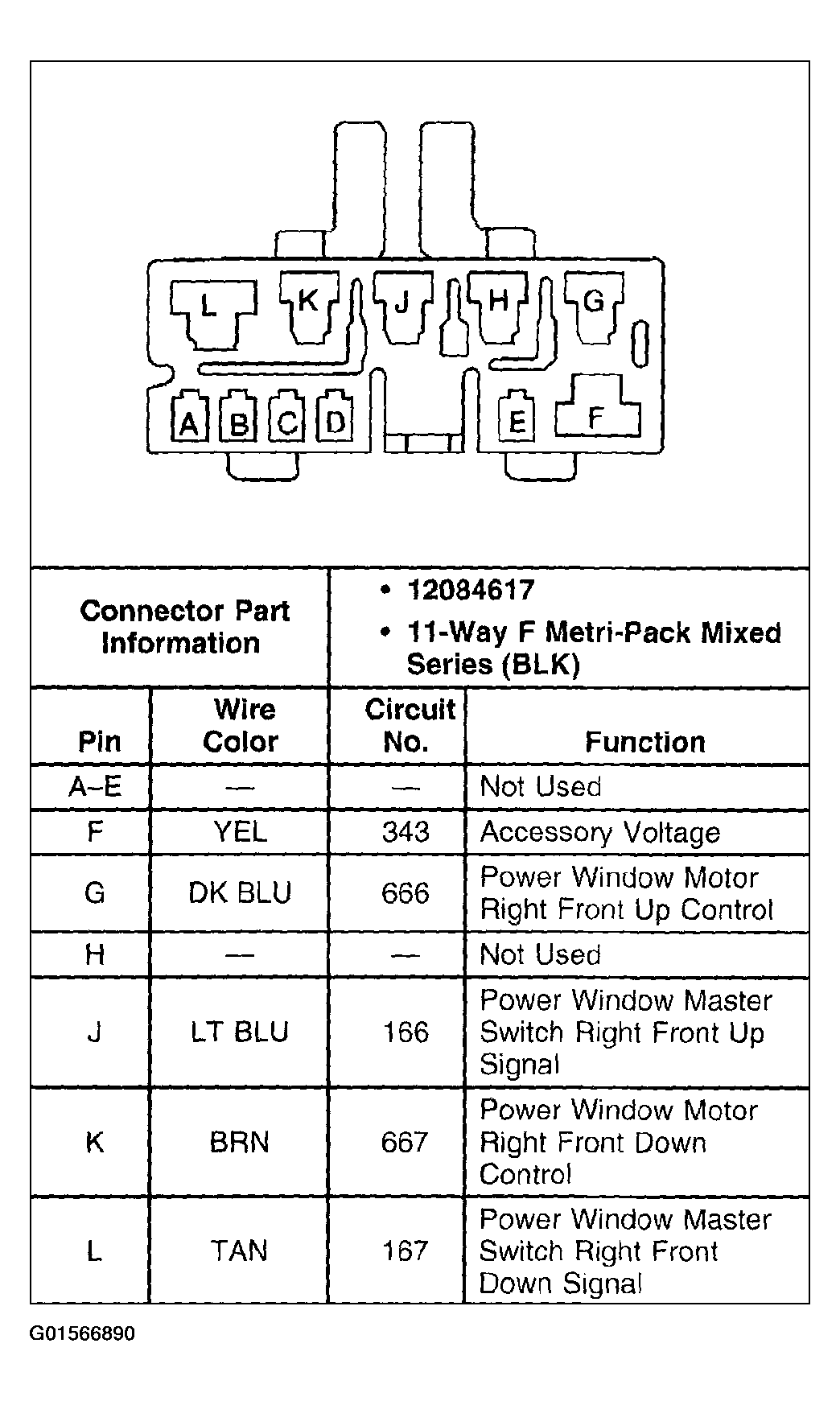

Fig 16: Window Switch Connector Terminals (Front Passenger C1)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Window Switch Connector Terminals (Front Passenger C2)

Courtesy of GENERAL MOTORS CORP.

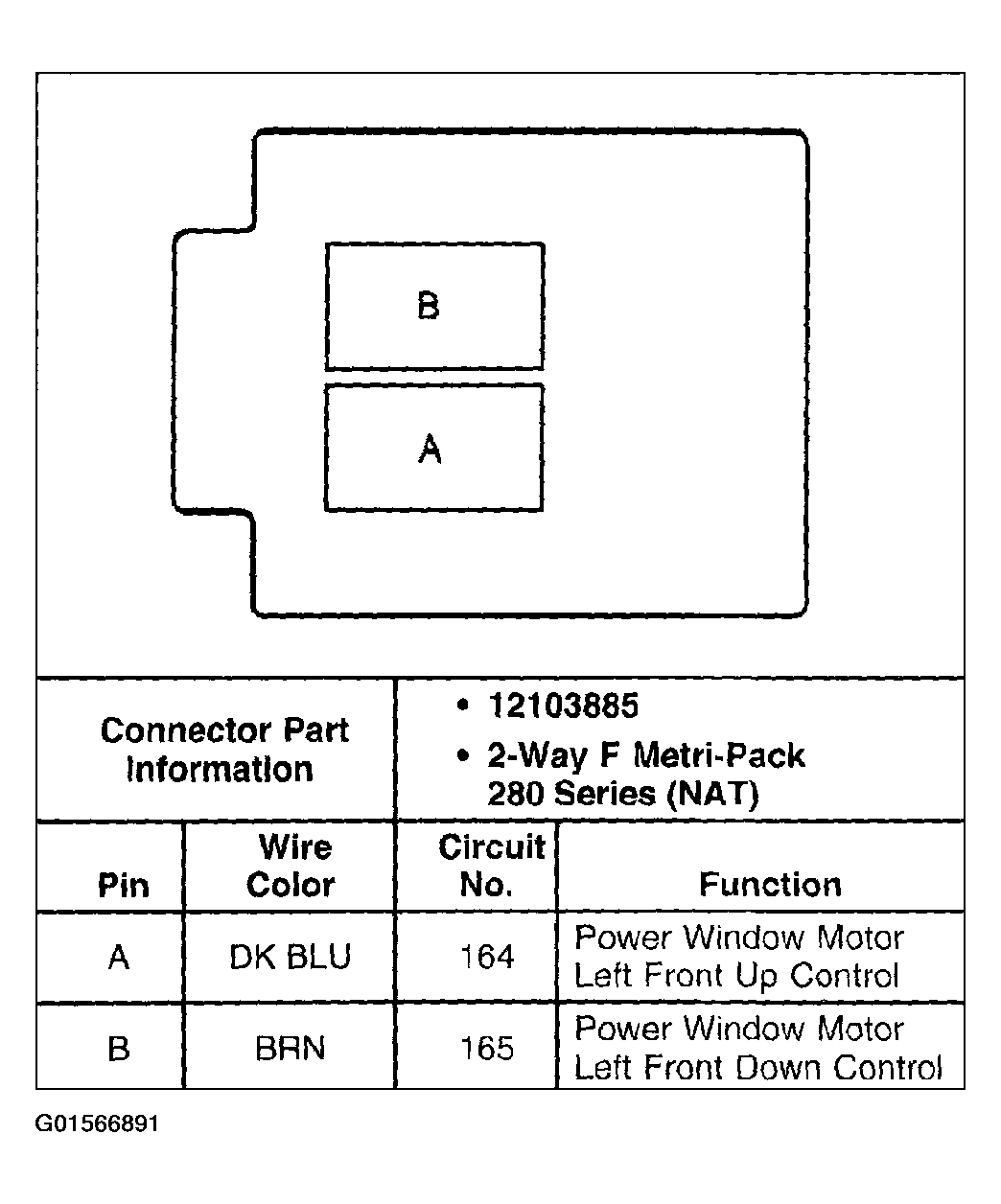

Fig 18: Window Motor Connector Terminals (Driver)

Courtesy of GENERAL MOTORS CORP.

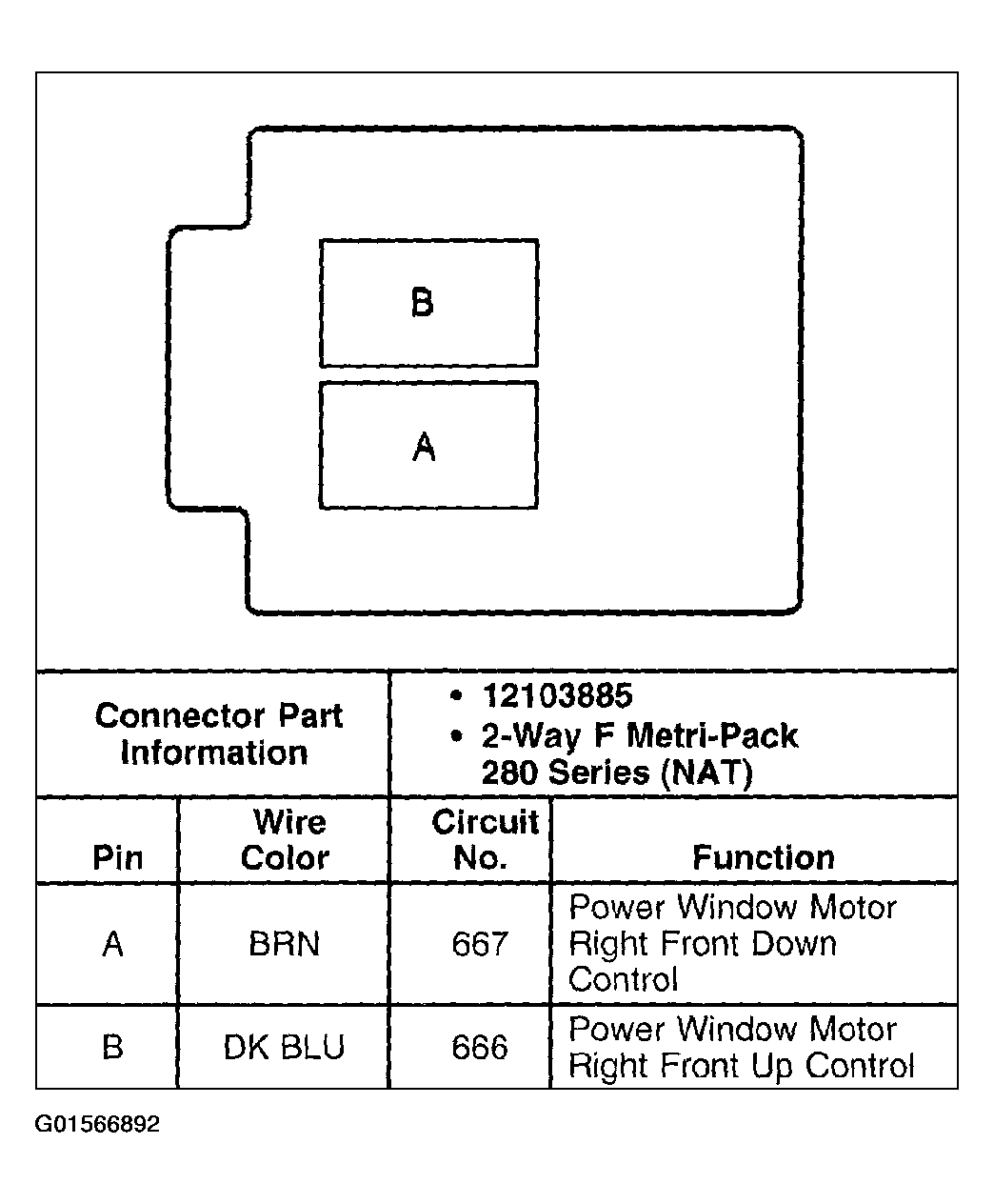

Fig 19: Window Motor Connector Terminals (Front Passenger)

Courtesy of GENERAL MOTORS CORP.
