Symptoms - Doors
>>
Power Windows Inoperative - Express Down Function
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Windows Inoperative - Express Down Function

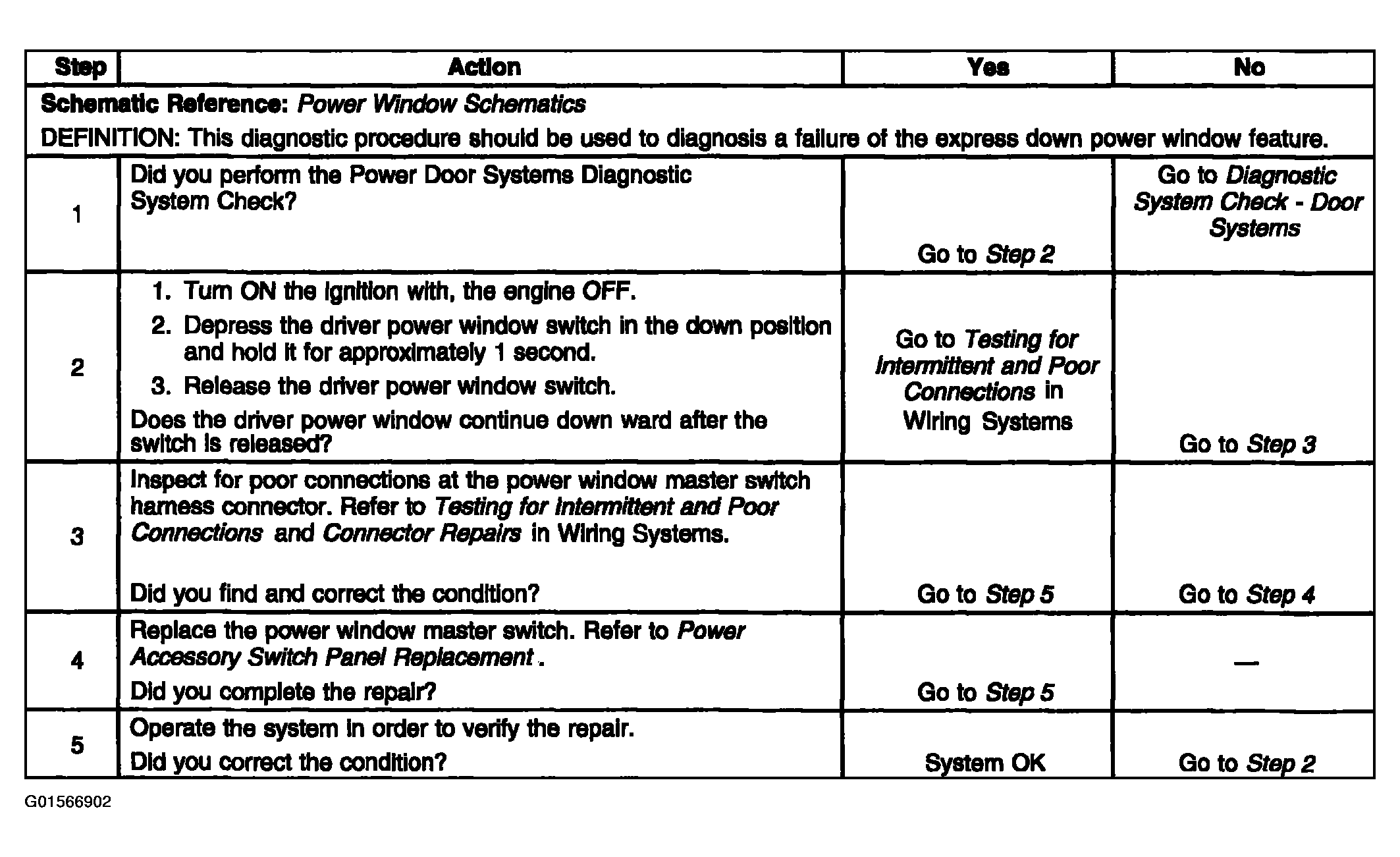

Fig 1: Power Windows Inoperative Diagnostic Test - Express Down Function
Courtesy of GENERAL MOTORS CORP.
