Stationary Windows Connector End Views

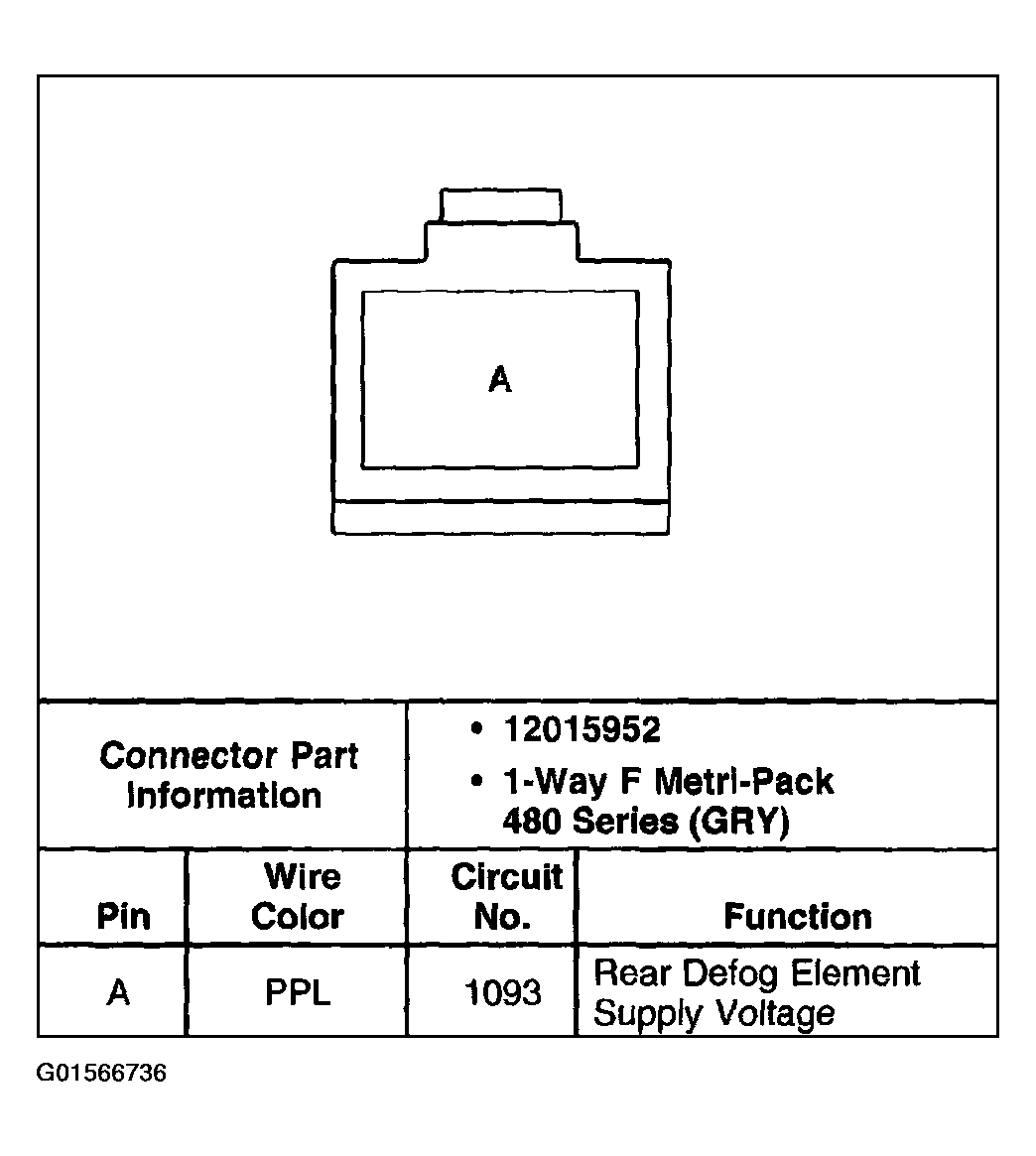

Fig 1: Rear Window Defogger Grid C1
G01566736Courtesy of GENERAL MOTORS CORP.

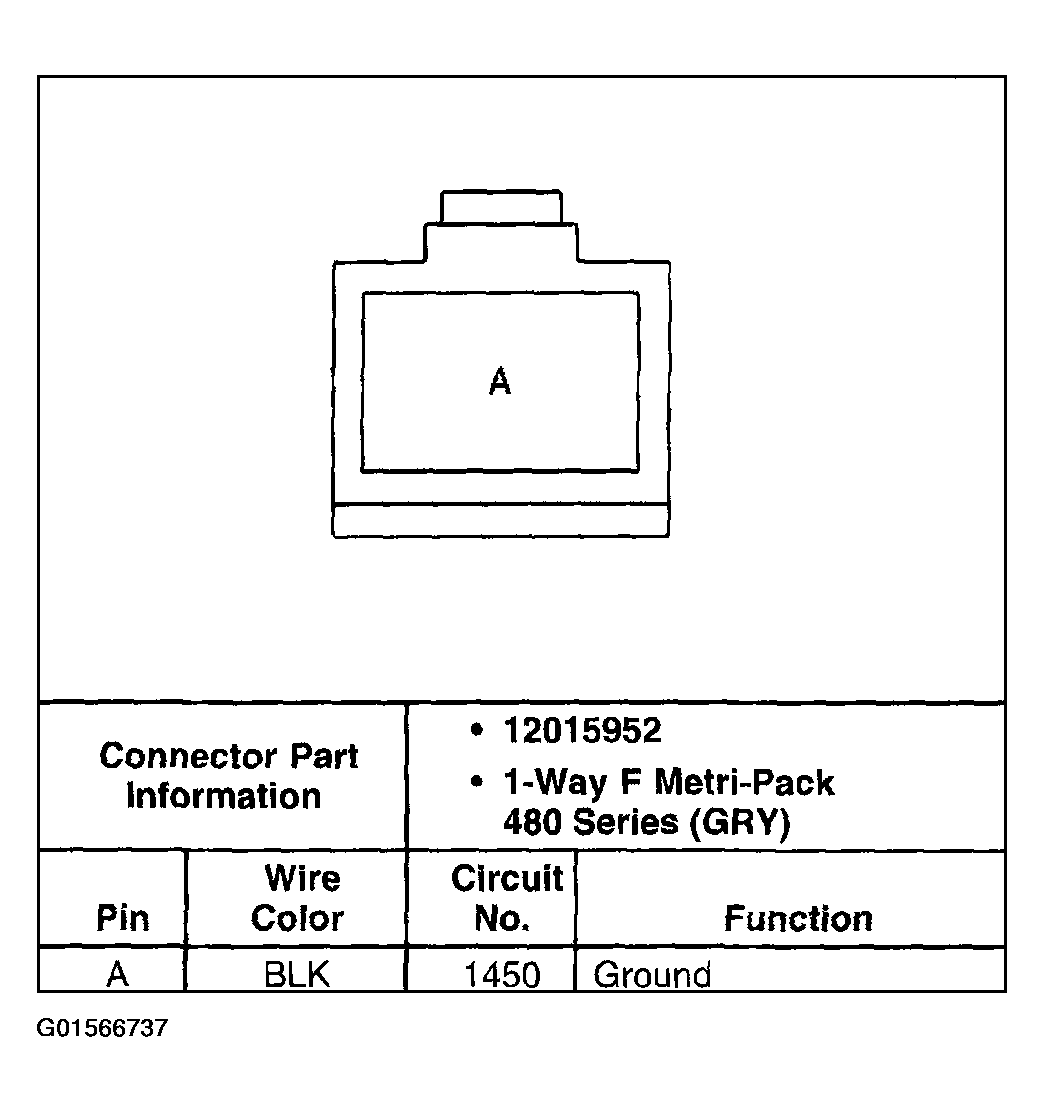

Fig 2: Rear Window Defogger Grid C2
G01566737Courtesy of GENERAL MOTORS CORP.
