Generator Connector End View Terminals

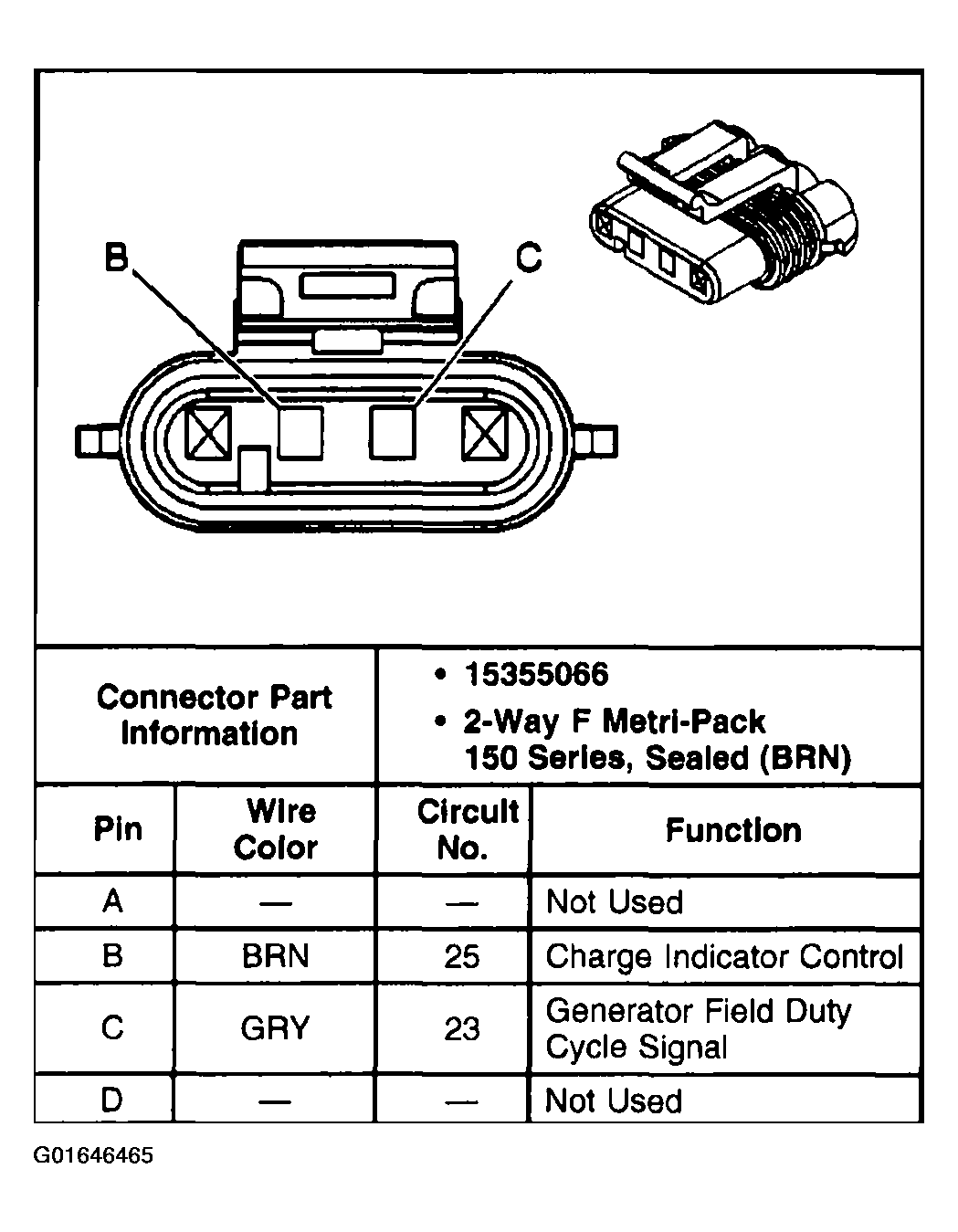

Fig 1: Generator Connector End View Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
