HVAC Control Assembly C3 Connector End View

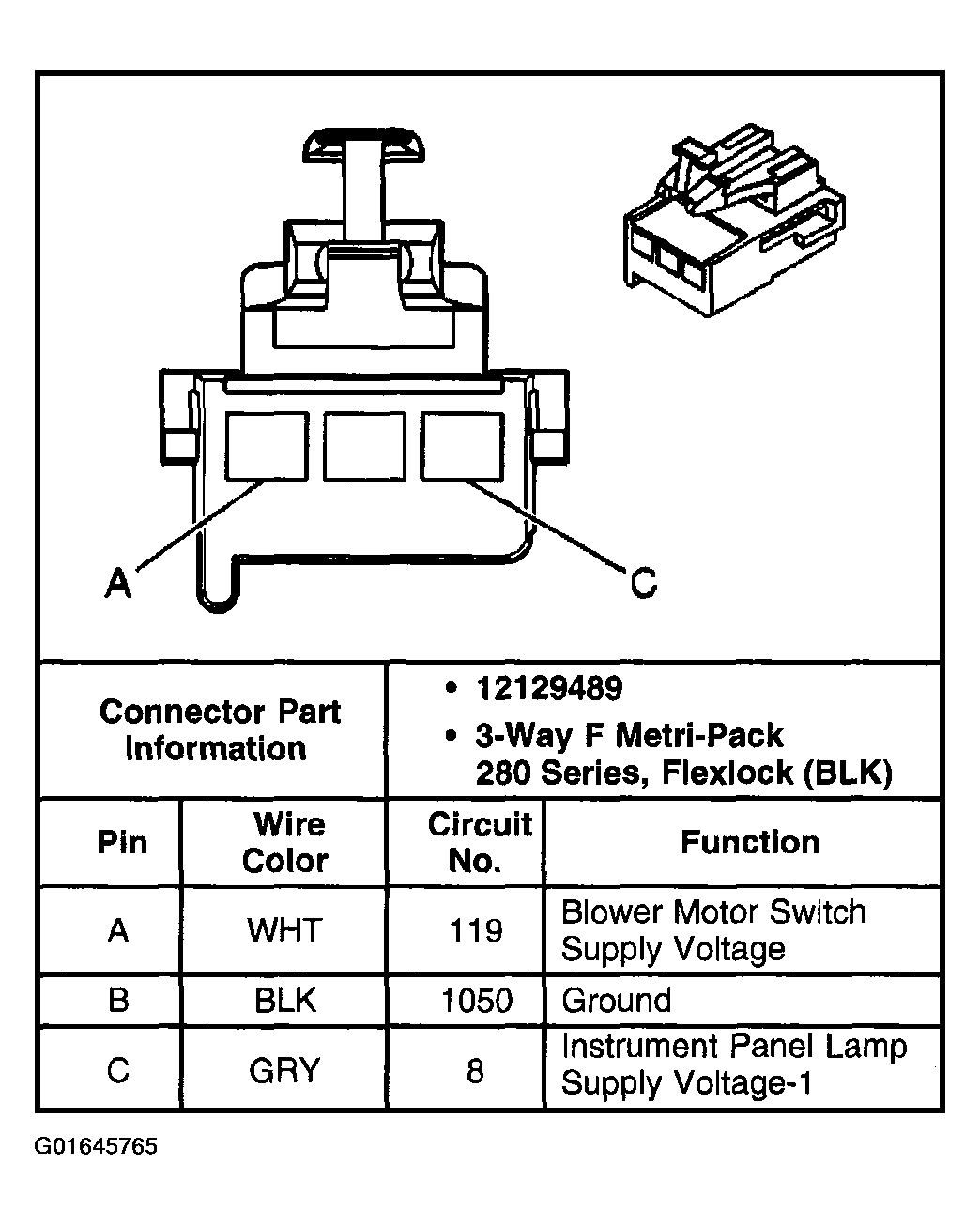

Fig 1: HVAC Control Assembly C3 Connector End View
Courtesy of GENERAL MOTORS CORP.
