Cruise Control Component Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

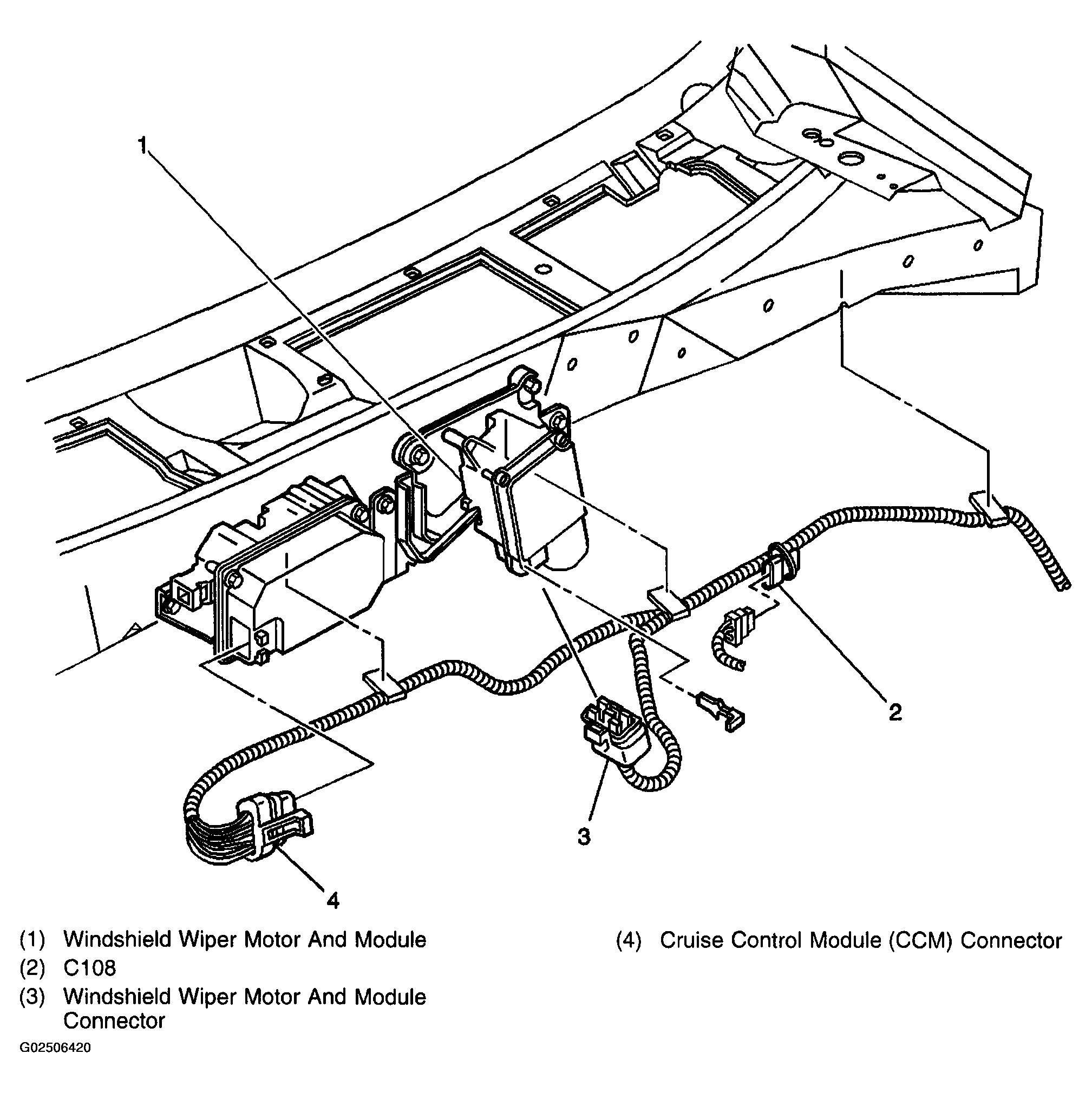

Fig 1: Identifying Cruise Control Module & Wiper Motor Component Locations
G02506420Courtesy of GENERAL MOTORS CORP.

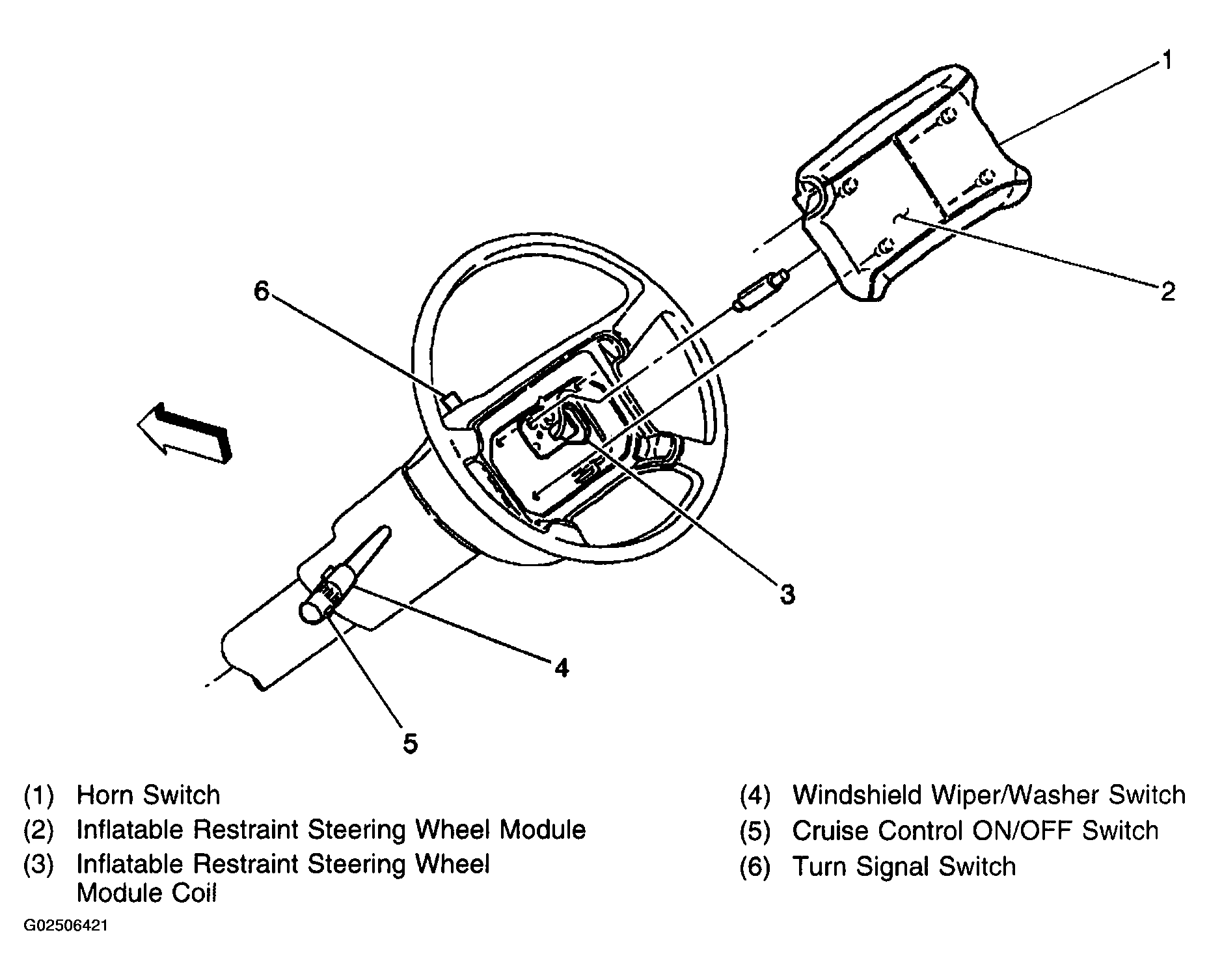

Fig 2: Identifying Steering Column Cruise Control Component Locations
G02506421Courtesy of GENERAL MOTORS CORP.
