Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

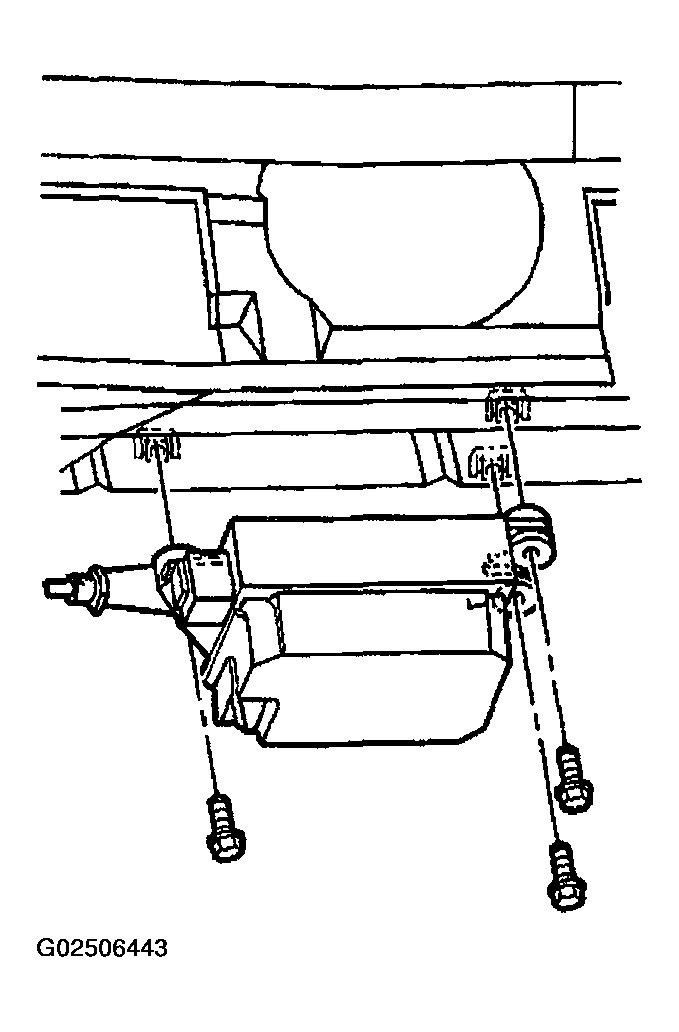

- Install the cruise control module.NOTE: Refer to Fastener Notice in Cautions and Notices.
- Install the cruise control module bolts.
Tighten
Tighten the cruise control module bolts to 12 N.m (106 in. lb.).
- Connect the electrical connector.
Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.
- Install the cruise control cable. Refer to Cruise Control Cable Replacement .
- Perform the functional check.
