Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

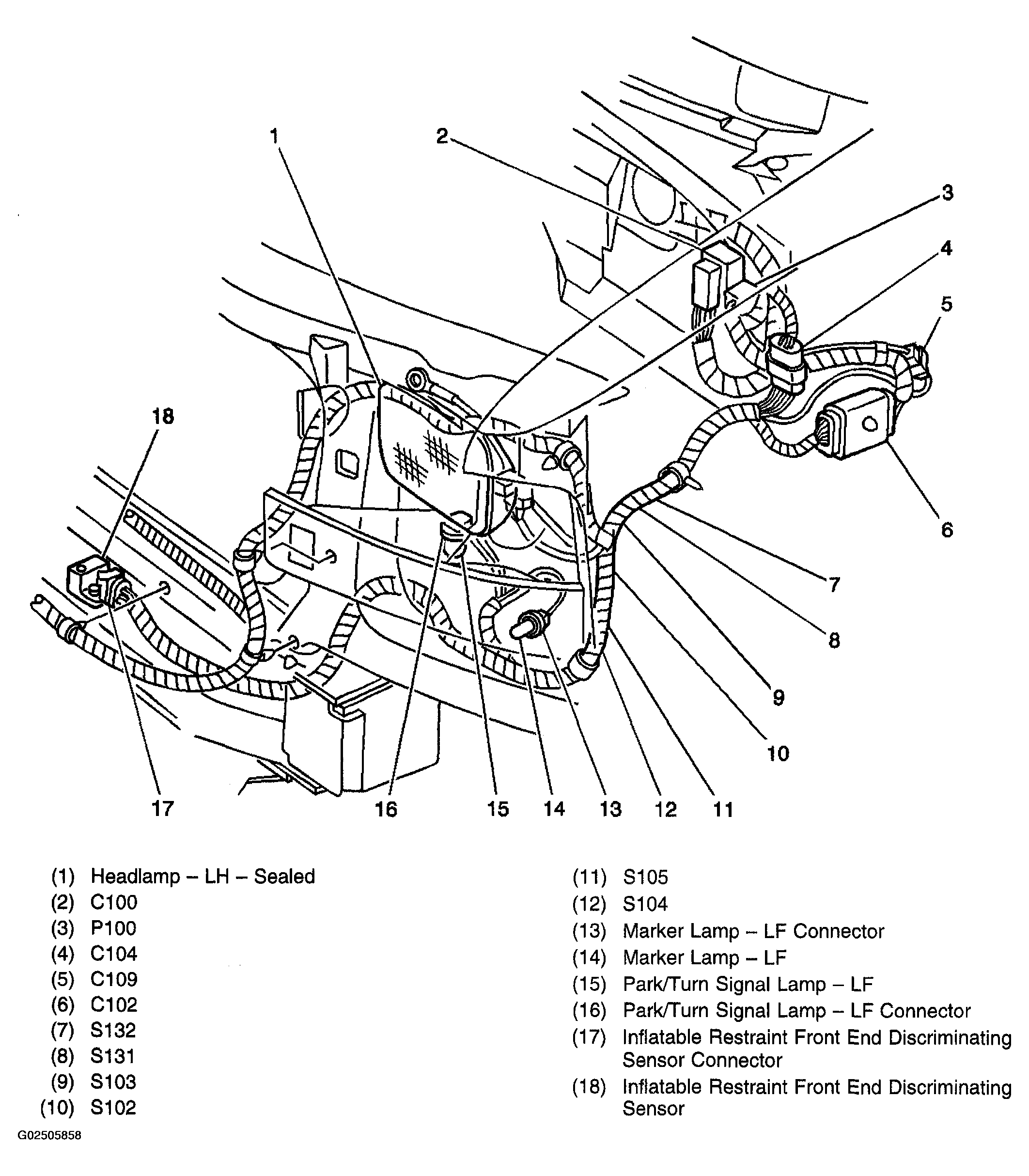

Fig 1: Locating Forward Lamps Harness - Left Side

G02505858

Courtesy of GENERAL MOTORS CORP.

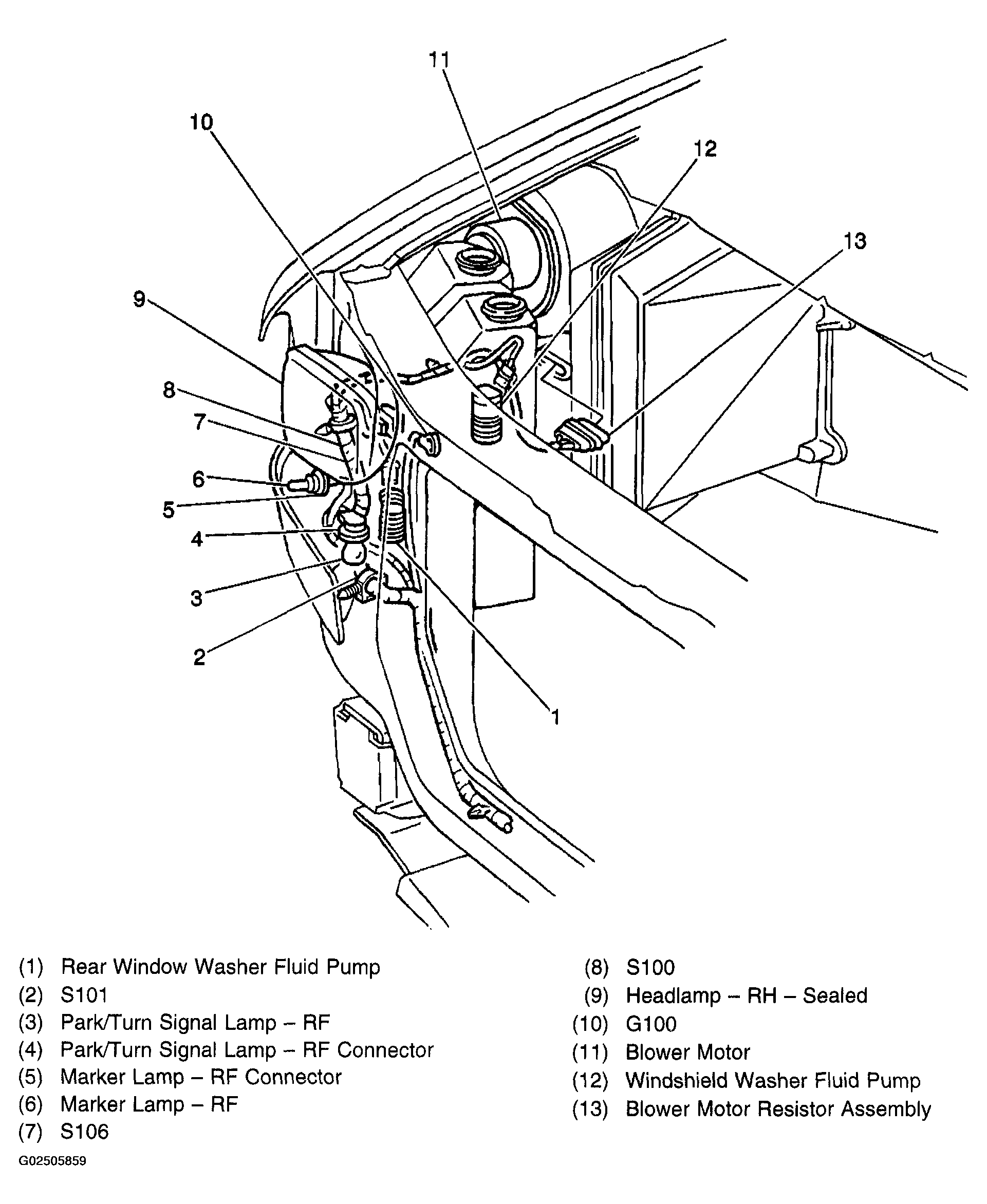

Fig 2: Locating Forward Lamp Harness - Right Side

G02505859

Courtesy of GENERAL MOTORS CORP.

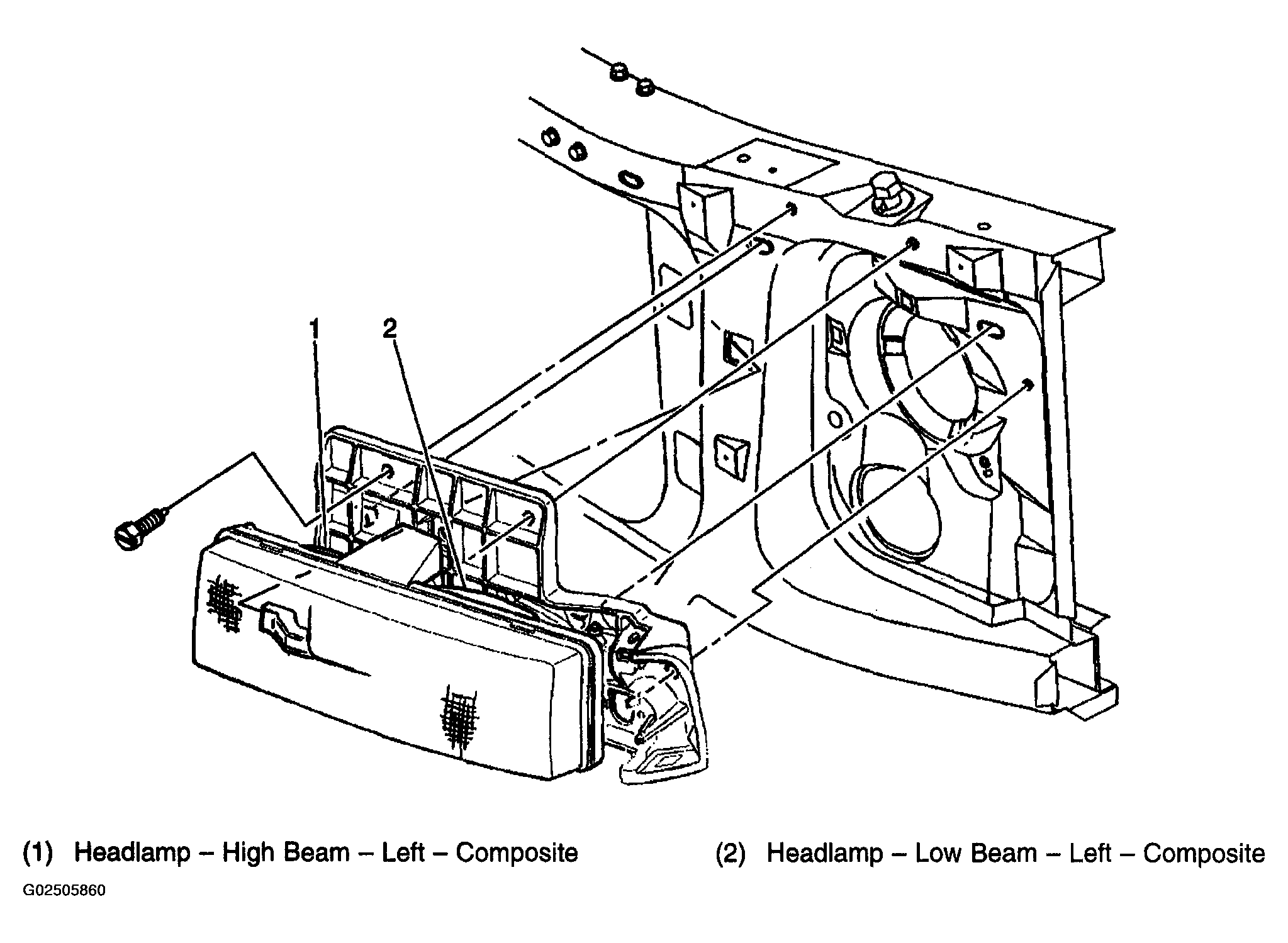

Fig 3: Locating Headlamp - LH (RH Similar)

G02505860

Courtesy of GENERAL MOTORS CORP.

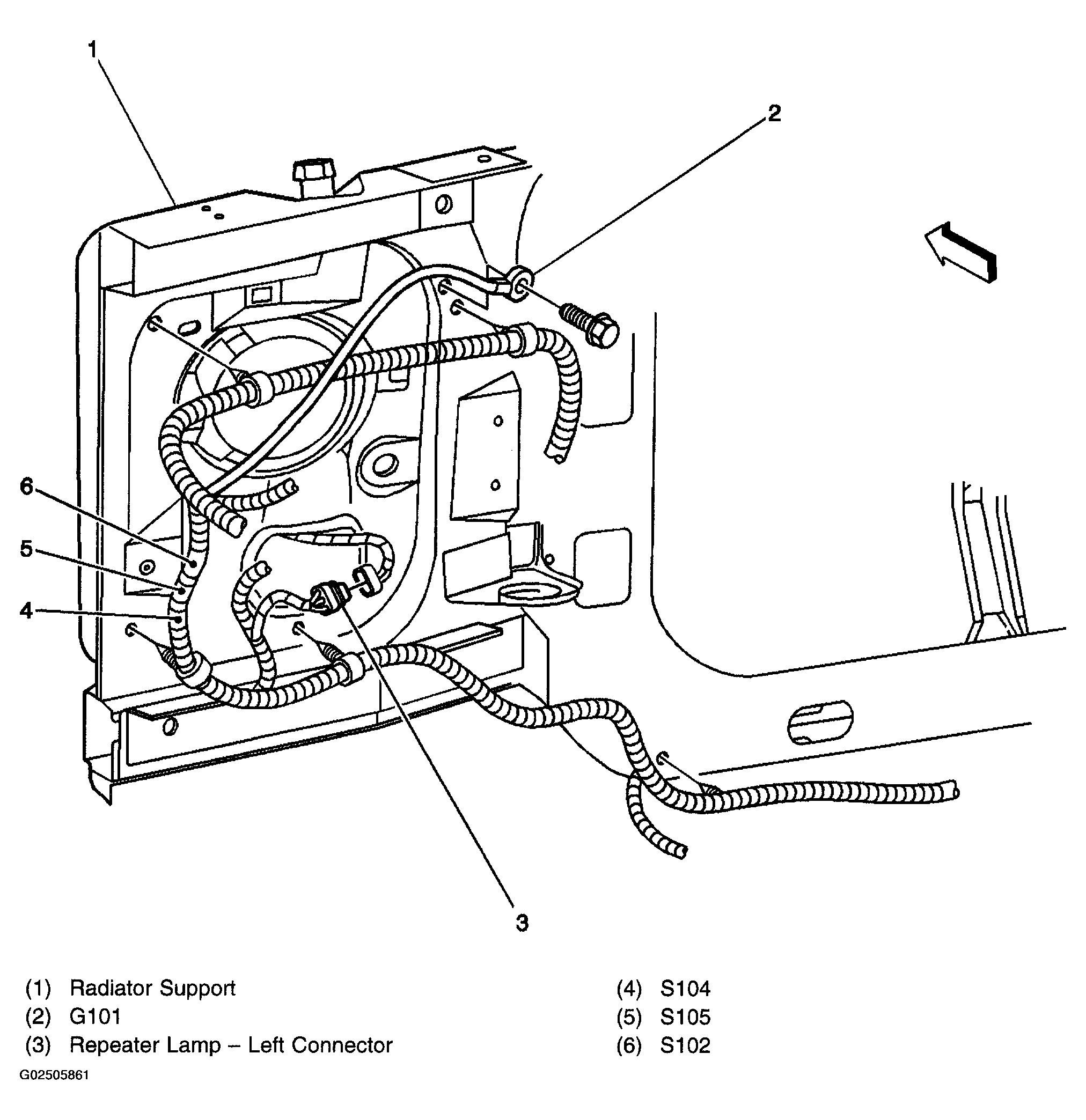

Fig 4: Locating Forward Lamp Harness - Left Side

G02505861

Courtesy of GENERAL MOTORS CORP.

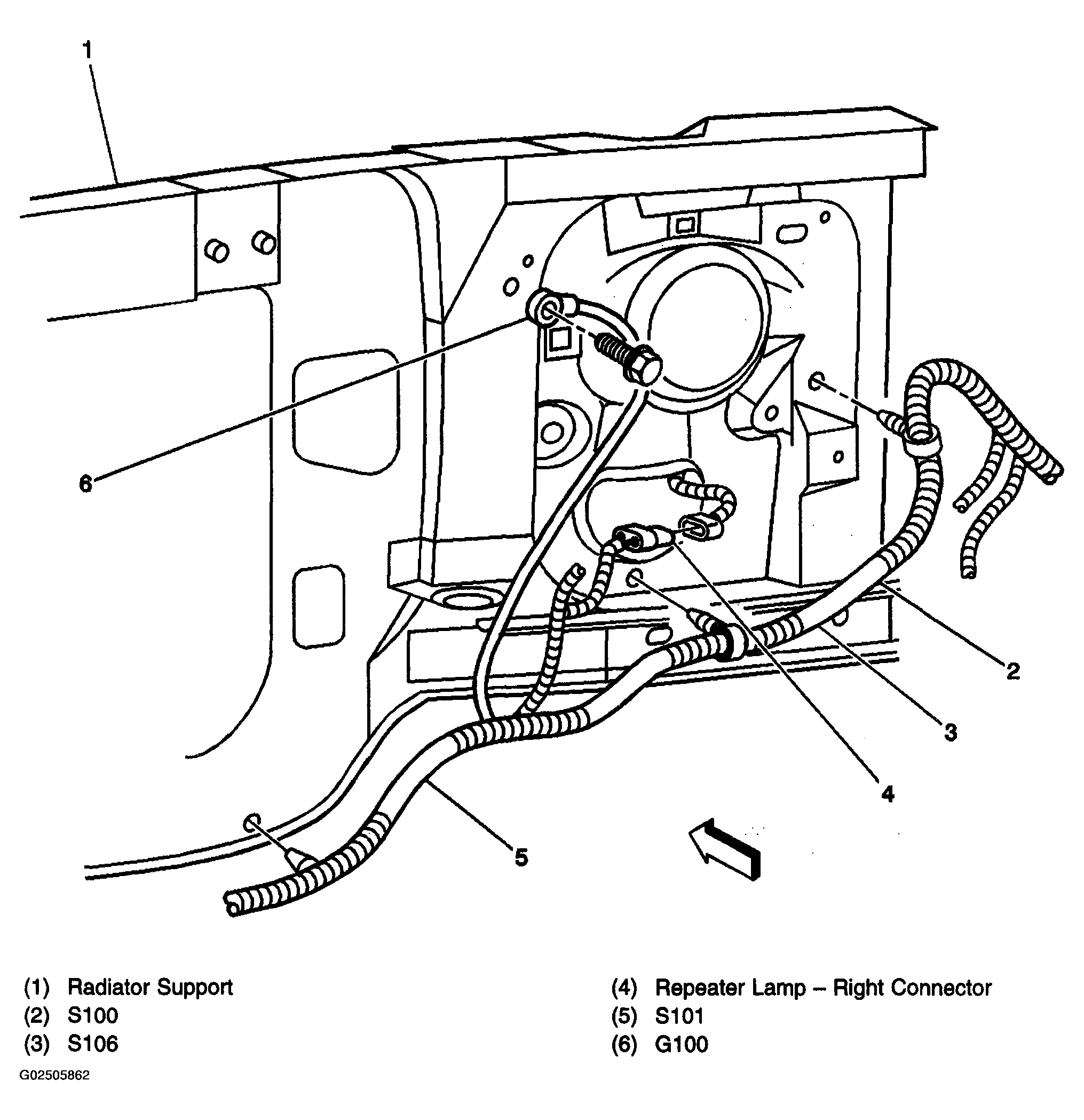

Fig 5: Locating Forward Lamp Harness - Right Side

G02505862

Courtesy of GENERAL MOTORS CORP.

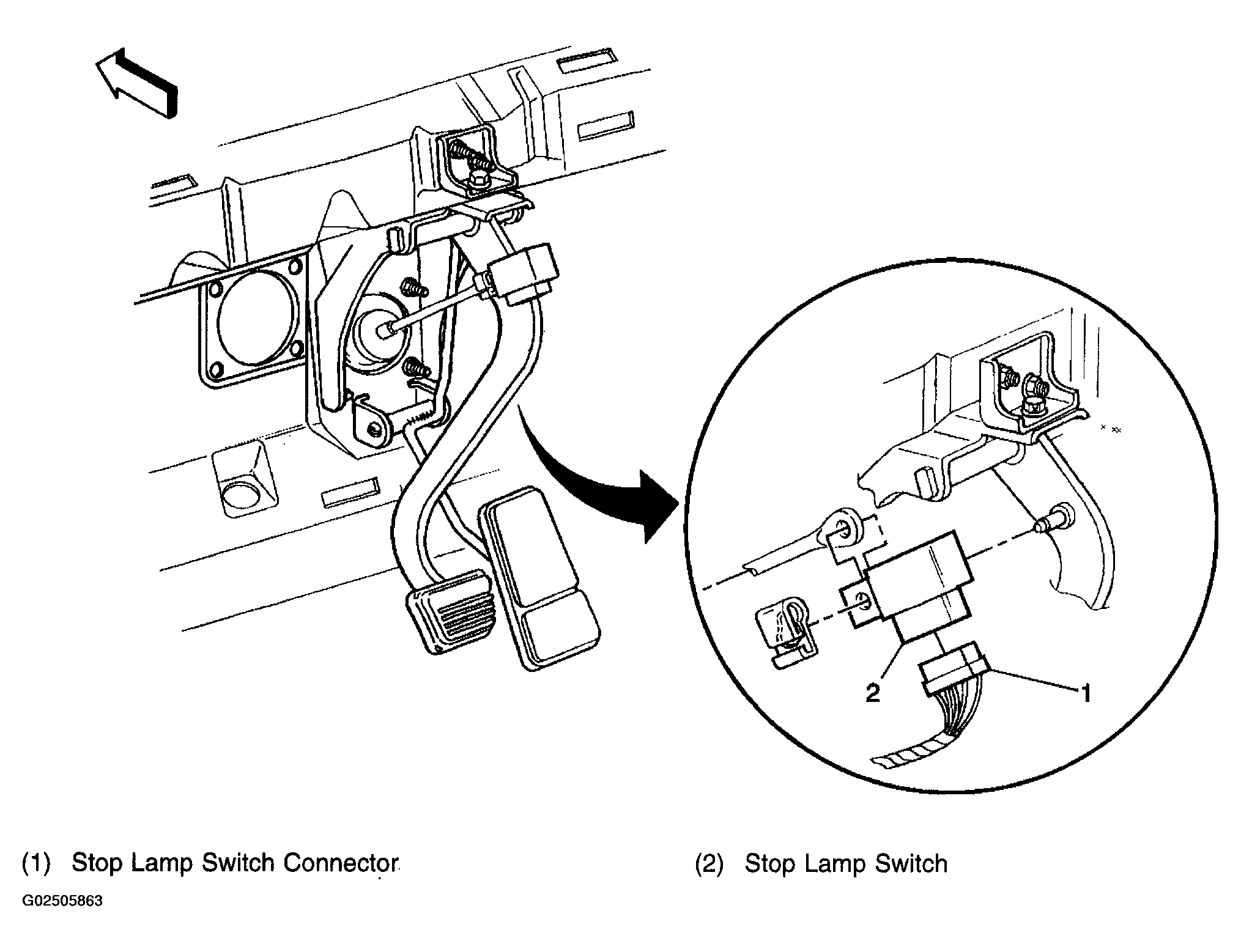

Fig 6: Locating Stop Lamp Switch

G02505863

Courtesy of GENERAL MOTORS CORP.

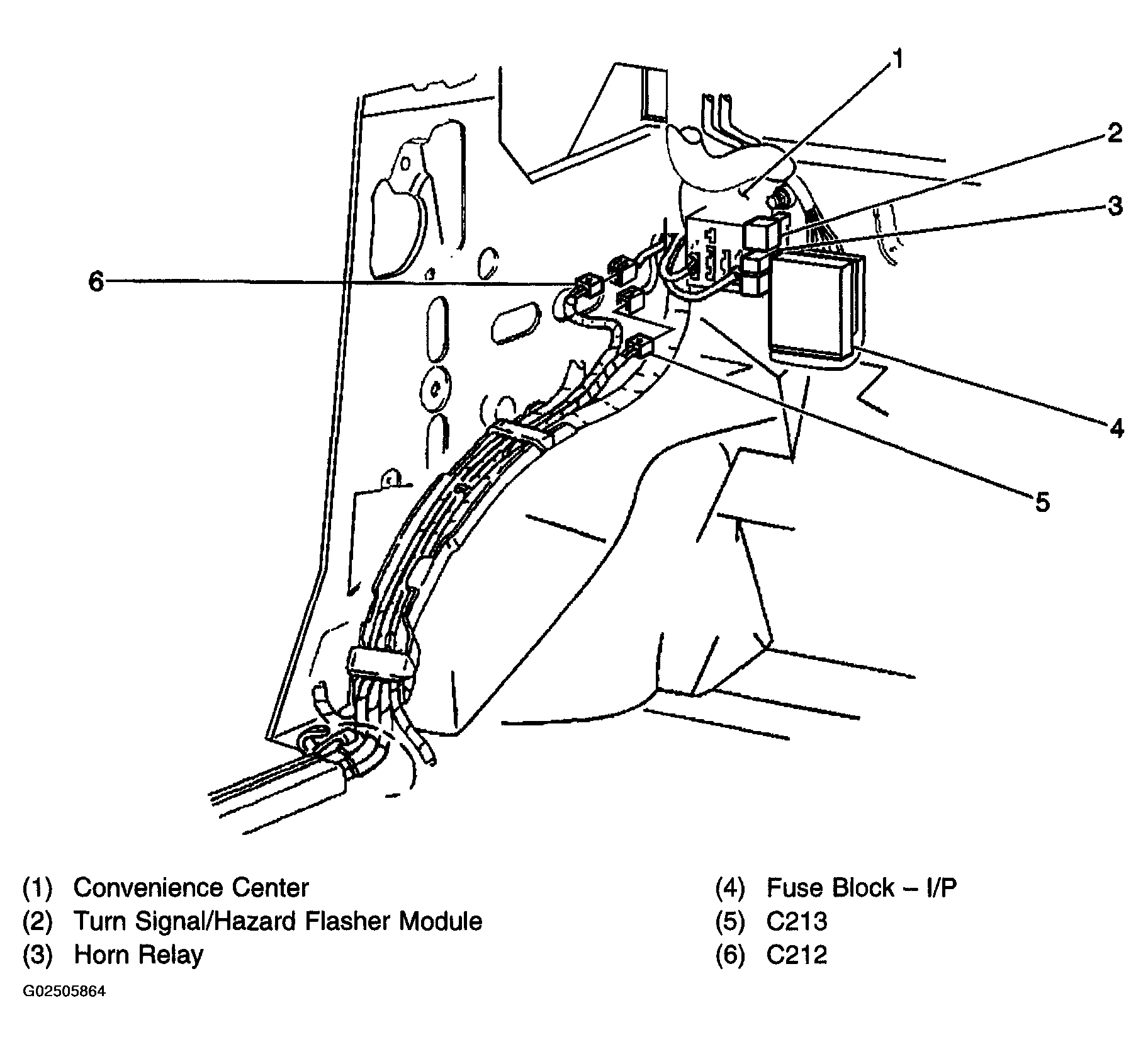

Fig 7: Locating Fuse Block - I/P Wiring

G02505864

Courtesy of GENERAL MOTORS CORP.

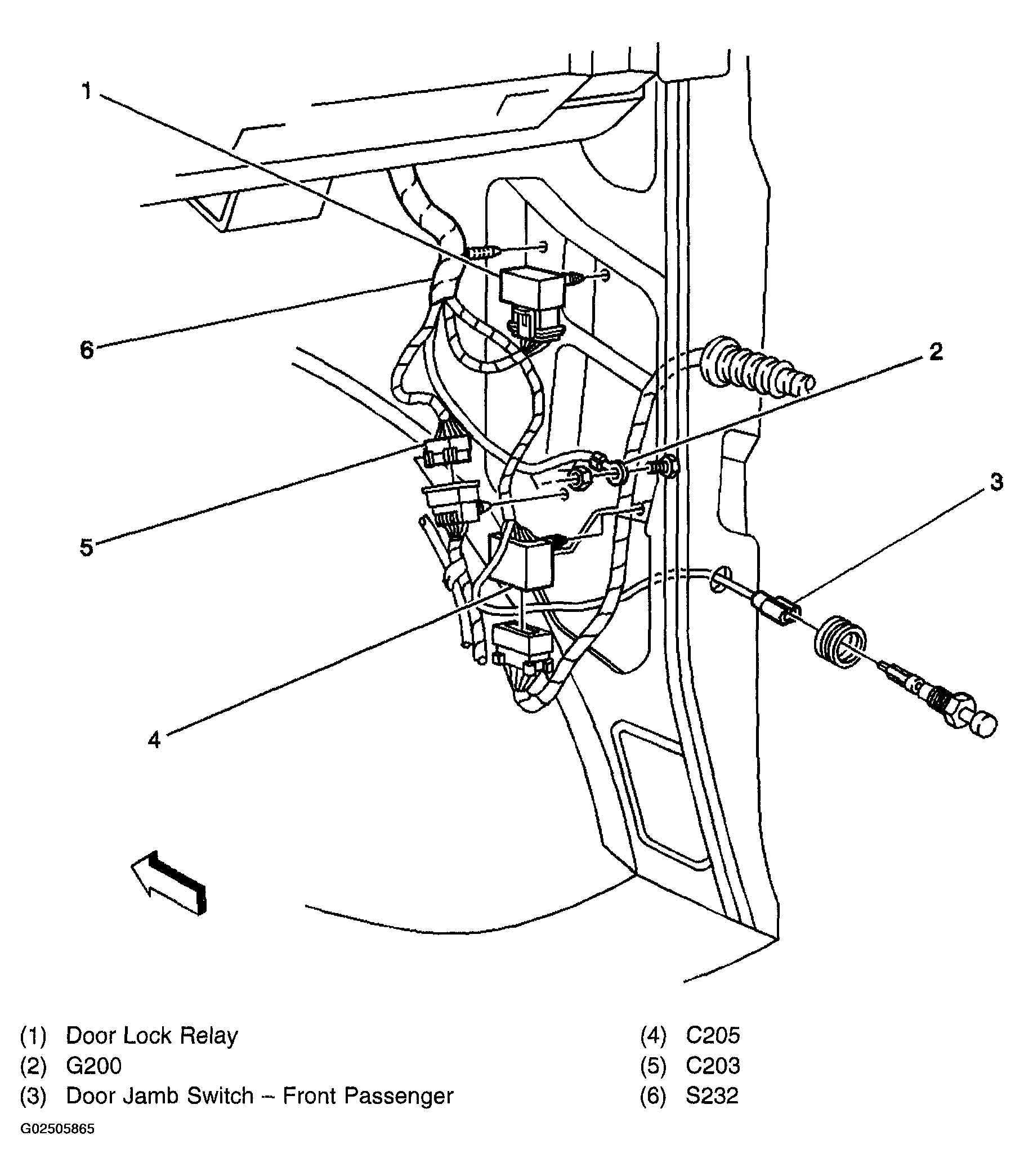

Fig 8: Locating I/P Wiring To Front Passenger Door

G02505865

Courtesy of GENERAL MOTORS CORP.

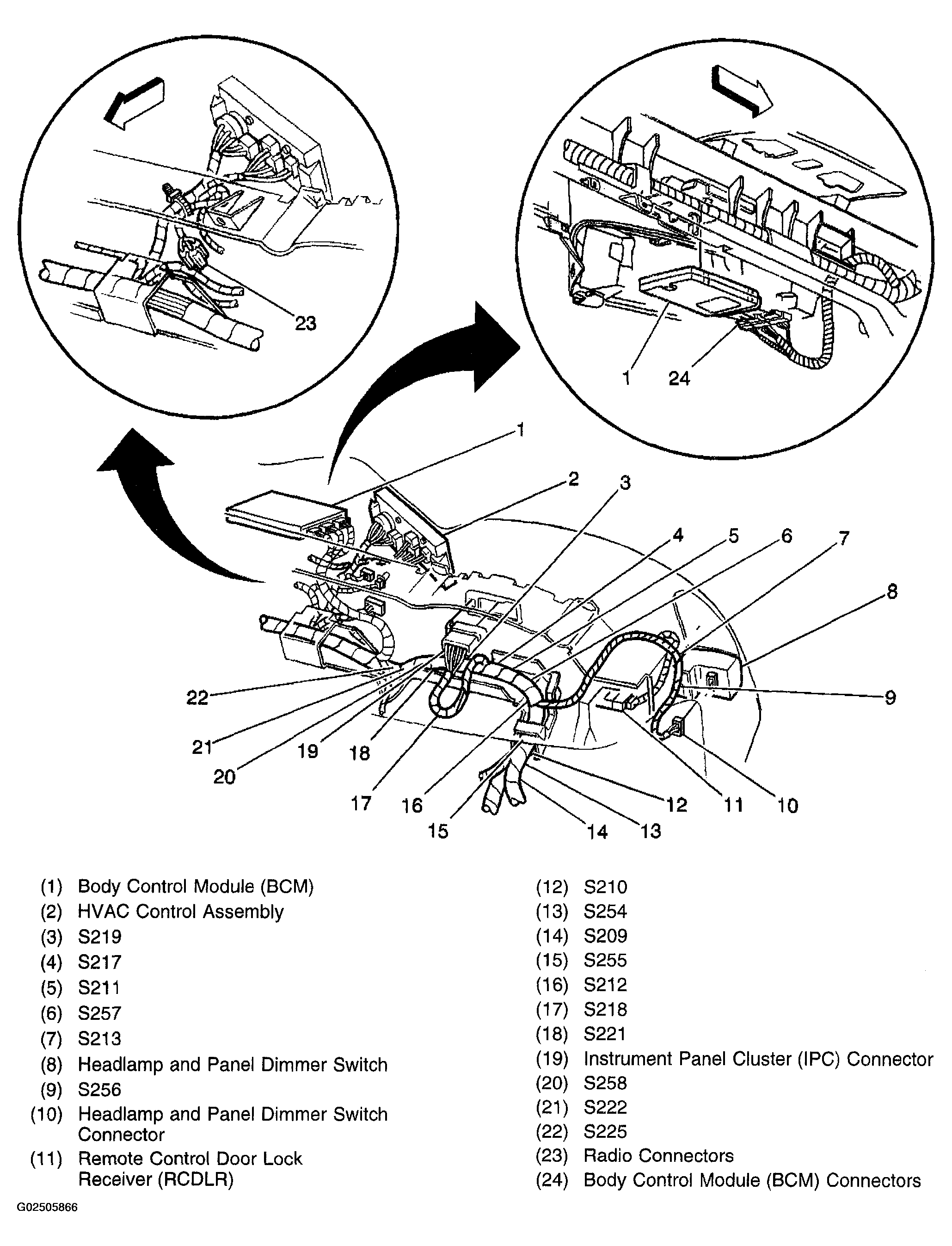

Fig 9: Locating Instrument Panel Cluster (IPC) Wiring

G02505866

Courtesy of GENERAL MOTORS CORP.

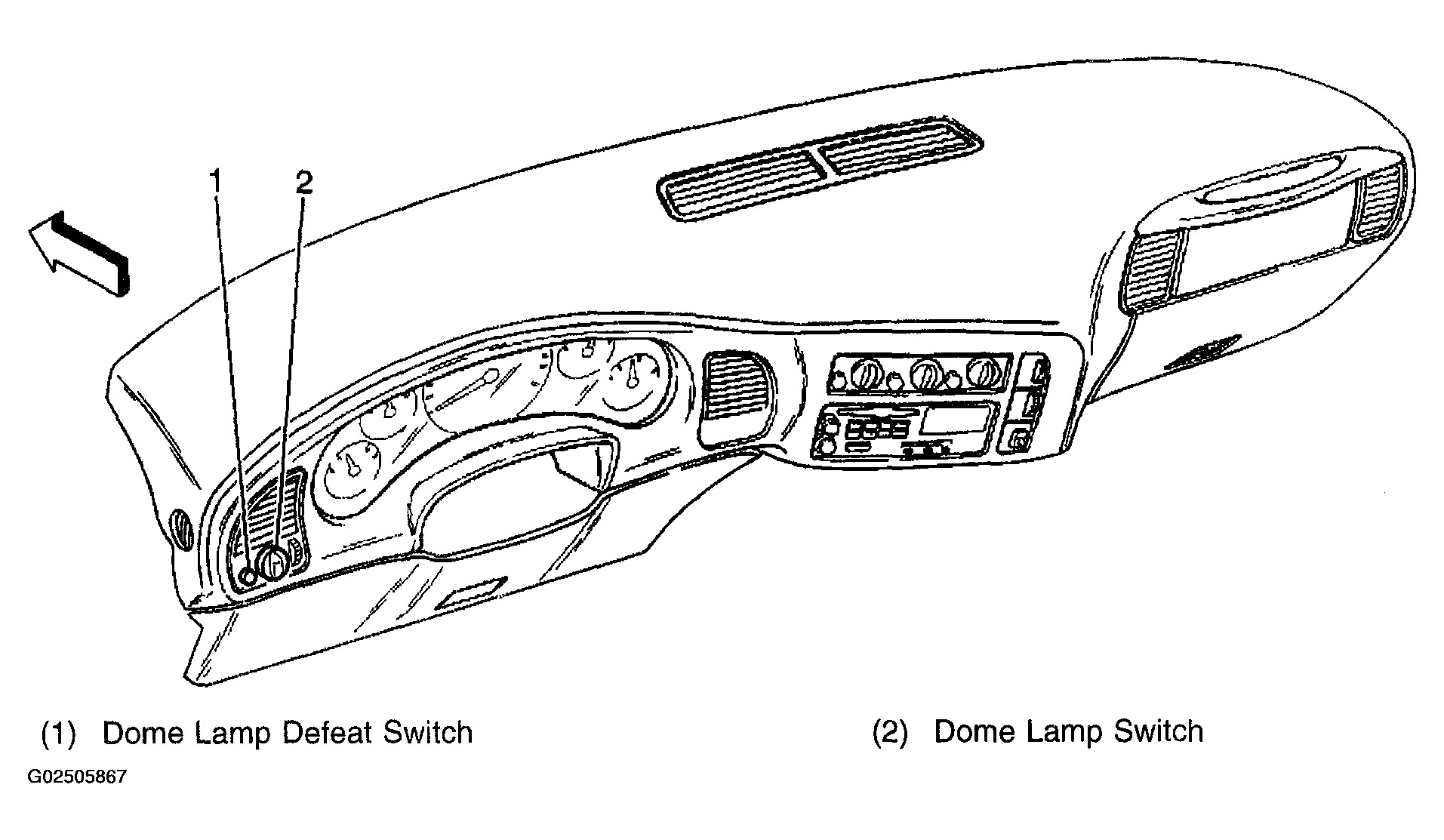

Fig 10: Locating Dome Lamp Defeat Switch

G02505867

Courtesy of GENERAL MOTORS CORP.

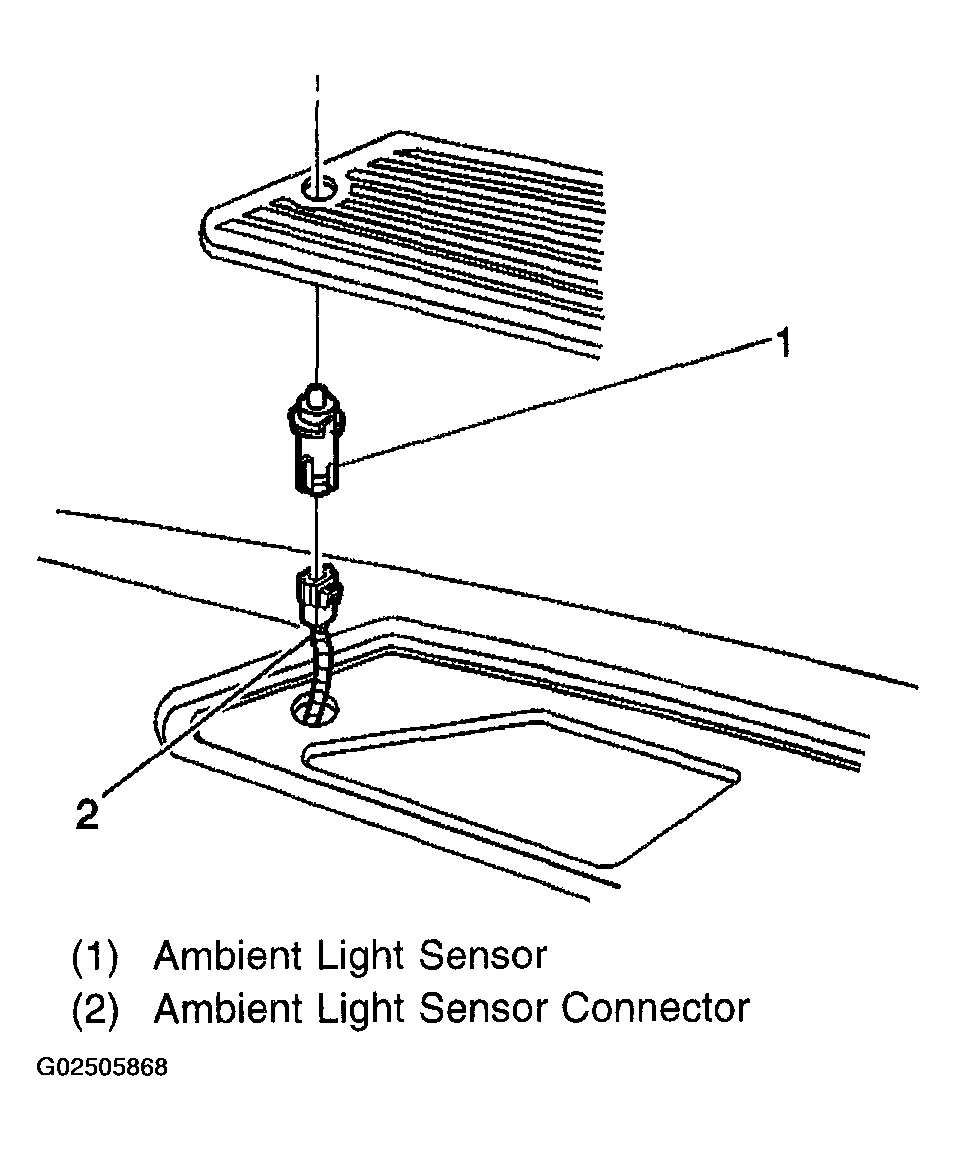

Fig 11: Locating Ambient Light Sensor

G02505868

Courtesy of GENERAL MOTORS CORP.

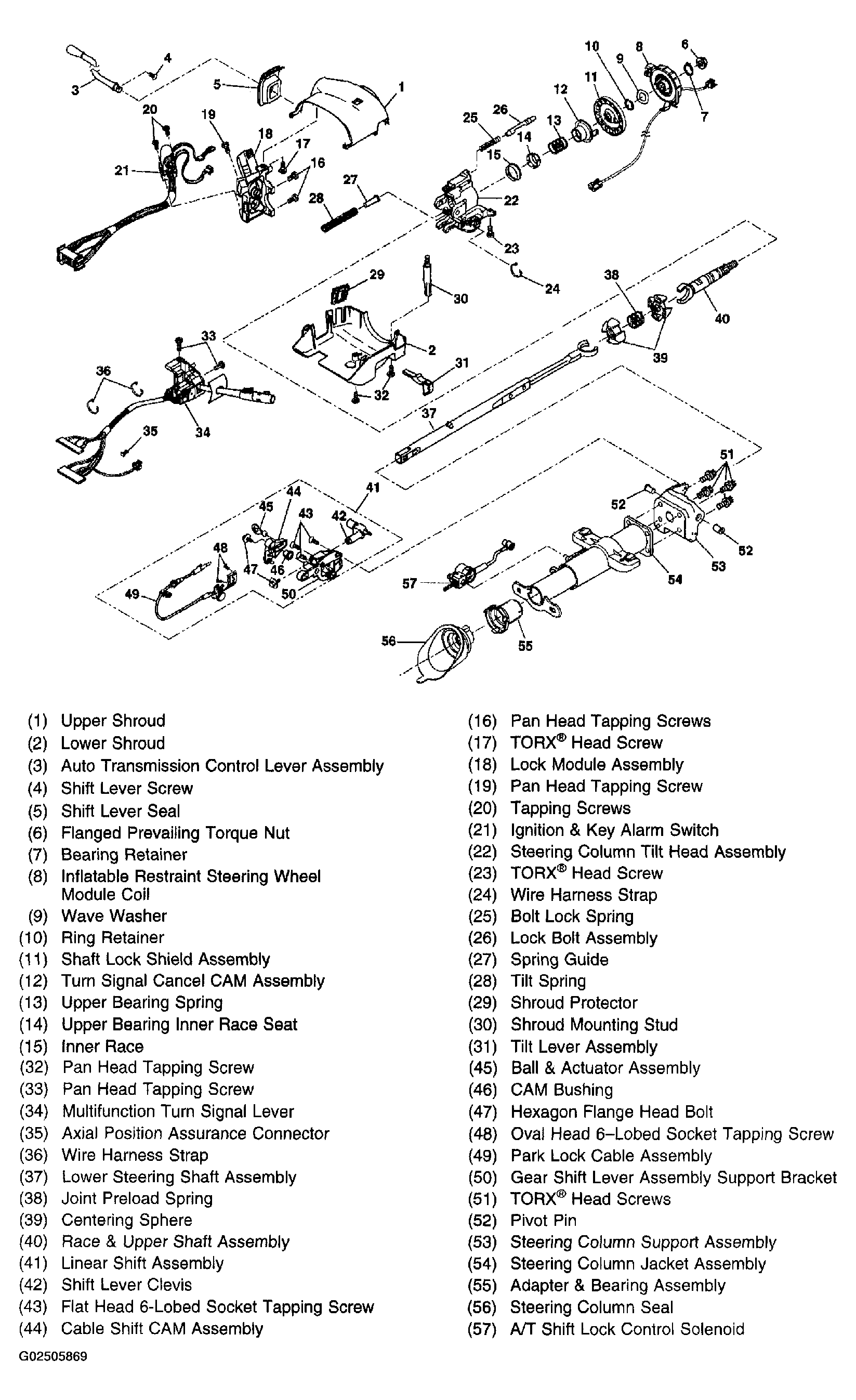

Fig 12: Locating Tilt Column Shift Steering Column

G02505869

Courtesy of GENERAL MOTORS CORP.

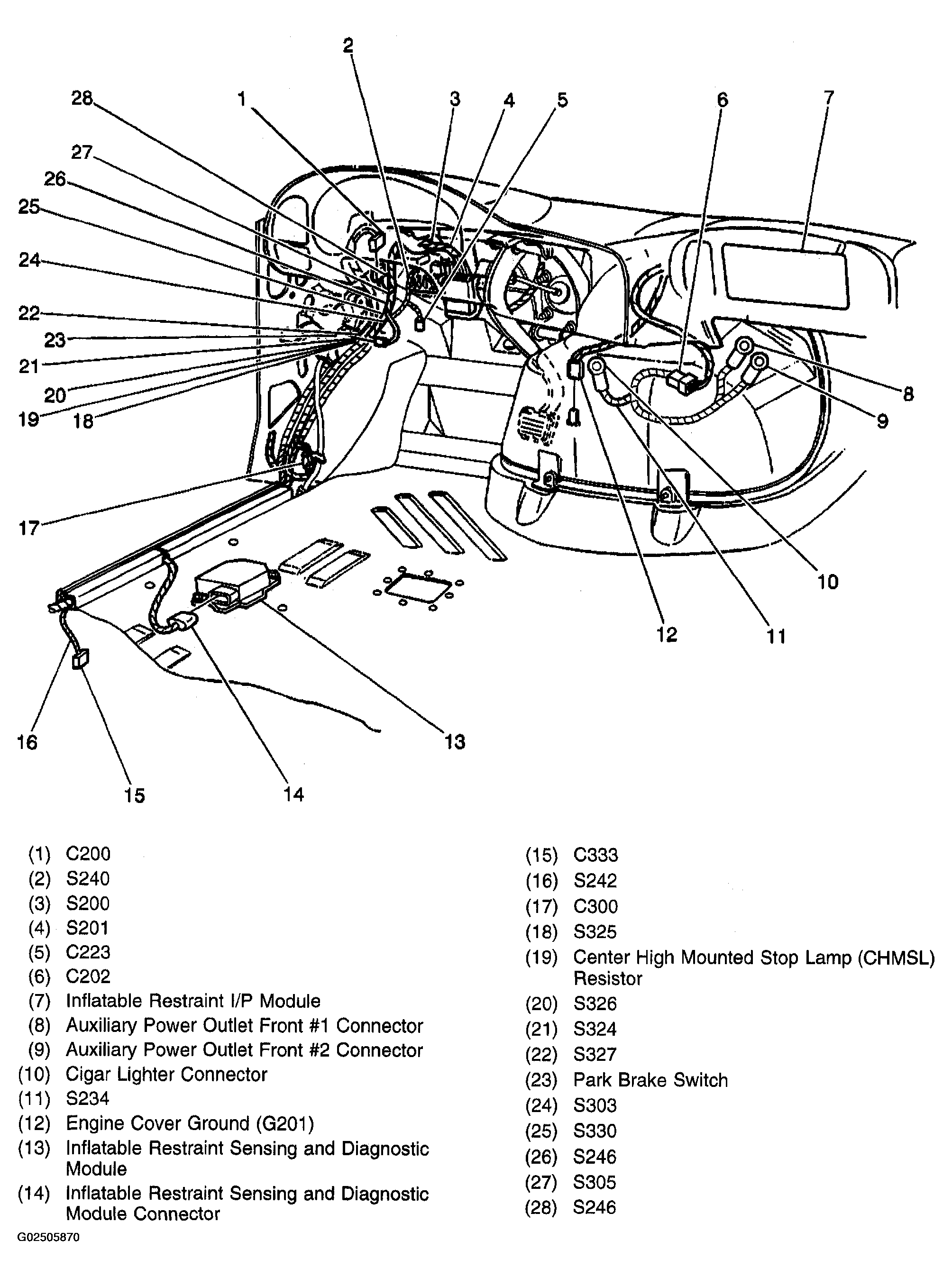

Fig 13: Locating Left Front Interior Wiring

G02505870

Courtesy of GENERAL MOTORS CORP.

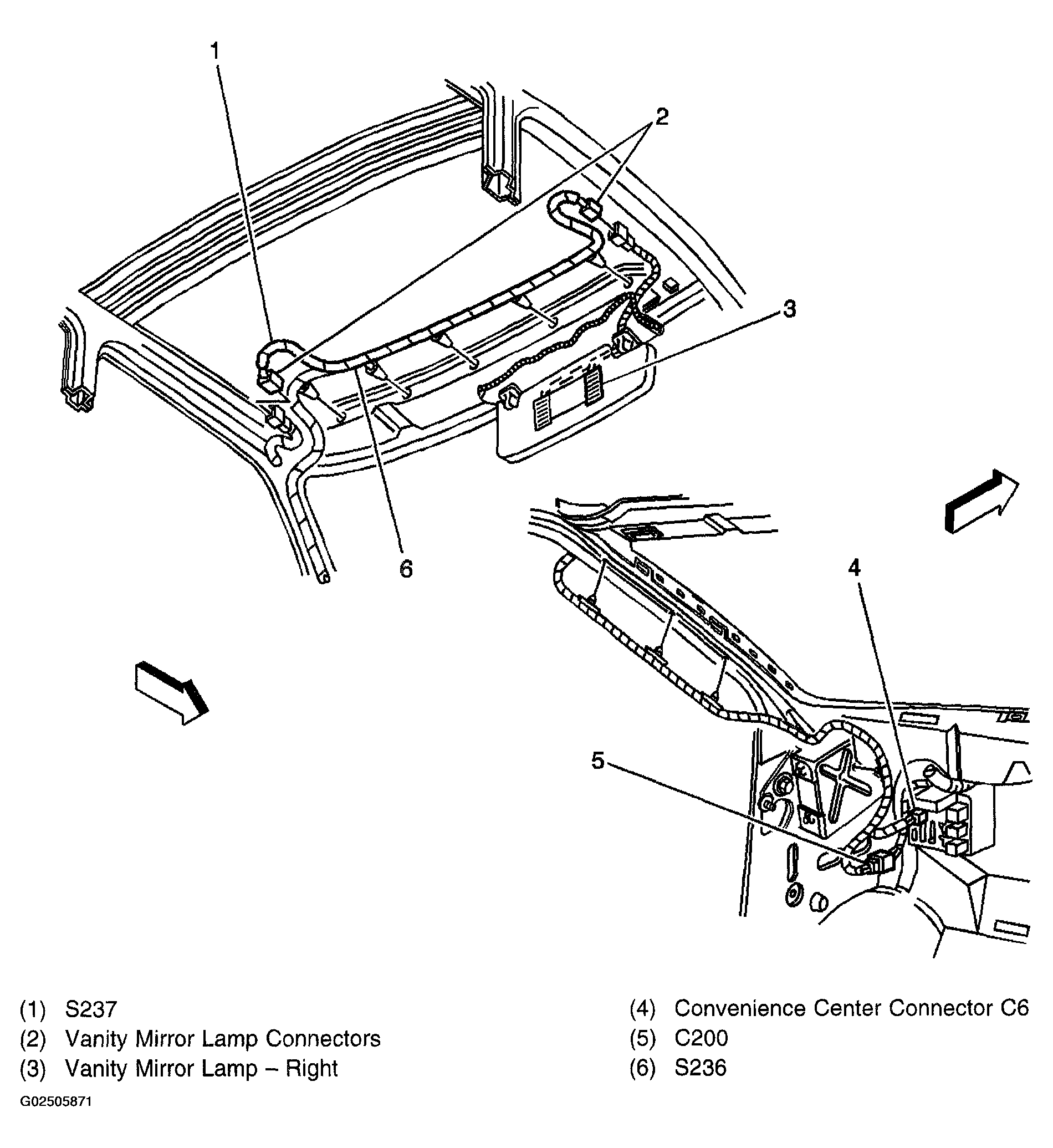

Fig 14: Locating Vanity Mirror Wiring

G02505871

Courtesy of GENERAL MOTORS CORP.

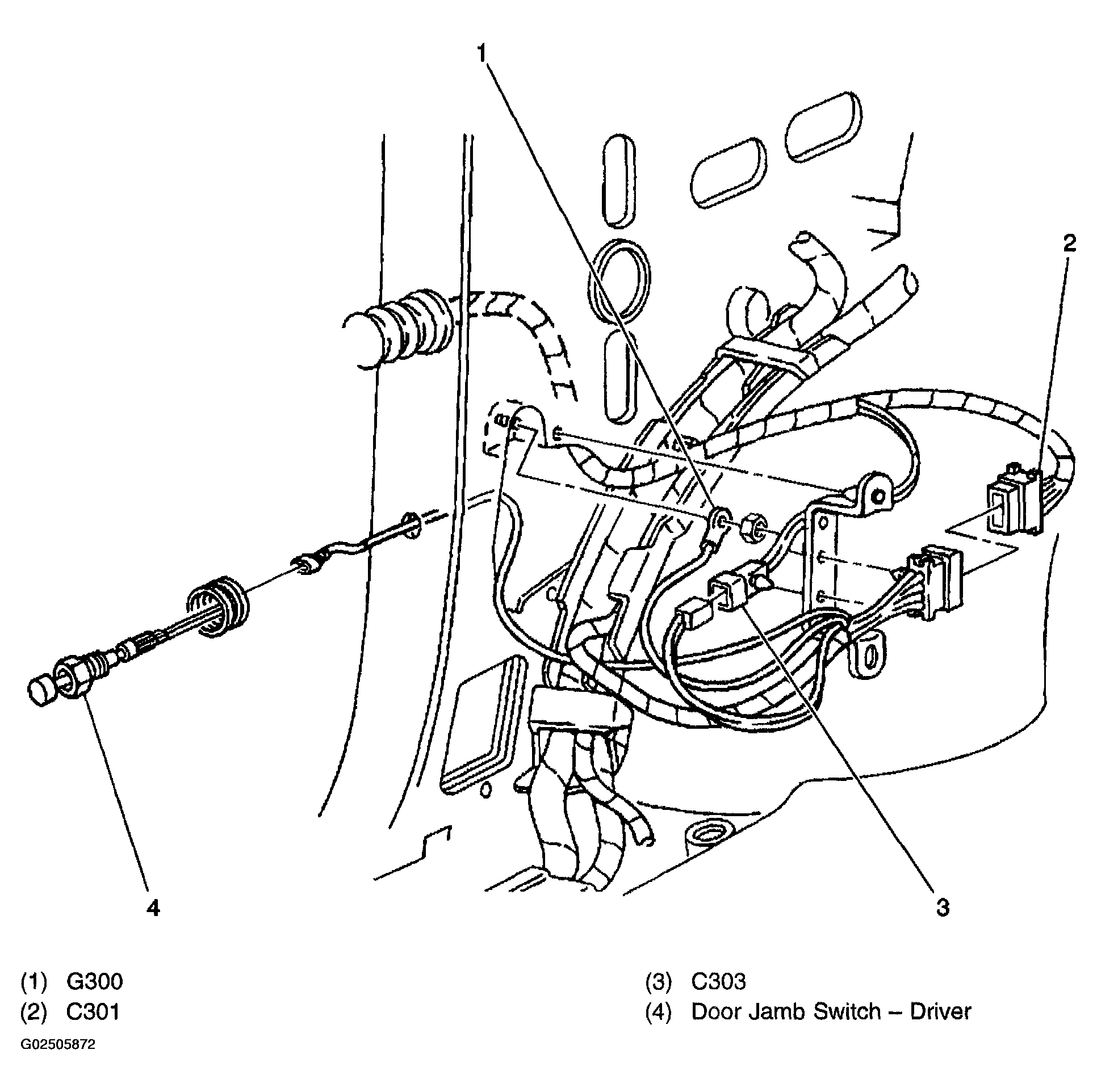

Fig 15: Locating Kick Panel Wiring (Driver Side)

G02505872

Courtesy of GENERAL MOTORS CORP.

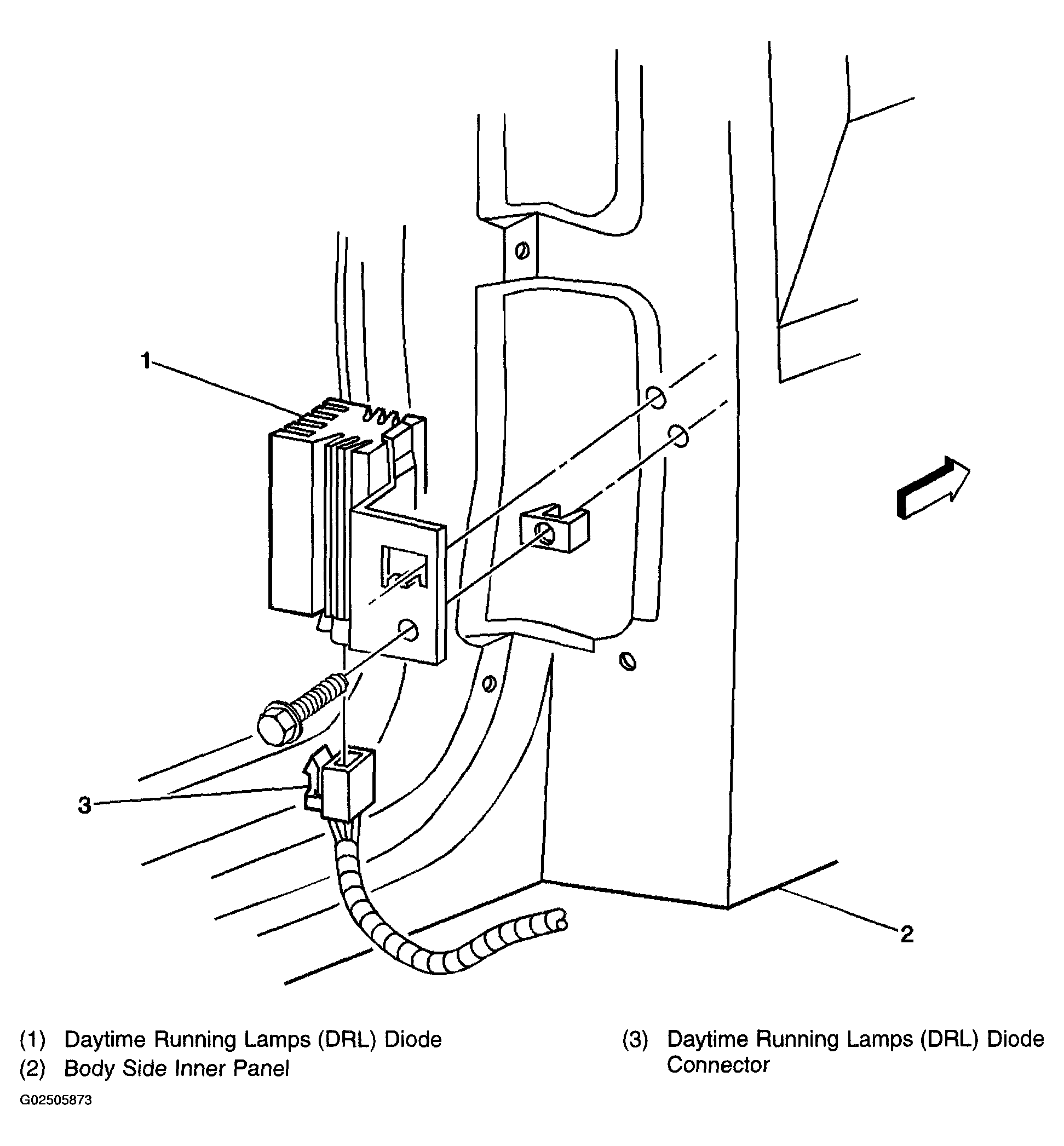

Fig 16: Locating Daytime Running Lamps (DRL) Diode Location View

G02505873

Courtesy of GENERAL MOTORS CORP.

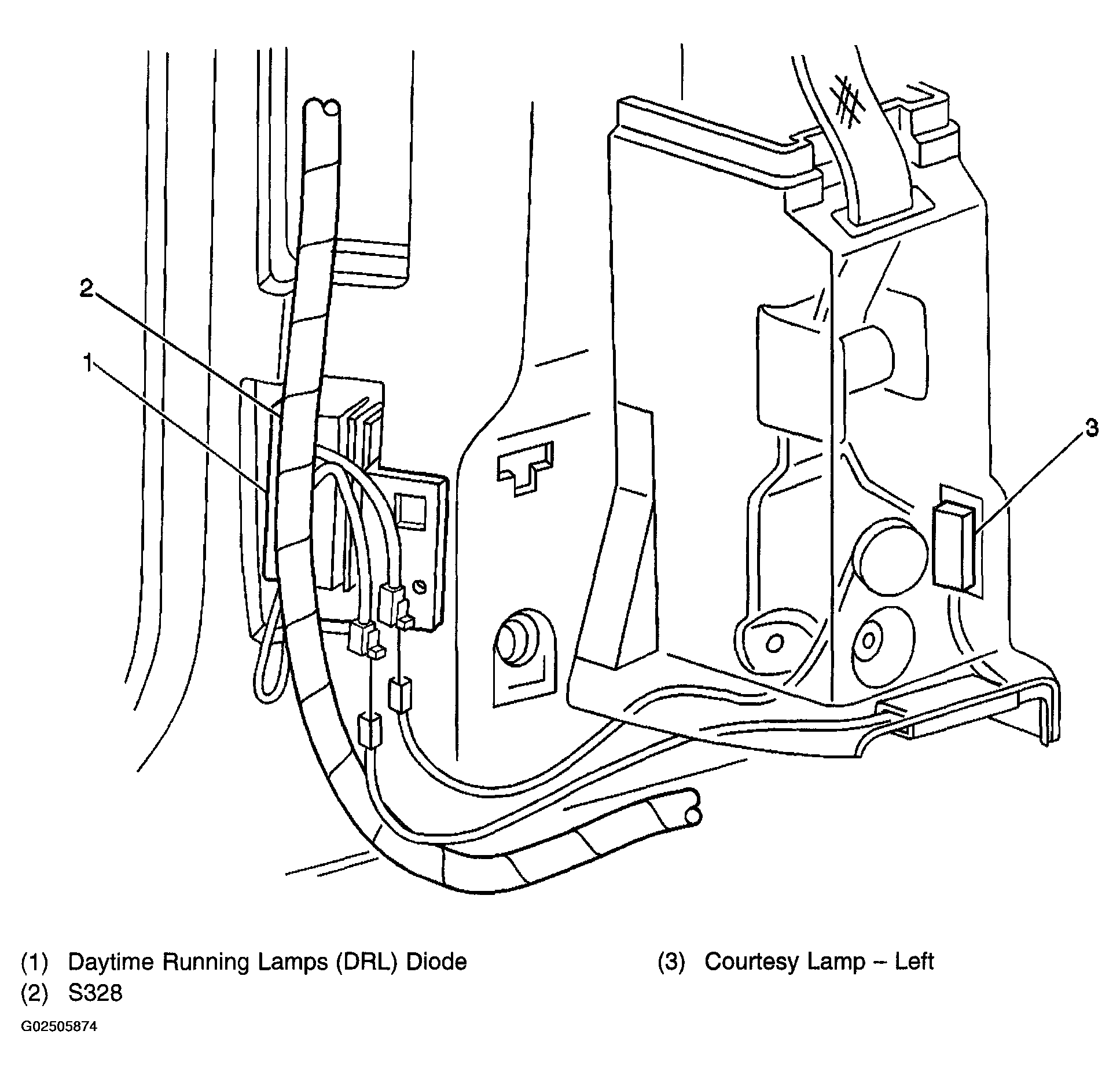

Fig 17: Locating Courtesy Lamp - Left Wiring

G02505874

Courtesy of GENERAL MOTORS CORP.

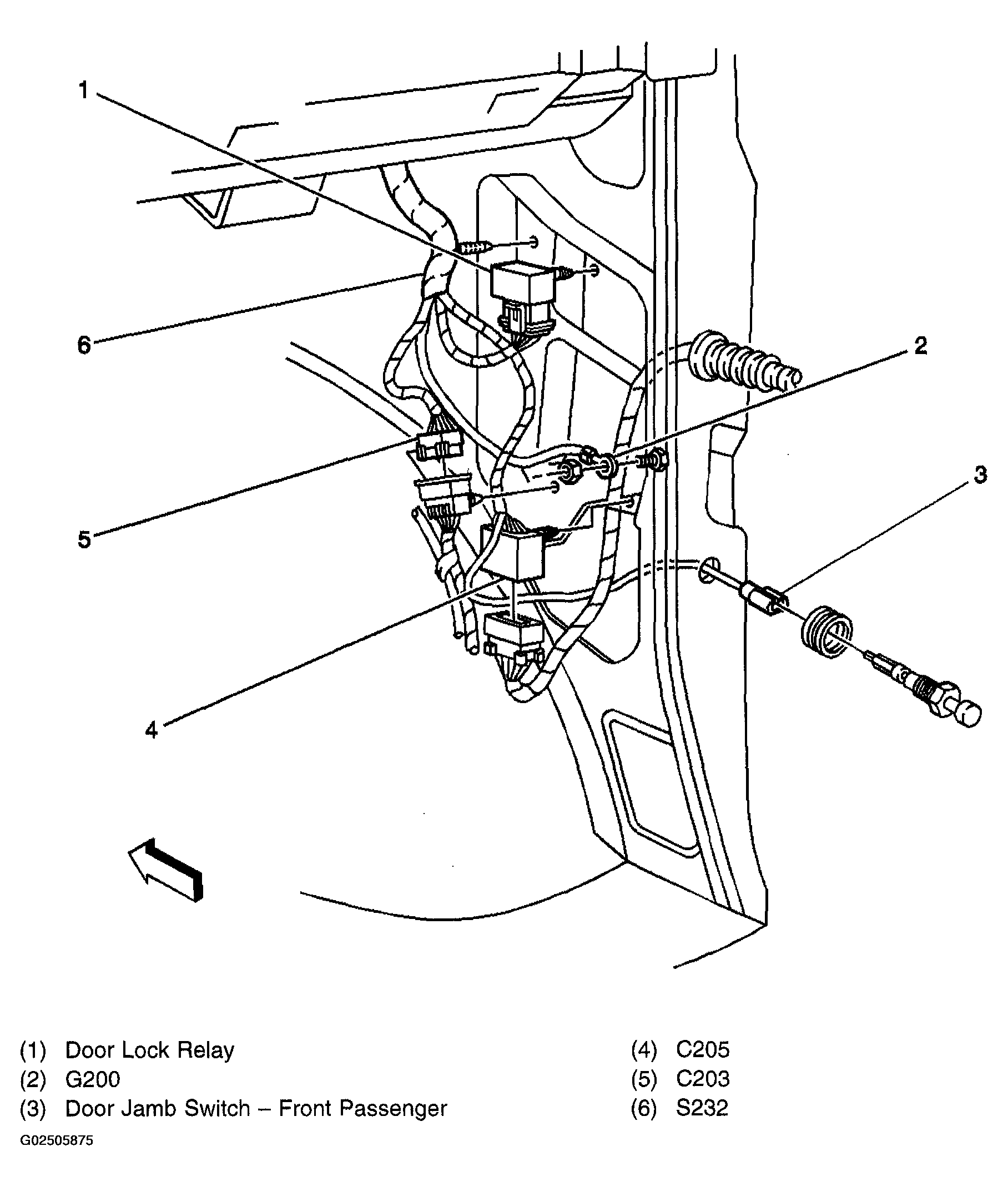

Fig 18: Locating I/P Wiring To Front Passenger Door

G02505875

Courtesy of GENERAL MOTORS CORP.

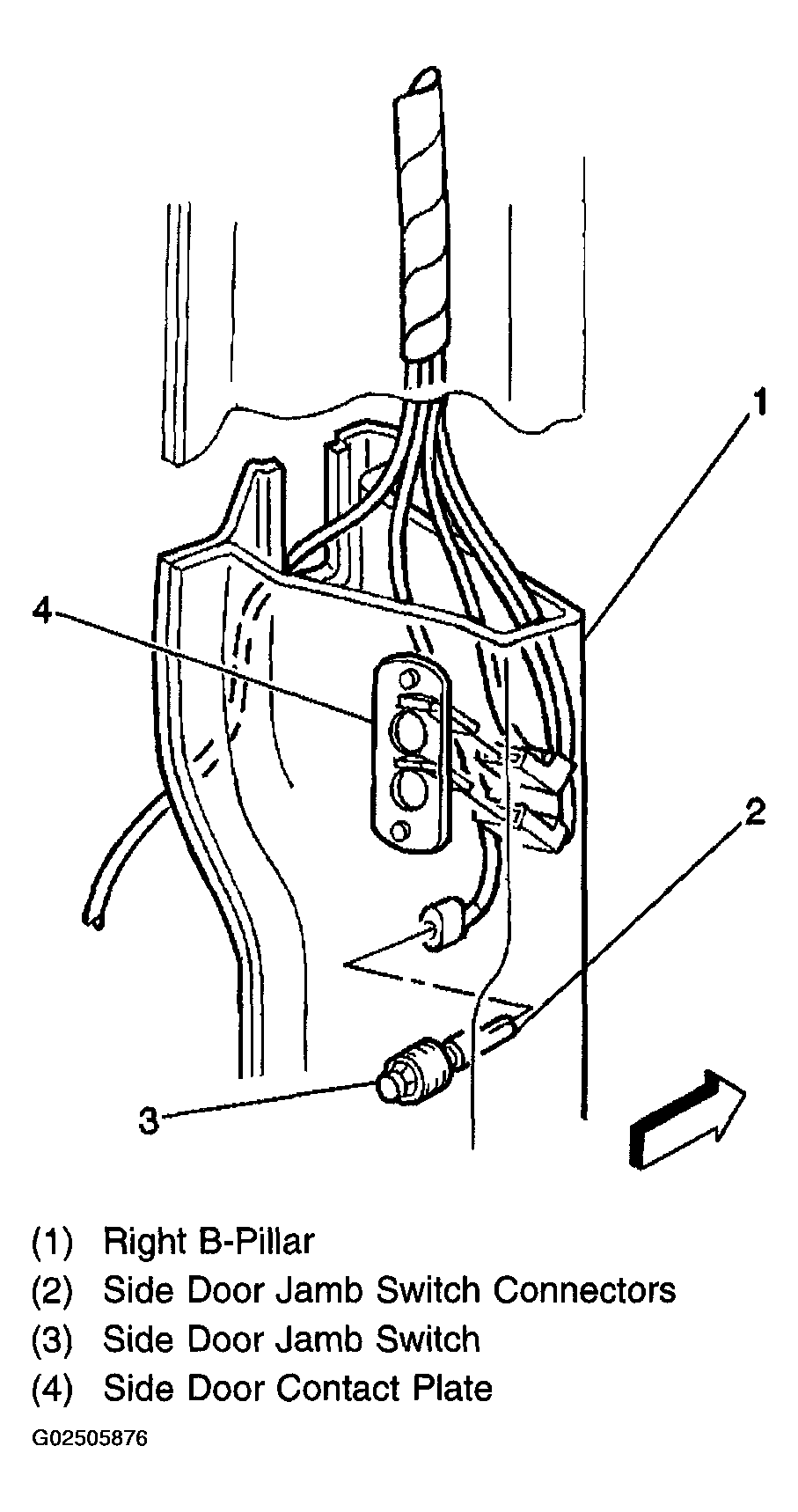

Fig 19: Locating Side Door Contact Plate & Side Door Jamb Switch Wiring

G02505876

Courtesy of GENERAL MOTORS CORP.

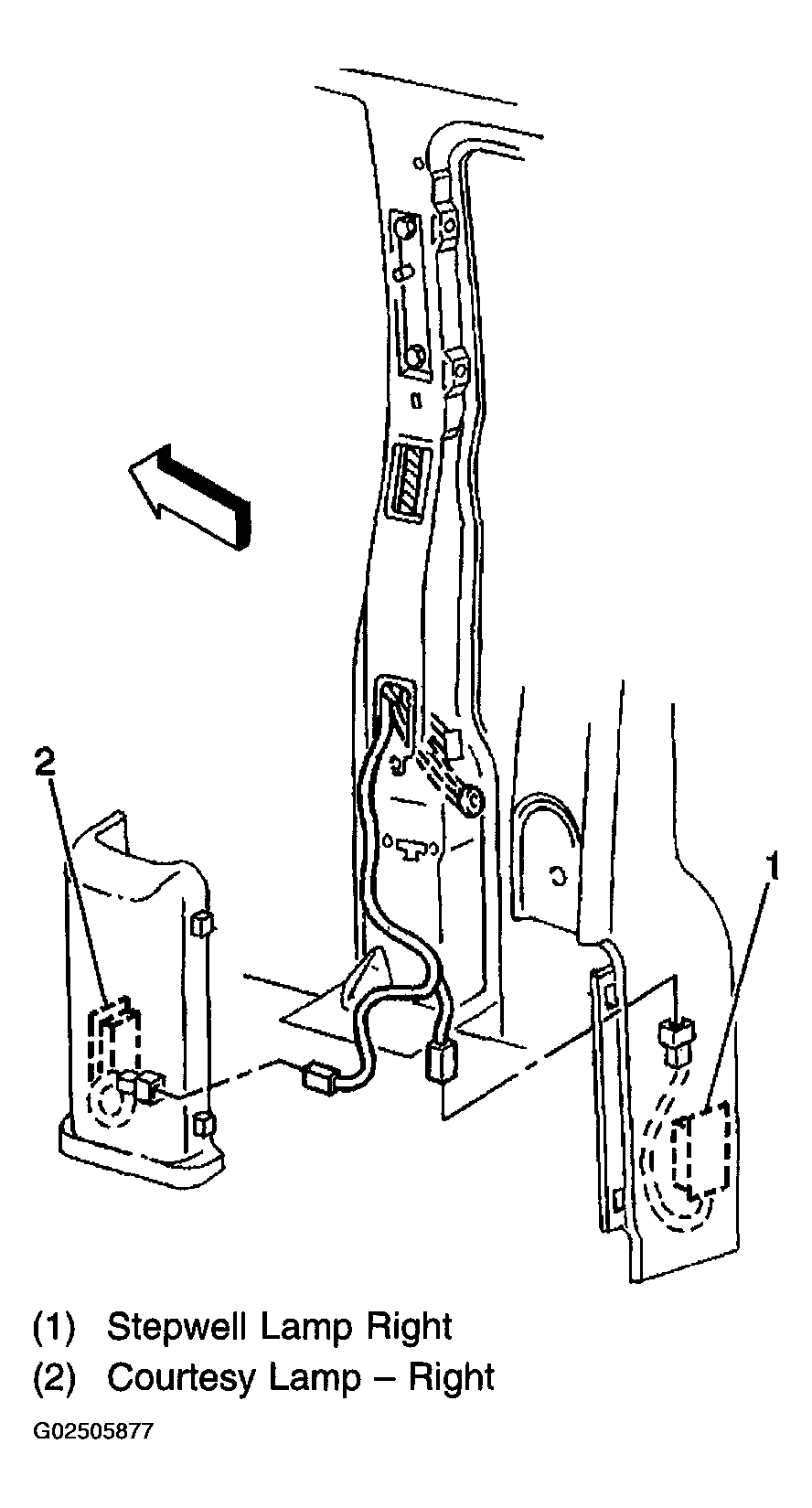

Fig 20: Locating Right B Pillar Wiring (Passenger Van)

G02505877

Courtesy of GENERAL MOTORS CORP.

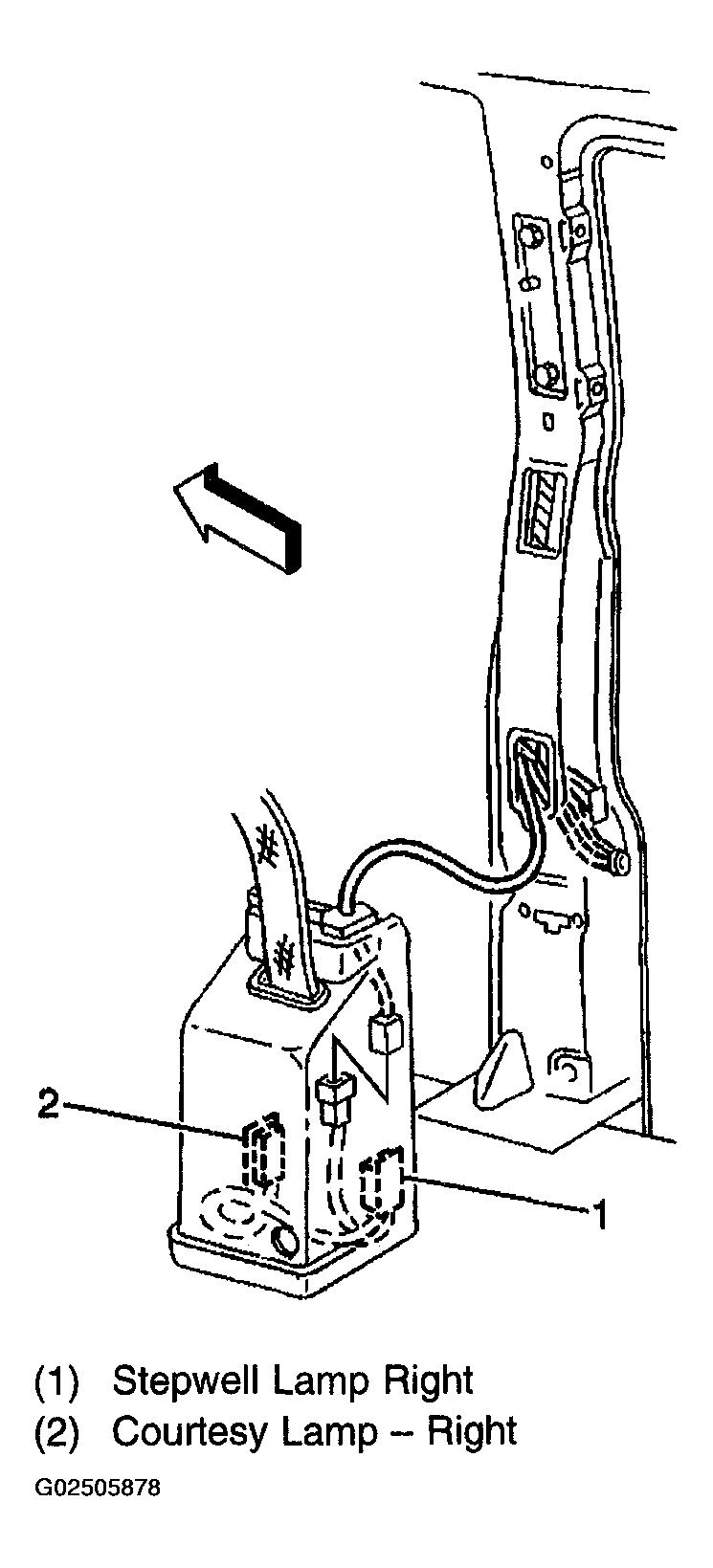

Fig 21: Locating Right B Pillar Wiring (Cargo Van)

G02505878

Courtesy of GENERAL MOTORS CORP.

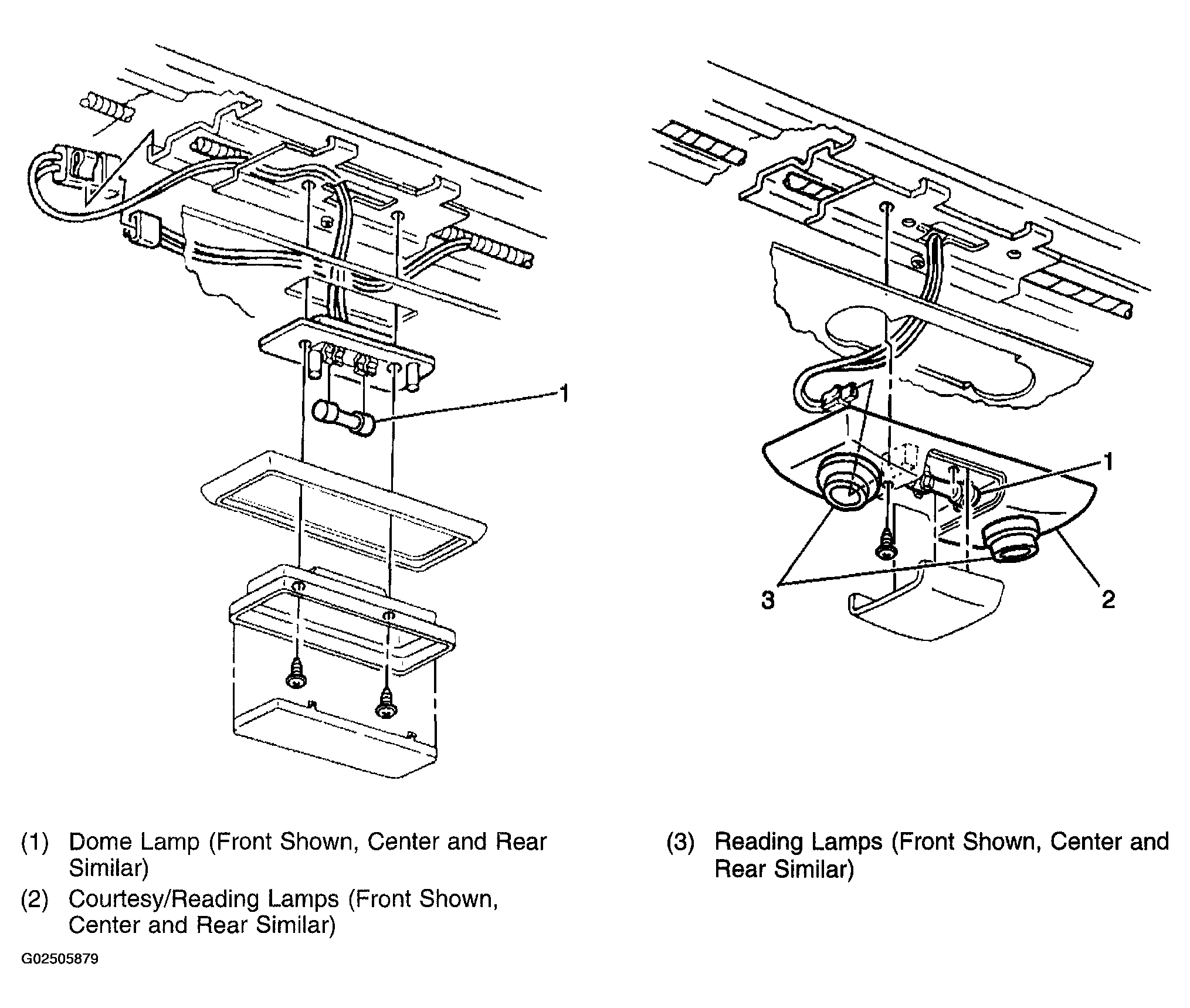

Fig 22: Locating Dome/Reading Lamp Wiring

G02505879

Courtesy of GENERAL MOTORS CORP.

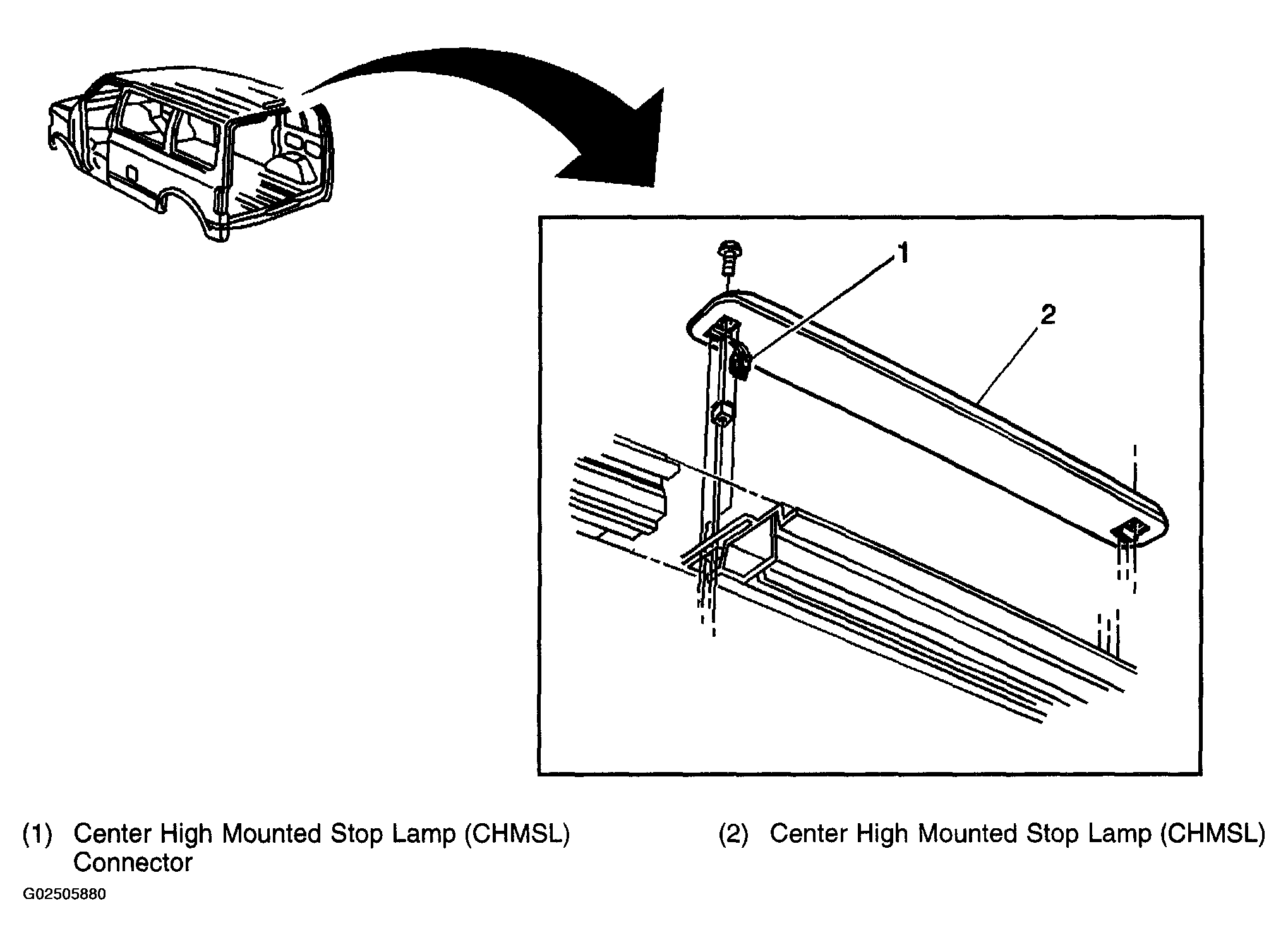

Fig 23: Locating Center High Mounted Stoplamp (CHMSL)

G02505880

Courtesy of GENERAL MOTORS CORP.

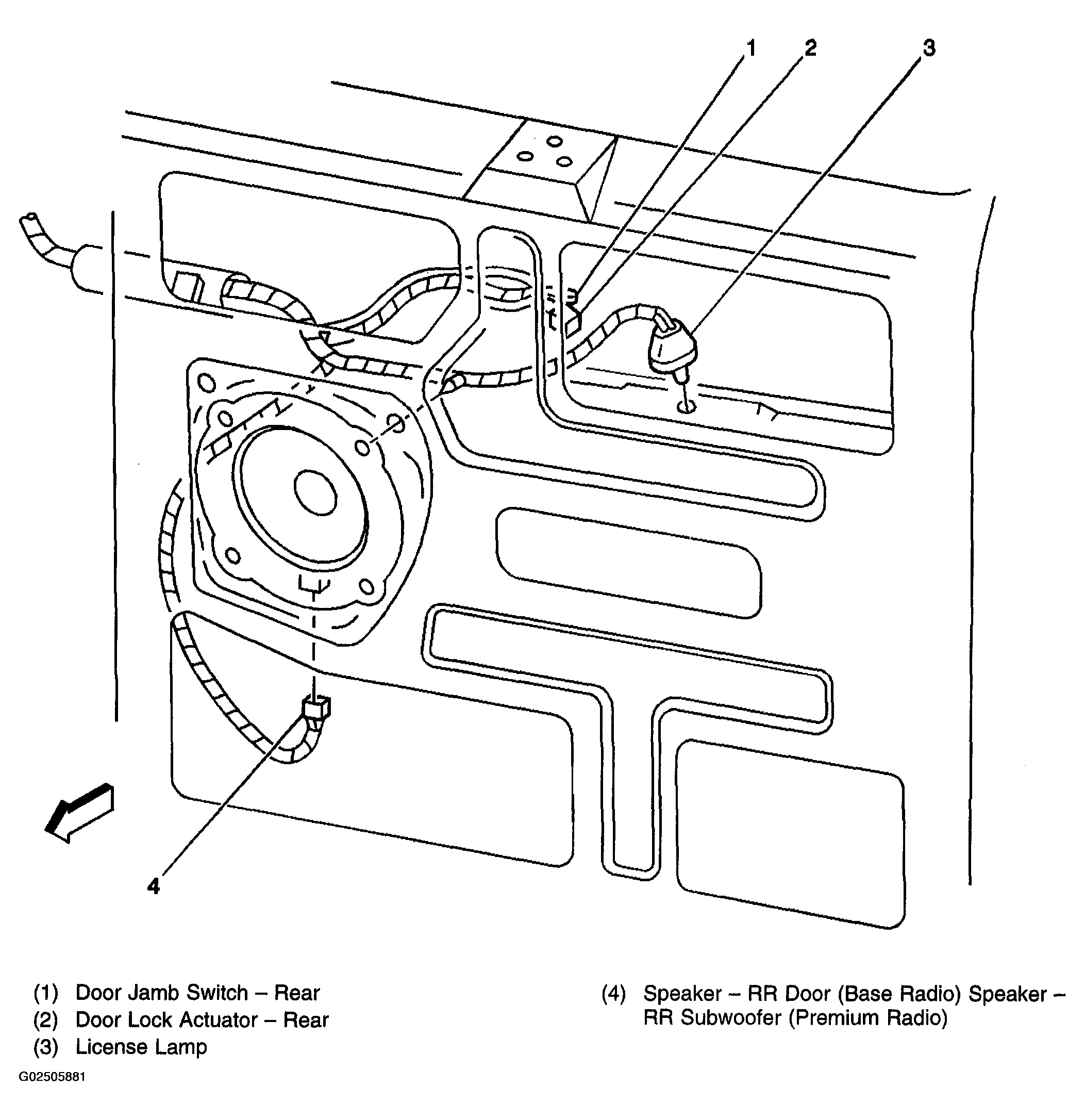

Fig 24: Locating Door Location View - Right Rear

G02505881

Courtesy of GENERAL MOTORS CORP.

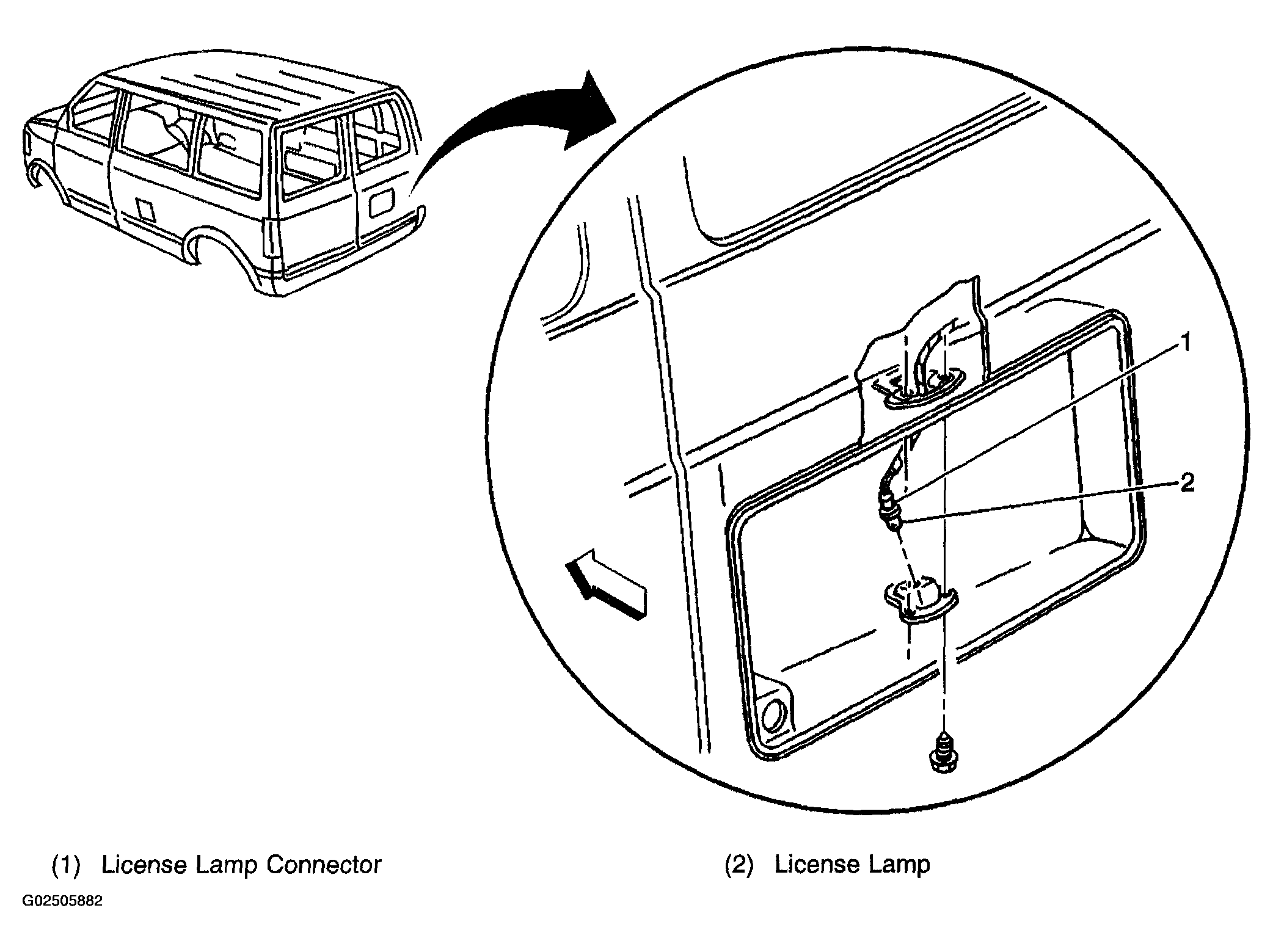

Fig 25: Locating License Plate Wiring

G02505882

Courtesy of GENERAL MOTORS CORP.

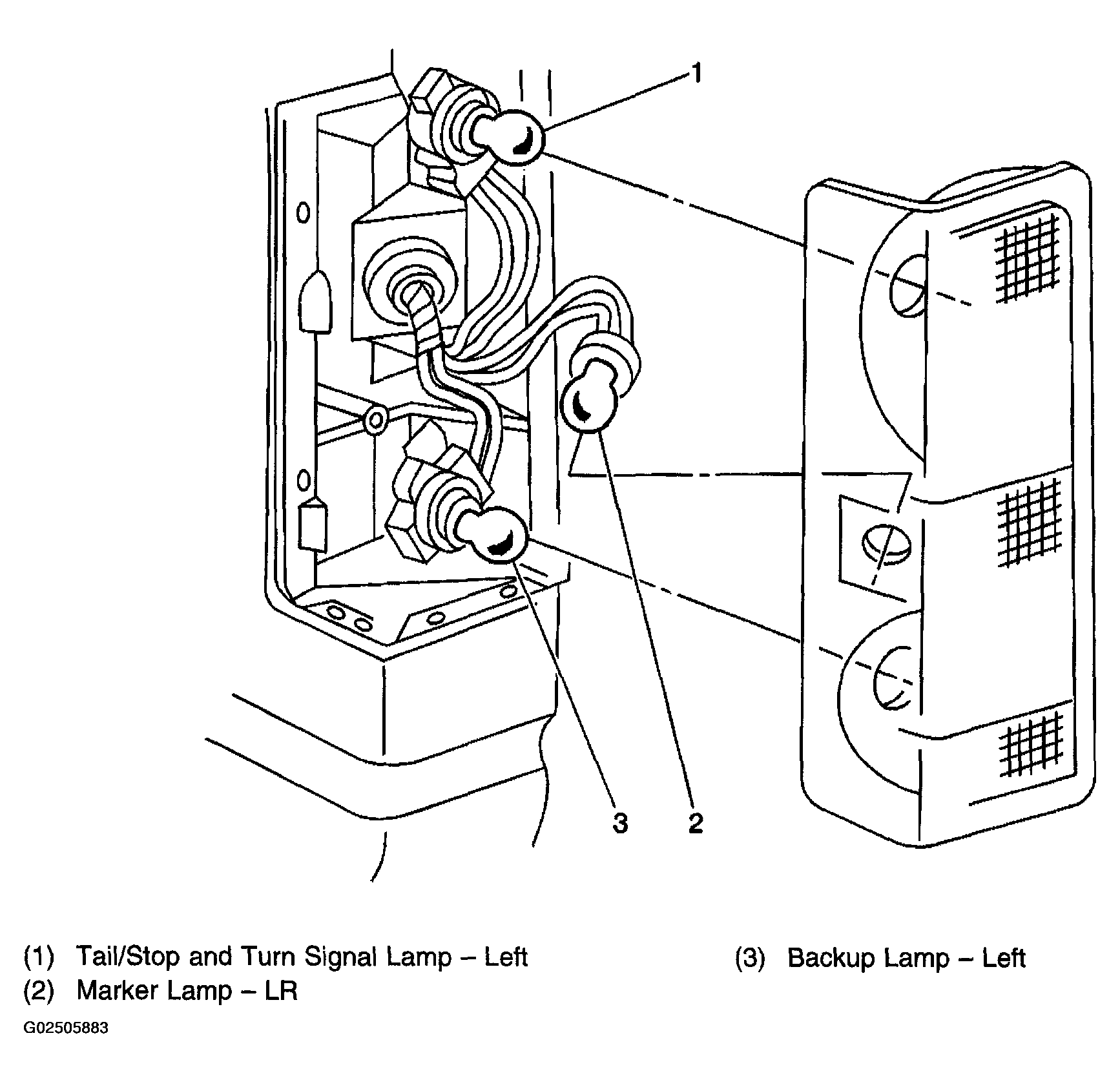

Fig 26: Locating Rear Lamps Wiring (Left Shown, Right Similar) - Except Export

G02505883

Courtesy of GENERAL MOTORS CORP.
